Nissan Rogue. Manual - part 674





DOOR SASH MOLDING

EXT-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

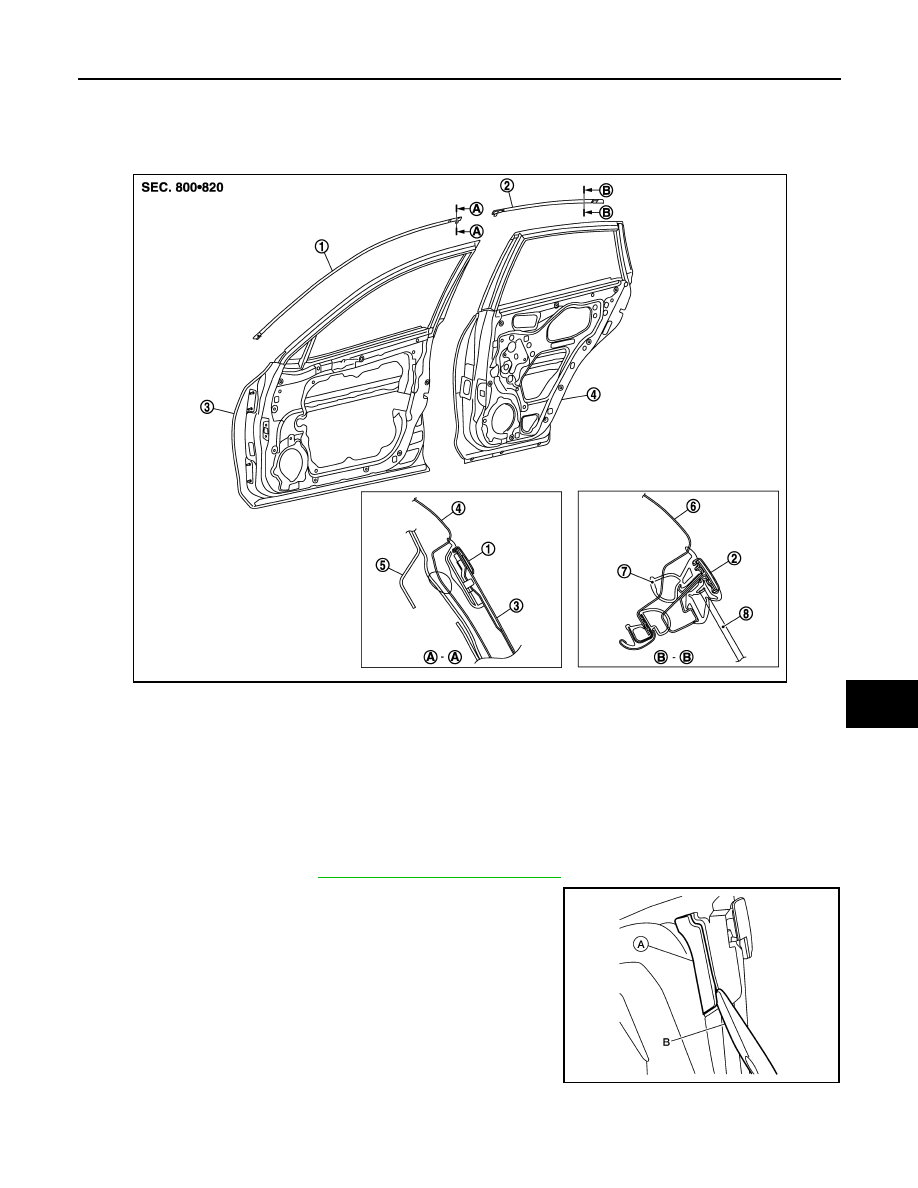

DOOR SASH MOLDING

Exploded View

INFOID:0000000011280052

Removal and Installation

INFOID:0000000011280053

FRONT DOOR

Removal

1. Remove door mirror. Refer to

MIR-22, "Removal and Installation"

.

2. Remove front door sash molding clip (A) using a suitable tool

(B).

CAUTION:

Do not reuse the clip (A).

1.

Front door sash molding

2.

Rear door rear sash molding

3.

Front door panel

4.

Rear door panel

5.

Roof rail side outer

6.

Body side outer

7.

Rear door weather strip

8.

Rear door glass

JMKIA2204ZZ

ALKIA2652ZZ

EXT-42

< REMOVAL AND INSTALLATION >

DOOR SASH MOLDING

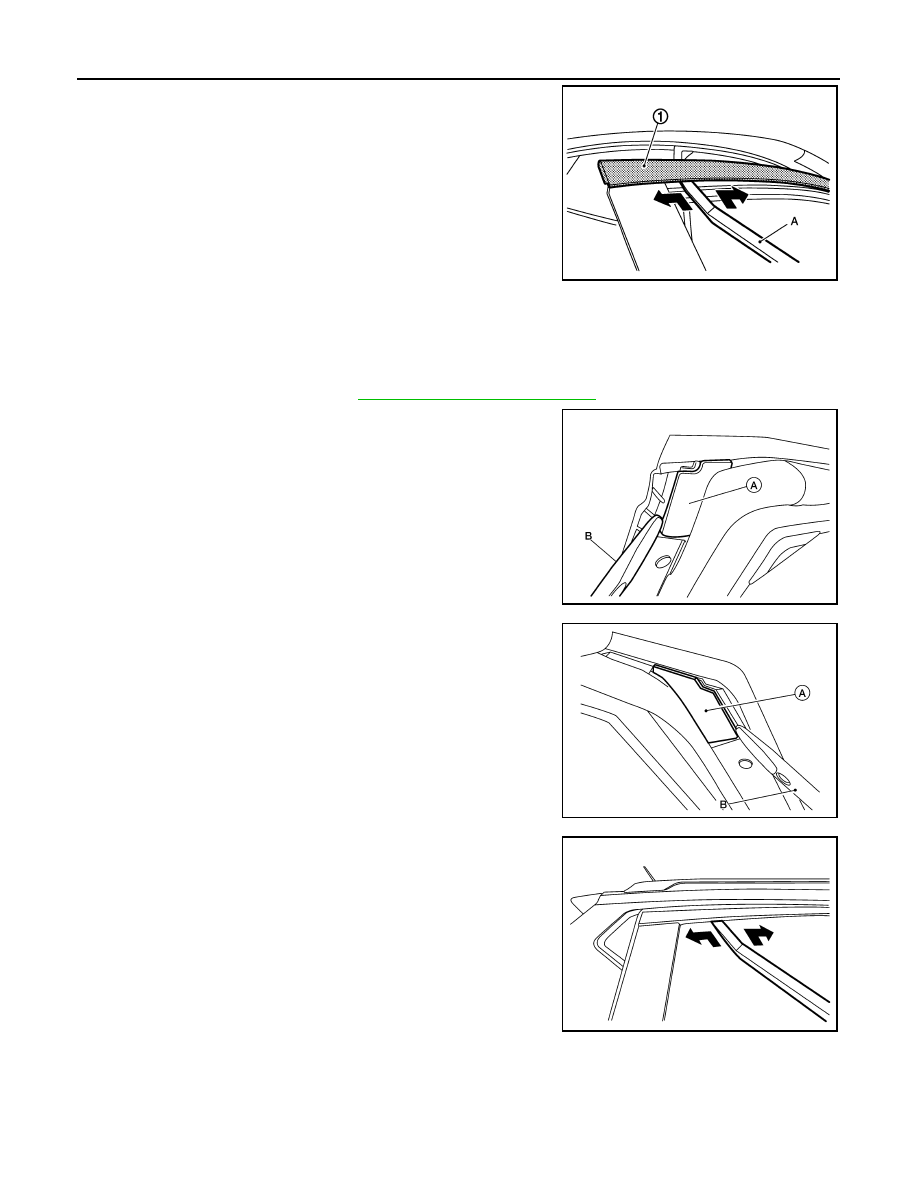

3. Using a suitable tool (A) release front door sash molding (1) as

shown and remove.

Installation

Installation is in the reverse order of removal.

REAR DOOR

Removal

1. Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove rear door front sash molding clip (A) using a suitable

tool (B).

CAUTION:

Do not reuse the clip (A).

3. Remove rear door rear sash molding clip (A) using a suitable

tool (B).

CAUTION:

Do not reuse the clip (A).

4. Using a suitable tool (A) release rear door sash molding (1) as

shown and remove.

Installation

Installation is in the reverse order of removal.

JMKIA2206ZZ

ALKIA2655ZZ

ALKIA2656ZZ

AWKIA3216ZZ

DOOR OUTSIDE MOLDING

EXT-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

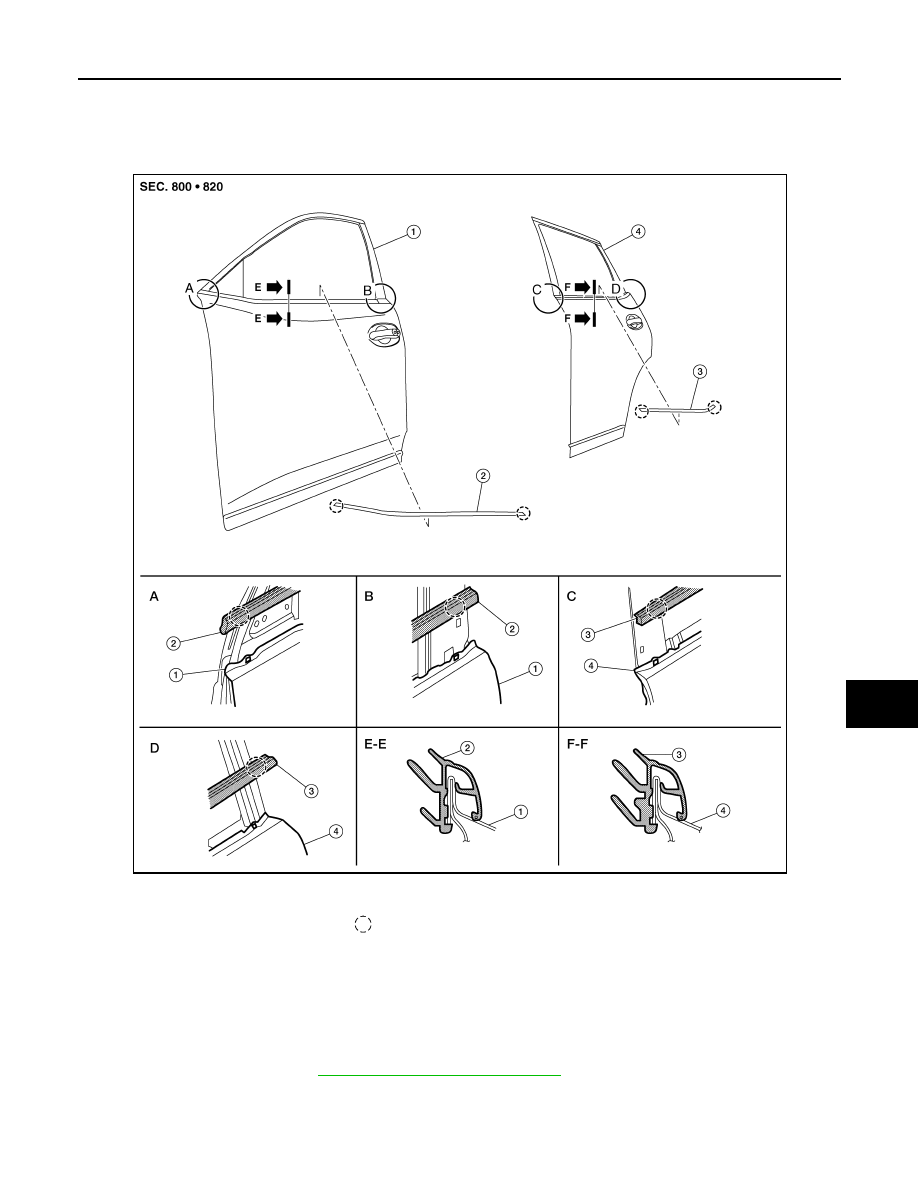

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000011280054

Removal and Installation

INFOID:0000000011280055

FRONT DOOR OUTSIDE MOLDING

Removal

1. Lower front door glass.
2. Remove door mirror. Refer to

MIR-22, "Removal and Installation"

.

1.

Front door panel

2. Front door outside molding

3. Rear door panel

4.

Rear door outside molding

Pawl

AWKIA2904ZZ

EXT-44

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

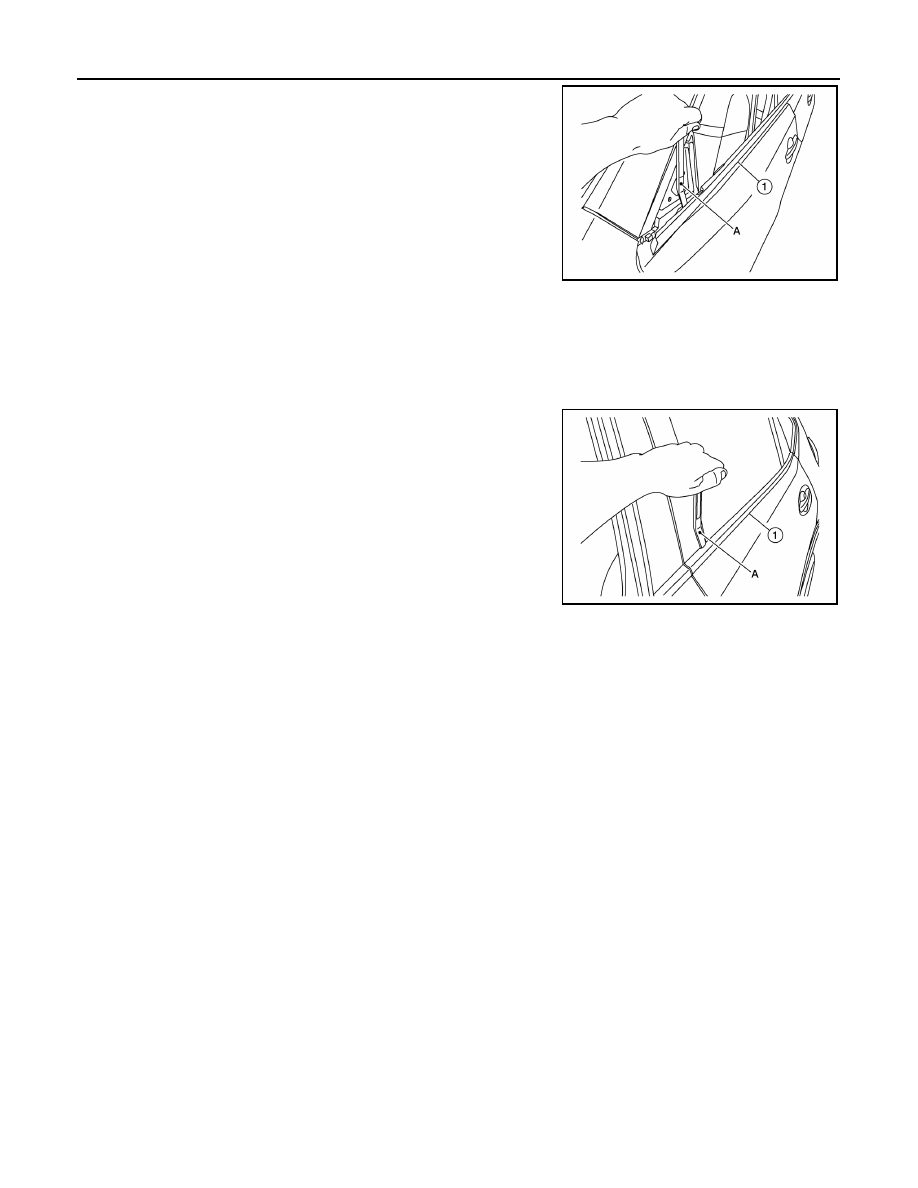

3. Release front pawl then rear pawl using a suitable tool (A) and

remove door outside molding (1).

Installation

Installation is in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING

Removal

1. Lower rear door glass.
2. Release front pawl then rear pawl using a suitable tool (A) and

remove door outside molding (1).

Installation

Installation is in the reverse order of removal.

ALKIA3380ZZ

ALKIA3381ZZ
