Nissan Rogue. Manual - part 672

OVER FENDER

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

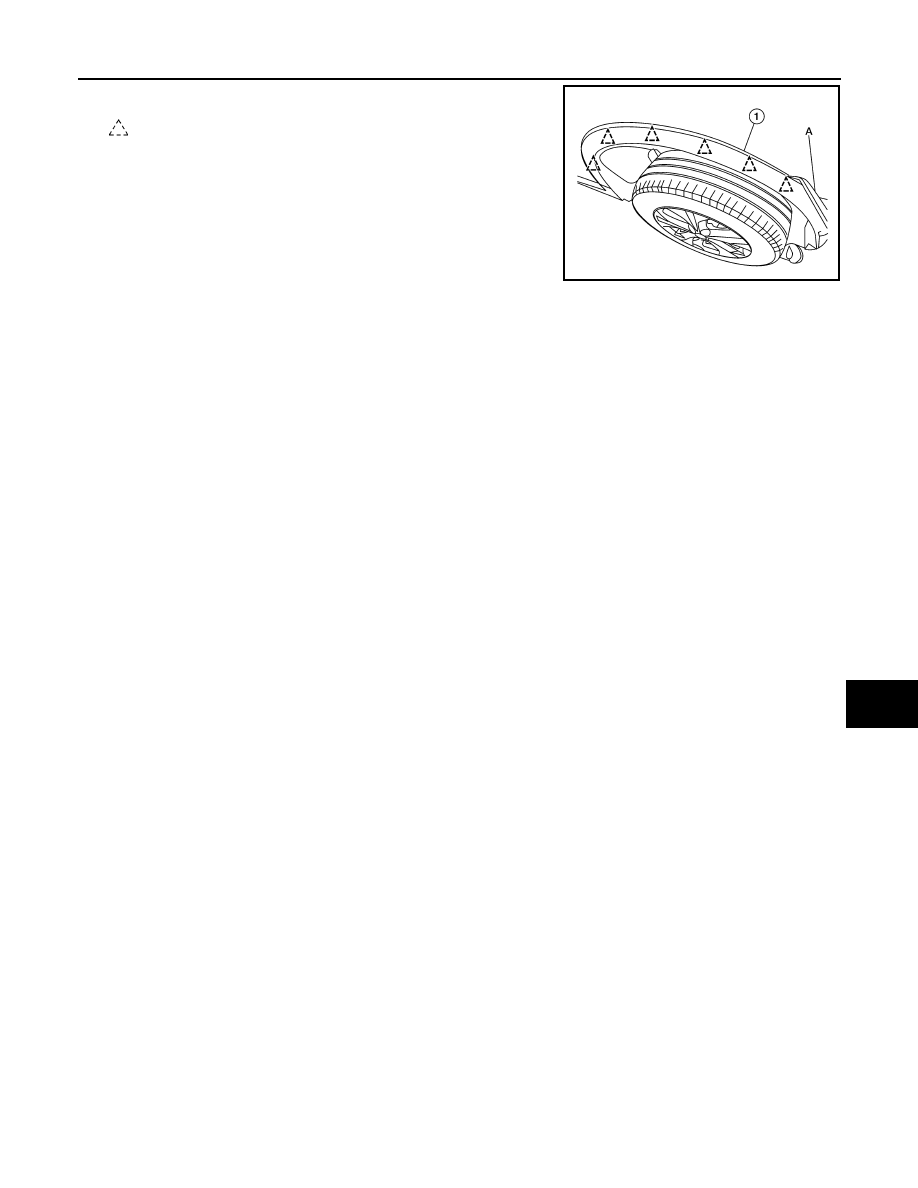

2. Release clips using suitable tool (A) and remove rear over

fender (1).

: Clips

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing over fender, check that clips are securely placed in body panel holes.

ALKIA3396ZZ

EXT-34

< REMOVAL AND INSTALLATION >

MUDGUARD

MUDGUARD

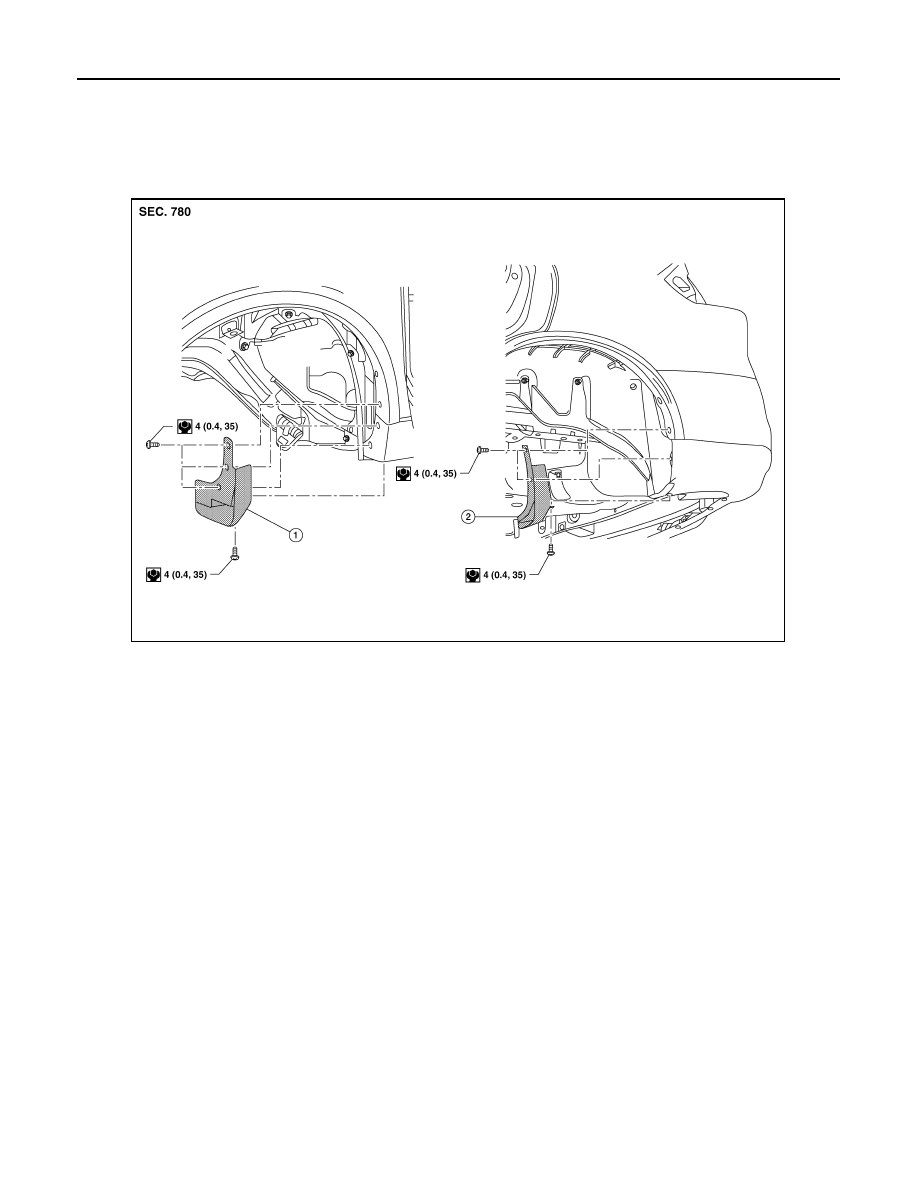

Exploded View

INFOID:0000000011280043

Removal and Installation

INFOID:0000000011280044

FRONT MUDGUARD

Removal

Remove front mudguard screws and remove front mudguard.

Installation

Installation is in the reverse order of removal.

REAR MUDGUARD

Removal

Remove rear mudguard screws and remove rear mudguard.

Installation

Installation is in the reverse order of removal.

1.

Front mudguard

2.

Rear mudguard

AWKIA2905ZZ

MUDGUARD

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

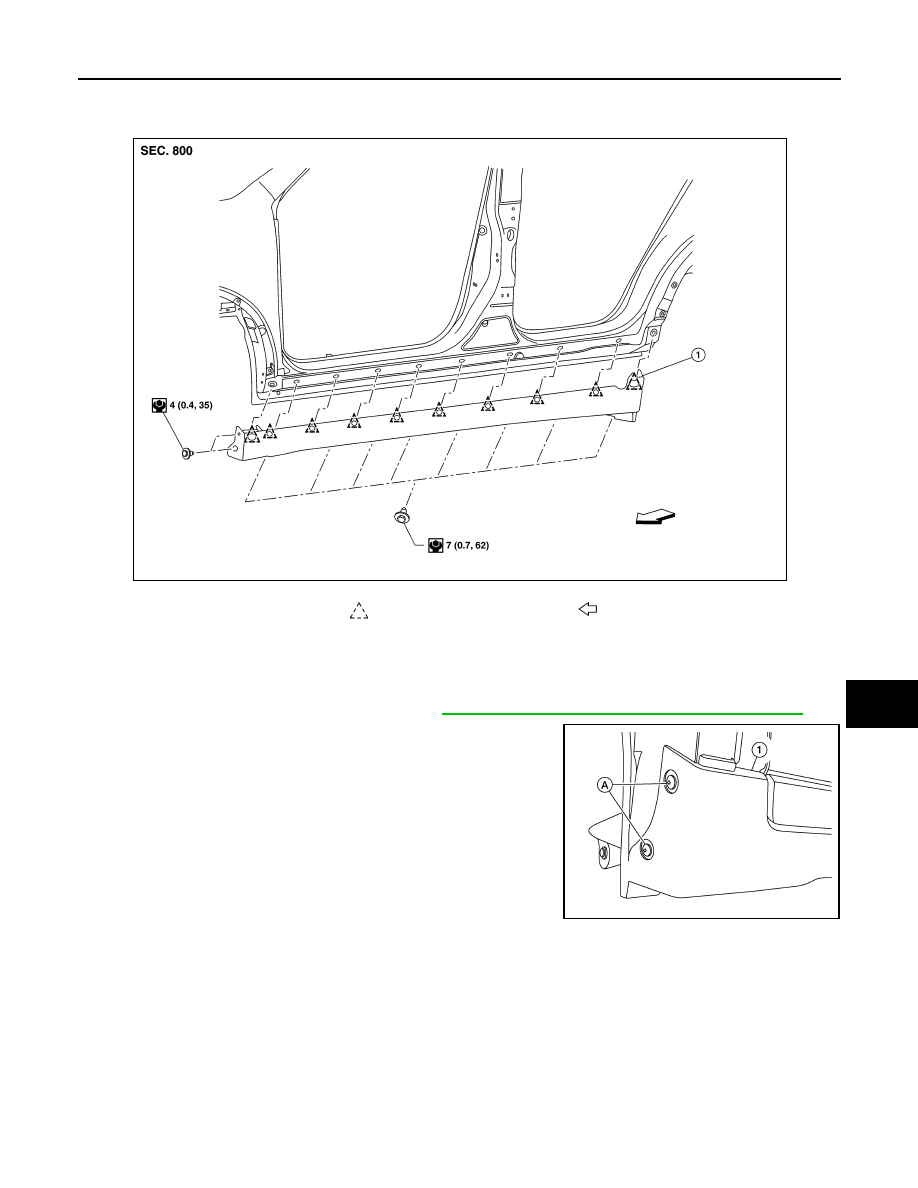

Exploded View - Center Mudguard

INFOID:0000000011280045

Removal and Installation - Center Mudguard

INFOID:0000000011280046

REMOVAL

1. Partially remove over fender moldings. Refer to

EXT-30, "FRONT OVER FENDER : Exploded View"

.

2. Remove screws (A) from center mudguard (1).

3. Remove center mudguard bolts.

1.

Center mudguard

Clip

Front

AWKIA3205ZZ

ALKIA3370ZZ

EXT-36

< REMOVAL AND INSTALLATION >

MUDGUARD

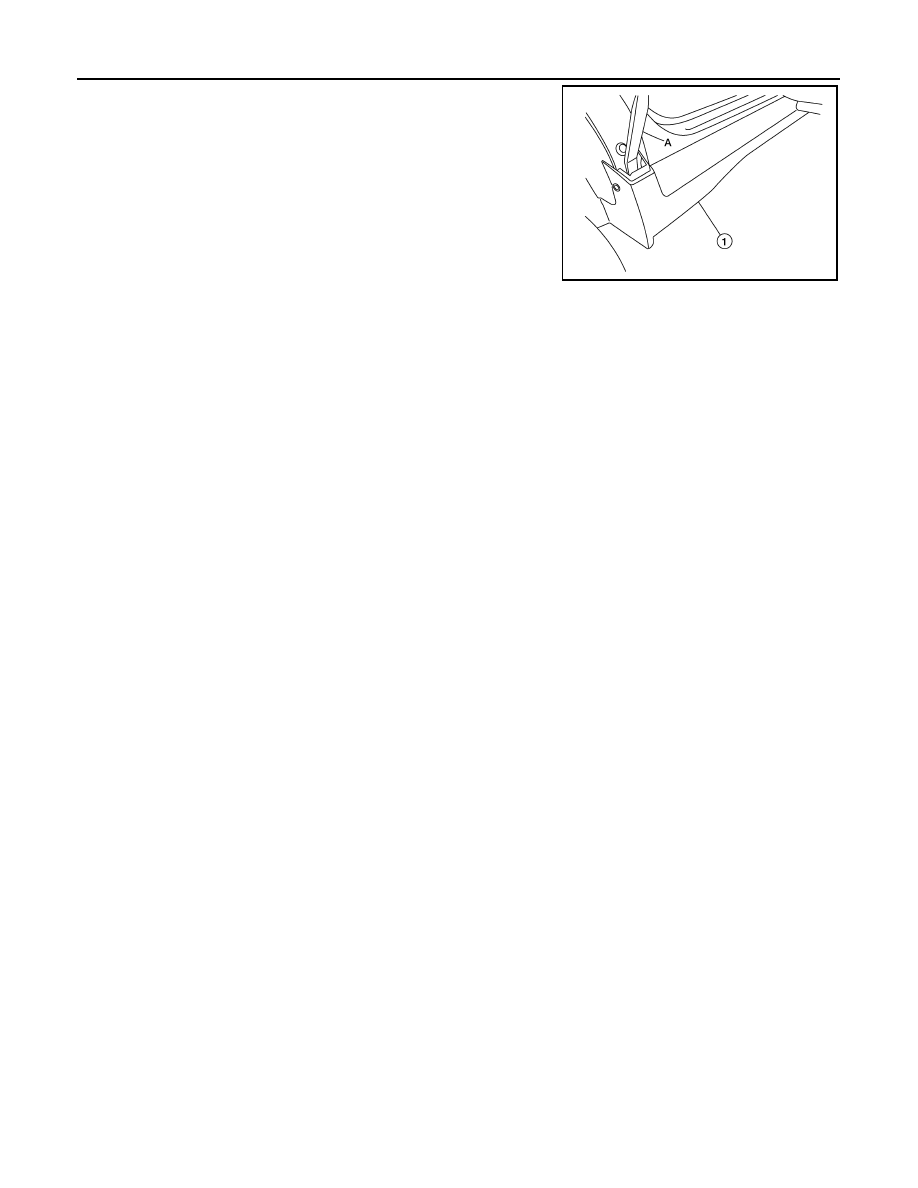

4. Release center mudguard clips with a suitable tool (A) and

remove the center mudguard (1).

CAUTION:

Release clips slowly and carefully.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing center mudguard, check that clips are securely placed in body panel holes.

ALKIA3374ZZ
