COWL TOP

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

COWL TOP

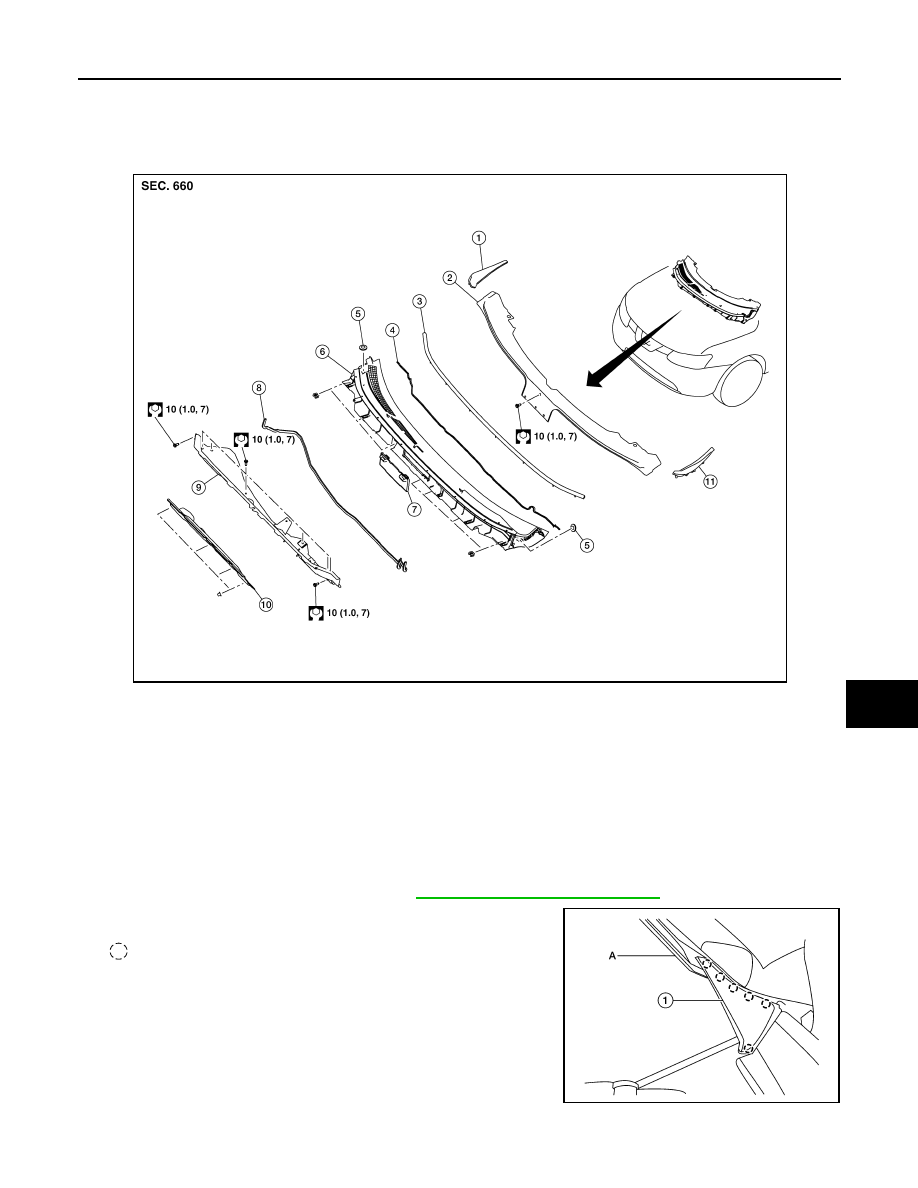

Exploded View

INFOID:0000000011280033

Removal and Installation

INFOID:0000000011280034

COWL TOP COVER

Removal

1. Remove front wiper arms (LH/RH). Refer to

WW-62, "Removal and Installation"

.

2. Release pawls using suitable tool (A) and remove cowl top side

trim cover (1) (LH/RH).

: Pawl

1.

Cowl top side trim cover (RH)

2.

Cowl top cover screen

3.

Cowl top cover seal

4.

EPT seal

5.

Cowl top cover plug

6.

Cowl top cover

7.

Cowl top cover mask

8.

Cowl top extension seal

9.

Cowl top extension

10. Cowl top insulation

11. Cowl top side trim cover (LH)

AWKIA2902ZZ

ALKIA3399ZZ

EXT-26

< REMOVAL AND INSTALLATION >

COWL TOP

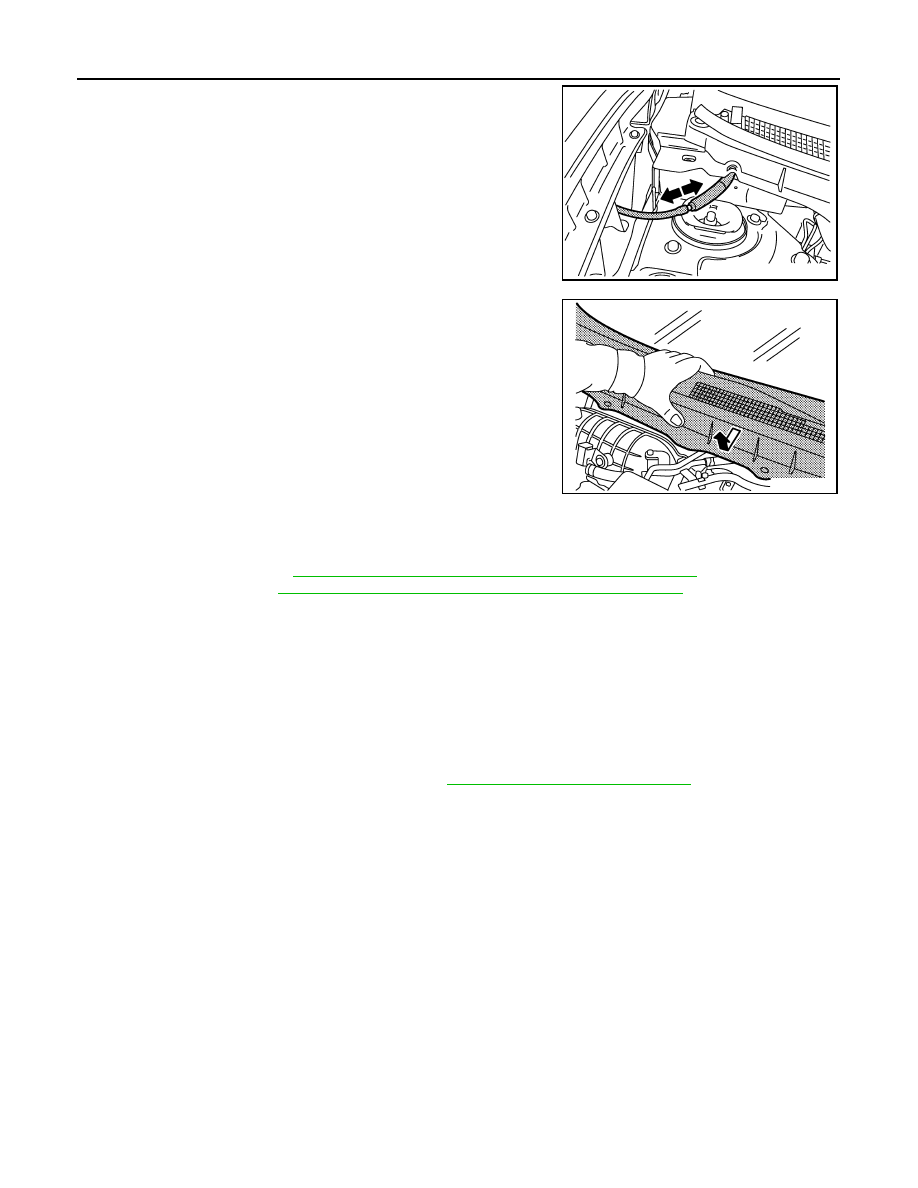

3. Disconnect front washer tube connector.

4. Remove cowl top cover clips, then pull forward to release cowl

top cover and remove.

CAUTION:

When performing the procedure after removing cowl top

cover, cover the lower end of windshield glass with ure-

thane etc.

5. Remove the following parts after removing cowl top cover (if necessary).

• Cowl top cover seal.

• Cowl top cover plug.

• Washer nozzle. Refer to

WW-59, "Removal and Installation - Front Washer Nozzle"

.

• Washer tube. Refer to

WW-59, "Removal and Installation - Front Washer Nozzle"

.

• EPT seal.

Installation

Installation is in the reverse order of removal.

CAUTION:

When installing cowl top cover, check that clips are securely fitted in body panel holes and then press

them in.

COWL TOP EXTENSION

Removal

1. Remove the front wiper drive assembly. Refer to

WW-68, "Removal and Installation"

.

2. Remove the cowl top extension bolts and the cowl top extension.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

JMKIA1316ZZ

JMKIA1317ZZ

COWL TOP

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

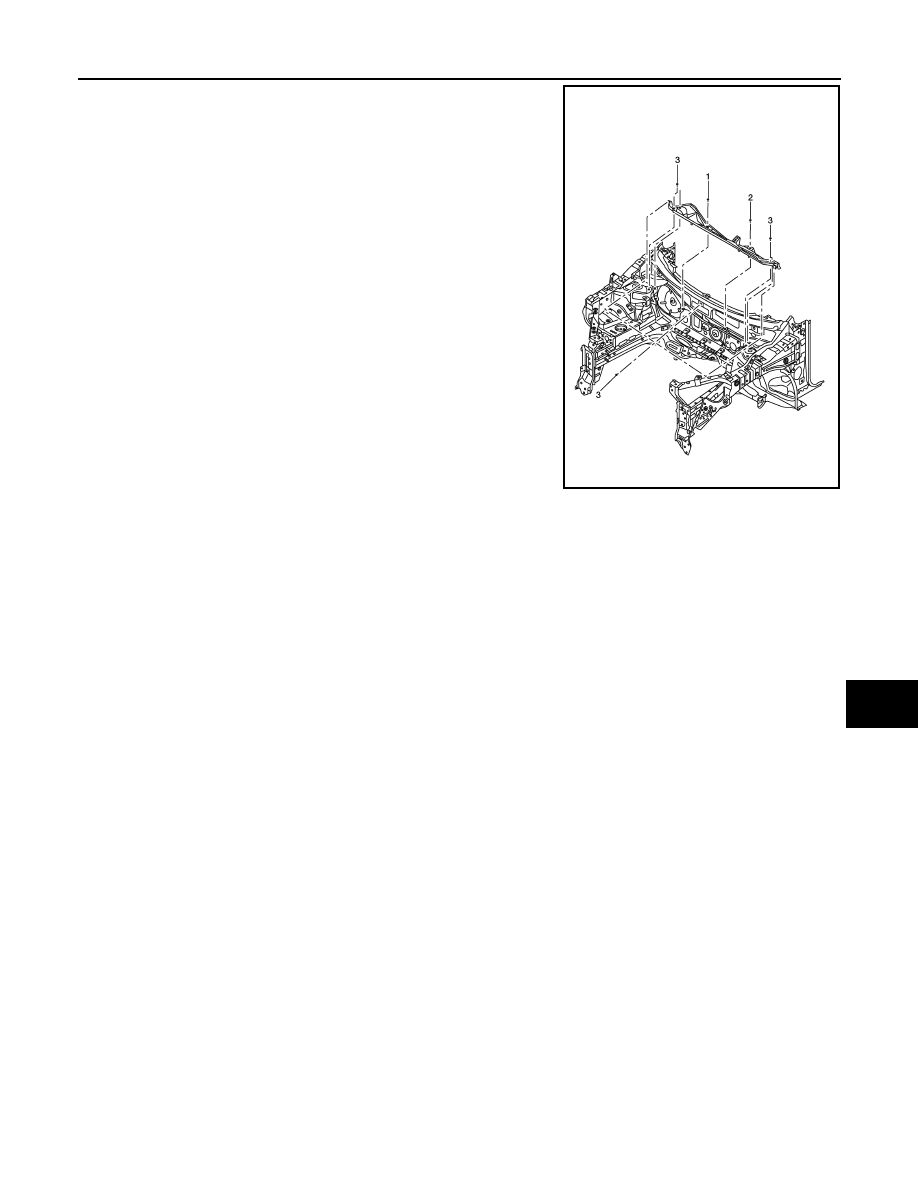

When installing the cowl top extension, tighten the bolts to specifica-

tion in the order shown.

AWKIA2903ZZ

EXT-28

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

FENDER PROTECTOR

FENDER PROTECTOR

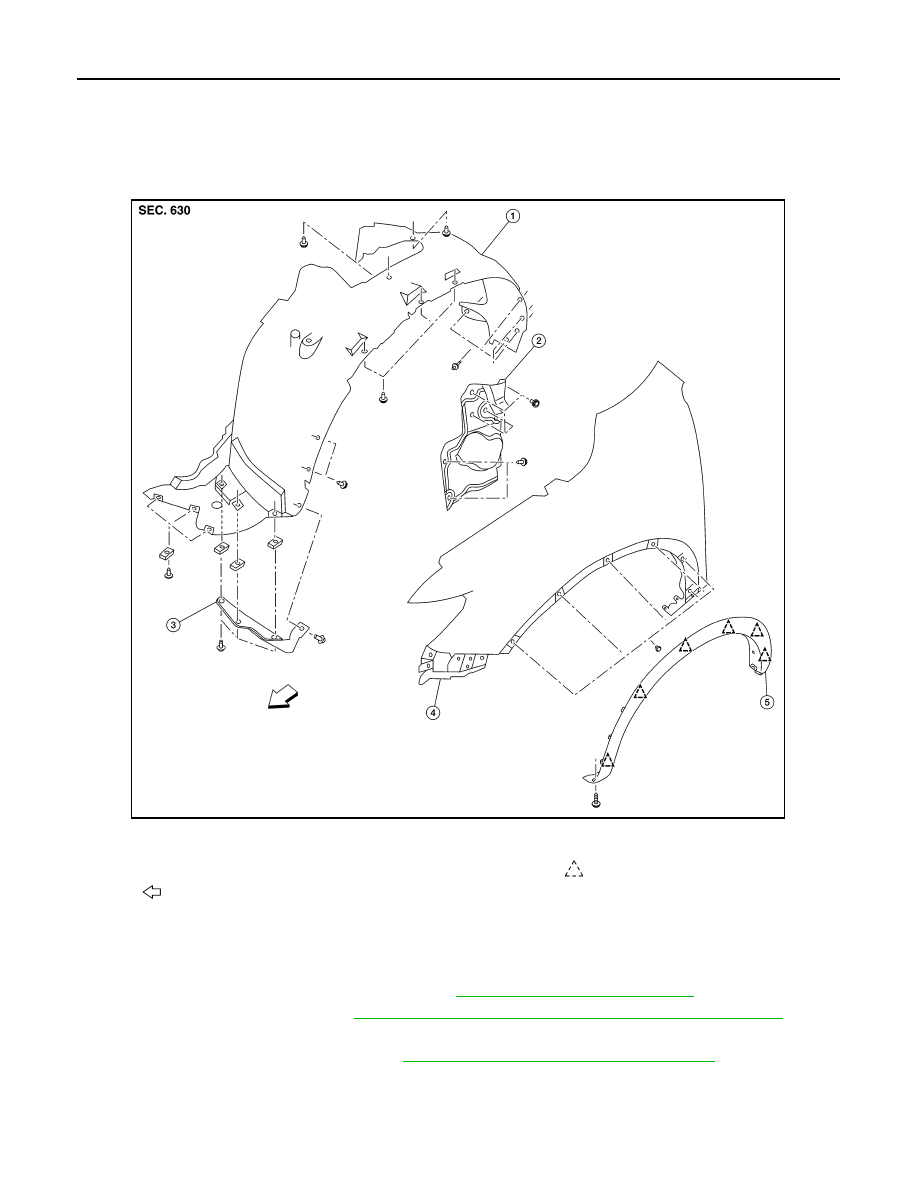

FENDER PROTECTOR : Exploded View

INFOID:0000000011280035

FENDER PROTECTOR : Removal and Installation

INFOID:0000000011280036

REMOVAL

1. Remove wheel and tire using power tool. Refer to

WT-67, "Removal and Installation"

.

2. Remove front over fender. Refer to

EXT-30, "FRONT OVER FENDER : Removal and Installation"

.

3. Remove front air spoiler.
4. Remove center mudguard screw. Refer to

EXT-35, "Exploded View - Center Mudguard"

.

5. Remove engine side cover.
6. Release front fender protector clips and remove front fender protector.

INSTALLATION

1.

Front fender protector

2.

Engine side cover

3.

Wind deflector

4.

Front fender

5.

Front over fender

Clip

Front

AWKIA3204ZZ
