FRONT BUMPER

EXT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000011280028

REMOVAL

CAUTION:

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily

substances.

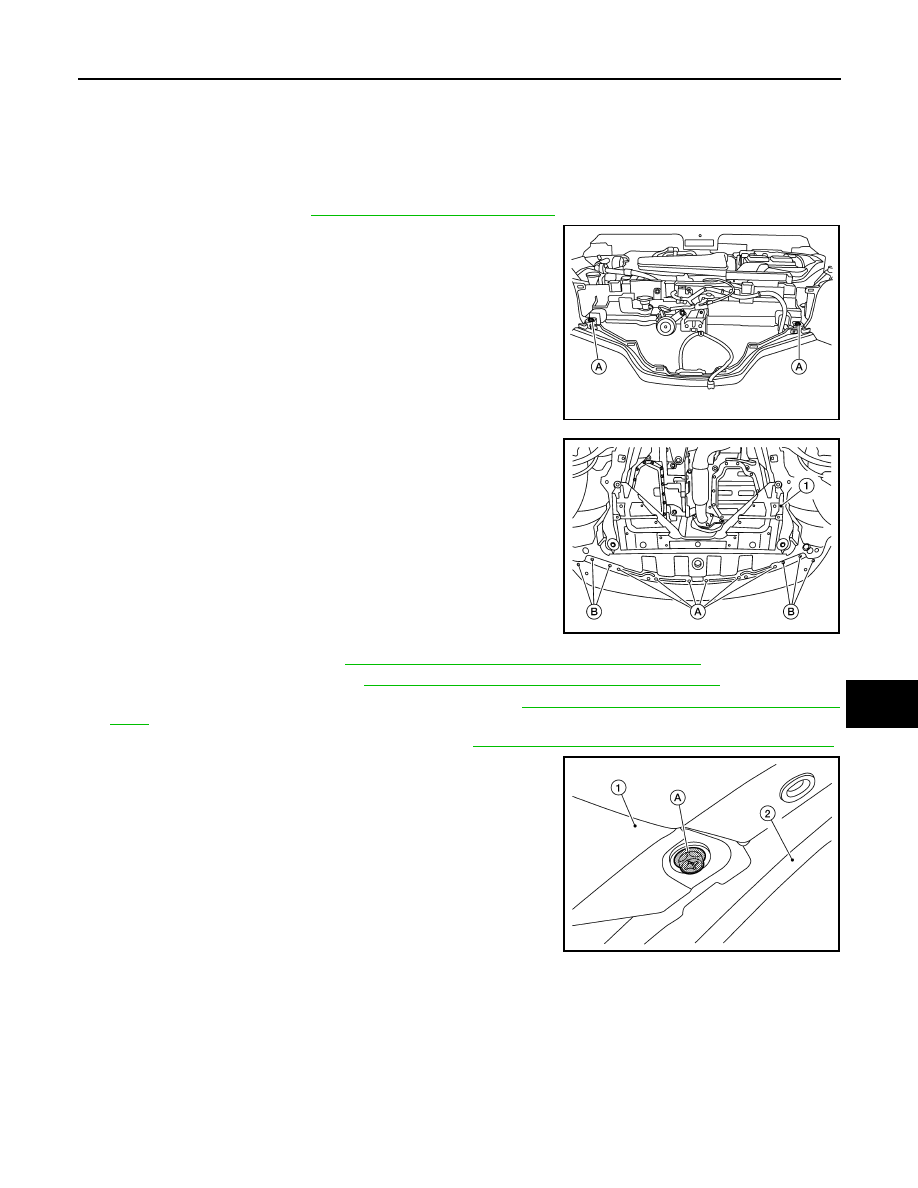

1. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Remove front bumper fascia clips (A).

3. Remove front bumper fascia clips (A) and screws (B).

(1): Engine under cover

4. Remove front air spoiler. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

5. Remove engine side cover. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

6. Partially remove front fender protectors (LH/RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded

View"

.

7. Partially remove front over fender (LH/RH). Refer to

EXT-30, "FRONT OVER FENDER : Exploded View"

.

8. Remove front bumper fascia screws (A) (LH/RH).

(1): Front bumper fascia

(2): Front over fender

9. Disconnect fog lamp harness connectors (LH/RH) (if equipped).
10. Release front bumper fascia pawls from front bumper fascia side brackets (LH/RH) and remove.

CAUTION:

When removing front bumper fascia, two people are required to avoid damaging.

ALKIA3340ZZ

AWKIA3213ZZ

ALKIA3344ZZ

EXT-18

< REMOVAL AND INSTALLATION >

FRONT BUMPER

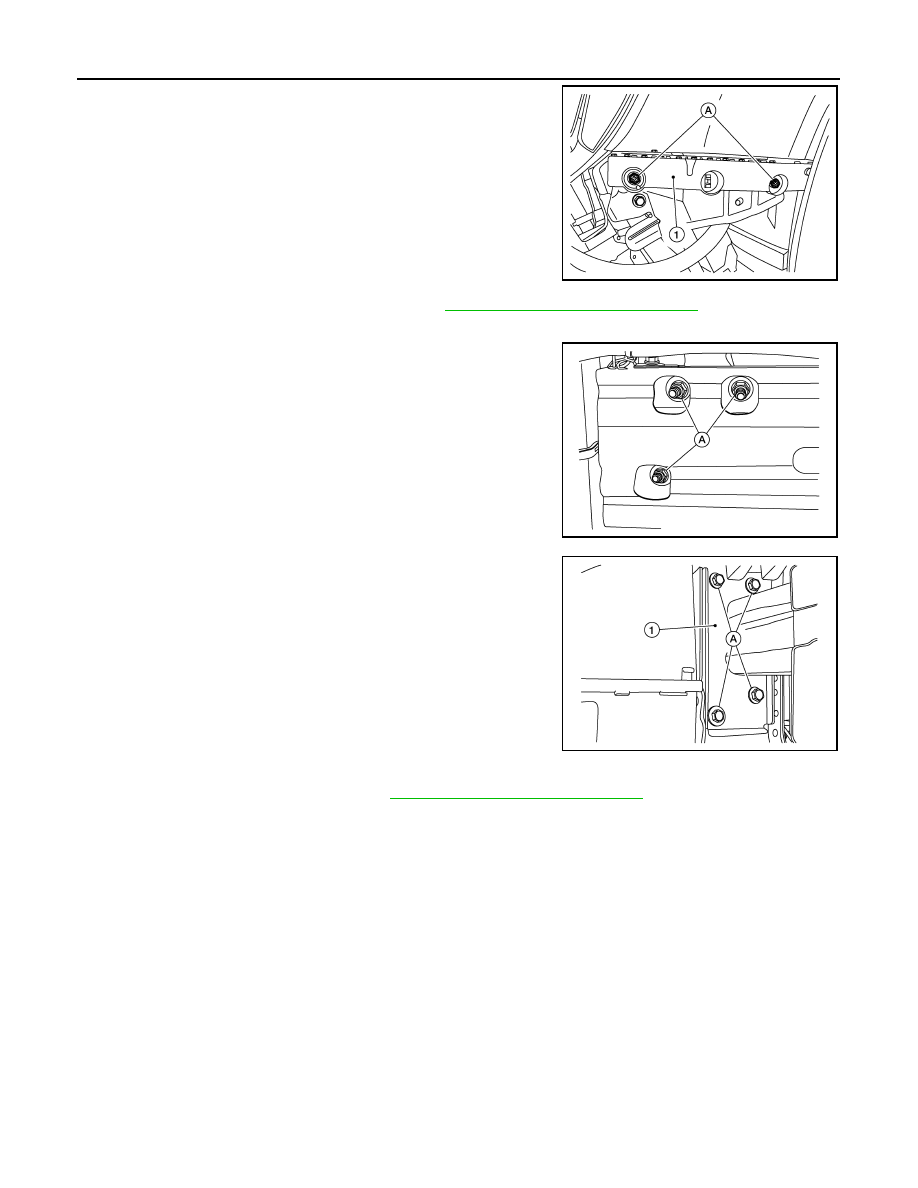

11. Remove front bumper fascia bolts (A) and the front bumper side

bracket (1) (LH/RH) (if necessary).

12. Remove intelligent key warning buzzer. Refer to

DLK-280, "Removal and Installation"

.

13. Remove the front energy absorber.
14. Release harness connector clips from bumper reinforcement,

then remove bumper reinforcement nuts (A) and bumper rein-

forcement (1) (LH/RH).

15. Remove front bumper reinforcement support bolts (A) and front

bumper reinforcement supports (1) (LH/RH).

16. Remove the following parts (if necessary) after removing front bumper fascia assembly.

• Front fog lamps (if equipped). Refer to

EXL-121, "Removal and Installation"

.

• Front fog lamp finishers.

• Front fascia grille.

• Front license plate bracket.

• Tow  cover.

• Front bumper chrome molding.

INSTALLATION

Installation in the reverse order of removal.

NOTE:

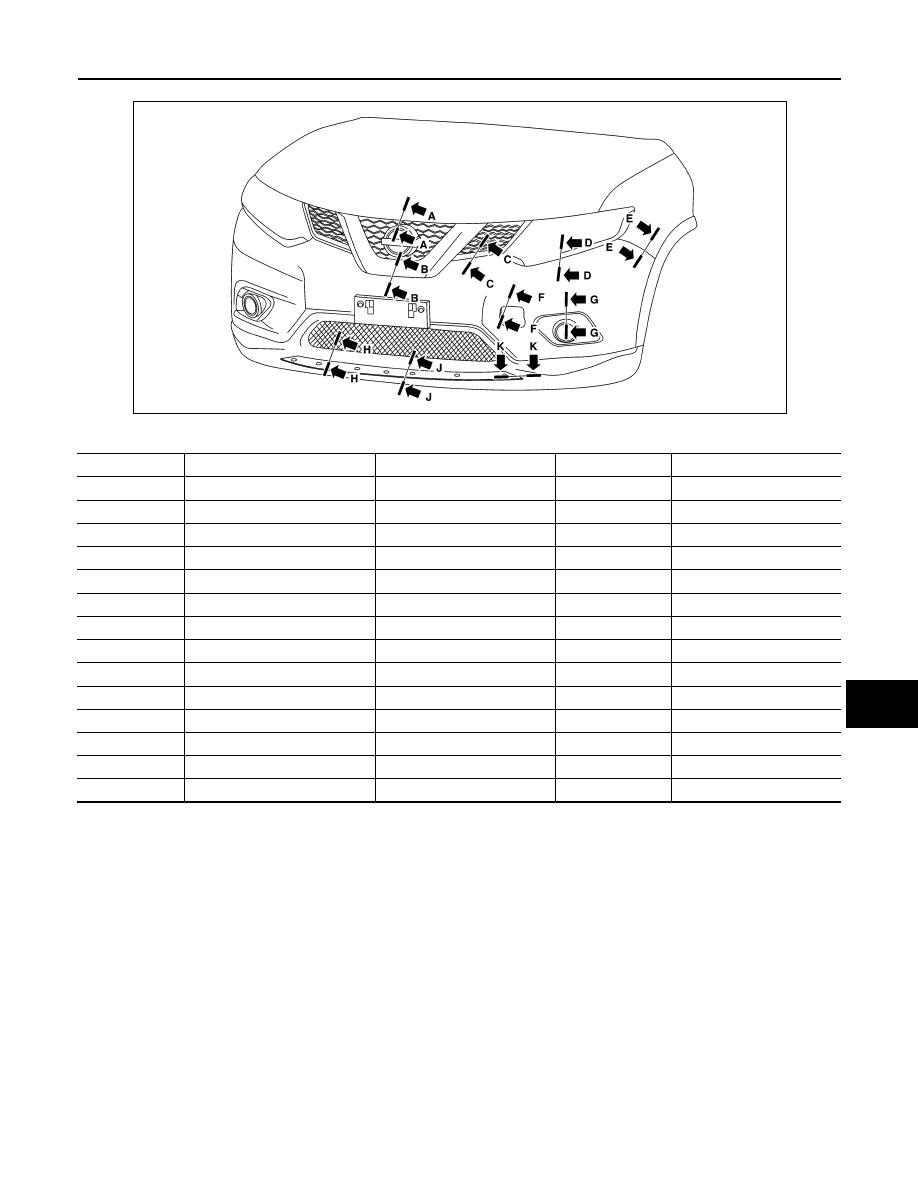

• The following table shows the specified values for checking normal installation status.

ALKIA3363ZZ

ALKIA3364ZZ

ALKIA3371ZZ

FRONT BUMPER

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

• Fitting adjustment cannot be performed.

mm (in)

AWKIA3212ZZ

Section

Measurement

Minimum

Target Value

Maximum

A-A

Clearance

6.9 (0.27)

8.9 (0.35)

10.9 (0.43)

B-B

Clearance

0.1 (0.004)

1.5 (0.06)

3.0 (0.12)

C-C

Clearance

0.1 (0.004)

1.5 (0.06)

3.0 (0.12)

D-D

Clearance

0.1 (0.004)

1.5 (0.06)

3.0 (0.12)

E-E

Clearance

0.1 (0.004)

0.3 (0.01)

1.0 (0.04)

E-E

Surface height

-0.3 (0.01)

0.7 (0.03)

1.7 (0.07)

F-F

Clearance

0.5 (0.02)

0.5 (0.02)

1.0 (0.04)

F-F

Surface height

0.5 (0.02)

0.5 (0.02)

1.0 (0.04)

G-G

Clearance

0.5 (0.02)

1.5 (0.06)

2.5 (0.10)

H-H

Clearance

0.0 (0.00)

1.0 (0.04)

2.0 (0.08)

J-J

Clearance

0.0 (0.00)

1.0 (0.04)

2.0 (0.08)

J-J

Surface height

0.0 (0.00)

1.0 (0.04)

2.0 (0.08)

K-K

Clearance

0.5 (0.02)

2.0 (0.08)

3.5 (0.14)

K-K

Surface height

0.0 (0.00)

1.0 (0.04)

2.0 (0.08)

EXT-20

< REMOVAL AND INSTALLATION >

REAR BUMPER

REAR BUMPER

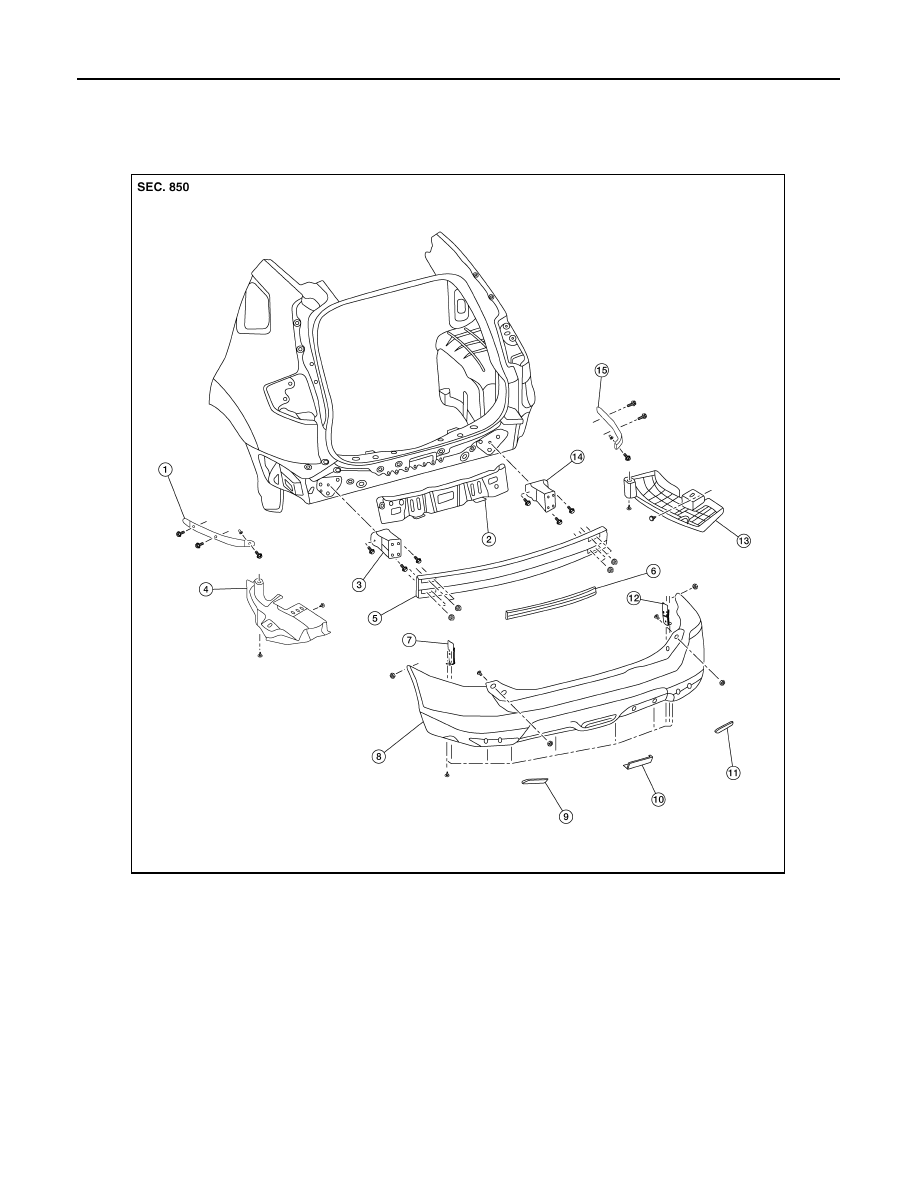

Exploded View

INFOID:0000000011280029

Removal and Installation

INFOID:0000000011280030

REMOVAL

CAUTION:

1.

Rear bumper fascia side bracket
(LH)

2.

Rear mud protector

3.

Rear bumper reinforcement sup-
port (LH)

4.

Rear bumper fascia undercover
(LH)

5.

Rear bumper reinforcement

6.

Rear energy absorber

7.

Rear bumper bracket (LH)

8.

Rear bumper fascia

9.

Rear bumper fascia reflector (LH)

10. Rear bumper finisher

11. Rear bumper fascia reflector (RH) 12. Rear bumper bracket (RH)

13. Rear bumper fascia undercover

(RH)

14. Rear bumper reinforcement sup-

port (RH)

15. Rear bumper fascia side bracket

(RH)

AWKIA2901ZZ
