REAR BUMPER

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily

substances.
1. Remove rear mudguard (LH/RH) (if equipped). Refer to

EXT-34, "Removal and Installation"

.

2. Partially remove rear over fender molding (LH/RH). Refer to

EXT-32, "REAR OVER FENDER : Exploded

View"

.

3. Partially remove rear wheel house protector (LH/RH). Refer to

EXT-29, "REAR WHEEL HOUSE PRO-

TECTOR : Exploded View"

.

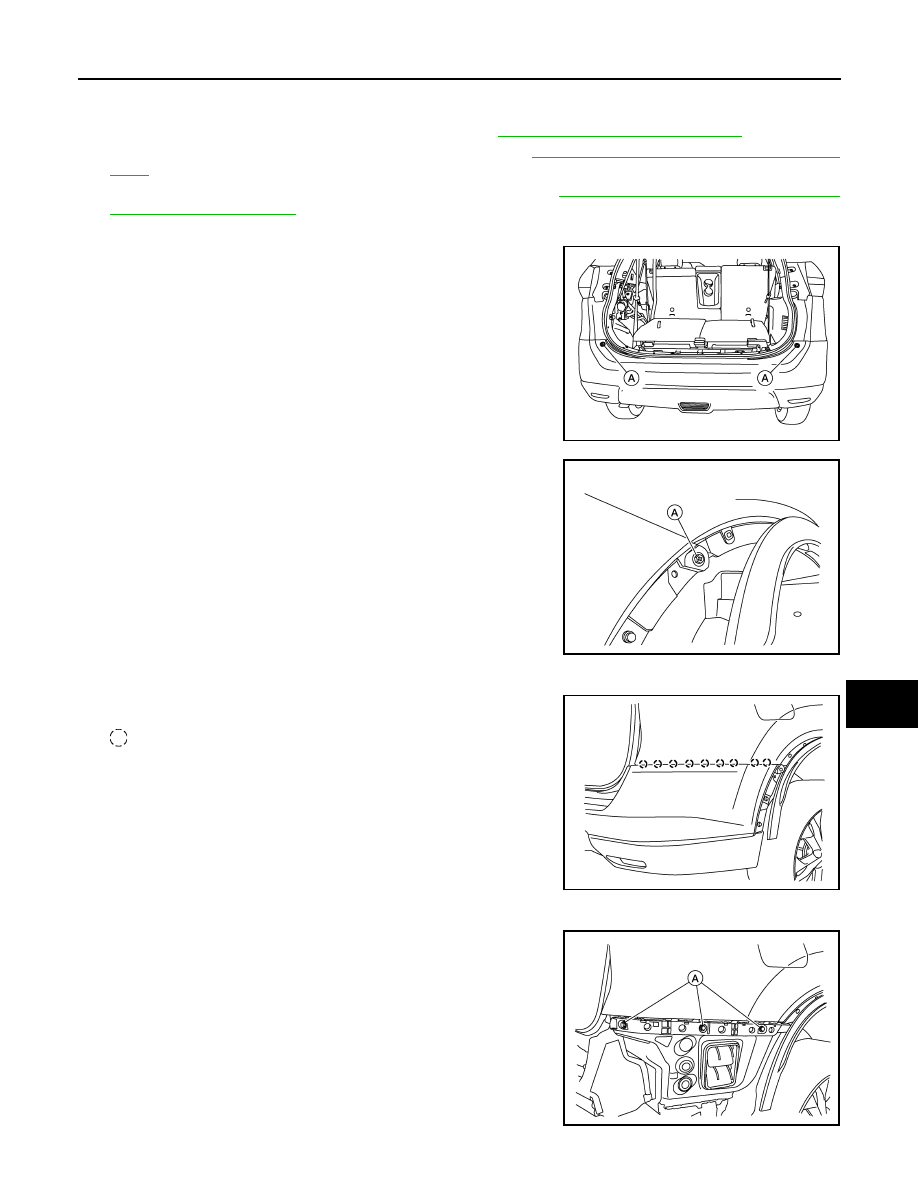

4. Remove clips and remove rear bumper fascia undercover (LH/RH).
5. Remove rear bumper fascia upper screws (A).

6. Remove rear bumper fascia screw (A) (LH/RH).

7. Disconnect harness connector from rear sonar sensors (if equipped).
8. Release pawls (LH/RH) using a suitable tool and remove rear

bumper fascia.

: Pawl

CAUTION:

When removing rear bumper fascia, two people are

required to avoid damaging.

9. Remove energy absorber.
10. Remove bolts (A) and remove rear bumper side bracket (LH/

RH) (if necessary).

ALKIA3377ZZ

ALKIA3376ZZ

ALKIA3382ZZ

ALKIA3384ZZ

EXT-22

< REMOVAL AND INSTALLATION >

REAR BUMPER

11. Remove rear bumper reinforcement nuts (LH/RH), then remove rear bumper reinforcement (if necessary).
12. Remove bumper stay bolts, then remove bumper stay (if necessary).
13. Remove rear bumper reinforce support bolts and rear bumper reinforcement (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

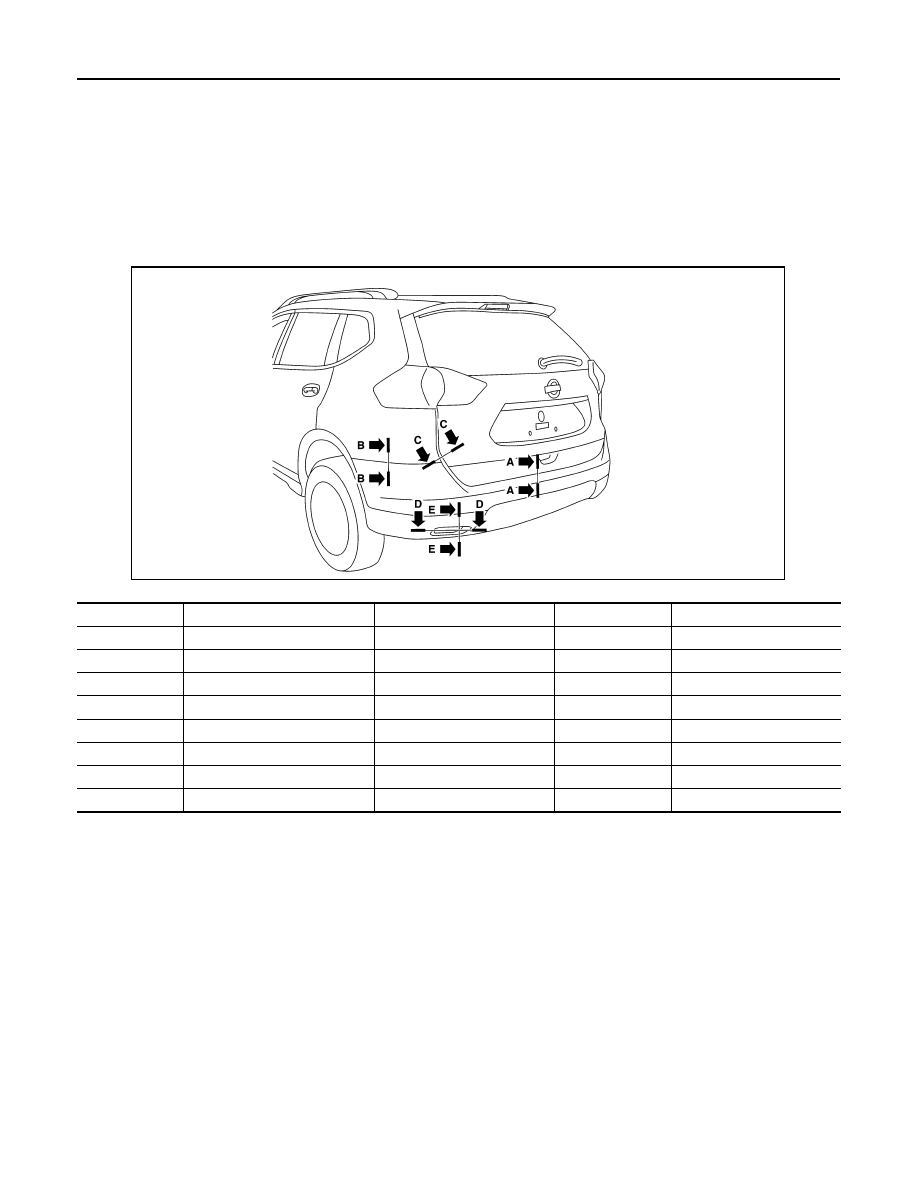

• The following table shows the specified values for checking normal installation status.

• Fitting adjustment cannot be performed.

Unit: mm (in)

AWKIA2880ZZ

Section

Measurement

Minimum

Target Value

Maximum

A-A

Clearance

6.0 (0.24)

8.0 (0.31)

10.0 (0.39)

B-B

Clearance

0.1 (0.004)

0.3 (0.01)

1.0 (0.04)

B-B

Surface height

-0.3 (0.01)

0.7 (0.03)

1.7 (0.07)

C-C

Clearance

3.0 (0.12)

5.0 (0.20)

7.0 (0.28)

C-C

Surface height

-1.8 (-0.07)

0.3 (0.01)

2.4 (0.09)

D-D

Clearance

0.0 (0.00)

1.0 (0.04)

2.0 (0.08)

E-E

Clearance (upper)

0.6 (0.02)

1.6 (0.06)

2.6 (0.10)

E-E

Clearance (lower)

0.0 (0.00)

1.0 (0.04)

2.0 (0.08)

FRONT GRILLE

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FRONT GRILLE

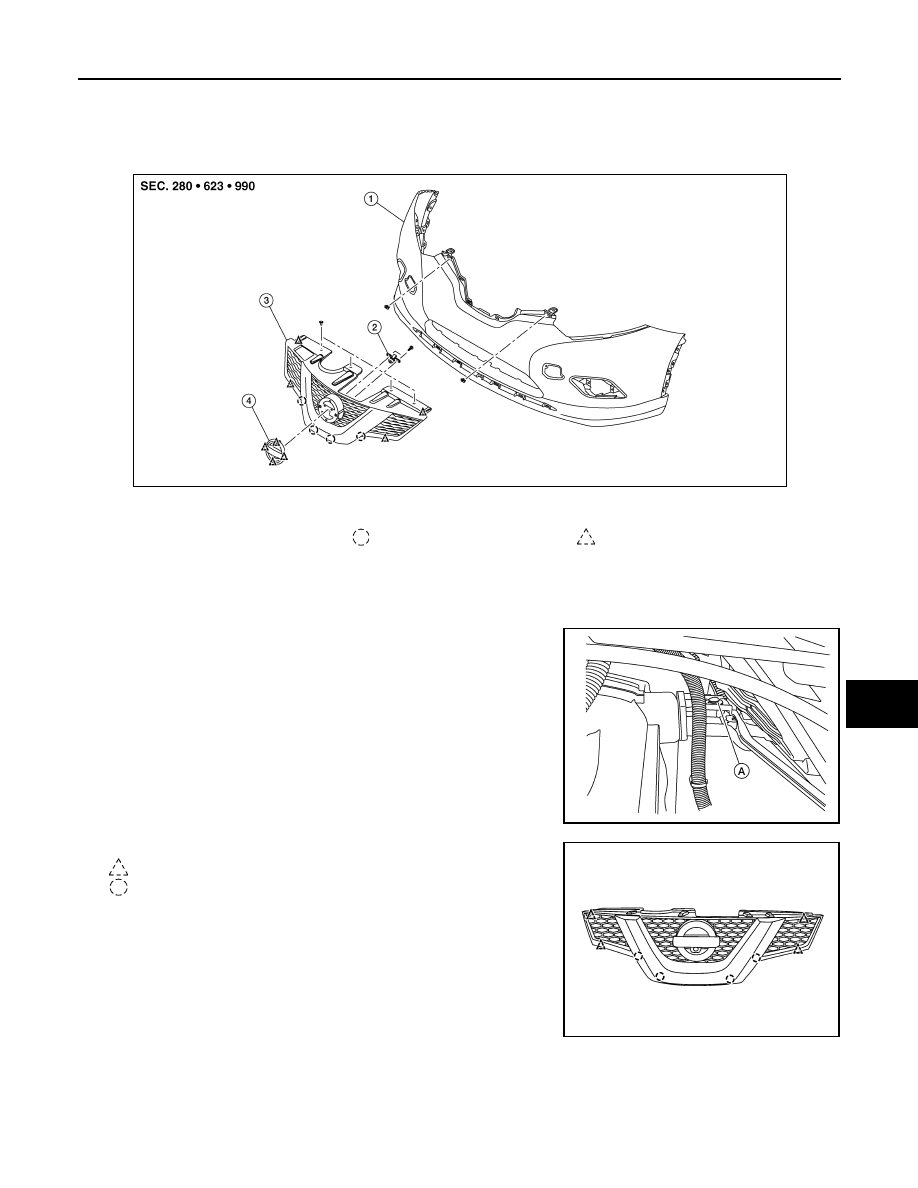

Exploded View

INFOID:0000000011280031

Removal and Installation

INFOID:0000000011280032

REMOVAL

1. Remove the four front grille upper clips (A).

2. Release clips and pawls, then remove front grille.

: Clip
: Pawl

1.

Front bumper fascia

2.

Front camera (if equipped)

3.

Front grille

4.

Front emblem

Pawl

Clip

ALKIA3352ZZ

ALKIA3390ZZ

AWKIA3214ZZ

EXT-24

< REMOVAL AND INSTALLATION >

FRONT GRILLE

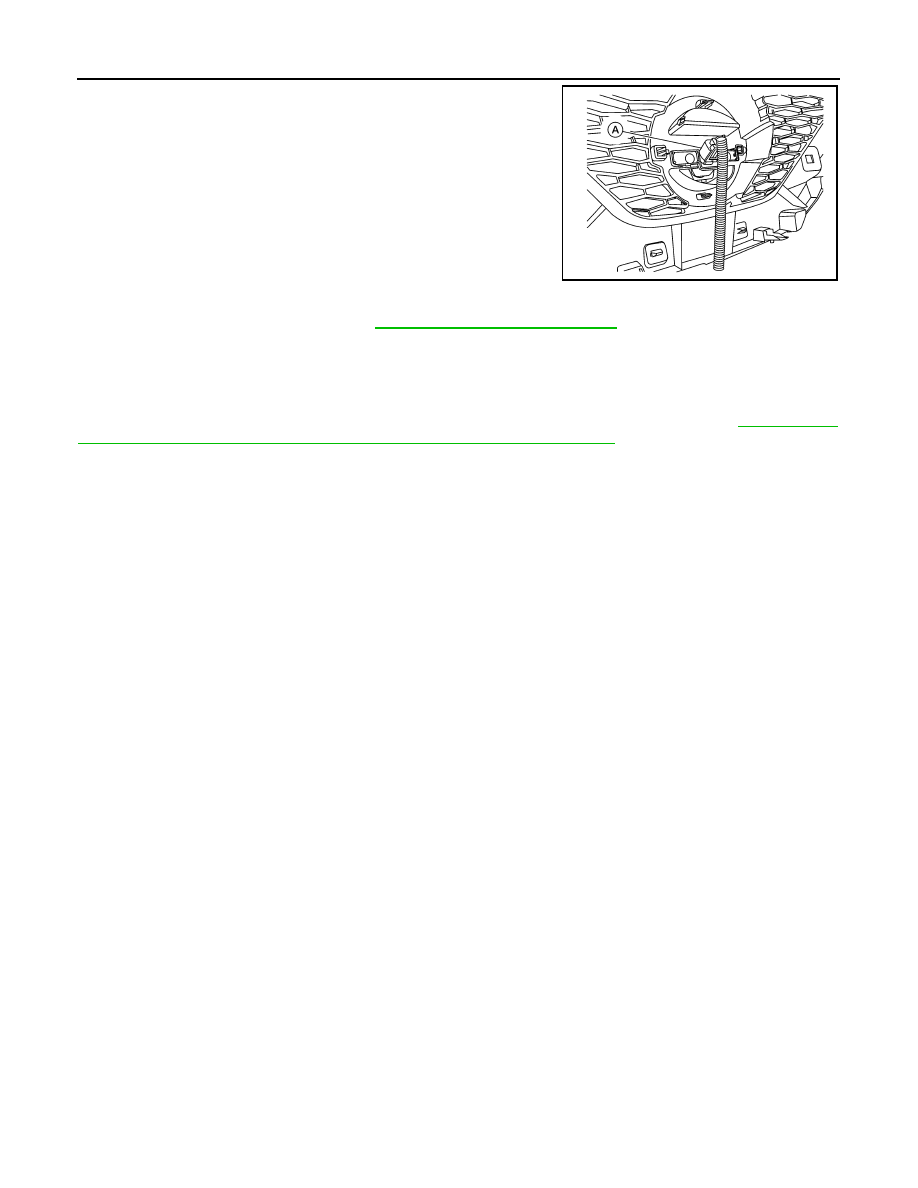

3. Disconnect harness connector (A) from front camera (if
