CONTENTS

FRONT AXLE

FWD

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Precautions for Drive Shaft  .......................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tools  ........................................

4

SYMPTOM DIAGNOSIS  ...............................

6

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

6

NVH Troubleshooting Chart  ......................................

6

PERIODIC MAINTENANCE ..........................

7

FRONT WHEEL HUB AND KNUCKLE  ..............

7

Inspection ..................................................................

7

FRONT DRIVE SHAFT ........................................

8

Inspection ..................................................................

8

REMOVAL AND INSTALLATION ................

9

FRONT WHEEL HUB ..........................................

9

Exploded View  ..........................................................

9

Removal and Installation ...........................................

9

FRONT DRIVE SHAFT BOOT  ...........................

13

Exploded View  ........................................................

13

WHEEL SIDE .............................................................

14

WHEEL SIDE : Removal and Installation ................

14

TRANSAXLE SIDE  ....................................................

18

TRANSAXLE SIDE : Removal and Installation  .......

18

FRONT DRIVE SHAFT  .....................................

19

Exploded View (LH) .................................................

19

Removal and Installation (LH)  .................................

19

Exploded View (RH)  ................................................

22

Removal and Installation (RH) .................................

23

UNIT DISASSEMBLY AND ASSEMBLY  ....

27

FRONT DRIVE SHAFT  .....................................

27

Exploded View (LH) .................................................

27

Disassembly and Assembly (LH) .............................

27

Exploded View (RH)  ................................................

32

Disassembly and Assembly (RH)  ............................

32

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

39

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

39

Wheel Bearing  .........................................................

39

Drive Shaft ...............................................................

39

AWD

PRECAUTION ..............................................

41

PRECAUTIONS .................................................

41

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

41

Precautions for Drive Shaft ......................................

41

PREPARATION ...........................................

42

PREPARATION .................................................

42

Special Service Tool ................................................

42

Commercial Service Tools .......................................

42

SYMPTOM DIAGNOSIS  ..............................

44

FAX-2

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ............................

44

NVH Troubleshooting Chart  ...................................

44

PERIODIC MAINTENANCE ........................

45

FRONT WHEEL HUB AND KNUCKLE .............

45

Inspection ...............................................................

45

FRONT DRIVE SHAFT  ......................................

46

Inspection ...............................................................

46

REMOVAL AND INSTALLATION ...............

47

FRONT WHEEL HUB ........................................

47

Exploded View ........................................................

47

Removal and Installation  ........................................

47

FRONT DRIVE SHAFT BOOT ...........................

51

Exploded View ........................................................

51

WHEEL SIDE  ............................................................

52

WHEEL SIDE : Removal and Installation  ...............

52

TRANSAXLE SIDE  ...................................................

56

TRANSAXLE SIDE : Removal and Installation .......

56

FRONT DRIVE SHAFT ......................................

57

Exploded View (LH)  ................................................

57

Removal and Installation (LH) .................................

57

Exploded View (RH) ................................................

60

Removal and Installation (RH) ................................

61

UNIT DISASSEMBLY AND ASSEMBLY ...

65

FRONT DRIVE SHAFT ......................................

65

Exploded View (LH)  ................................................

65

Disassembly and Assembly (LH)  ............................

65

Exploded View (RH) ................................................

70

Disassembly and Assembly (RH)  ...........................

70

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

77

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

77

Wheel Bearing  ........................................................

77

Drive Shaft  ..............................................................

77

PRECAUTIONS

FAX-3

< PRECAUTION >

[FWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011278616

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precautions for Drive Shaft

INFOID:0000000011278617

Observe the following precautions when disassembling and assembling drive shaft:

• Do not disassemble joint sub-assembly because it is non-overhaul parts.

• Perform work in a location which is as dust-free as possible.

• Clean the parts before disassembling and assembling.

• Prevent the entry of foreign objects during disassembly.

• Reassemble disassembled parts carefully in the correct order. If work is interrupted, a clean cover must be

placed over parts.

• Use paper shop cloths. Fabric shop cloths must not be used because of the danger of lint adhering to parts.

• Clean disassembled parts (except for rubber parts) with kerosene which shall be removed by blowing with

air or wiping with paper shop cloths.

FAX-4

< PREPARATION >

[FWD]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000011278618

The actual shape of the tools may differ from those illustrated here.

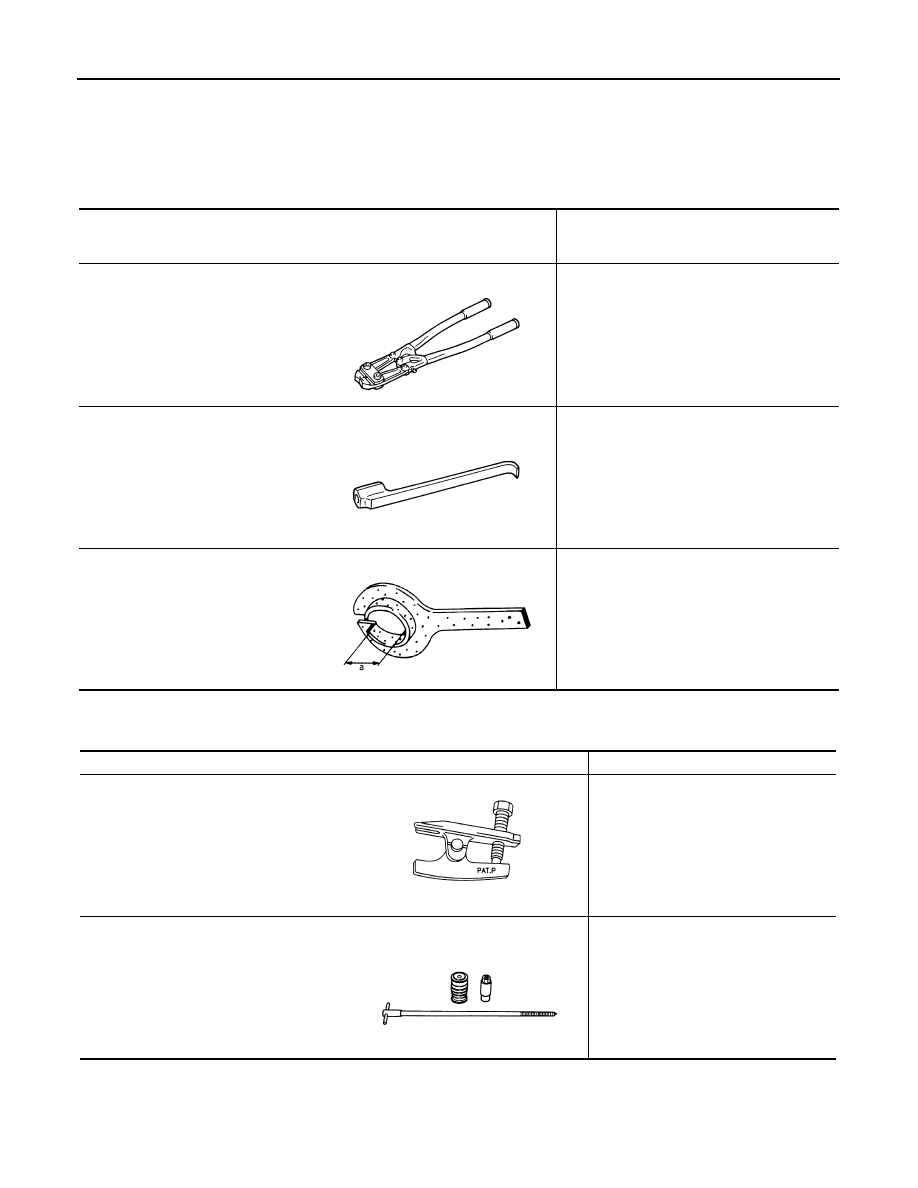

Commercial Service Tools

INFOID:0000000011278619

Tool number
(TechMate No.)
Tool name

Description

KV40107300
(

—

)

Boot band crimping tool

Installing boot band

KV40107500
(

—

)

Drive shaft attachment

Removing drive shaft

KV38107900
(

—

)

Protector

Installing drive shaft
a: 32 mm (1.26 in) dia.

ZZA1229D

ZZA1230D

PDIA1183J

Tool name

Description

Ball joint remover

Removing wheel stud

Drive shaft puller

Removing drive shaft joint sub assembly

NT146

JPDIG0152ZZ
