BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000011280776

The front fog lamps are not turned ON in any condition.

Diagnosis Procedure

INFOID:0000000011280777

1.

CHECK COMBINATION SWITCH

Check combination switch. Refer to

BCS-73, "Symptom Table"

 (with Intelligent Key system) or

BCS-133,

"Symptom Table"

 (without Intelligent Key system).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning part.

2.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT DATA MONITOR

1. Select “FRONT FOG LAMP REQ” in “Data Monitor” of “IPDM E/R”.

2. With operating the front fog lamp switch, check the monitor status.

Is the item status normal?

YES

>> Replace IPDM E/R. Refer to

PCS-40, "Removal and Installation"

.

NO

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

 (with Intelligent Key system) or

BCS-

135, "Removal and Installation"

 (without Intelligent Key system).

Monitor item

Condition

Monitor status

FRONT FOG LAMP REQ

Front fog lamp switch

(With lighting switch 2ND)

ON

On

OFF

Off

EXL-114

< PERIODIC MAINTENANCE >

[HALOGEN HEADLAMP]

HEADLAMP AIMING ADJUSTMENT

PERIODIC MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

Inspection

INFOID:0000000011280778

PREPARATION BEFORE ADJUSTING

Before performing aiming adjustment, check the following:

• Make sure all tires are inflated to correct pressure.

• Place vehicle and screen on level surface.

• Make sure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

• Coolant and engine oil filled to correct level, and fuel tank full.

• Remove cargo and/or luggage to maintain an unloaded vehicle condition.

• Confirm spare tire, jack and tools are properly stowed.

• Carefully wipe off any dirt from headlamp lens.

CAUTION:

Do not use organic solvent (thinner, gasoline etc.)

• Place a driver or equivalent weight of 68.5 kg (150 lb) on the driver seat.

• By hand, bounce the front and rear of the vehicle to settle the suspension and eliminate any static load.

• Place the front tires in the straight ahead position.

• Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

NOTE:

• For headlamp aiming details, refer to regulations in your area.

• By regulation, no means for horizontal aim adjustment is provided from the factory; only vertical aim is

adjustable.

• Use adjusting screw to perform aiming adjustment.

• Perform headlamp aiming if:

- The vehicle front body has been repaired;

- The front combination lamp has been removed or replaced;

- Any outfitting has been installed;

- The vehicle’s standard load condition has been substantially increased.

AIMING ADJUSTMENT SCREW

1.

Front combination lamp
(view from rear)

A. Headlamp HI/LO (UP/DOWN)

adjustment screw

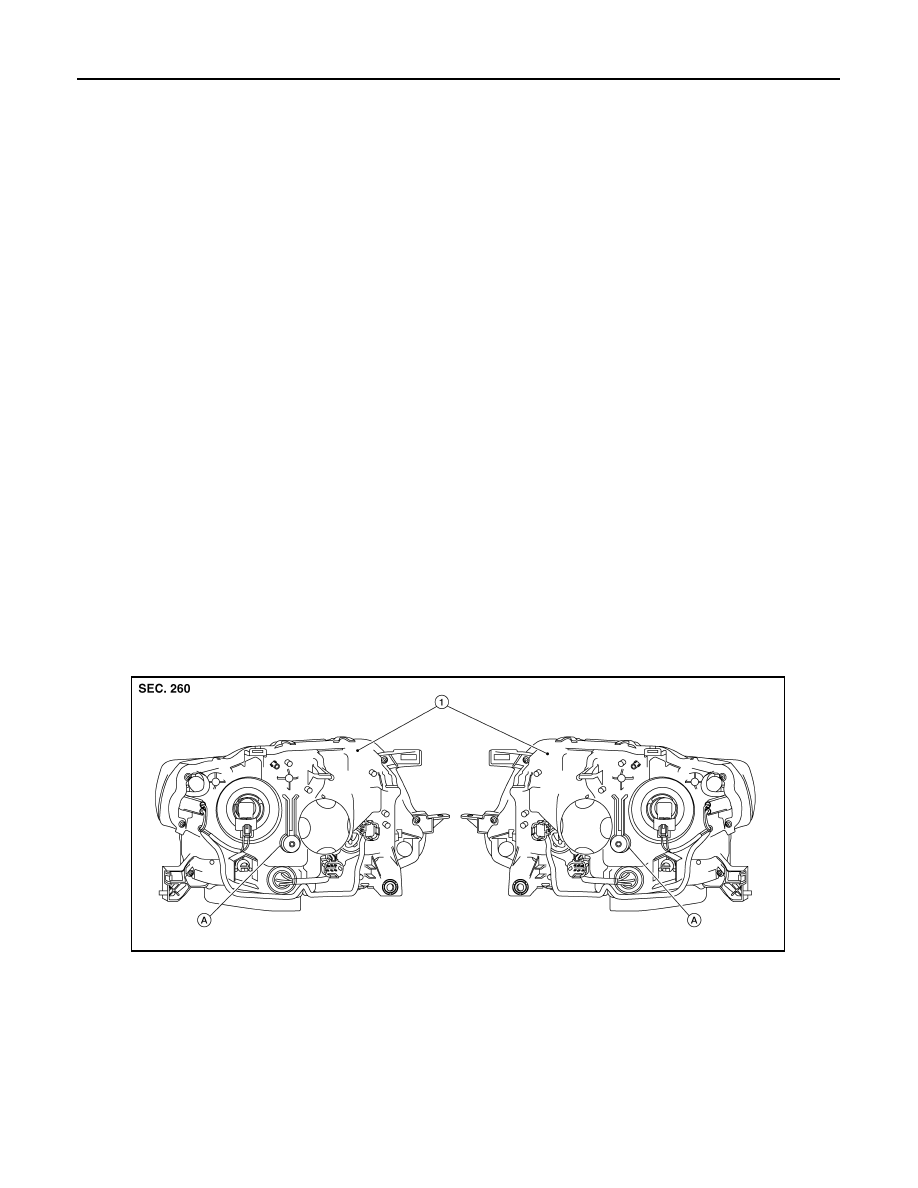

ALLIA1428ZZ

HEADLAMP AIMING ADJUSTMENT

EXL-115

< PERIODIC MAINTENANCE >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Aiming Adjustment Procedure

INFOID:0000000011280779

Aiming Chart

LOW BEAM AND HIGH BEAM

NOTE:

• Basic illuminating area for evaluation and/or adjustment should be within range shown on aiming chart.
1. Use adjustment screw to perform aiming adjustment.

• Ensure fog lamps are turned off.

2. Block the opposite headlamp from projecting a beam pattern onto the adjustment screen, using a suitable

object. Aim each headlamp individually.

CAUTION:

Do not cover the lens surface with a tape etc. The lens is made of resin.

3. Place the screen on the same level and flat surface as the vehicle.

NOTE:

Surface should be free of any debris that would cause a difference between the headlamp center and the

adjustment screen.

4. Face the front of the vehicle to the screen and measure distance between the headlamp center and the

screen surface.

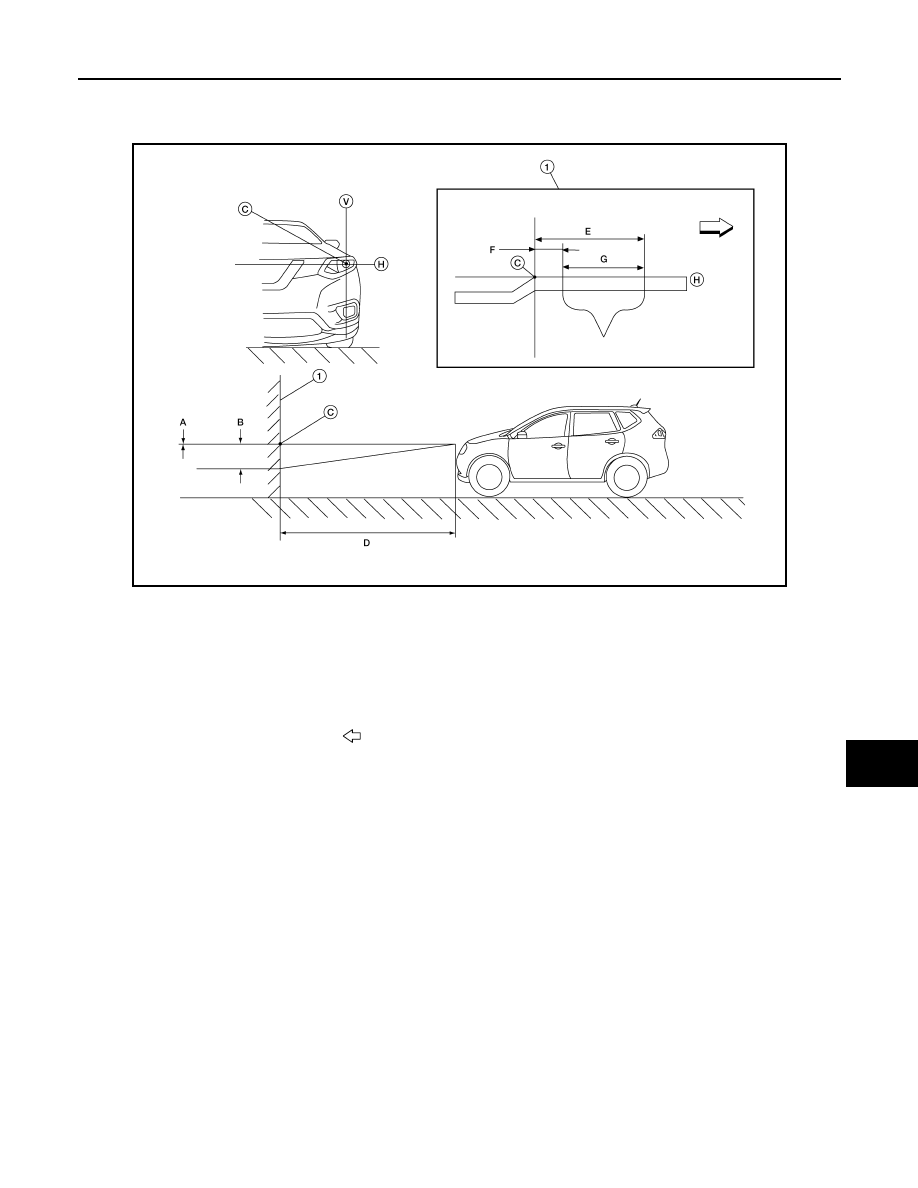

AWLIA2498ZZ

1.

Adjustment screen

A.

Highest cutoff line height

B.

Lowest cutoff line height

C.

Headlamp bulb center (H-V point)

D.

Distance of headlamp aiming
screen from vehicle 7.62 m (25 ft)

E.

Maximum aim evaluation distance
from vertical center on aiming
screen 399 mm (3

°R)

F.

Minimum aim evaluation distance
from vertical center on aiming
screen 133 mm (1

°R)

G.

Aim evaluation area

H.

Horizontal aiming evaluation line

V.

Vertical aiming evaluation line

Right

A (Highest cutoff line height)

-13.3 mm (0.5 in)

0.1

° up

B (Lowest cutoff line height)

 53.2 mm (2.1 in)

0.4

° down

EXL-116

< PERIODIC MAINTENANCE >

[HALOGEN HEADLAMP]

HEADLAMP AIMING ADJUSTMENT

5. Start the engine. Turn the headlamp on.
6. Determine the preferred vertical aim range dimensions, using the aiming chart.
7. Measure the projected beam within the aim evaluation segment on the screen.
8. Adjust the beam pattern of each headlamp until the aim evaluation segment (the area relative to both the

highest and lowest cutoff line height) is positioned within the vertical aim range dimensions shown on the

aiming chart.

Distance between the headlamp center and the screen (D)

: 7.62 m (25 ft)
