HOW TO SELECT PISTON AND BEARING

EM-117

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

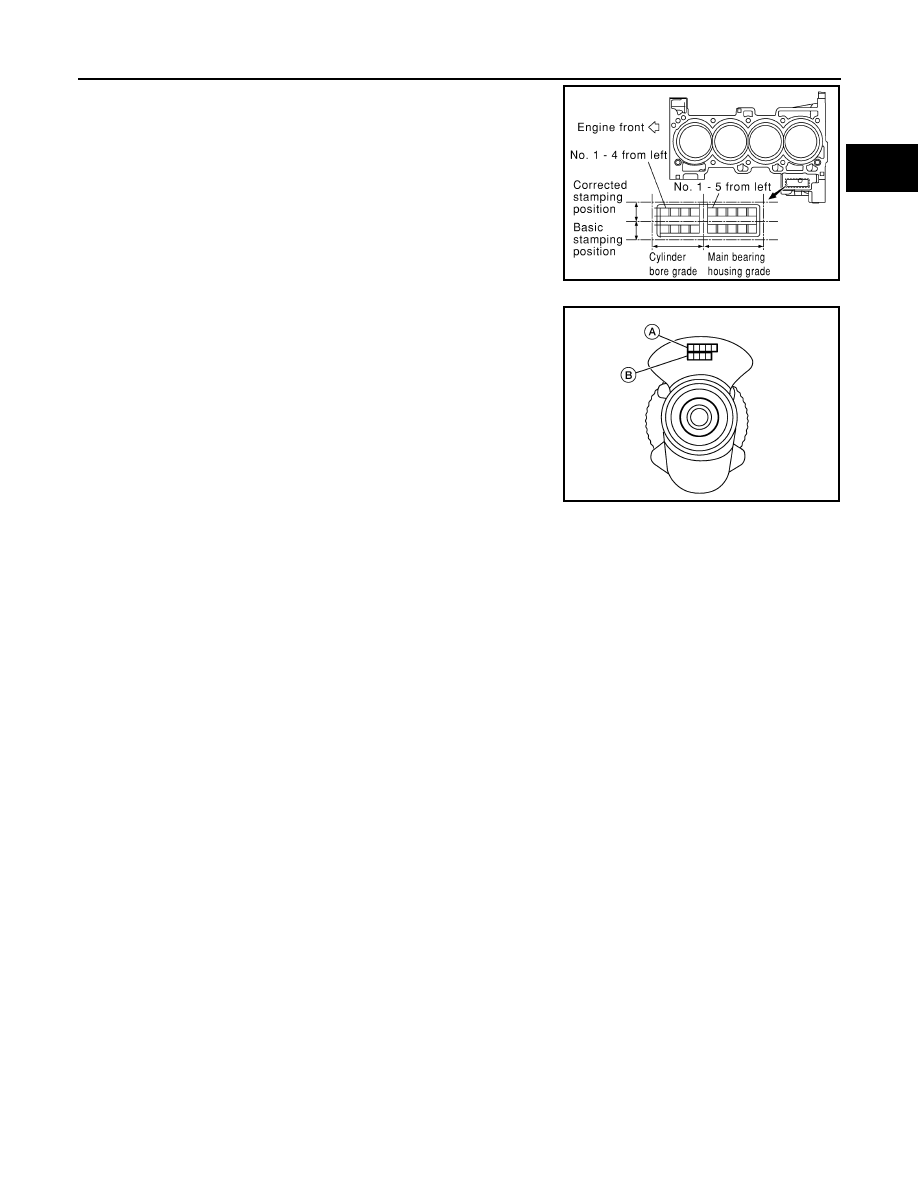

1. "Main Bearing Selection Table" rows correspond to bearing

housing grade on rear left side of cylinder block.

• If there is a corrected stamp mark on the cylinder block, use it

as a correct reference.

2. Apply journal diameter grade (A) stamped on crankshaft front

side to column in "Main Bearing Selection Table".

3. Find value at crossing of row and column in "Main Bearing Selection Table".

CAUTION:

• There are two main bearing selection tables. One is for odd-numbered journals (1, 3, and 5) and

the other is for even-numbered journals (2 and 4). Make certain to use the appropriate table. This

is due to differences in the specified clearances.

4. Apply the symbol obtained to "Main Bearing Grade Table" to select.

NOTE:

• Service parts are available as a set of both upper and lower.

When Cylinder Block and Crankshaft are Reused:

1. Measure inner diameter of cylinder block main bearing housing and outer diameter of crankshaft journal.
2. Apply measurement in above step 1 to the "Main Bearing Selection Table".
3. Follow steps 3 and 4 in "When New Cylinder Block and Crankshaft are Used".

SBIA0283E

(B) : Pin diameter grade

AWBIA0017ZZ

EM-118

< UNIT DISASSEMBLY AND ASSEMBLY >

HOW TO SELECT PISTON AND BEARING

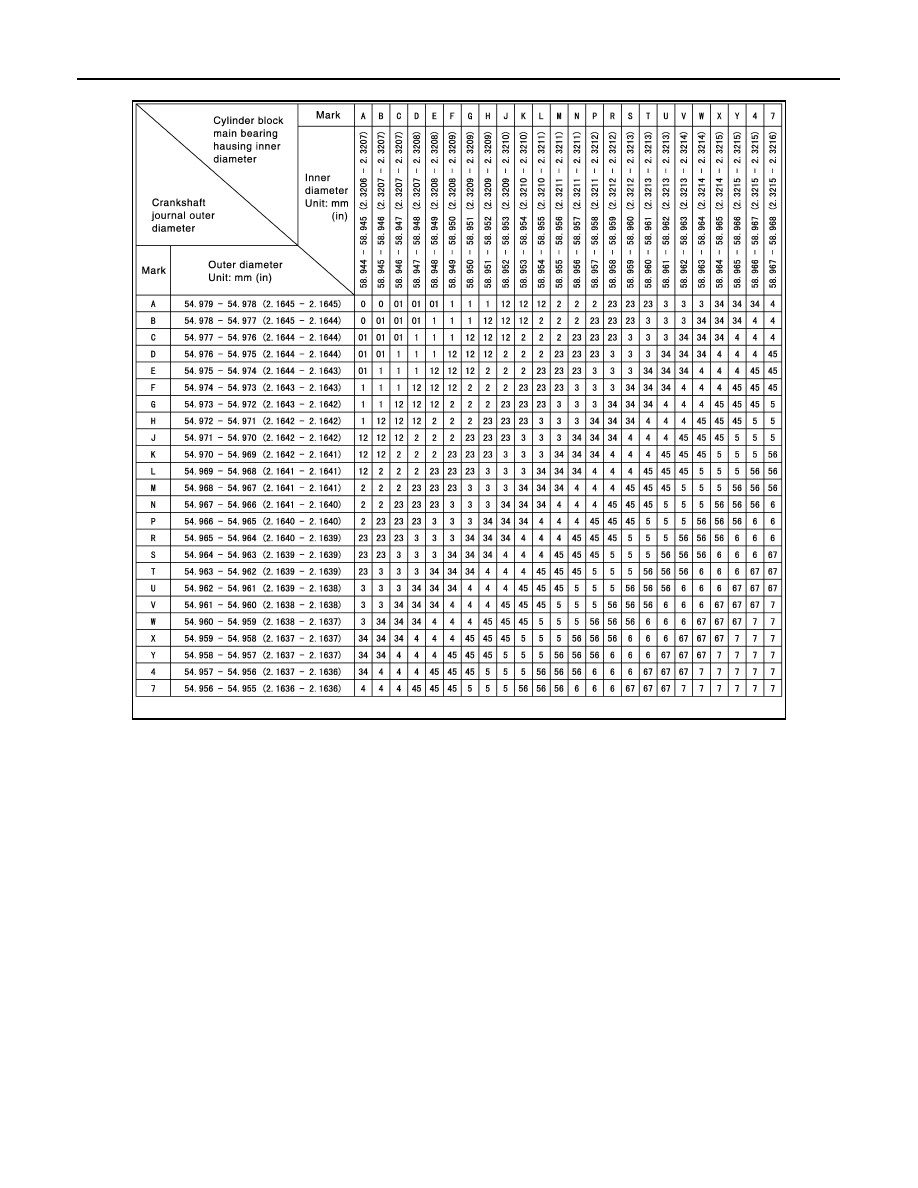

Main Bearing Selection Table (No.1, 3, and No.5 journals)

KBIA0149E

HOW TO SELECT PISTON AND BEARING

EM-119

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

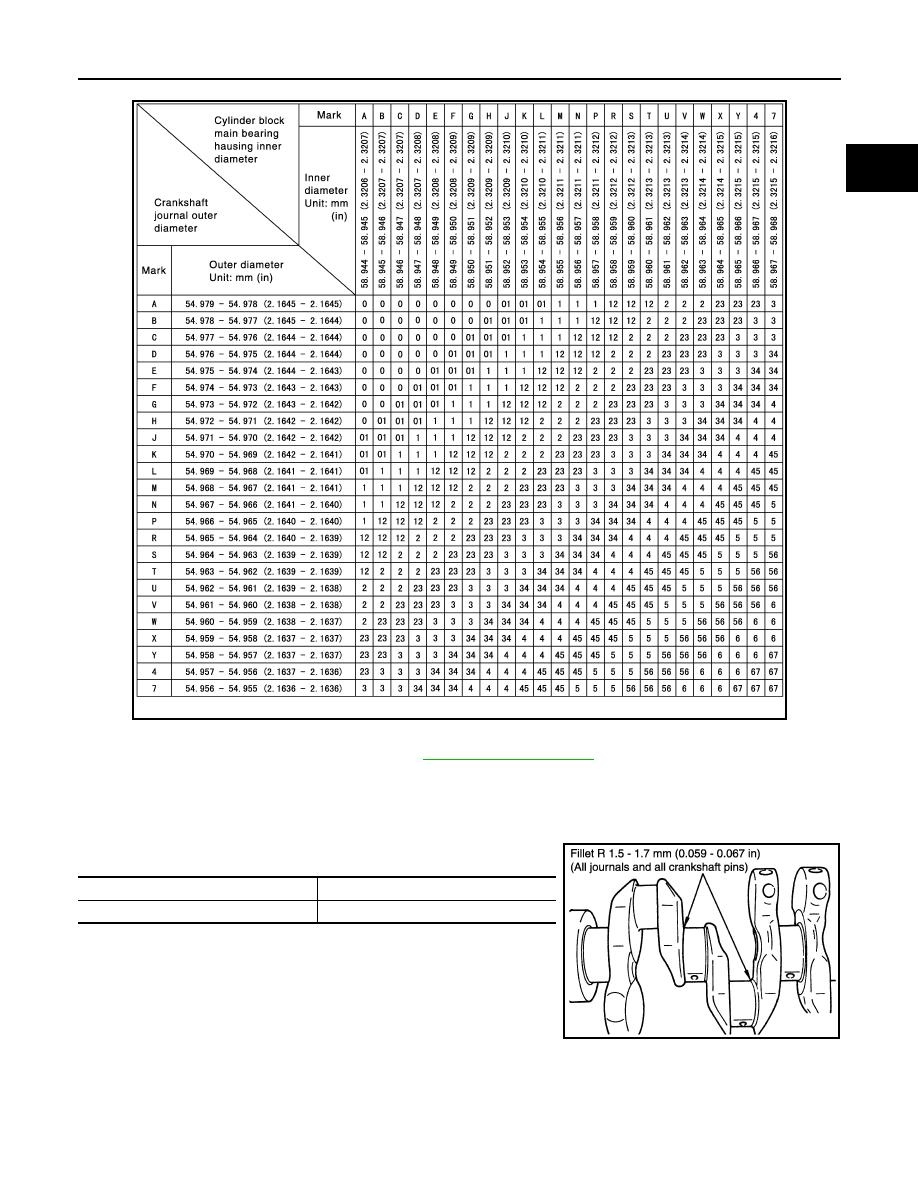

Main Bearing Selection Table (No.2,and 4 journals)

Main Bearing Grade Table (All Journals) Refer to

EM-128, "Main Bearing"

.

Use Undersize Bearing Usage Guide

• Use undersize (U.S.) bearing when oil clearance with standard size main bearing is not within specification.

• When using undersize (U.S.) bearing, measure the bearing inner diameter with the bearing installed and

grind journal until oil clearance falls within specification.

Bearing Undersize Table

Unit: mm (in)

CAUTION:

Do not damage fillet R when grinding crankshaft journal in

order to use an undersize bearing (all journals).

KBIA0150E

                           Size U.S.

                        Thickness

                        0.25 (0.0098)

       2.106 - 2.114 (0.0829 - 0.0832)

KBIA0148E

EM-120

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

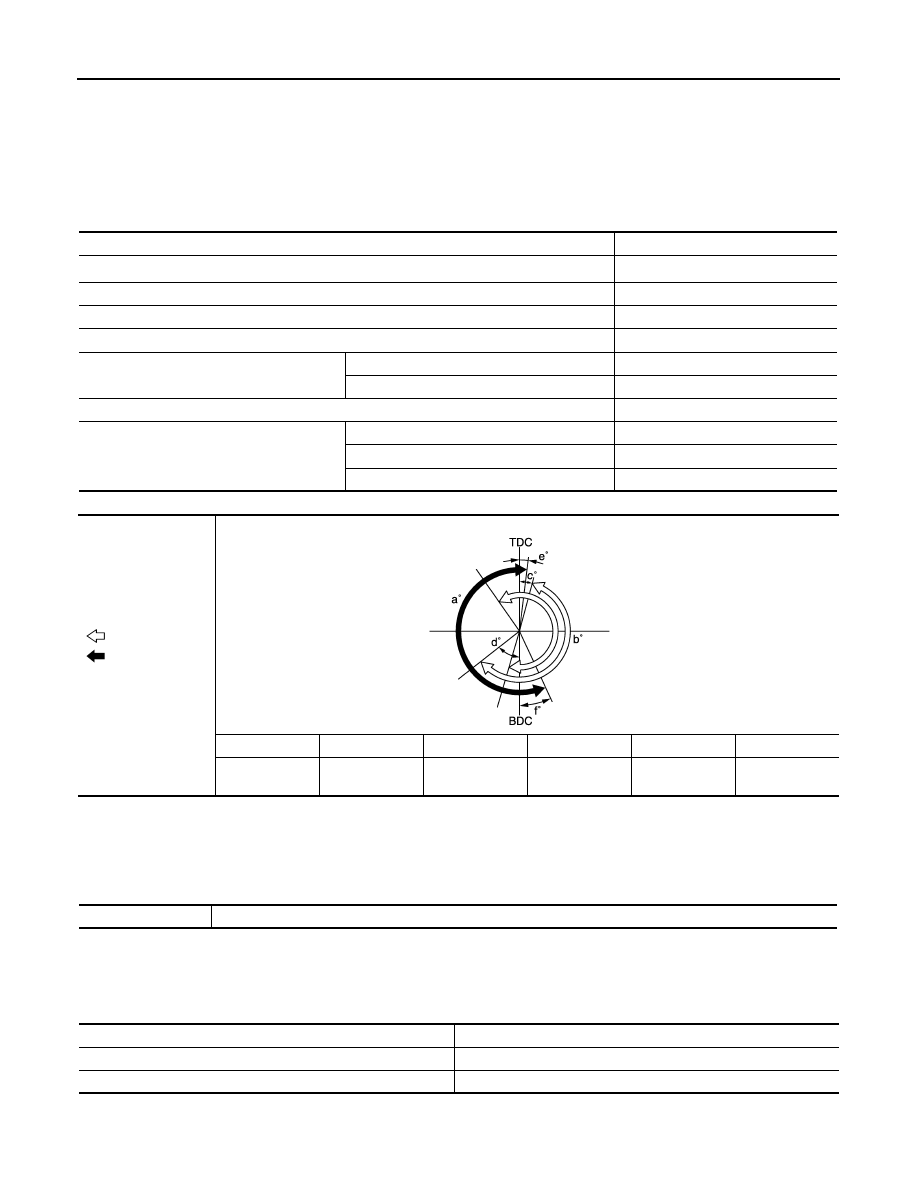

General Specification

INFOID:0000000011279984

GENERAL SPECIFICATIONS

Unit: degree

( ): Valve timing control “ON”

Drive belt

INFOID:0000000011279985

DRIVE BELT

Spark Plug

INFOID:0000000011279986

SPARK PLUG

Unit: mm (in)

Cylinder arrangement

In-line 4

Displacement

cm

3

 (cu in)

2,488 (151.82)

Bore and stroke

mm (in)

89.0 x 100.0 (3.504 x 3.940)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

10.0

Compression pressure
kPa (kg/cm

2

, psi)/250 rpm

Standard

1,412 (14.4, 204.7)

Minimum

1,216 (12.4, 176.3)

Differential limit between cylinders

100 (1.0, 14.5)

Valve timing

 : Intake valve
 : Exhaust valve

a

b

c

d

e

f

224

244

8 (

−32)

ATDC

64 (24)

ABDC

8

36

PBIC5304E

Tension of drive belt

Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

Make

DENSO

Standard type

FXE20HE11C

Spark plug gap (Nominal)

1.1 (0.043)
