CYLINDER BLOCK

EM-109

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

NOTE:

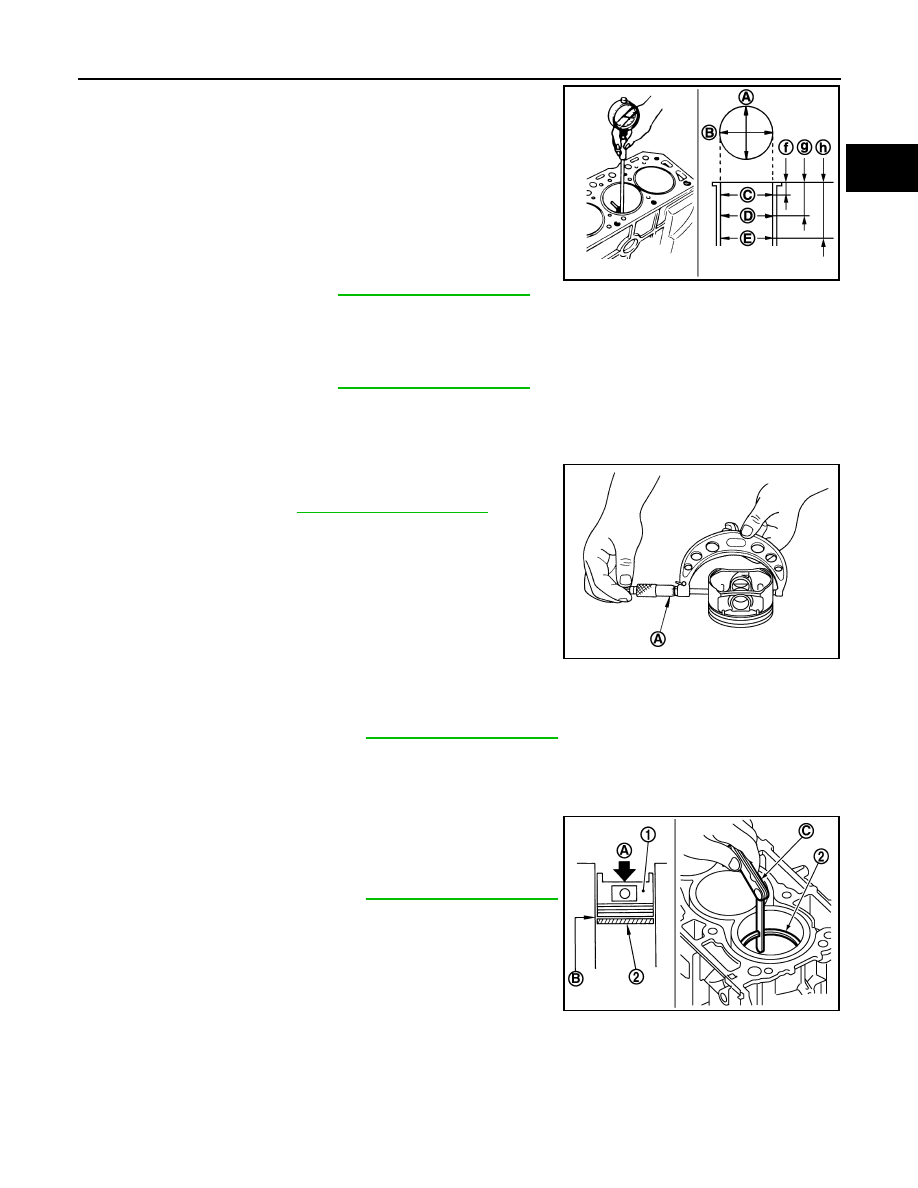

When determining cylinder bore grade, measure the cylinder bore

at (B) position.

• If measured value exceeds limit or if there are scratches and/or seizure on the cylinder inner wall hone or re-

bore the cylinder inner wall.

Piston Skirt Diameter

• Measure outer diameter of piston skirt with suitable tool (A).

Piston to Cylinder Bore Clearance

• (Piston to cylinder bore clearance) = (Cylinder bore inner diameter) - (Piston skirt diameter)

• If measured value exceeds limit replace piston and piston pin assembly..

PISTON RING END GAP

• Check that cylinder bore inner diameter is within standards.

• Lubricate with new engine oil to piston (1) and piston ring (2), and

then insert (A) piston ring to middle of cylinder (B) with piston and

measure piston ring end gap using suitable tool (C).

• If measured value exceeds limit replace piston ring and measure

again. If it still exceeds the limit replace cylinder block.

CRANKSHAFT MAIN JOURNAL DIAMETER

(f)

: 10 mm (0.39 in)

(g)

: 75 mm (2.95 in)

(h)

: 140 mm (5.51 in)

Standard:
  Cylinder bore inner diameter

: Refer to

EM-125, "Cylinder Block"

.

Limit:

Out-of-round [Difference between (A) and (B)]
Taper [Difference between (C) and (D)]

: Refer to

EM-125, "Cylinder Block"

.

JPBIA2059ZZ

Standard

: Refer to

EM-125, "Cylinder Block"

.

PBIC3272J

Standard and Limit

: Refer to

EM-125, "Cylinder Block"

.

Standard and Limit

: Refer to

EM-125, "Cylinder Block"

.

PBIC3267J

EM-110

< UNIT DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

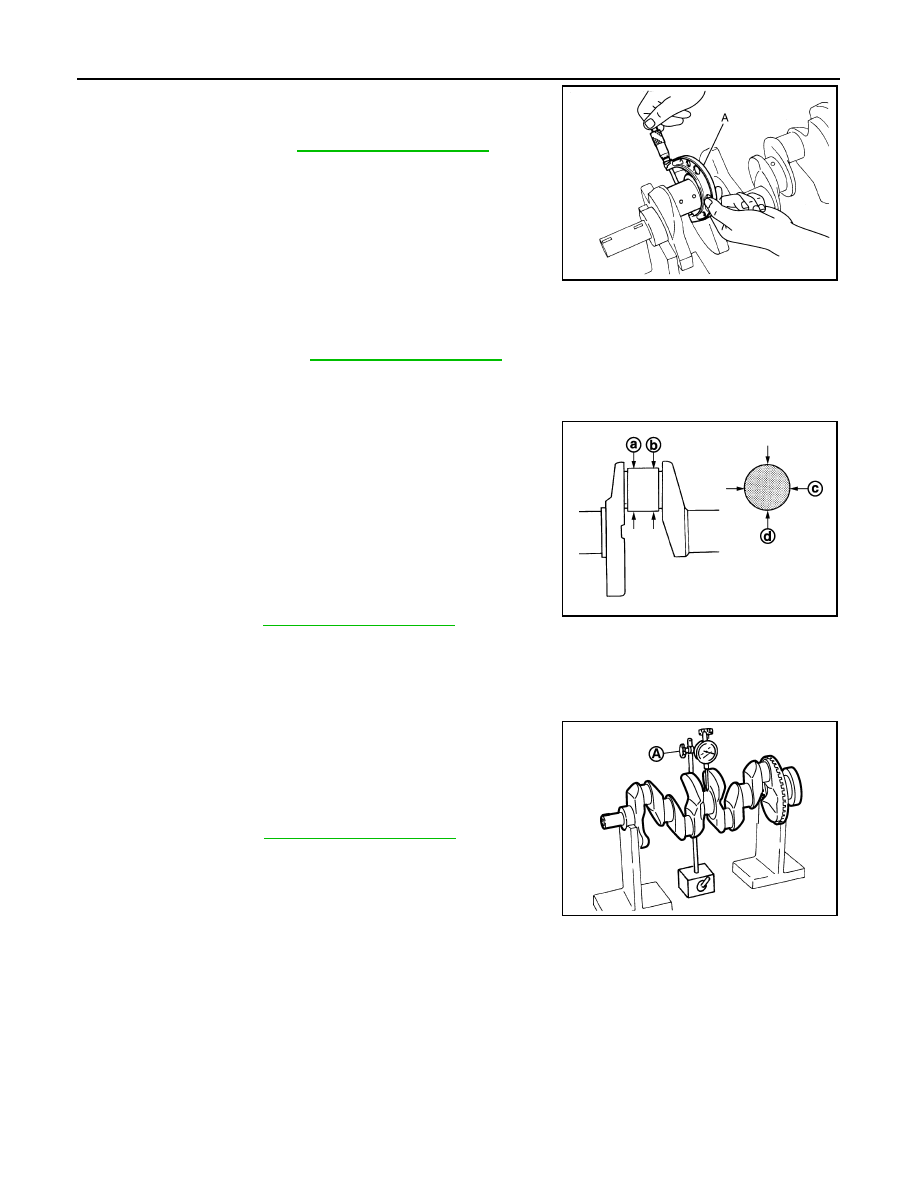

• Measure outer diameter of crankshaft main journals using suitable

tool (A).

• If measured value exceeds limit measure the main bearing oil

clearance and use undersize bearing.

CRANKSHAFT PIN JOURNAL DIAMETER

• Measure outer diameter of crankshaft pin journal using suitable tool.

• If measured value exceeds limit measure connecting rod bearing oil clearance and use undersize bearing.

OUT-OF-ROUND AND TAPER OF CRANKSHAFT

• Measure dimensions at four different points as shown on each

main journal and pin journal using suitable tool.

• Out-of-round is indicated by the difference in dimension between

(a) and (b) at (c) and (d).

• Taper is indicated by difference in dimension between (c) and (d)

at (a) and (b).

• If measured value exceeds limit correct or replace crankshaft.

• If corrected, measure bearing oil clearance of corrected main journal and/or pin journal. Then select main

bearing and/or connecting rod bearing.

CRANKSHAFT RUNOUT

• Place V-block on precise flat table to support the journals on both

ends of crankshaft.

• Place suitable tool (A) straight up on No. 3 journal.

• While rotating crankshaft, read movement of pointer on suitable

tool. (Total indicator reading)

• If measured value exceeds limit replace crankshaft.

CONNECTING ROD BEARING OIL CLEARANCE

Method by Calculation

Standard

: Refer to

EM-125, "Cylinder Block"

.

JPBIA0228ZZ

Standard

: Refer to

EM-125, "Cylinder Block"

.

Limit:

Out-of-round [Difference between (a) and (b)]
Taper [Difference between (c) and (d)]

: Refer to

EM-125, "Cylinder Block"

.

JPBIA0229ZZ

Limit

: Refer to

EM-125, "Cylinder Block"

.

PBIC3458J

CYLINDER BLOCK

EM-111

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

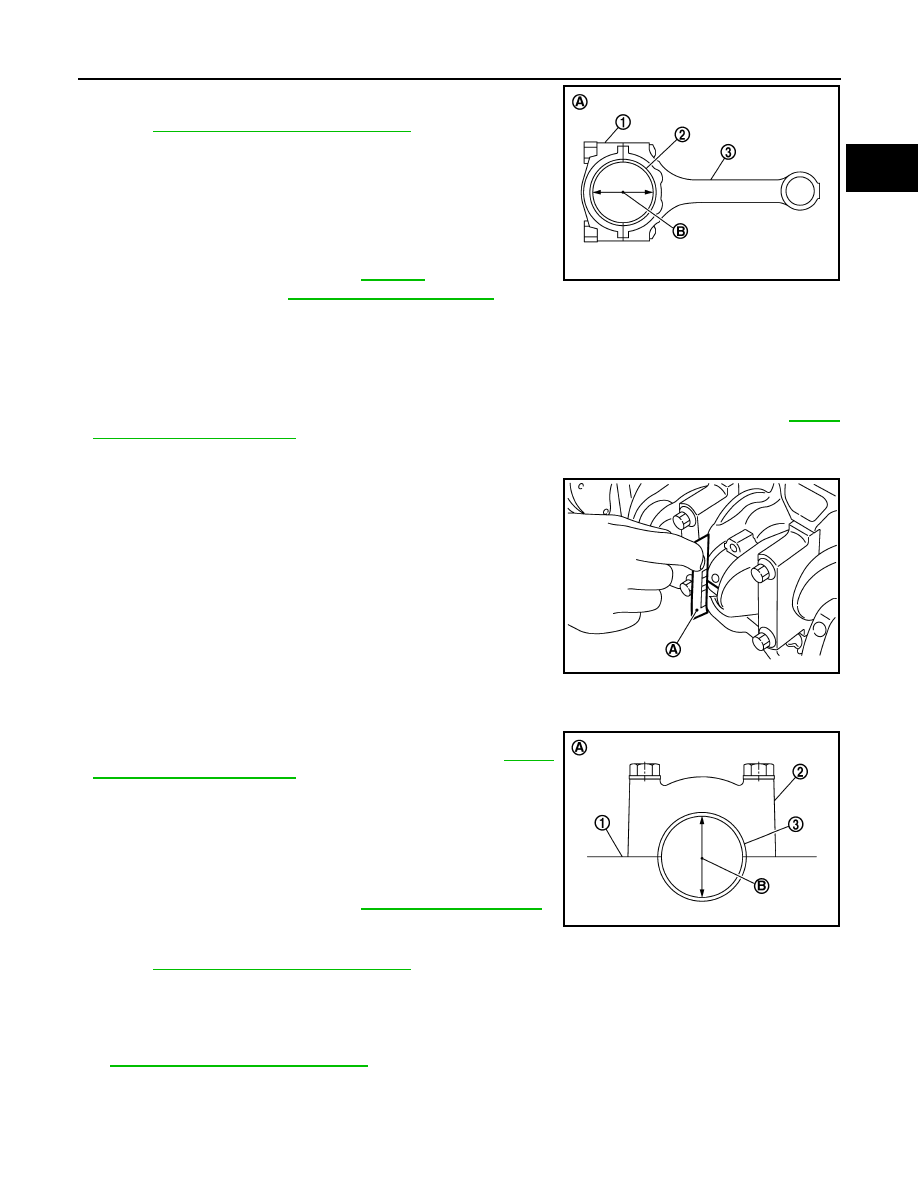

• Install connecting rod bearings (2) to connecting rod (3) and con-

necting rod bearings cap (1) and tighten connecting rod bolts.

Refer to

EM-98, "Disassembly and Assembly"

• Measure inner diameter (B) of connecting rod bearing using suit-

able tool.

• (Bearing oil clearance) = (Connecting rod bearing inner diameter) -

(Crankshaft pin journal diameter)

• If measured value exceeds limit select proper connecting rod bearing. Use connecting rod big end diameter

and crankshaft pin journal diameter to obtain specified bearing oil clearance.

Method by Using Plastigage

• Remove engine oil and dust on crankshaft pin and the surfaces of each bearing completely.

• Cut plastigage slightly shorter than bearing width and place it in crankshaft axial direction avoiding oil holes.

• Install connecting rod bearings to connecting rod and cap and tighten connecting rod bolts. Refer to

EM-98,

"Disassembly and Assembly"

CAUTION:

Do not rotate crankshaft.

• Remove connecting rod cap and bearing and using the scale (A)

on the plastigage bag measure the plastigage width.

NOTE:

The procedure when the measured value exceeds the limit is

same as that described in the “Method by Calculation”.

MAIN BEARING OIL CLEARANCE

Method by Calculation

• Install main bearings (3) to cylinder block (1) and lower cylinder

block (2) and tighten lower cylinder block bolts. Refer to

EM-98,

"Disassembly and Assembly"

• Measure the inner diameter (B) of main bearing with bore gauge.

• (Bearing oil clearance) = (Main bearing inner diameter) - (Crank-

shaft main journal diameter)

• If measured value exceeds limit select proper main bearing. Use

main bearing inner diameter and crankshaft main journal diameter to obtain specified bearing oil clearance.

Refer to

EM-98, "Disassembly and Assembly"

.

Method by Using Plastigage

• Remove engine oil and dust on crankshaft main journal and surfaces of each bearing completely.

• Cut plastigage slightly shorter than bearing width and place it in crankshaft axial direction avoiding oil holes.

• Install main bearings on cylinder block and lower cylinder block and tighten lower cylinder block bolts. Refer

to

EM-98, "Disassembly and Assembly"

CAUTION:

Do not rotate crankshaft.

(A)

: Example

Standard and Limit : Refer to

EM-130,

"Connecting Rod Bearing"

.

PBIC3275J

PBIC3276J

(A)

: Example

Standard and Limit : Refer to

EM-128, "Main Bearing"

.

PBIC3277J

EM-112

< UNIT DISASSEMBLY AND ASSEMBLY >

CYLINDER BLOCK

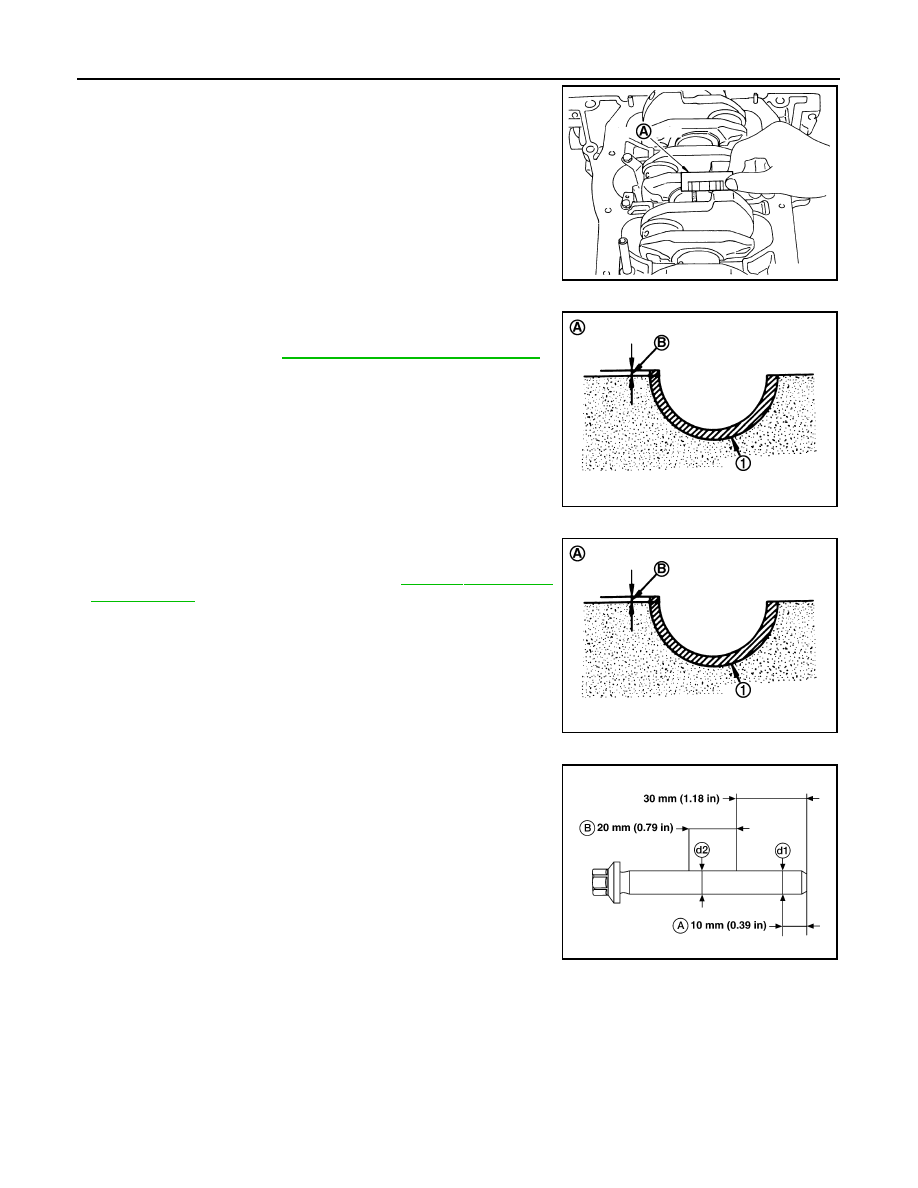

• Remove lower cylinder block and bearings and using the scale (A)

on the plastigage bag measure the plastigage width.

NOTE:

The procedure when measured value exceeds the limit is same as

that described in “Method by Calculation”.

MAIN BEARING CRUSH HEIGHT

• When lower cylinder block is removed after being tightened to

specified torque with main bearings (1) installed, tip end of bearing

must protrude (B). Refer to

EM-98, "Disassembly and Assembly"

.

• If standard is not met, replace main bearings.

CONNECTING ROD BEARING CRUSH HEIGHT

• When connecting rod bearing cap is removed after being tightened

to specified torque with connecting rod bearings (1) installed, tip

end of bearing must protrude (B). Refer to

EM-98, "Disassembly

and Assembly"

.

• If standard is not met, replace connecting rod bearings.

LOWER CYLINDER BLOCK BOLT OUTER DIAMETER

• Measure outer diameters (d1) and (d2) at two positions as shown.

• If reduction appears in (B) range, regard it as (d

2

).

• If measured value exceeds limit (a large difference in dimensions)

replace lower cylinder block bolt with new one.

CONNECTING ROD BOLT OUTER DIAMETER

PBIC3278J

(A)

: Example

Standard: There must be crush height.

PBIC3279J

(A)

: Example

Standard: There must be crush height.

PBIC3279J

Limit [(d

1

) - (d

2

)]: 0.13 mm (0.0051 in)

AWBIA1943ZZ
