SERVICE DATA AND SPECIFICATIONS (SDS)

EM-121

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Exhaust Manifold

INFOID:0000000011279988

EXHAUST MANIFOLD

Unit: mm (in)

Camshaft

INFOID:0000000011279989

CAMSHAFT

Unit: mm (in)

*

1

: Cam wear limit

*

2

: Total indicator reading

VALVE LIFTER

Unit: mm (in)

VALVE CLEARANCE

Unit: mm (in)

*: Approximately 80

°C (176°F)

Items

                                Limit

Surface distortion

Exhaust manifold

0.3 (0.012)

Items

Standard

Limit

Camshaft journal oil clearance

0.045 - 0.086 (0.0018 - 0.0034)

—

Camshaft bracket inner diameter

No. 1

28.000 - 28.021 (1.1024 - 1.1032)

—

No. 2, 3, 4, 5

23.500 - 23.521 (0.9252 - 0.9260)

—

Camshaft journal diameter

No. 1

27.935 - 27.955 (1.0998 - 1.1006)

—

No. 2, 3, 4, 5

23.435 - 23.455 (0.9226 - 0.9234)

—

Camshaft end play

0.115 - 0.188 (0.0045 - 0.0074)

—

Camshaft cam
height “A”

Intake

45.865 - 46.055 (1.8057 - 1.8132)

0.2 (0.008)*

1

Exhaust

44.175 - 44.365 (1.7392 - 1.7467)

Camshaft runout [TIR*

2

]

Less than 0.02 mm (0.0008)

—

Camshaft sprocket runout [TIR*

2

]

—

0.15 (0.0059)

SEM671

Items

Standard

Valve lifter outer diameter

33.977 - 33-987 (1.3377 - 1.3381)

Valve lifter hole diameter

34.000 - 34.021 (1.3386 - 1.3394)

Valve lifter clearance

0.013 - 0.034 (0.0008 - 0.0012)

Items

Cold

Hot* (reference data)

Intake

0.240 - 0.320 (0.0094 - 0.0126)

0.304 - 0.416 (0.0120 - 0.0164)

Exhaust

0.260 - 0.340 (0.0102 - 0.0134)

0.308 - 0.432 (0.0121 - 0.0170)

EM-122

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

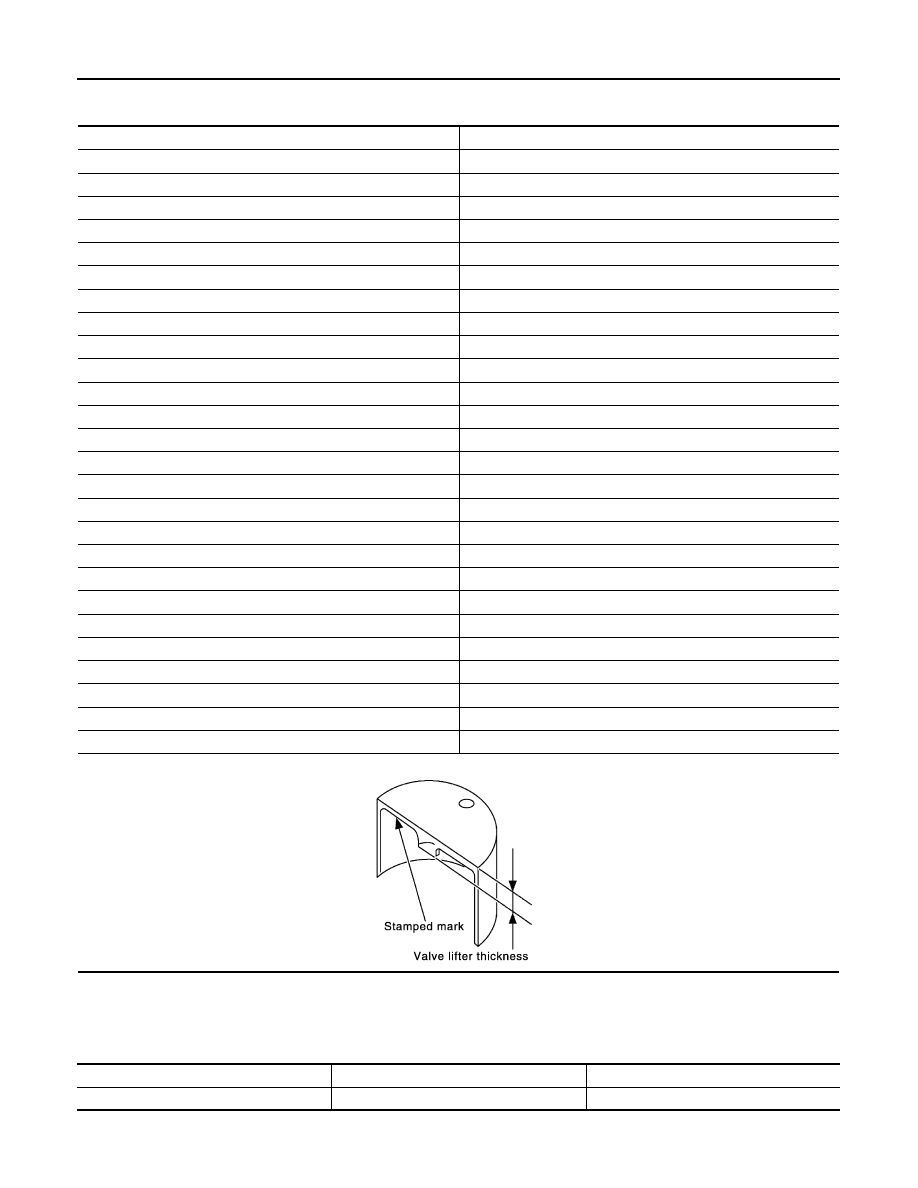

AVAILABLE VALVE LIFTER

Unit: mm (in)

Cylinder Head

INFOID:0000000011279990

CYLINDER HEAD

Unit: mm (in)

Thickness

Identification (stamped) mark

3.00 (0.1181)

300H

3.02 (0.1189)

302H

3.04 (0.1197)

304H

3.06 (0.1205)

306H

3.08 (0.1213)

308H

3.10 (0.1220)

310H

3.12 (0.1228)

312H

3.14 (0.1236)

314H

3.16 (0.1244)

316H

3.18 (0.1252)

318H

3.20 (0.1260)

320H

3.22 (0.1268)

322H

3.24 (0.1276)

324H

3.26 (0.1283)

326H

3.28 (0.1291)

328H

3.30 (0.1299)

330H

3.32 (0.1307)

332H

3.34 (0.1315)

334H

3.36 (0.1323)

336H

3.38 (0.1331)

338H

3.40 (0.1339)

340H

3.42 (0.1346)

342H

3.44 (0.1354)

344H

3.46 (0.1362)

346H

3.48 (0.1370)

348H

3.50 (0.1378)

350H

SEM758G

Items

Standard

Limit

Head surface distortion

Less than 0.03 (0.0012)

0.1 (0.004)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-123

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

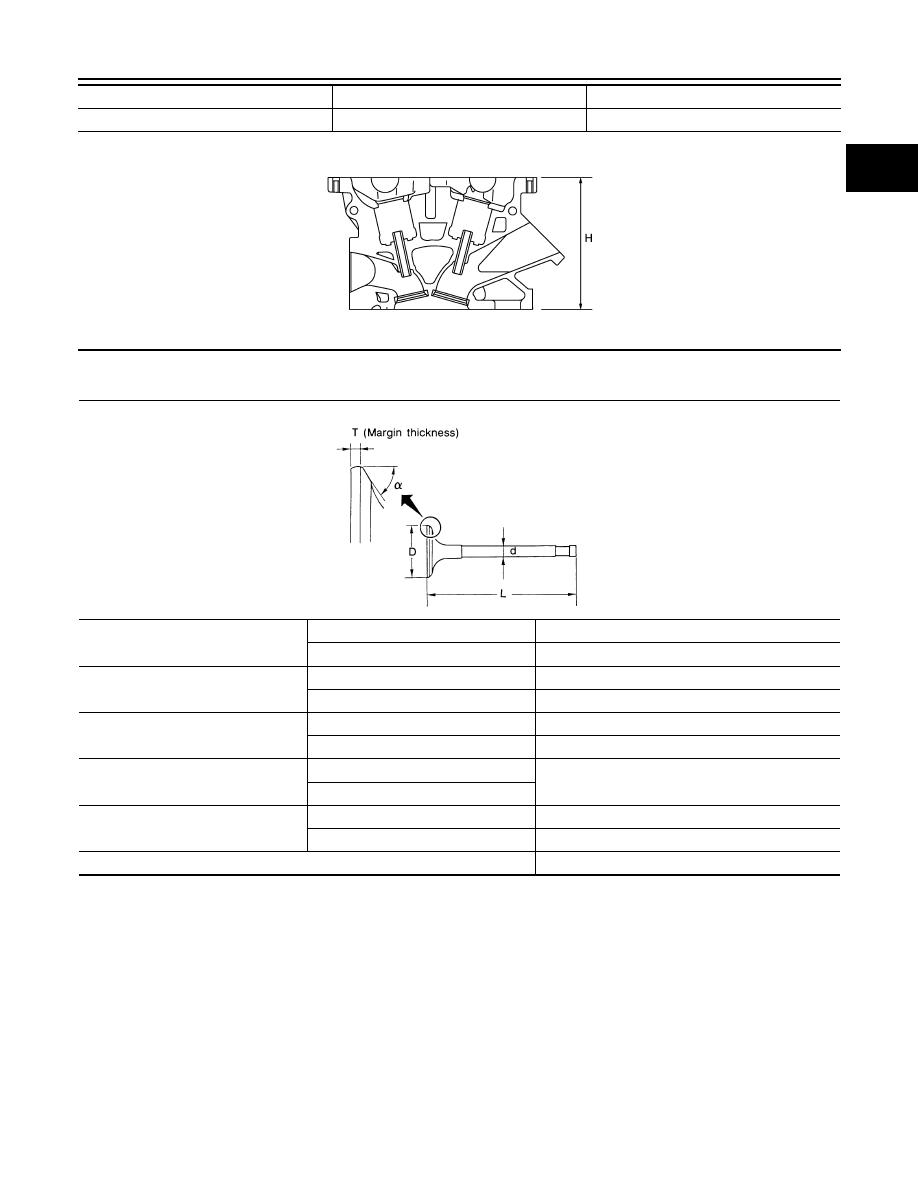

VALVE DIMENSIONS

Unit: mm (in)

VALVE GUIDE

Normal cylinder head height “H”

129.3 - 129.5 (5.09 - 5.10)

—

Items

Standard

Limit

PBIC0924E

Valve head diameter “D”

Intake

35.5 - 35.8 (1.398 - 1.409)

Exhaust

30.3 - 30.6 (1.193 - 1.205)

Valve length “L”

Intake

101.72 (4.005)

Exhaust

102.78 (4.046)

Valve stem diameter “d”

Intake

5.965 - 5.980 (0.2348 - 0.2354)

Exhaust

5.955 - 5.970 (0.2344 - 0.2350)

Valve seat angle “

α”

Intake

44

°15′ - 44°45′

Exhaust

Valve margin “T”

Intake

1.15 - 1.45 (0.0453 - 0.0571)

Exhaust

1.45 - 1.75 (0.0571 - 0.0689)

Valve stem end surface grinding limit

0.2 (0.008)

SEM188

EM-124

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

VALVE SEAT

Unit: mm (in)

Items

Standard

Oversize (Service) [0.2 (0.008)]

Valve guide

Outer diameter

10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029)

Inner diameter (Finished size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

9.975 - 9.996 (0.3927 - 0.3935)

10.175 - 10.196 (0.4006 - 0.4014)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Items

Standard

Limit

Valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.08 (0.0031)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

0.09 (0.0035)

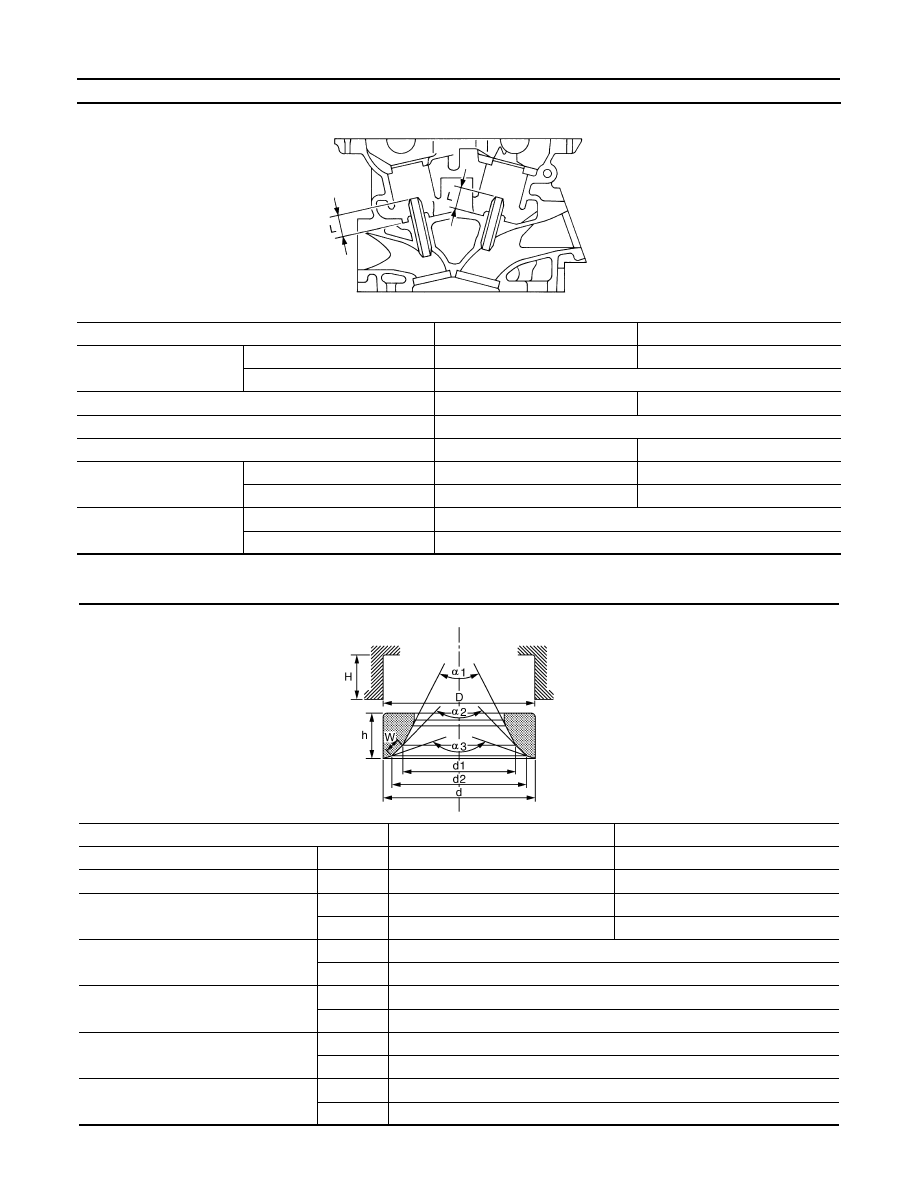

Projection length “L”

Intake

10.1 - 10.3 (0.398 - 0.406)

Exhaust

10.0 - 10.4 (0.394 - 0.409)

SEM950E

Items

Standard

Oversize (Service) [0.5 (0.020)]

Cylinder head seat recess diameter “D”

Intake

36.500 - 36.516 (1.4370 - 1.4376)

37.000 - 37.016 (1.4567 - 1.4573)

Exhaust

31.500 - 31.516 (1.2402 - 1.2408)

32.000 - 32.016 (1.2598 - 1.2605)

Valve seat outer diameter “d”

Intake

36.597 - 36.613 (1.4408 - 1.4415)

37.097 - 37.113 (1.4605 - 1.4611)

Exhaust

31.600 - 31.616 (1.2441 - 1.2447)

32.100 - 32.116 (1.2638 - 1.2644)

Valve seat interference fit

Intake

0.081 - 0.113 (0.0032 - 0.0044)

Exhaust

0.084 - 0.116 (0.0033 - 0.0046)

Diameter “d1”*

1

Intake

30.85 - 31.15 (1.2146 - 1.2264)

Exhaust

25.05 - 25.35 (0.9862 - 0.9980)

Diameter “d2”*

2

Intake

34.35 - 34.65 (1.3524 - 1.3642)

Exhaust

29.35 - 29.65 (1.1555 - 1.1673)

Angle “

α1”

Intake

60

°

Exhaust

60

°

PBIC2745E
