DRIVE PINION

Tooth Contact Judgment Guide

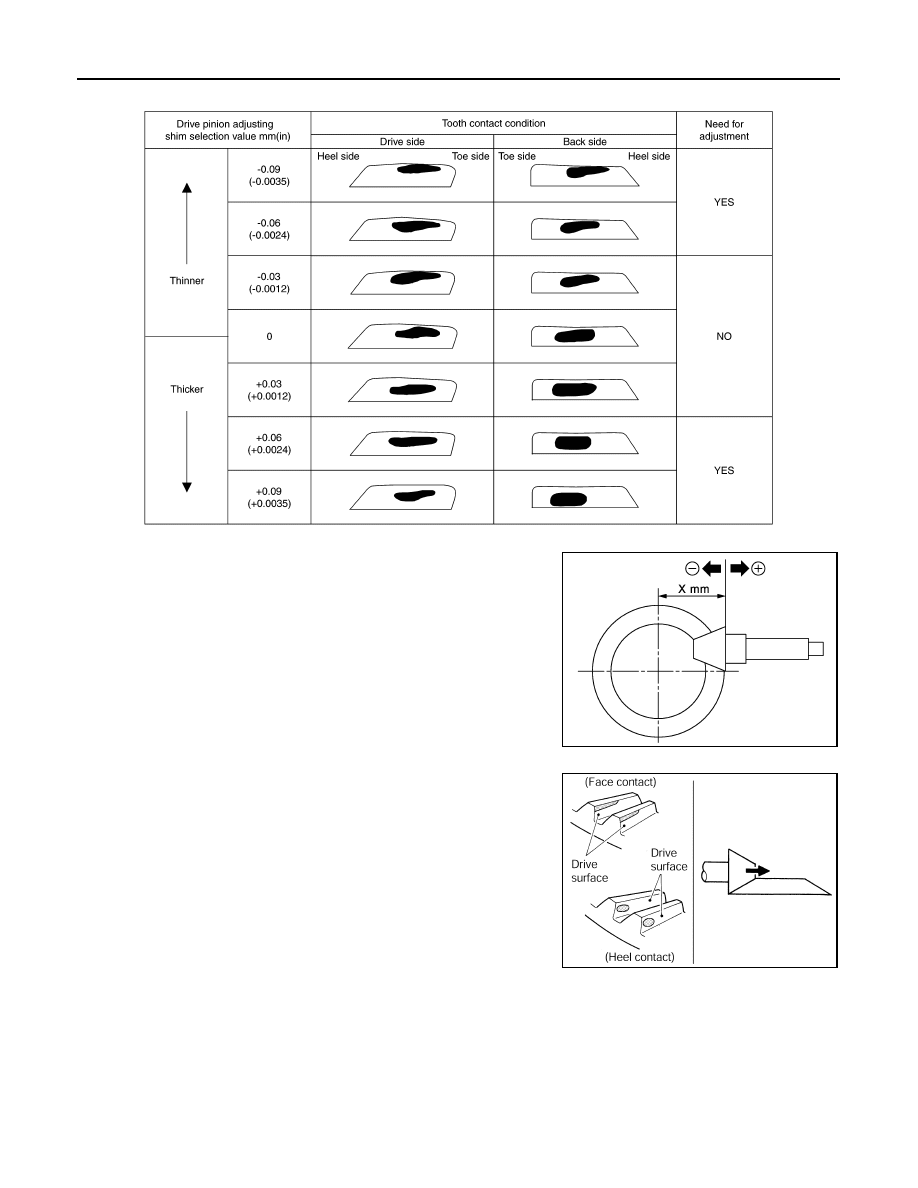

8. Follow the procedure below to adjust pinion height (dimension

X) if tooth contact is improper. For selecting adjusting shim, refer

to the latest parts information.

CAUTION:

If no adjusting shim with the calculated value is available,

select the thicker and closest one.

• Thicken the drive pinion adjusting shim to move the drive pin-

ion closer to the ring gear in case of face contact or heel con-

tact.

CAUTION:

Only one adjusting shim can be selected.

JSDIA4035GB

JSDIA1221ZZ

PDIA0440E

DRIVE PINION

DLN-89

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

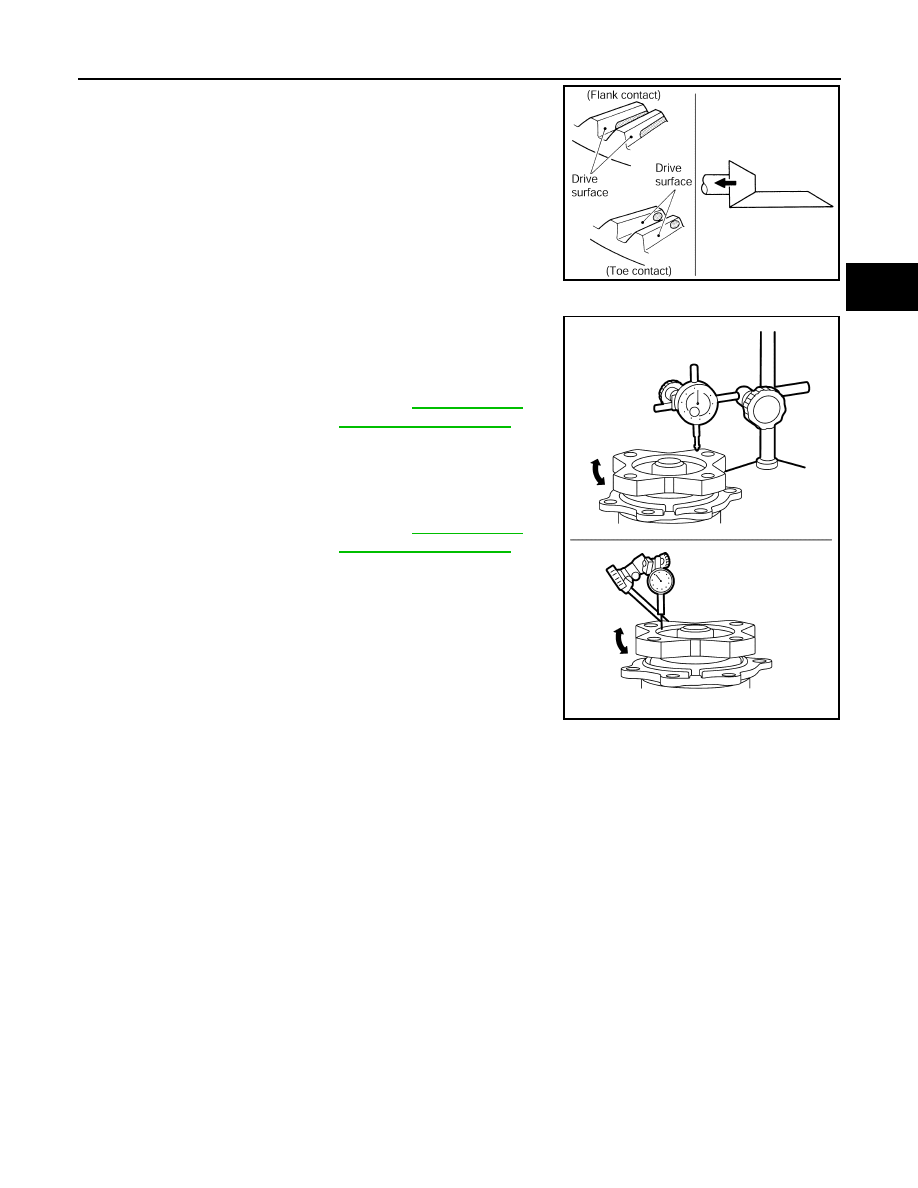

• Thin the drive pinion adjusting shim to move the drive pinion

farther from the ring gear in case of flank contact or toe con-

tact.

CAUTION:

Only one adjusting shim can be selected.

COMPANION FLANGE RUNOUT

1. Fit a dial indicator onto the companion flange face (inner side of

the propeller shaft mounting bolt holes).

2. Rotate the companion flange to check for runout.

3. Fit suitable tool to the inner side of the companion flange (socket

diameter).

4. Rotate the companion flange to check for runout.

5. Follow the procedure below to adjust if runout value is outside

the repair limit.

a. Check for runout while changing the phase between companion

flange and drive pinion in 90

° steps. Then search for the mini-

mum point.

b. Replace companion flange if runout value is still outside the limit

after the phase has been changed.

c. Adjust assembly status of the pinion bearing and drive pinion, or

replace pinion bearing assembly if runout is outside the standard

after the companion flange is replaced.

Inspection

INFOID:0000000011278377

INSPECTION AFTER DISASSEMBLY

Check items below. If necessary, replace them with new ones.

Gear and Shaft

Check gear face and shaft for wear, cracks, damage, and seizure.

CAUTION:

Replace ring gear and drive pinion as a set (hypoid gear set) if any malfunction is detected on the ring

gear or drive pinion.

Bearing

Check for seizure, peeling, wear, corrosion, sticking, unusual noise, roughness in hand turning, and other

damage.

Shim

Check for seizure, damage, and unusual wear.

PDIA0441E

Companion flange runout : Refer to

DLN-94, "Com-

panion Flange Runout"

.

Companion flange runout : Refer to

DLN-94, "Com-

panion Flange Runout"

.

JSDIA3981ZZ

DLN-90

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

TRANSFER CASE

TRANSFER CASE

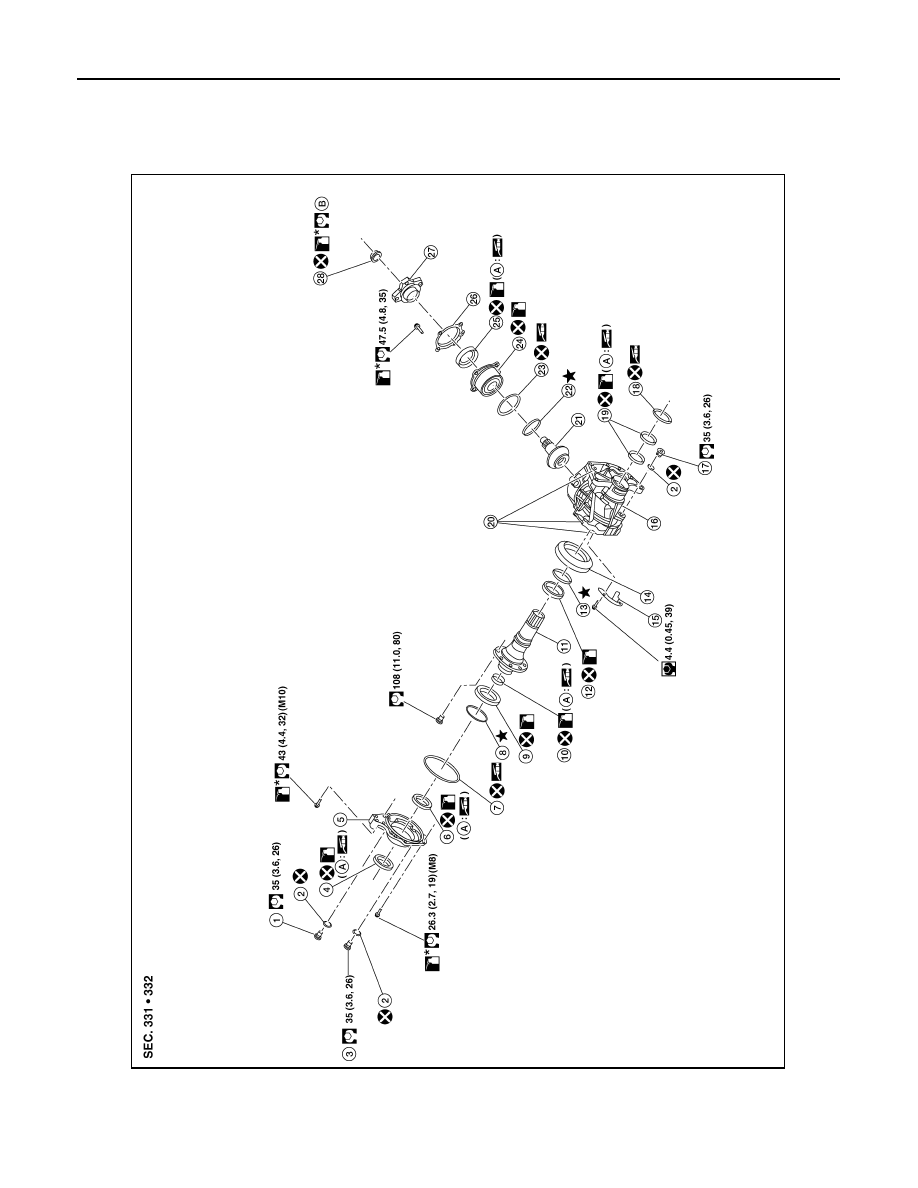

Exploded View

INFOID:0000000011278378

1.

Filler plug

2.

Gasket

3.

Drain plug

4.

Oil seal

5.

Transfer cover

6.

Oil seal

AWDIA1138ZZ

TRANSFER CASE

DLN-91

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Disassembly

INFOID:0000000011278379

1. Remove transfer cover. Refer to

DLN-74, "Disassembly"

.

2. Remove ring gear shaft assembly. Refer to

DLN-78, "Disassembly"

.

3. Remove drive pinion assembly. Refer to

DLN-83, "Disassembly"

.

4. Remove O-ring from transfer case.

CAUTION:

• Do not use a suitable tool.

• Do not damage transfer case.

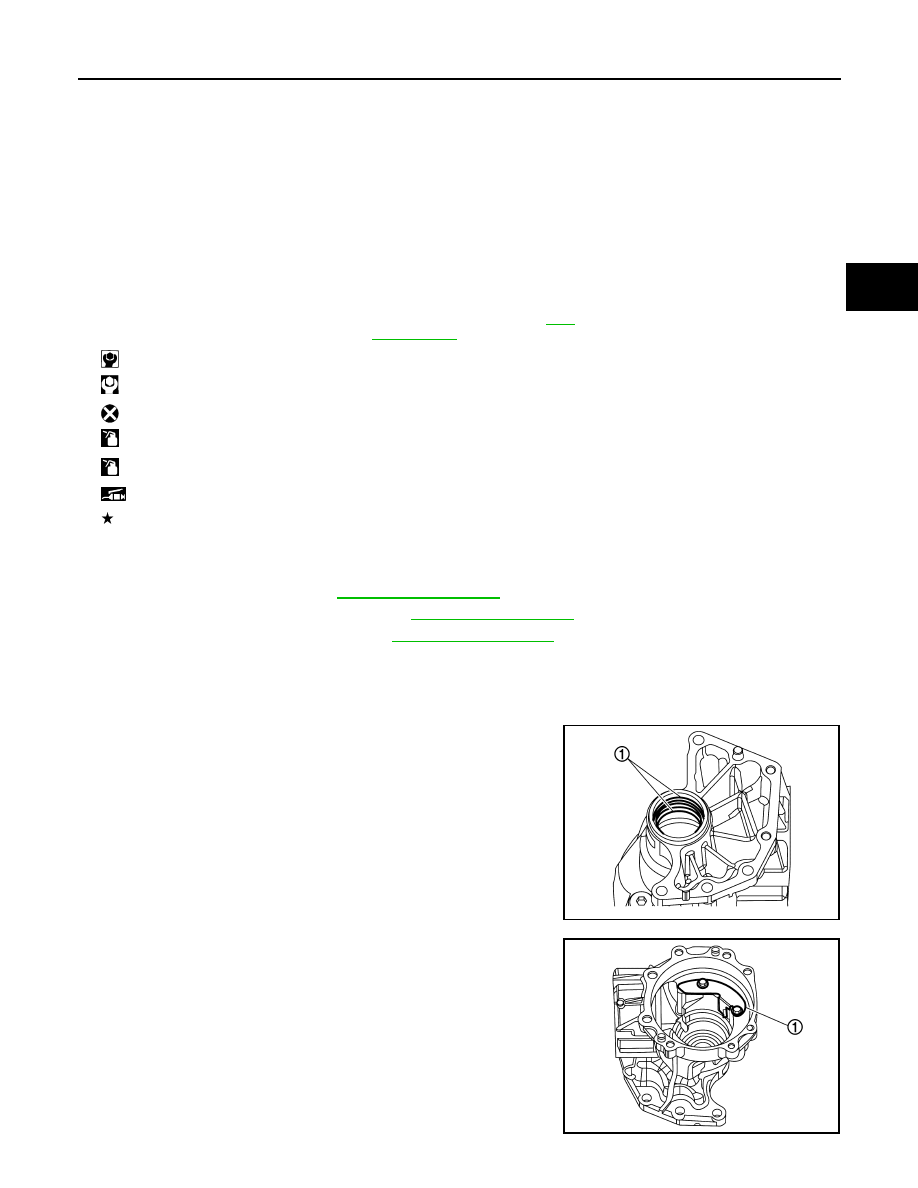

5. Remove oil seals (1).

CAUTION:

Do not damage transfer case.

6. Remove baffle plate (1).

7.

O-ring

8.

Ring gear bearing adjusting shim
(transfer cover side)

9.

Ring gear bearing (transfer cover
side)

10. Ring gear shaft oil seal

11. Ring gear shaft

12. Ring gear bearing (transfer case

side)

13. Ring gear bearing adjusting shim

(transfer case side)

14. Ring gear

15. Baffle plate

16. Transfer case

17. Plug

18. O-ring

19. Oil seal

20. Dowel pin

21. Drive pinion

22. Drive pinion adjusting shim

23. O-ring

24. Pinion bearing assembly

25. Oil seal

26. Dust cover

27. Companion flange

28. Pinion lock nut
A.  Oil seal lip

B.  Comply with the assembly proce-

dure when tightening. Refer to

DLN-

84, "Assembly"

.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

: Apply gear oil.

*

: Apply anti-corrosive oil.

: Apply multi-purpose grease.

: Select with proper thickness.

JSDIA3983ZZ

JSDIA3982ZZ
