TIRE SIZE INCORRECT IS DISPLAYED ON INFORMATION DISPLAY

TIRE SIZE INCORRECT IS DISPLAYED ON INFORMATION DISPLAY

Description

INFOID:0000000011278352

While driving, AWD warning (Tire Size Incorrect: See Owner’s Manual) is displayed on information display

(combination meter).

Diagnosis Procedure

INFOID:0000000011278353

1.

CHECK TIRE

Check the following.

• Tire pressure

• Wear condition

• Front and rear tire size (There is no difference between front and rear tires.)
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts. And then, drive the vehicle at speed of 20 km/h (12 MPH)

or more for 5 seconds or more. Improper size information is initialized accordingly.

2.

CHECK INPUT SIGNAL OF TIRE DIAMETER

 With CONSULT

1. Start the engine.

2. Drive at 20 km/h (12 MPH) or more for approximately 4 minutes continually.

3. Check “DIS-TIRE MONI” in “Data Monitor” of “ALL MODE AWD/4WD”.
Does the item on “Data Monitor” indicate “0 - 4 mm”?

YES

>> Inspection End.

NO

>> GO TO 3.

3.

TERMINAL INSPECTION

Check AWD control unit harness connector for disconnection.
Is the inspection result normal?

YES

>> Replace AWD control unit. Refer to

DLN-68, "Removal and Installation"

.

NO

>> Repair or replace the error-detected parts.

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-65

< SYMPTOM DIAGNOSIS >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000011278354

Use the chart below to find the cause of the symptom. The numbers indicate the order of the inspection. If nec-

essary, repair or replace these parts.

Reference

DLN-66, "

Inspe

ctio

n"

—

DLN-73, "

Ex

pl

od

ed

 V

iew

"

DLN-73, "

Ex

pl

od

ed

 V

iew

"

DLN-80, "

Inspe

ctio

n"

,

DLN-89, "

In

sp

ec

tio

n

"

DLN-80, "

Inspe

ctio

n"

,

DLN-89, "

In

sp

ec

tio

n

"

SUSPECTED PARTS
(Possible cause)

T

R

ANSFER OIL (Level

low)

T

R

ANSFER OIL (W

rong)

T

R

ANSFER OIL (Level

too high)

LI

QUI

D

 GASKET (Dam

ag

ed

)

O

-RING

 (W

o

rn o

r da

m

age

d)

O

IL

 SEA

L (W

o

rn o

r da

m

age

d)

GEAR

 (W

orn

 o

r

da

ma

ge

d)

B

EARING

 (W

orn

 or

da

ma

ge

d)

Symptom

Noise

1

2

3

3

3

Transfer  oil  leakage

3

1

2

2

2

DLN-66

< PERIODIC MAINTENANCE >

[TRANSFER: TY21C]

TRANSFER OIL

PERIODIC MAINTENANCE

TRANSFER OIL

Inspection

INFOID:0000000011278355

TRANSFER OIL LEAKS

Check that transfer oil is not leaking from transfer assembly or around it.

TRANSFER OIL LEVEL

CAUTION:

Do not start engine while checking transfer oil level.

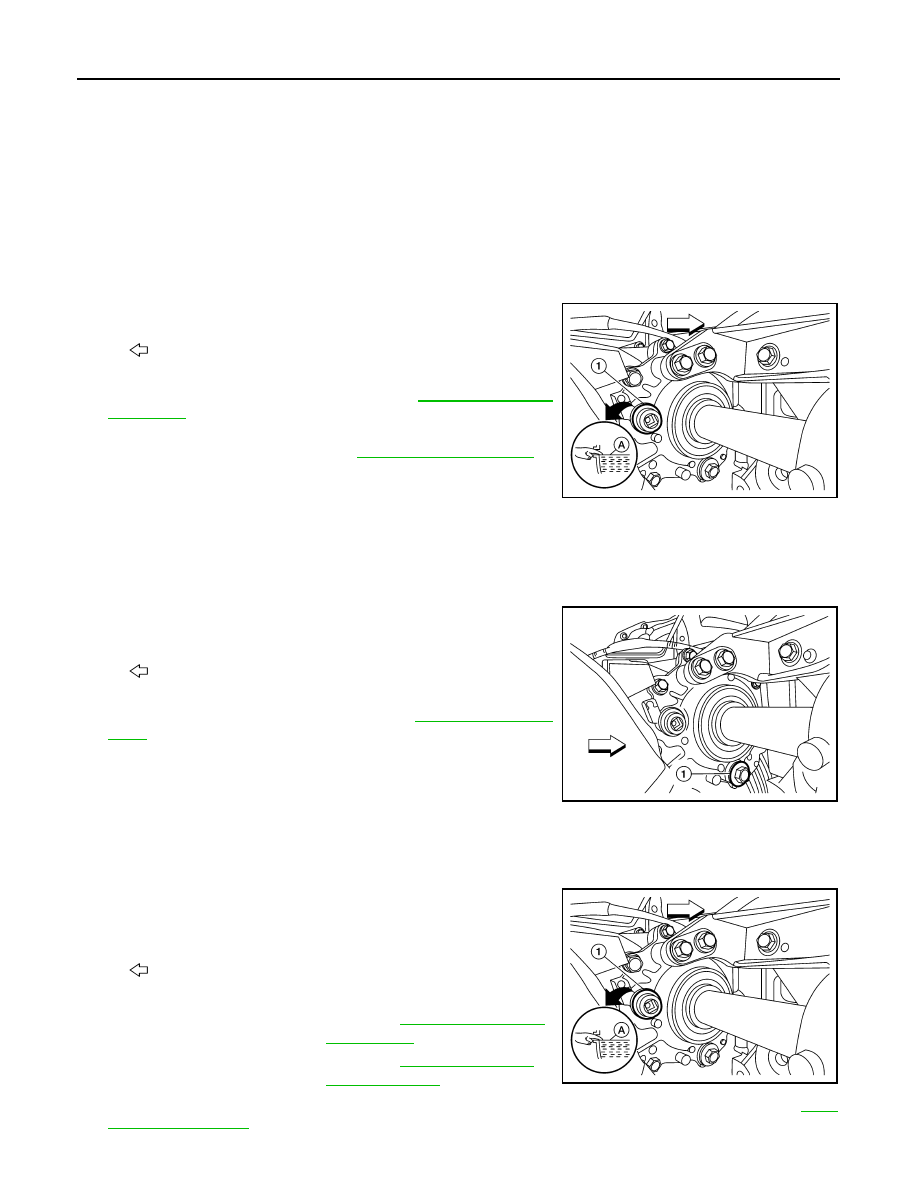

1. Remove filler plug (1) and gasket.

2. Transfer oil level (A) should be level with bottom of filler plug

hole. Add transfer oil if necessary. Refer to

MA-11, "Fluids and

Lubricants"

.

3. Set a new gasket onto filler plug, and install it in the transfer and

tighten to specified torque. Refer to

DLN-90, "Exploded View"

.

CAUTION:

Do not reuse gasket.

Draining

INFOID:0000000011278356

CAUTION:

Do not start engine while working.
1. Run the vehicle to warm up the transfer unit sufficiently.
2. Stop the engine and remove drain plug (1) and gasket and drain

the transfer oil.

3. Set a new gasket onto drain plug, and install it in the transfer

and tighten to specified torque. Refer to

DLN-90, "Exploded

View"

.

CAUTION:

Do not reuse gasket.

Refilling

INFOID:0000000011278357

CAUTION:

Do not start engine while checking transfer oil level.
1. Remove filler plug (1).
2. Fill with new transfer oil to the specified level (A) near the filler

plug hole.

3. Set a new gasket onto filler plug, and install it in the transfer and tighten to specified torque. Refer to

DLN-

90, "Exploded View"

.

: Front

ALDIA0560ZZ

: Front

AWDIA1153ZZ

: Front

Transfer oil grade and
viscosity

: Refer to

MA-11, "Fluids and

Lubricants"

.

Transfer oil capacity

: Refer to

DLN-94, "General

Specifications"

.

ALDIA0560ZZ

TRANSFER OIL

DLN-67

< PERIODIC MAINTENANCE >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

CAUTION:

Do not reuse gasket.
