AWD CONTROL UNIT

REMOVAL AND INSTALLATION

AWD CONTROL UNIT

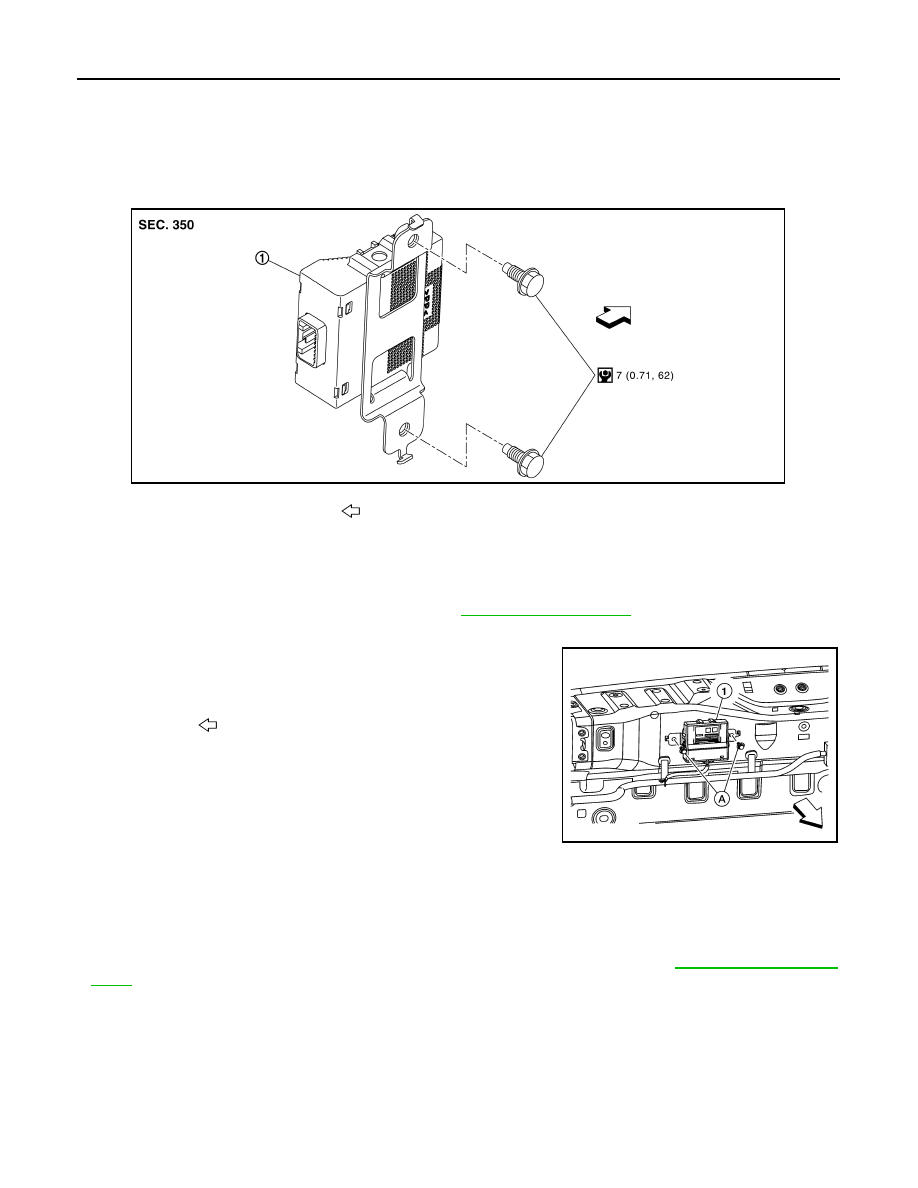

Exploded View

INFOID:0000000011278358

Removal and Installation

INFOID:0000000011278359

REMOVAL

1. Remove luggage side lower finisher (LH). Refer to

INT-33, "Exploded View"

.

2. Disconnect harness connector from the AWD control unit.
3. Remove AWD control unit bolts (A).

NOTE:

AWD control unit (1) is located on the back side of body panel.

4. Remove AWD control unit.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not drop or shock AWD control unit.

• When replacing AWD control unit, perform writing unit characteristic. Refer to

DLN-35, "Work Proce-

dure"

.

1.

AWD control unit

Front

JSDIA5368GB

: Front

AWDIA1232ZZ

AWD LOCK SWITCH

DLN-69

< REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

AWD LOCK SWITCH

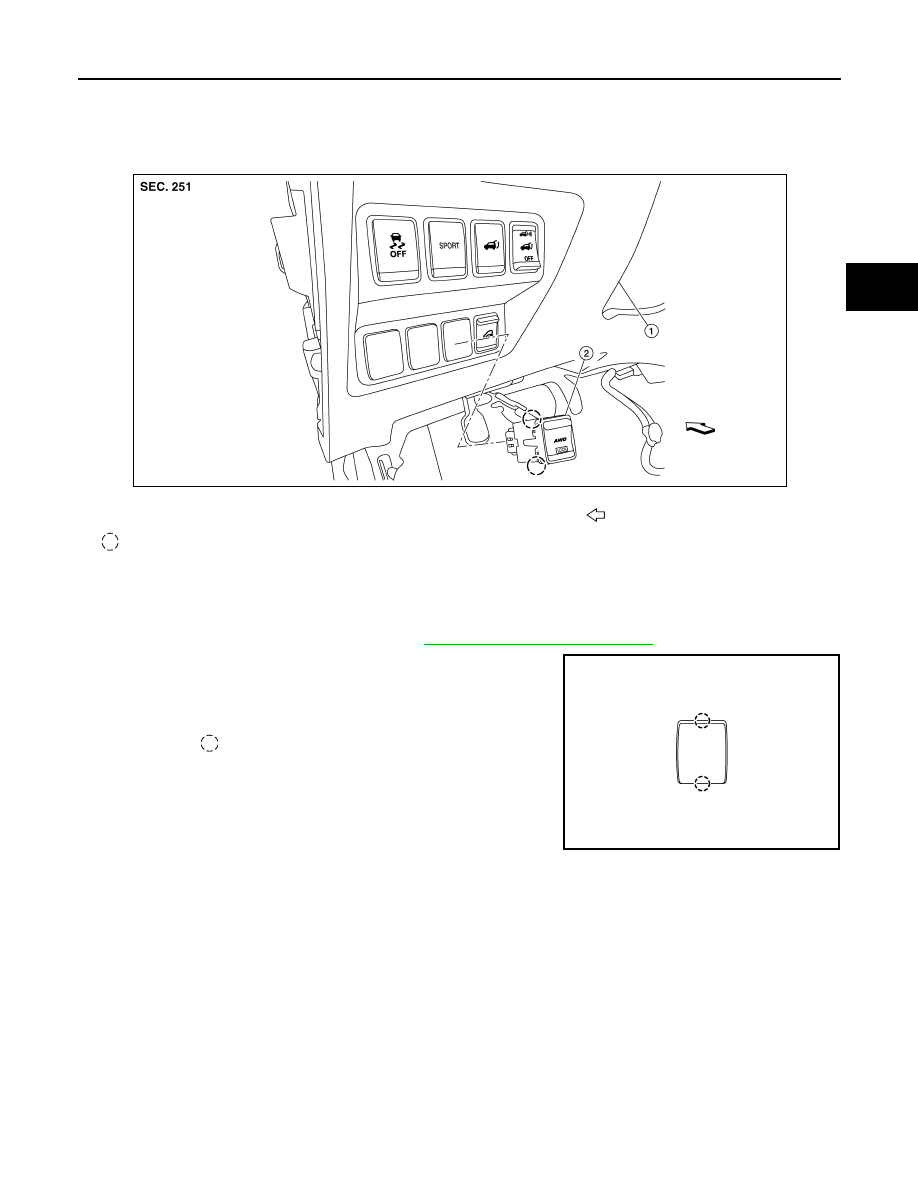

Exploded View

INFOID:0000000011278360

Removal and Installation

INFOID:0000000011278361

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Disconnect AWD lock switch harness connector (A).
3. Release pawls using suitable tool and remove AWD lock switch

from lower switch bracket (1).

INSTALLATION

Install in the reverse order of removal.

1.

Instrument lower panel LH

2.

AWD lock switch

Front

Pawl

ALDIA0506ZZ

: Pawls

ALJIA1522ZZ

DLN-70

< REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

TRANSFER COVER OIL SEAL

TRANSFER COVER OIL SEAL

Removal and Installation

INFOID:0000000011278362

NOTE:

• Replacement on vehicle may cause damage to transfer cover, and may cause a transfer oil leak.

• If transfer cover oil seal requires replacement, remove the transfer assembly from the vehicle before replac-

ing transfer cover oil seal. Refer to

DLN-74, "Disassembly"

.

TRANSFER ASSEMBLY

DLN-71

< UNIT REMOVAL AND INSTALLATION >

[TRANSFER: TY21C]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSFER ASSEMBLY

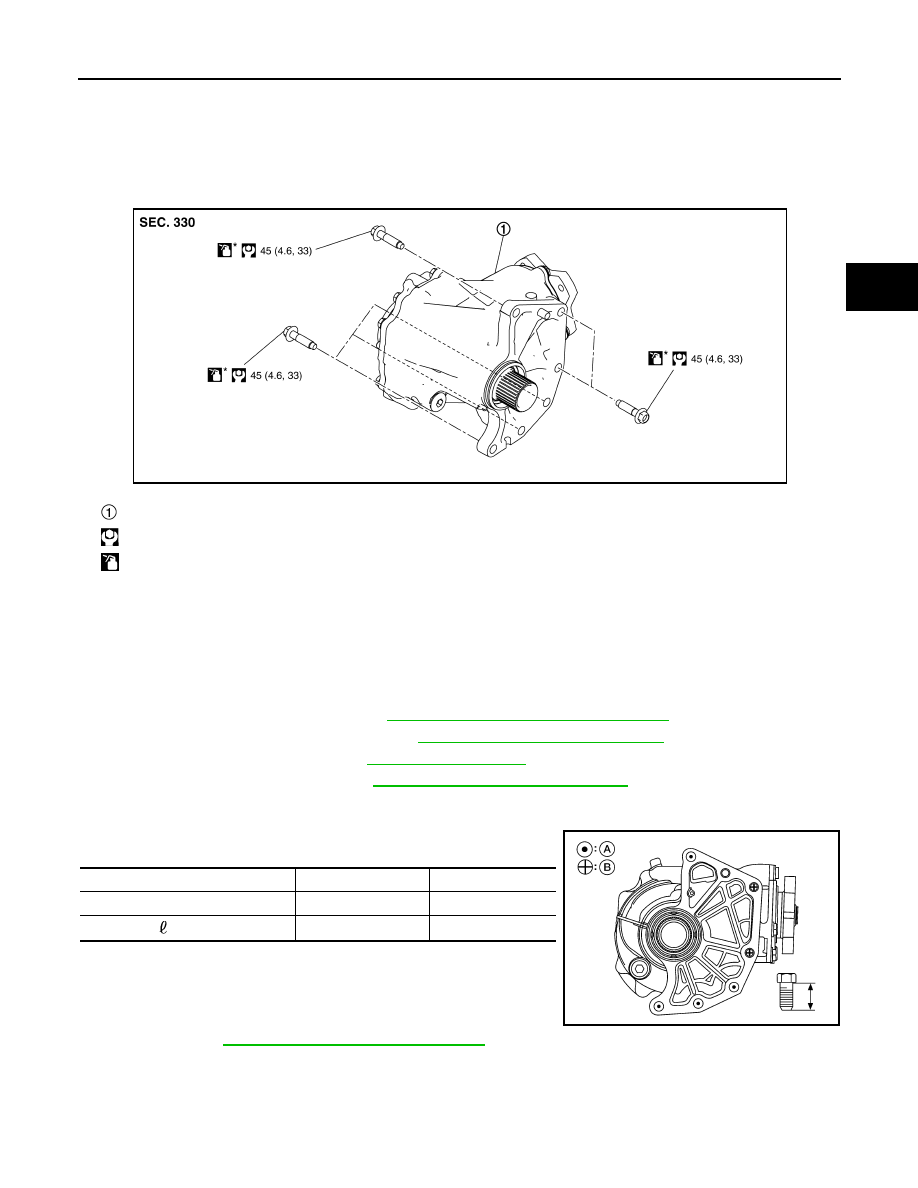

Exploded View

INFOID:0000000011278363

Removal and Installation

INFOID:0000000011278364

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove front drive shaft (RH). Refer to

FAX-23, "Removal and Installation (RH)"

.

2. Remove front suspension member. Refer to

FSU-22, "Removal and Installation"

.

3. Remove front exhaust tube. Refer to

EX-5, "Exploded View"

.

4. Remove rear propeller shaft. Refer to

DLN-100, "Removal and Installation"

.

5. Remove transaxle assembly to transfer assembly bolts.

CAUTION:

Be careful not to damage gear ring oil seal inside of CVT.

6. Remove transfer assembly from the vehicle.

CAUTION:

• Do not damage air breather hose.

• After removing transfer from transaxle, always replace

differential side oil seal of the transaxle side with new

one. Refer to

TM-210, "Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

Transfer assembly

: N·m (kg-m, ft-lb)

*: Apply anti-corrosion oil.

JSDIA5370GB

Bolt No.

(A)

(B)

Quantity

4

2

Bolt length “ ” mm (in)

44 (1.73)

42 (1.65)

ALDIA0389ZZ
