REAR DOOR LOCK

5. While pulling (1) outside handle, remove (2) outside handle

escutcheon.

6. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

7. Remove front gasket and rear gasket.
8. Slide outside handle bracket toward rear of vehicle to remove.

9. Disconnect outside handle cable (1) from outside handle bracket

(2) as shown.

INSTALLATION

Installation in the reverse order of removal.

CAUTION:

• After installation, check door lock cable is properly engaged to outside handle bracket.

• After installation, check door open/close and lock/unlock operation.

JMKIA5342ZZ

AWKIA1997ZZ

JMKIA2652ZZ

ALKIA2489ZZ

2015 Rogue NAM

BACK DOOR LOCK

DLK-391

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR LOCK

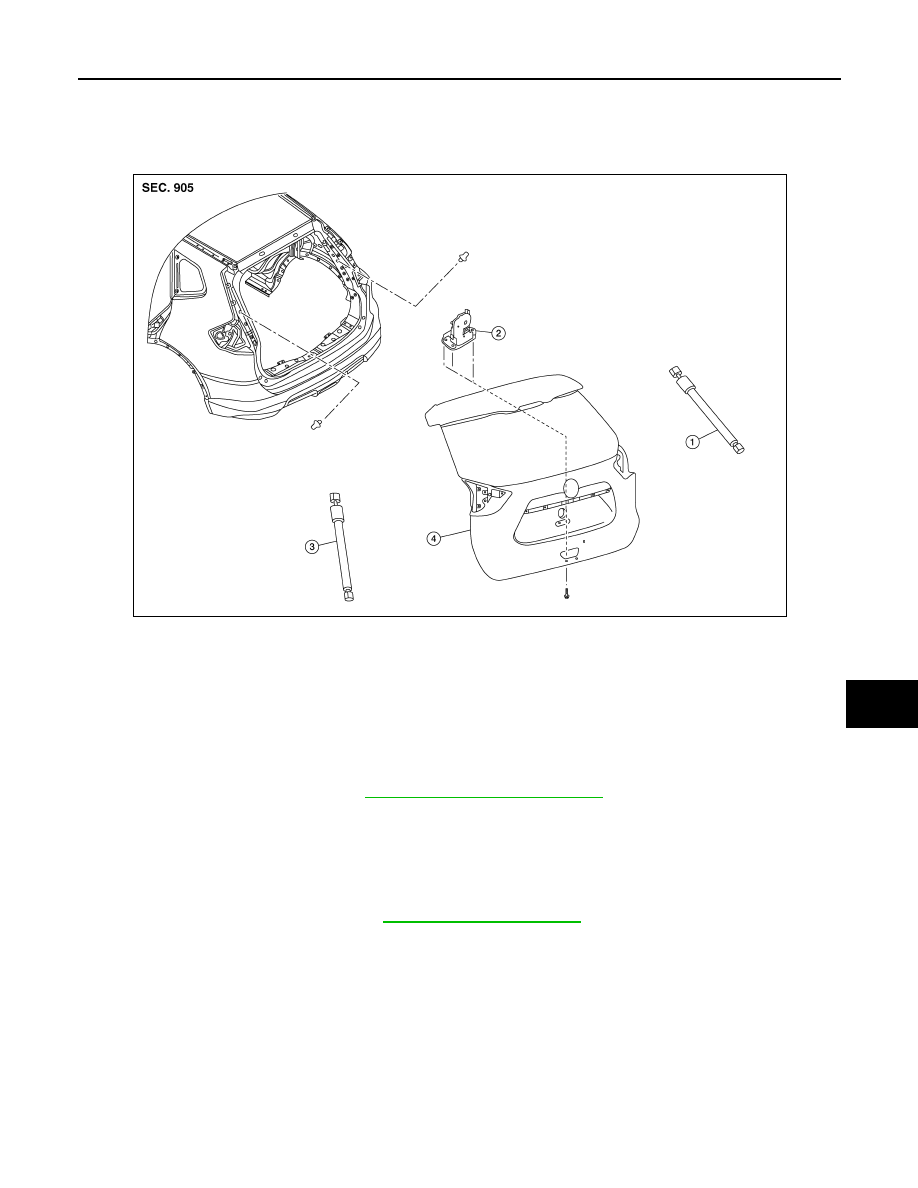

Exploded View

INFOID:0000000011279178

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000011279179

REMOVAL

1. Remove back door finisher. Refer to

INT-38, "Removal and Installation"

.

2. Disconnect the harness connector from the back door lock.
3. Remove bolts and back door lock.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specification. Refer to

DLK-391, "Exploded View"

.

• After installation, check back door open/close and lock/unlock operation.

BACK DOOR STAY
BACK DOOR STAY : Removal and Installation

INFOID:0000000011279180

REMOVAL

1. Support the back door using a suitable tool.

WARNING:

Body injury may occur if no supporting rod is holding the back door open when removing the

back door stay.

1.

Back door stay (RH)

2.

Back door lock

3.

Back door stay (LH)

4.

Back door

AWKIA2945ZZ

2015 Rogue NAM

DLK-392

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

2. Releaase the metal clip (3) located on the connection between

the back door stay (1) and the stud ball (2) (back door side)

using a suitable tool (A).

3. Remove the back door stay (back door side).

4. Repeat procedure for removing back door stay from body side.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check the back door open/close operation.

EMERGENCY LEVER
EMERGENCY LEVER : Unlock procedures

INFOID:0000000011279181

UNLOCK PROCEDURES

NOTE:

If back door lock cannot be unlocked due to a malfunction or battery discharge, perform the following proce-

dures to unlock back door assembly.
1. From inside the vehicle, rotate emergency lever (1) in the direc-

tion shown to unlock.

JMKIA2255ZZ

AWKIA2921ZZ

2015 Rogue NAM

FUEL FILLER LID OPENER

DLK-393

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FUEL FILLER LID OPENER

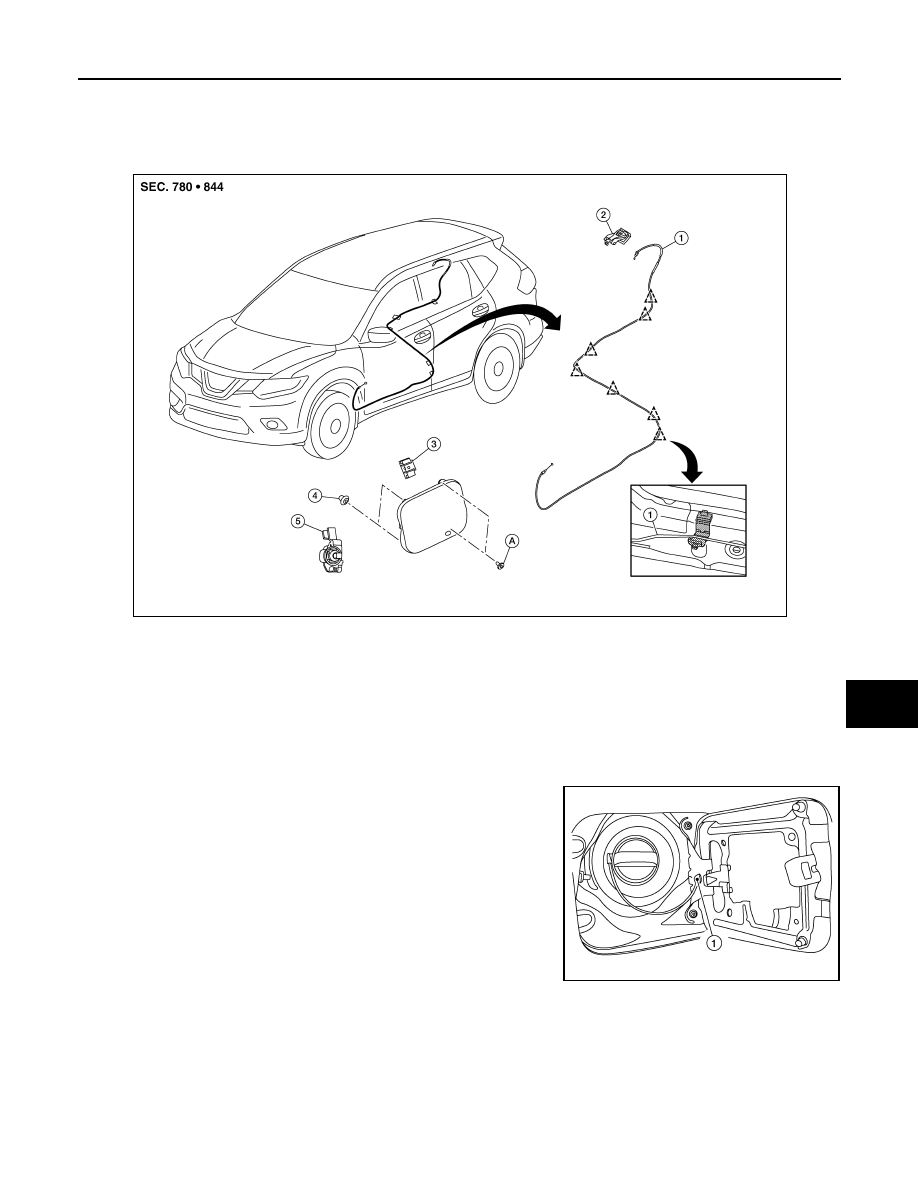

Exploded View

INFOID:0000000011279182

FUEL FILLER LID
FUEL FILLER LID : Removal and Installation

INFOID:0000000011279183

REMOVAL

1. Remove fuel cap pin (1).

1.

Fuel filler lid release cable

2.

Fuel filler lid release handle

3.

Spring

4.

Bumper rubber

5.

Fuel filler lid lock

A.

Screw

AWKIA2922ZZ

ALKIA3416ZZ
