Nissan Rogue. Manual - part 385





DLK-382

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD LOCK

4. Install so that static closing force of hood is 315-490 N (32.1-50.0 kg–m, 70.8-110.2 ft–lb).

NOTE:

• Do not exert vertical force on right side and left side of hood lock.

• Do not press simultaneously on both sides.

5. Check the hood lock lubrication condition. If necessary, apply a suitable multi-purpose grease to hood lock

assembly.

SECONDARY LATCH
SECONDARY LATCH : Removal and Installation

INFOID:0000000011279167

REMOVAL

1. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

2. Disconnect secondary latch cable from hood lock assembly.
3. Remove bolts and secondary latch.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specified torque. Refer to

DLK-381, "Exploded View"

.

• Check that secondary latch cable is properly engaged with hood lock.

HOOD LOCK RELEASE CABLE
HOOD LOCK RELEASE CABLE : Removal and Installation

INFOID:0000000011279168

REMOVAL

1. Remove fender protector (LH). Refer to

EXT-28, "FENDER PROTECTOR : Removal and Installation"

.

2. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

3. Disconnect hood lock release cable from hood lock release handle and hood lock.
4. Release hood lock release cable clips using a suitable tool.
5. Remove grommet on the lower dash and carefully pull the hood lock release cable into the passenger

compartment.

CAUTION:

While pulling, be careful not to damage (peel) the outside of hood lock release cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to bend cable too much, keep the radius 100 mm (3.94 in) or more.

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock release cable is properly engaged with hood lock assembly.

• After installation, perform hood assembly adjustment procedure. Refer to

DLK-362, "HOOD ASSEM-

BLY : Adjustment"

.

• After adjusting, perform hood lock inspection. Refer to

DLK-381, "HOOD LOCK : Inspection"

.

HOOD LOCK RELEASE HANDLE

PIIB5801E

2015 Rogue NAM

HOOD LOCK

DLK-383

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

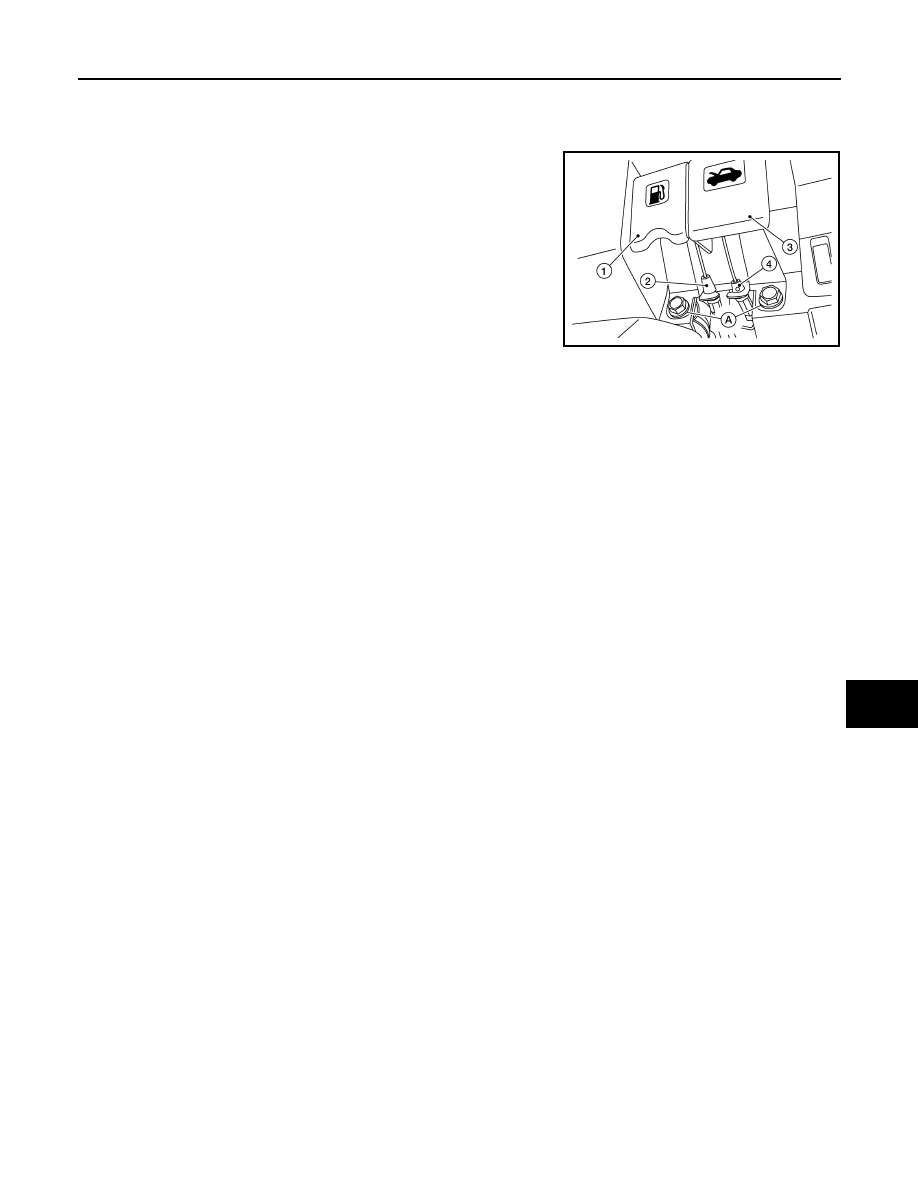

HOOD LOCK RELEASE HANDLE : Removal and Installation

INFOID:0000000011279169

REMOVAL

1. Remove fuel filler lid/hood lock release handle bolts (A).
2. Disconnect fuel filler lid release cable (2) from fuel filler lid

release handle (1).

3. Disconnect hood lock release cable (4) from hood lock release

handle (3).

4. Remove hood lock release handle.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3422ZZ

2015 Rogue NAM

DLK-384

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

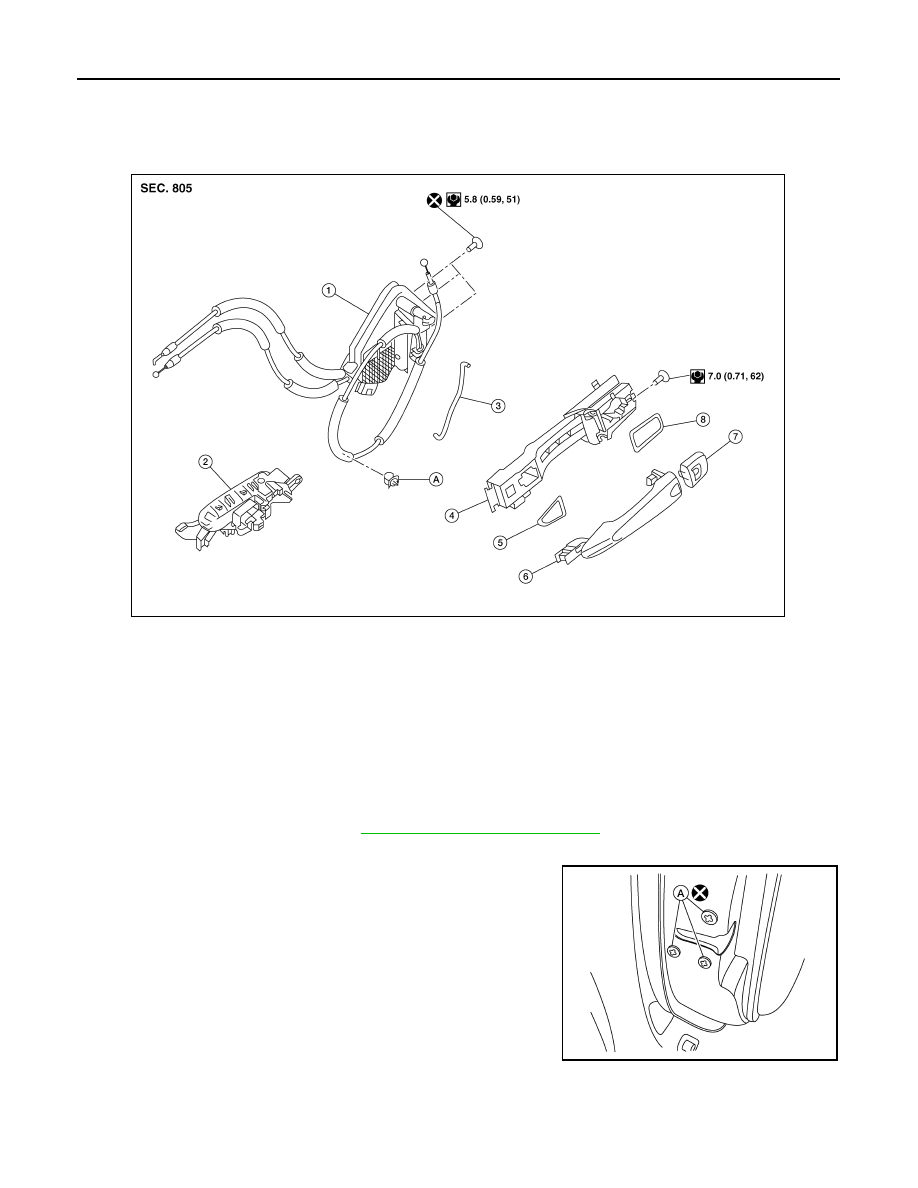

FRONT DOOR LOCK

FRONT DOOR LOCK

Exploded View

INFOID:0000000011279170

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000011279171

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove vapor barrier.
3. Remove front door lock bolts (A).

1.

Front door lock

2.

Inside handle

3.

Door key cylinder rod (LH only)

4.

Outside handle bracket

5.

Front gasket

6.

Outside handle

7.

Outside handle escutcheon / door key
cylinder (LH only)

8.

Rear gasket

A.

Clip

AWKIA2920ZZ

ALKIA3355ZZ

2015 Rogue NAM

FRONT DOOR LOCK

DLK-385

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

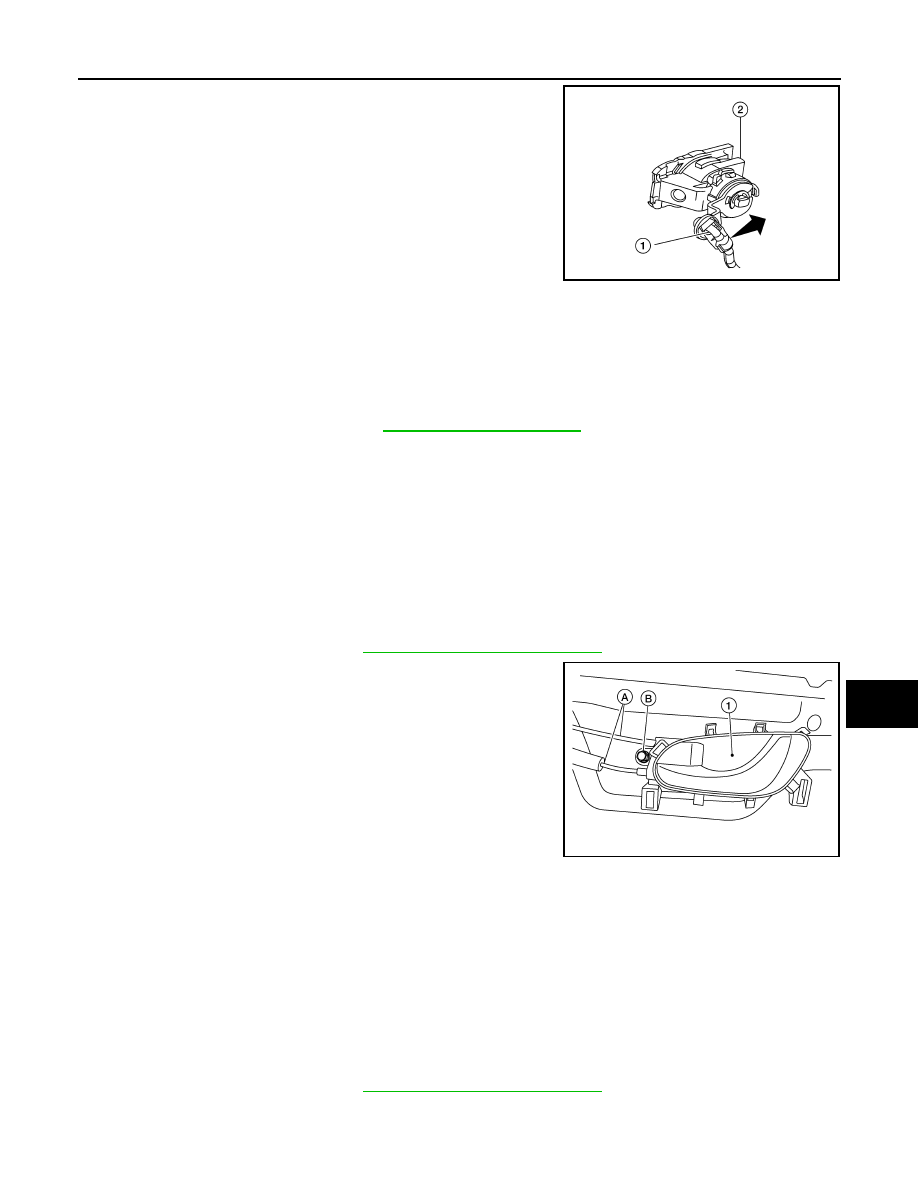

4. Disconnect door key cylinder rod (LH only) (1) from front door

lock (2) (LH only).

5. Disconnect door lock cables from inside handle and outside handle..
6. Disconnect the harness connector from the front door lock and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse front door lock bolts.

• Tighten bolts to specification. Refer to

DLK-384, "Exploded View"

.

• After installation, check door lock cables are properly engaged to inside handle and outside handle

bracket.

• When installing door key cylinder rod (LH only), be sure to rotate door key cylinder rod holder until a

click is felt.

• After installation, check door open/close and lock/unlock operation.

• Check door lock assembly for poor lubrication. If necessary apply a suitable multi-purpose grease.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000011279172

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove inside handle bolt (B).
3. Disconnect the door lock cables (A) and remove inside handle

(1).

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

• After installation, check door lock cables are properly engaged to inside handle.

• After installation, check door open/close and lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000011279173

REMOVAL

1. Fully close front door glass.
2. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

ALKIA2487ZZ

ALKIA3392ZZ

2015 Rogue NAM
