Nissan Rogue. Manual - part 383





DLK-374

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR

Unit: mm (in)

1. Remove center pillar lower finisher. Refer to

INT-22, "CENTER PILLAR LOWER FINISHER : Removal

and Installation"

.

2. Loosen rear door hinge nuts (door side).
3. Adjust the surface height of rear door according to specifications provided.
4. Temporarily tighten rear door hinge nuts (door side).
5. Loosen rear door hinge nuts and bolts (body side).
6. Raise rear door at rear end to adjust clearance of rear door according to the specifications provided.
7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• Check rear door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-pur-

pose grease.

• After adjusting, apply touch-up paint (body color) to the head of rear door hinge bolts and nuts.

8. Install center pillar lower finisher. Refer to

INT-22, "CENTER PILLAR LOWER FINISHER : Removal and

Installation"

.

DOOR STRIKER
DOOR STRIKER : Removal and Installation

INFOID:0000000011279153

REMOVAL

Remove bolts and rear door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse rear door striker bolts.

• Tighten bolts to specification. Refer to

DLK-372, "Exploded View"

.

• After installation, check rear door open/close operation. If necessary, adjust the door striker. Refer to

DLK-374, "DOOR STRIKER : Adjustment"

.

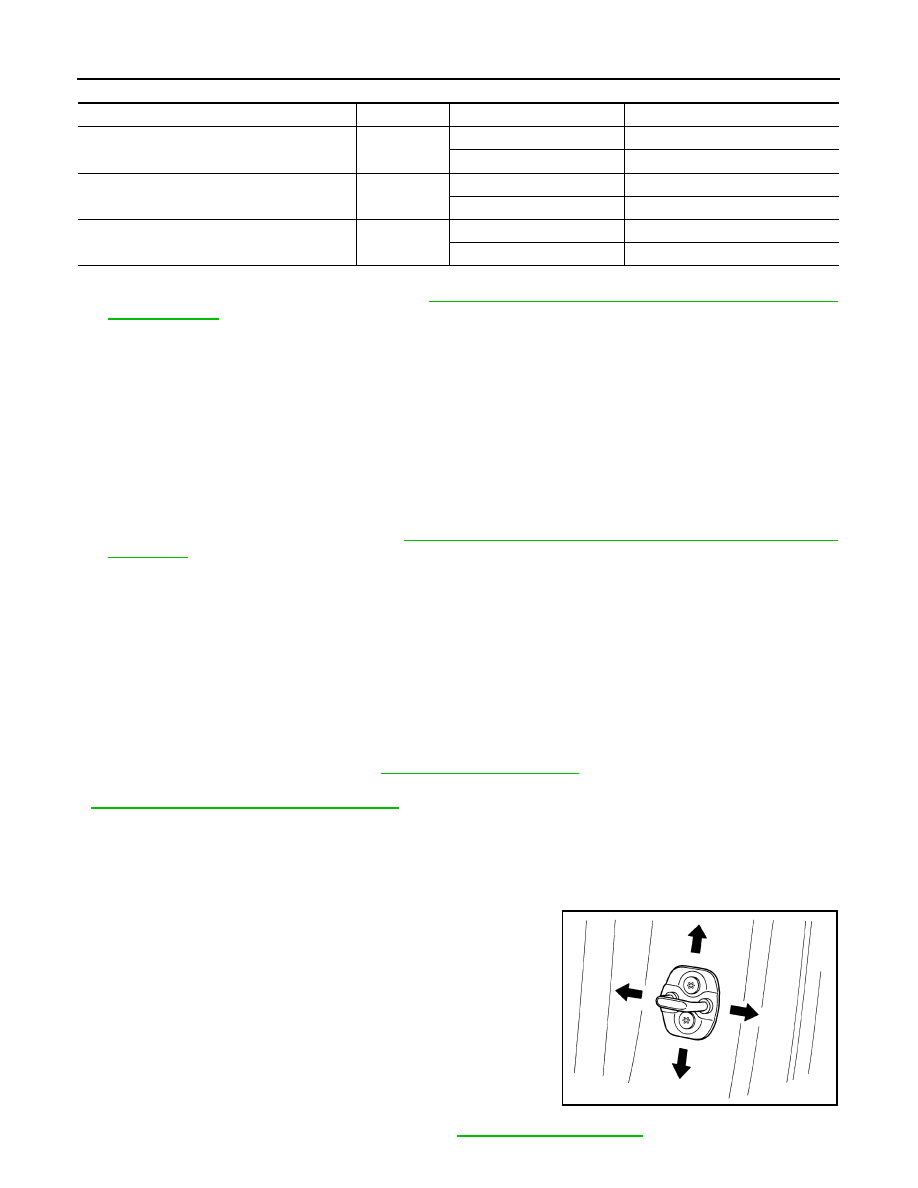

DOOR STRIKER : Adjustment

INFOID:0000000011279154

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts
2. Adjust door striker so that it becomes parallel with front door lock

insertion direction.

3. Tighten door striker bolts to specification. Refer to

DLK-372, "Exploded View"

.

Portion

Section

Measurement

Standard

Front fender - Front door

A – A

Clearance

4.0

± 1.0 (0.16 ± 0.04)

Surface height

± 1.0 (± 0.04)

Front door - Rear door

B – B

Clearance

4.3

± 1.0 (0.17 ± 0.04)

Surface height

± 1.0 (± 0.04)

Rear door - Body side outer

C – C

Clearance

3.7

± 1.0 (0.15 ± 0.04)

Surface height

± 1.0 (± 0.04)

PIIB2804J

2015 Rogue NAM

REAR DOOR

DLK-375

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000011279155

REMOVAL

1. Remove rear door assembly. Refer to

DLK-372, "DOOR ASSEMBLY : Removal and Installation"

.

2. Remove center pillar lower finisher (rear door lower hinge only). Refer to

INT-22, "CENTER PILLAR

LOWER FINISHER : Removal and Installation"

.

3. Remove rear door hinge bolts and nuts and rear door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten nuts/bolts to specification. Refer to

DLK-372, "Exploded View"

.

• Apply anticorrosive agent onto the hinge mating surface.

• After installation, check rear door open/close and lock/unlock operation.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-373, "DOOR ASSEMBLY

: Adjustment"

.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000011279156

REMOVAL

1. Fully close the rear door window.
2. Remove rear door speaker. Refer to

AV-71, "Removal and Installation"

 (DISPLAY AUDIO),

AV-205,

"Removal and Installation"

 (NAVIGATION WITHOUT BOSE) or

AV-376, "Removal and Installation"

 (NAV-

IGATION WITH BOSE).

3. Remove rear door check link bolt (body side).
4. Remove rear door check link bolts (door side).
5. Remove rear door check link through the hole in rear door panel.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specification. Refer to

DLK-372, "Exploded View"

.

• After installation, check rear door open/close and lock/unlock operation.

• Check rear door check link rotating point for poor lubrication. If necessary, apply a suitable multi-

purpose grease.

2015 Rogue NAM

DLK-376

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

BACK DOOR

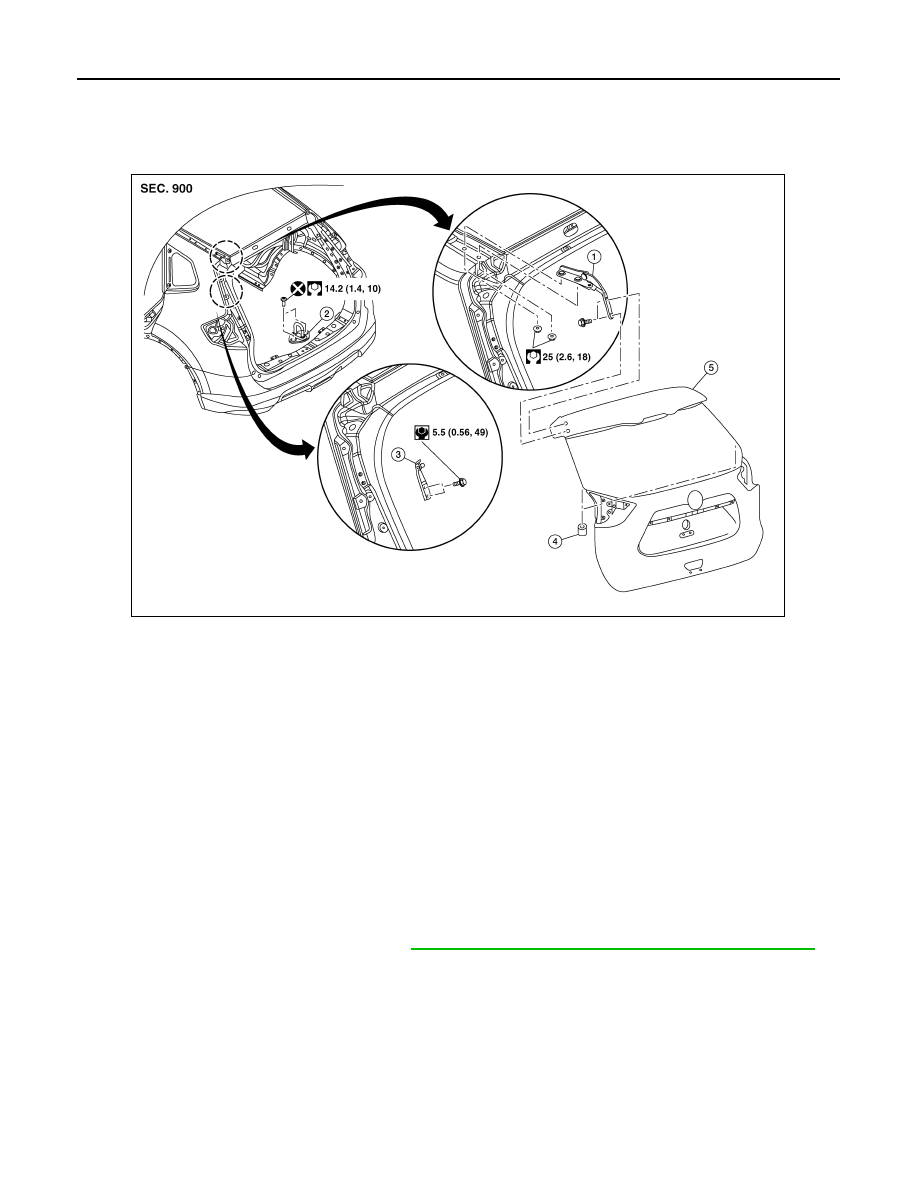

Exploded View

INFOID:0000000011279157

BACK DOOR ASSEMBLY
BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000011279158

CAUTION:

• Use two people when removing or installing the back door due to its heavy weight.

• Use shop cloths to protect surrounding components from damage during removal and installation of

back door.

REMOVAL

1. Support the back door assembly using a suitable tool.

WARNING:

Bodily injury may occur if back door assembly is not supported properly when removing the back

door spindle unit.

2. Remove back door stays (LH/RH). Refer to

DLK-271, "BACK DOOR STAY : Removal and Installation"

.

1.

Back door hinge

2.

Back door striker

3.

Back door stay hinge

4.

Bumper rubber

5.

Back door

AWKIA2946ZZ

2015 Rogue NAM

BACK DOOR

DLK-377

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

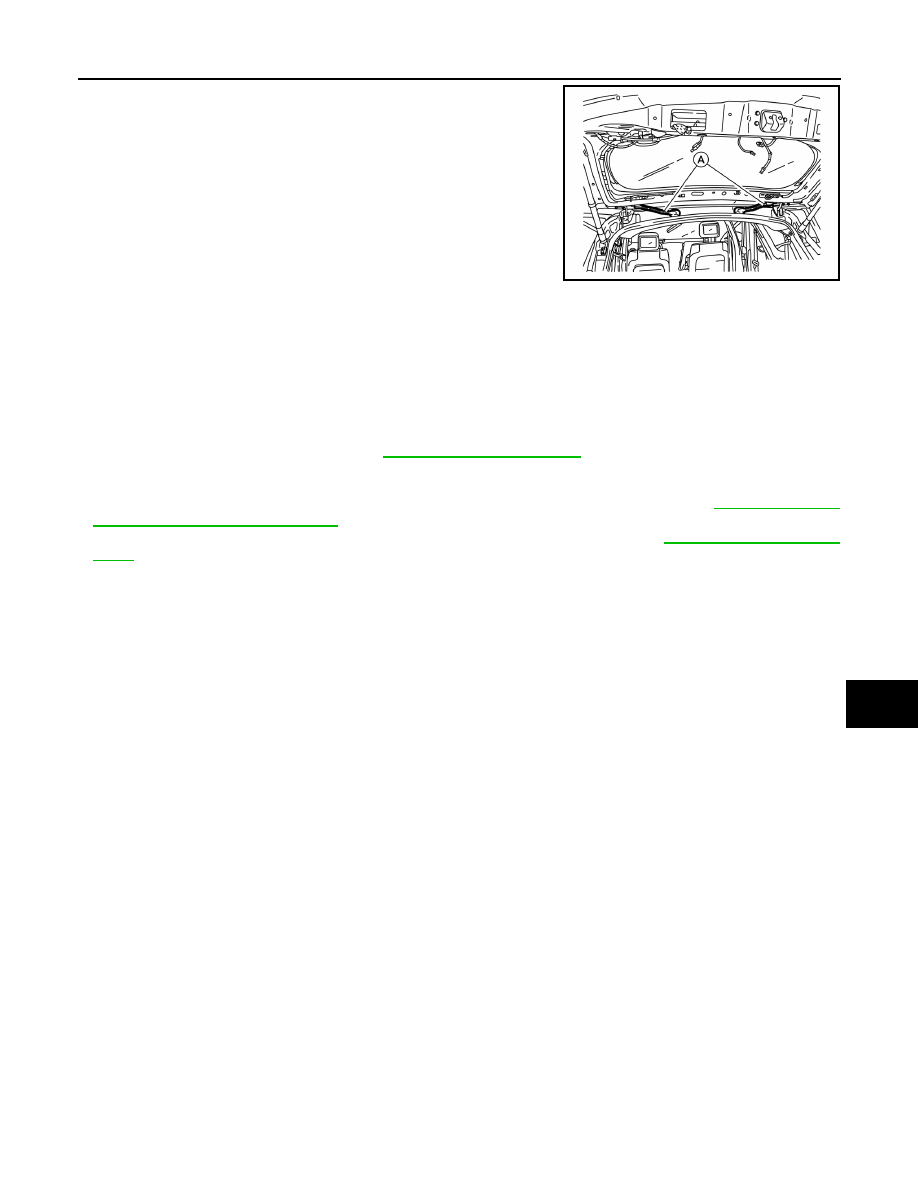

3. Disconnect harness connectors (A) from back door.

4. Remove back door harness grommet, then pull harness from the back door.
5. Disconnect washer tube.
6. Remove washer tube grommet and washer tube from the back door.
7. Remove back door hinge bolts (door side) and back door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten bolts to specification. Refer to

DLK-376, "Exploded View"

.

• Apply anticorrosive agent onto the surface between hinge and door side.

• When reusing stud ball, always apply locking sealant before installing stud ball to back door.

• After installation, perform the back door assembly adjustment procedure. Refer to

DLK-378, "BACK

DOOR ASSEMBLY : Adjustment"

.

• Perform calibration of automatic back door position information. Refer to

DLK-110, "Work Proce-

dure"

.

ALKIA2469ZZ

2015 Rogue NAM
