DLK-370

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

1. Remove front fender. Refer to

DLK-366, "Removal and Installation"

.

2. Loosen front door hinge nuts (door side).
3. Adjust the surface height of front door according to the specifications provided.
4. Temporarily tighten front door hinge nuts (door side).
5. Loosen front door hinge bolts (body side).
6. Raise front door at rear end to adjust clearance of the front door according to the specifications provided.
7. After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

• After adjusting, apply touch-up paint (body color) to the head of front door hinge bolts and nuts.

8. Install front fender. Refer to refer to

DLK-366, "Removal and Installation"

.

DOOR STRIKER
DOOR STRIKER : Removal and Installation

INFOID:0000000011279146

REMOVAL

Remove bolts and front door striker.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse front door striker bolts.

• After installation, check front door open/close operation. If necessary, adjust the front door striker.

Refer to

DLK-370, "DOOR STRIKER : Adjustment"

.

• Tighten bolts to specified torque. Refer to

DLK-368, "Exploded View"

.

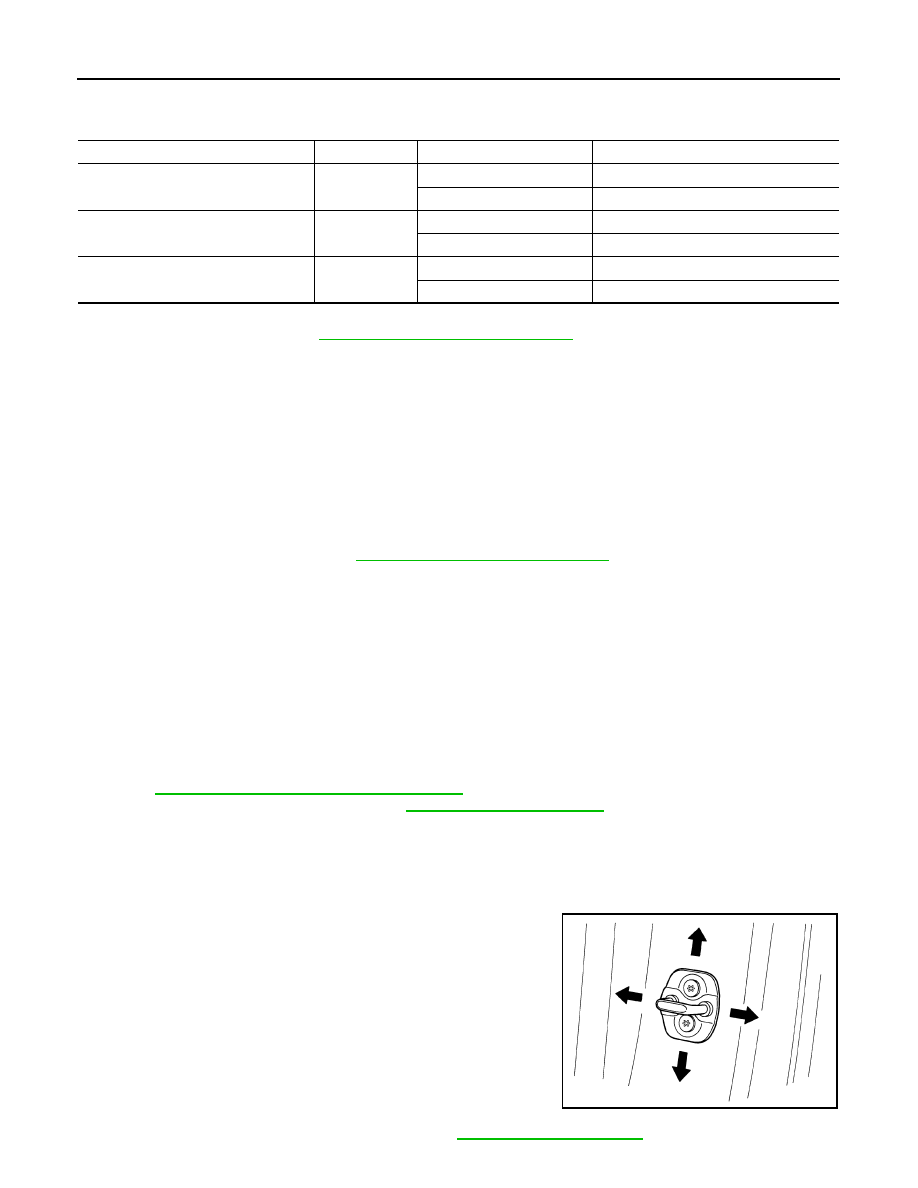

DOOR STRIKER : Adjustment

INFOID:0000000011279147

DOOR STRIKER ADJUSTMENT

1. Loosen door striker bolts
2. Adjust door striker so that it becomes parallel with front door lock

insertion direction.

3. Tighten door striker bolts to specification. Refer to

DLK-368, "Exploded View"

.

Portion

Section

Measurement

Standard

Front fender - Front door

A – A

Clearance

4.2

± 1.0 (0.17 ± 0.04)

Surface height

± 1.0 (± 0.04)

Front door - Rear door

B – B

Clearance

4.5

± 1.0 (0.18 ± 0.04)

Surface height

± 1.0 (± 0.04)

Rear door - Body side outer

C – C

Clearance

4.0

± 1.0 (0.16 ± 0.04)

Surface height

± 1.0 (± 0.04)

PIIB2804J

2015 Rogue NAM

FRONT DOOR

DLK-371

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR HINGE
DOOR HINGE : Removal and Installation

INFOID:0000000011279148

REMOVAL

1. Remove front fender. Refer to

DLK-366, "Removal and Installation"

.

2. Remove front door assembly. Refer to

DLK-368, "DOOR ASSEMBLY : Removal and Installation"

.

3. Remove front door hinge bolts (body side) and front door hinge.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten nuts/bolts to specified torque. Refer to

DLK-368, "Exploded View"

.

• Apply anticorrosive agent to the hinge mating surface.

• After installation, check front door open/close and lock/unlock operation.

• Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

• After installation, perform the front door adjustment procedure. Refer to

DLK-369, "DOOR ASSEM-

BLY : Adjustment"

.

DOOR CHECK LINK
DOOR CHECK LINK : Removal and Installation

INFOID:0000000011279149

REMOVAL

1. Fully close the front door window.
2. Remove front door speaker. Refer to

AV-70, "Removal and Installation"

 (DISPLAY AUDIO),

AV-204,

"Removal and Installation"

 (NAVIGATION WITHOUT BOSE) or

AV-374, "Removal and Installation"

 (NAV-

IGATION WITH BOSE).

3. Remove door check link bolt (body side).
4. Remove door check link bolts (door side).
5. Remove door check link through the hole in door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten nuts/bolts to specified torque. Refer to

DLK-368, "Exploded View"

.

• After installation, check front door open/close and lock/unlock operation.

• Check door check link rotating point for poor lubrication. If necessary, apply a suitable multi-pur-

pose grease.

2015 Rogue NAM

DLK-372

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR

REAR DOOR

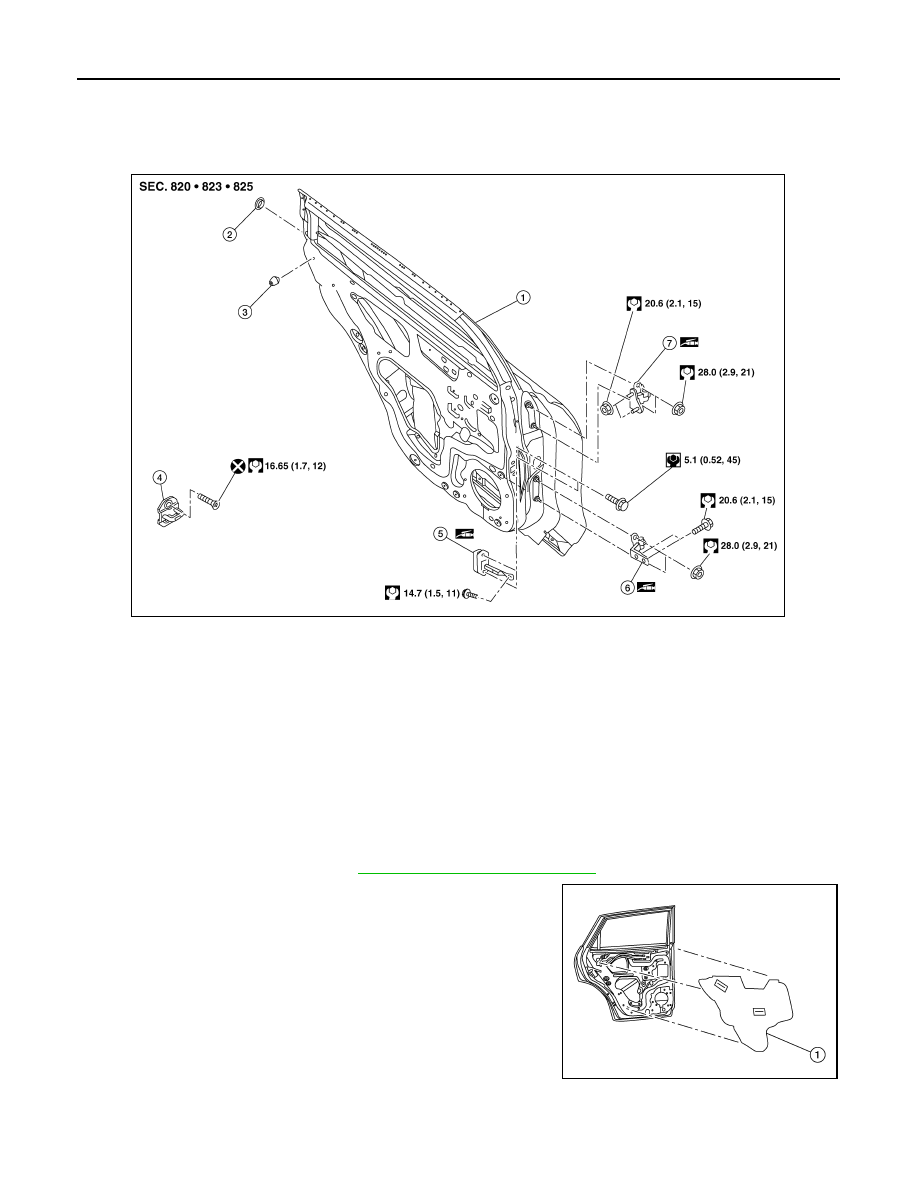

Exploded View

INFOID:0000000011279150

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000011279151

CAUTION:

• Use two people when removing or installing the rear door due to its heavy weight.

• When removing and installing rear door assembly, support rear door using a suitable tool.

REMOVAL

1. Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove rear door vapor barrier (1).

NOTE:

LH side shown; RH similar.

3. Disconnect the harness connectors from rear door.
4. Remove harness grommet from rear door, then pull out rear door harness from the rear door.

1.

Rear door panel

2.

Grommet

3.

Bumper rubber

4.

Door striker

5.

Door check link

6.

Rear door lower hinge

7.

Rear door upper hinge

AWKIA2928ZZ

ALKIA3481ZZ

2015 Rogue NAM

REAR DOOR

DLK-373

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5. Remove rear door check link bolt (body side).
6. Remove rear door hinge nuts (door side) and rear door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten nuts/bolts to specification. Refer to

DLK-372, "Exploded View"

.

• Apply anticorrosive agent where necessary.

• After installation, check rear door open/close and lock/unlock operation.

• After installation, perform the rear door adjustment procedure. Refer to

DLK-373, "DOOR ASSEMBLY

: Adjustment"

.

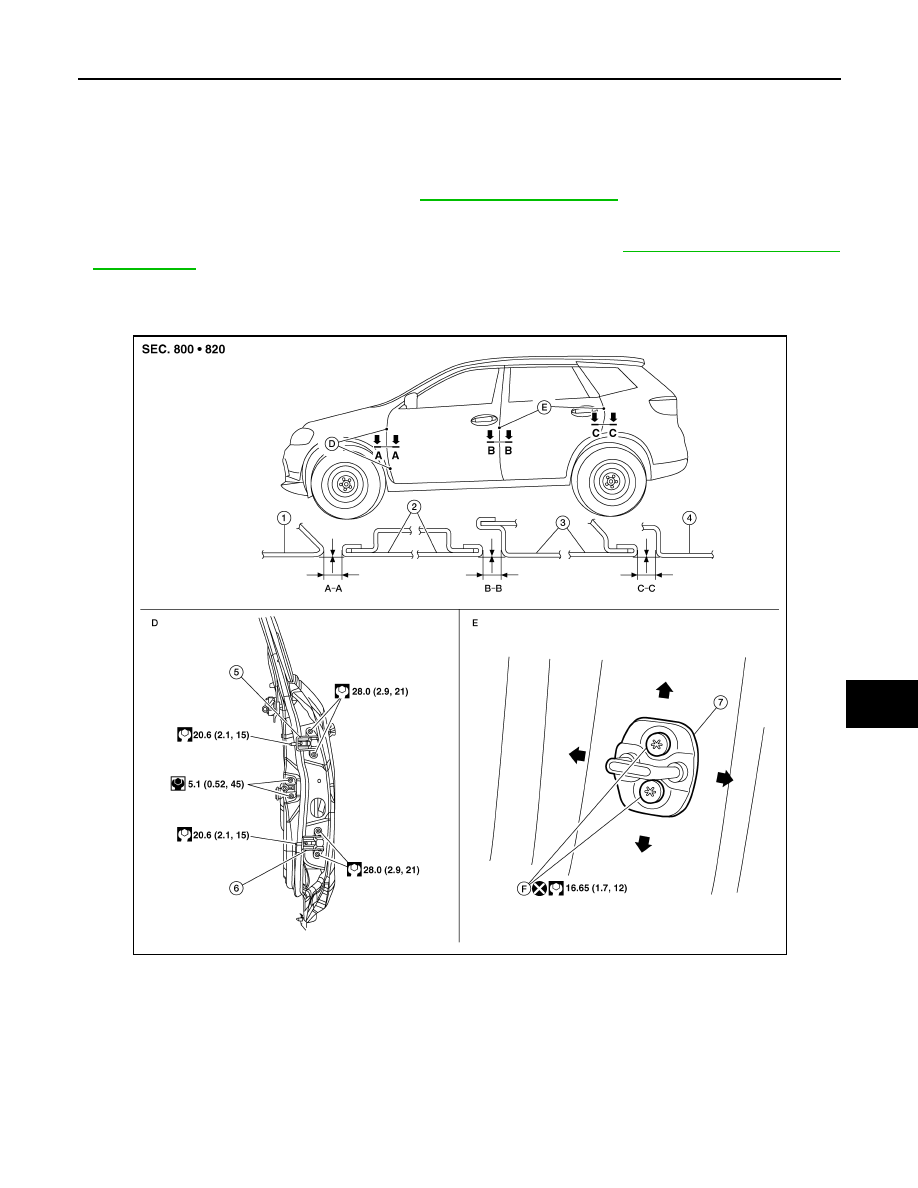

DOOR ASSEMBLY : Adjustment

INFOID:0000000011279152

Check the clearance and surface height between rear door and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dures.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

Rear door upper hinge

7.

Rear door lower hinge

F.

Door striker bolts

AWKIA2917ZZ
