FUEL FILLER LID OPENER

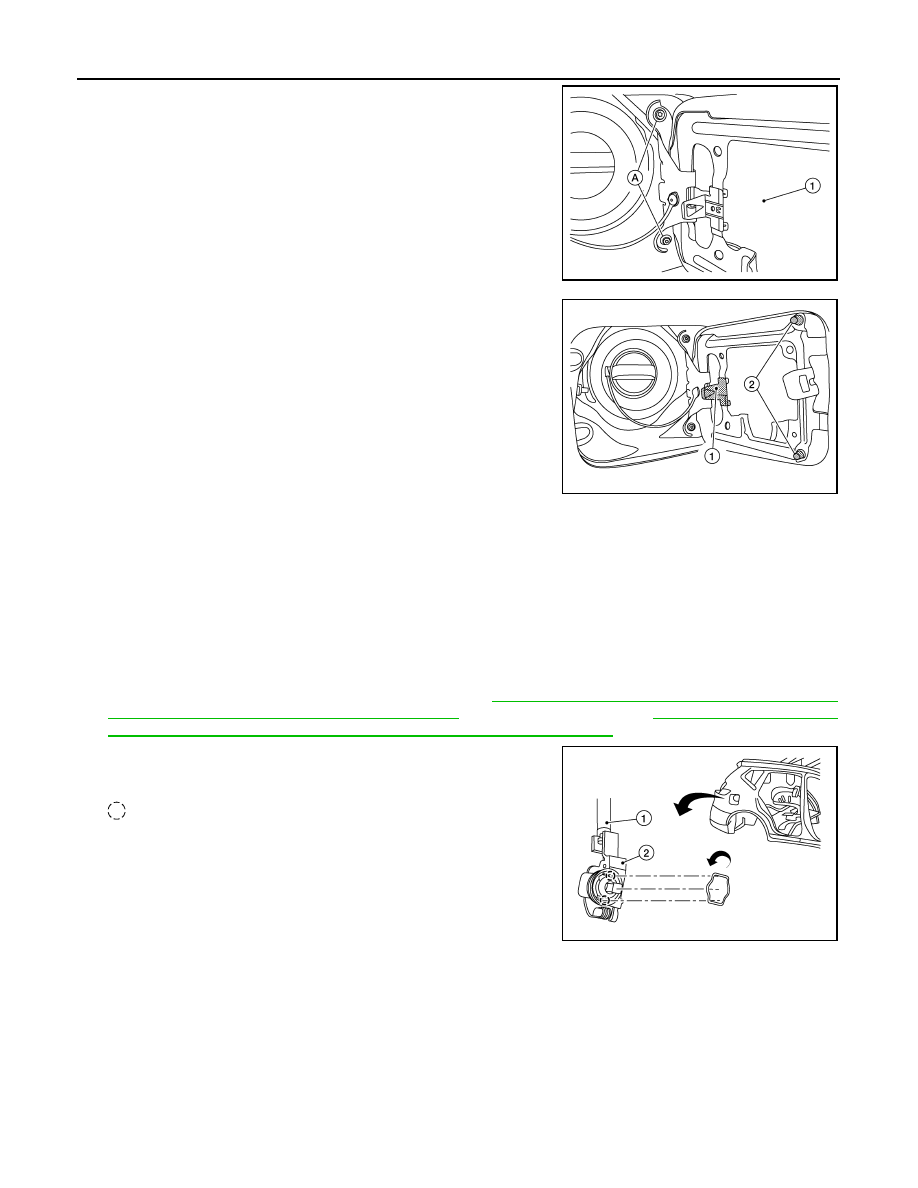

2. Remove screws (2) and fuel filler lid (1).

3. Remove fuel filler lid spring (1) and bumper rubber (2) from fuel

filler lid (if necessary).

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid open/close, lock/unlock operation.

FUEL FILLER LID LOCK
FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000011279184

REMOVAL

1. Remove luggage side lower finisher (RH). Refer to

INT-34, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation - With Third Row Seat"

 (With Third Row Seat) or

INT-35, "LUGGAGE SIDE

LOWER FINISHER : Removal and Installation - Without Third Row Seat"

 (Without Third Row Seat).

2. Disconnect the fuel filler lid release cable (1) from the fuel filler

lid lock (2).

3. Rotate fuel filler lid lock to release pawls and remove.

: Pawl

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid open/close, lock/unlock operation.

FUEL FILLER LID RELEASE CABLE
FUEL FILLER LID RELEASE CABLE : Removal and Installation

INFOID:0000000011279185

REMOVAL

ALKIA3417ZZ

ALKIA3418ZZ

ALKIA3419ZZ

2015 Rogue NAM

FUEL FILLER LID OPENER

DLK-395

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

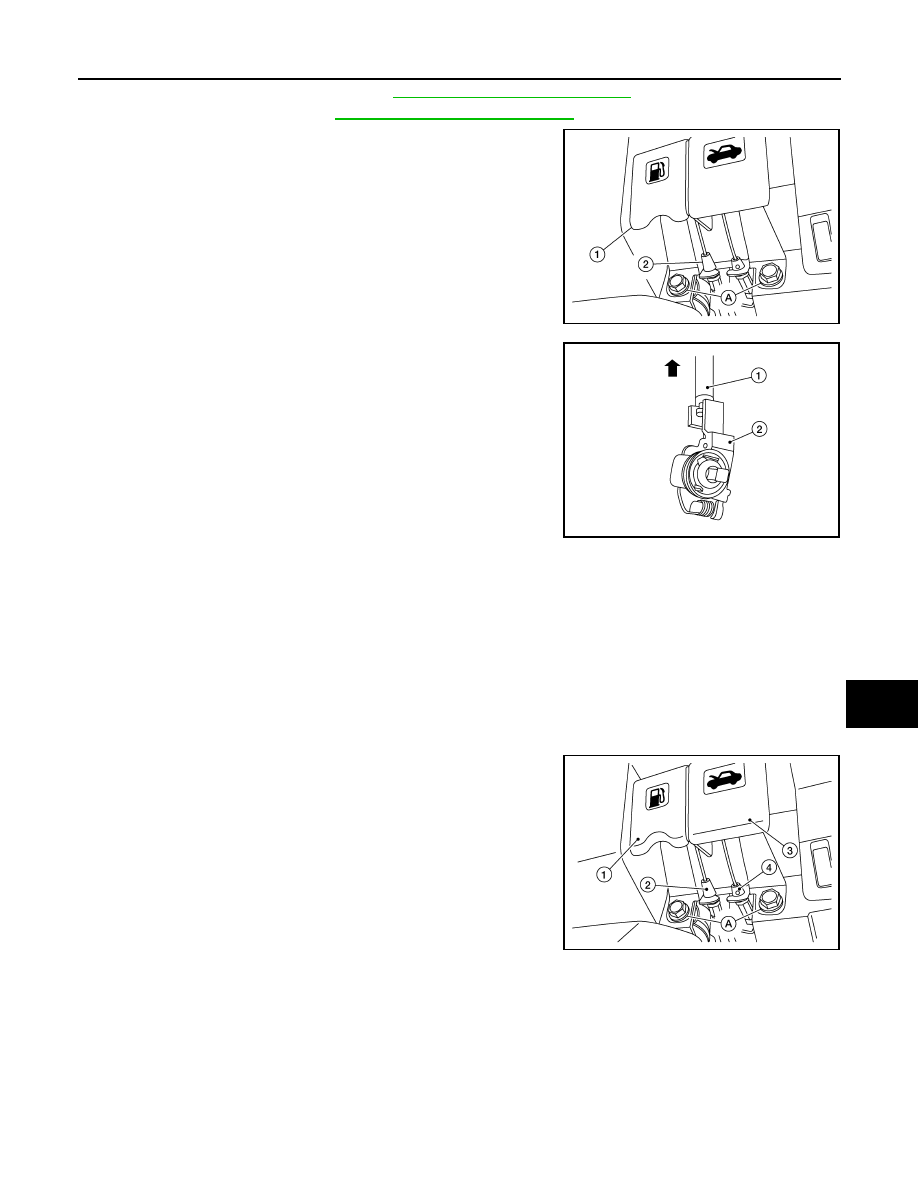

1. Partially remove front floor trim. Refer to

INT-26, "Removal and Installation"

.

2. Remove rear floor trim. Refer to

INT-26, "Removal and Installation"

.

3. Remove the fuel filler lid/hood lock release handle bolts (A)
4. Disconnect the fuel filler lid release cable (2) from fuel filler lid

release handle (1).

5. Disconnect the fuel filler lid release cable (1) from fuel filler lid

lock (2).

6. Release the clips and remove fuel filler lid release cable.

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid open/close, lock/unlock operation.

FUEL FILLER LID RELEASE HANDLE
FUEL FILLER LID RELEASE HANDLE : Removal and Installation

INFOID:0000000011279186

REMOVAL

1. Remove fuel filler lid/hood lock release handle bolts (A).
2. Disconnect fuel filler lid release cable (2) from fuel filler lid

release handle (1).

3. Disconnect hood lock release cable (4) from hood lock release

handle (3).

4. Remove fuel filler lid release handle.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3421ZZ

ALKIA3420ZZ

ALKIA3422ZZ

2015 Rogue NAM

DLK-396

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR SWITCH

DOOR SWITCH

Removal and Installation

INFOID:0000000011279187

REMOVAL

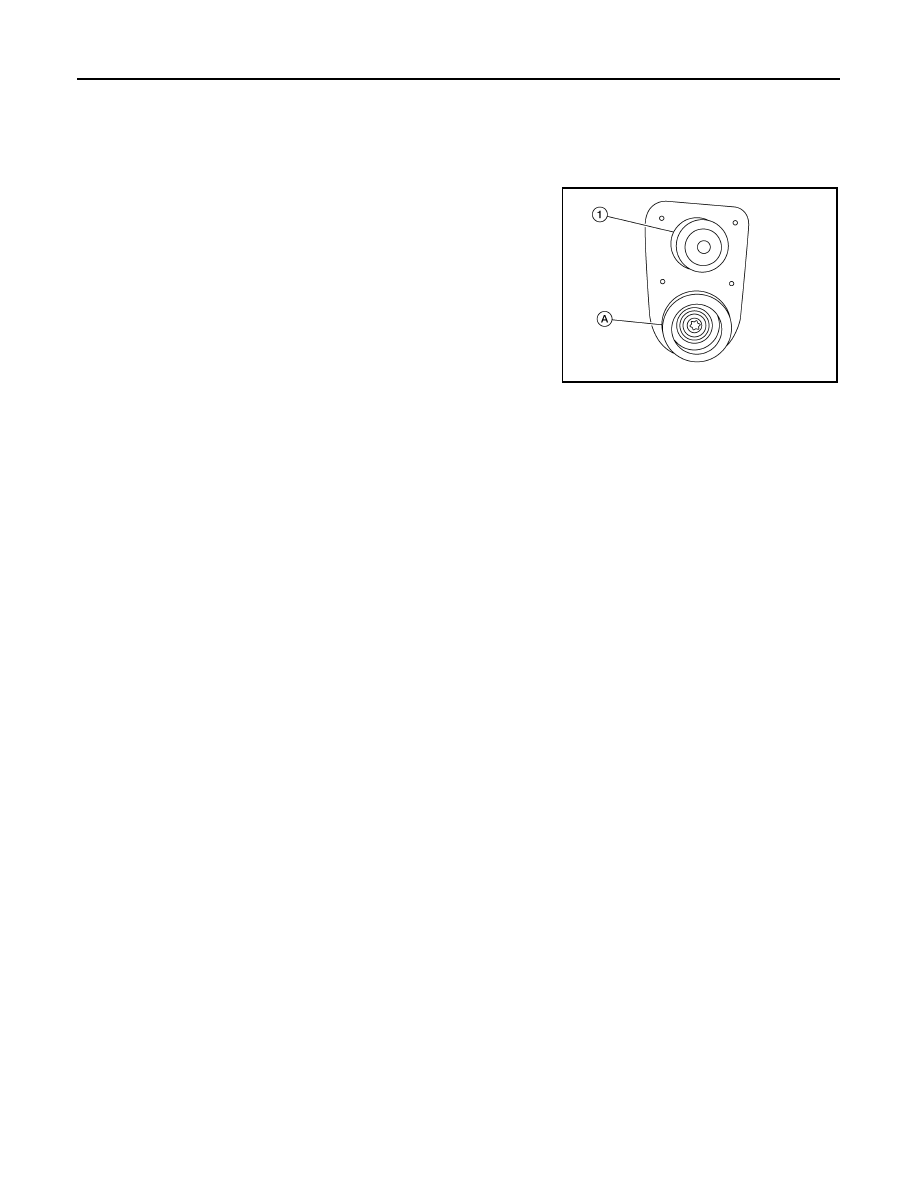

1. Remove the door switch bolt (A).
2. Disconnect the harness connector from the door switch (1) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3351ZZ

2015 Rogue NAM

BACK DOOR WARNING CHIME

DLK-397

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR WARNING CHIME

Removal and Installation

INFOID:0000000011279188

REMOVAL

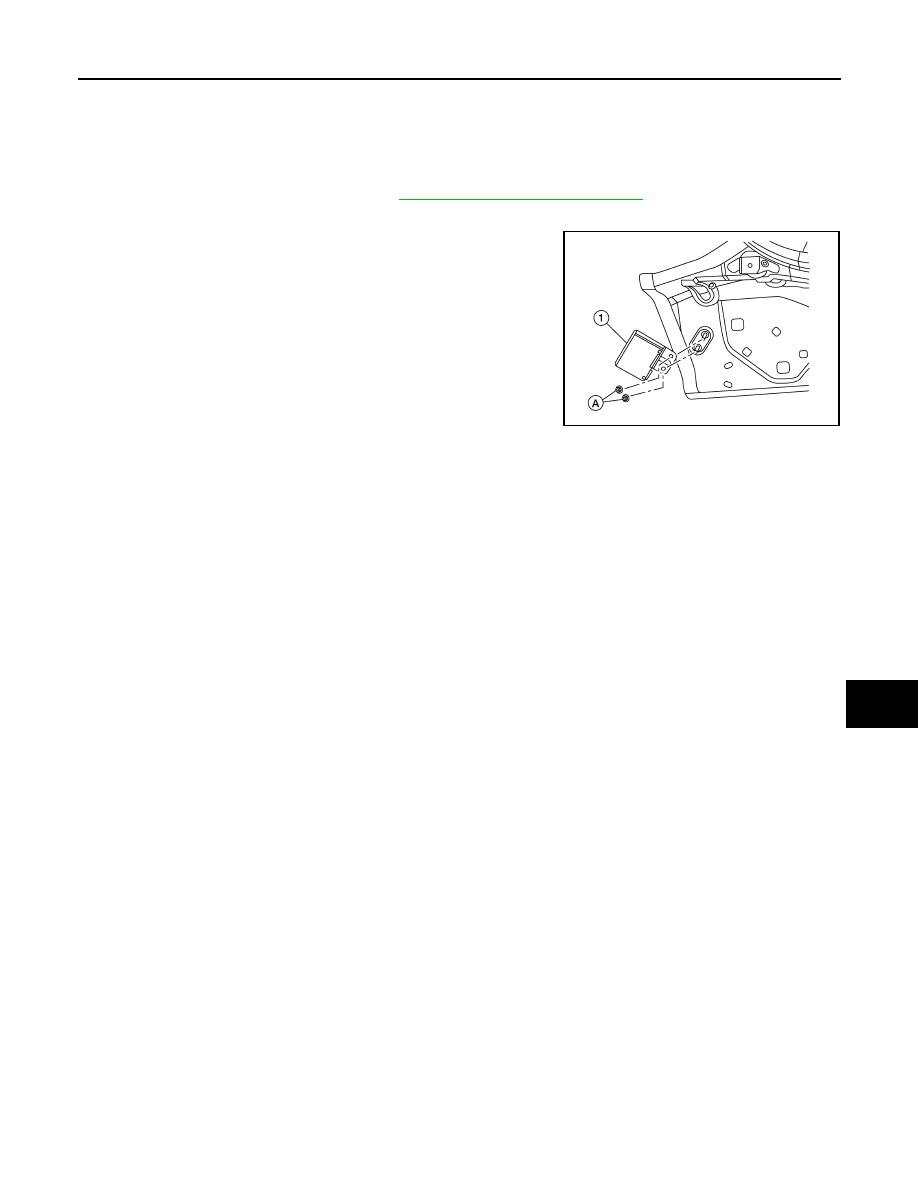

1. Remove the rear bumper fascia. Refer to

EXT-20, "Removal and Installation"

.

2. Disconnect the harness connector from the back door warning chime.
3. Remove nuts (A) and back door warning chime (1).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA3348ZZ
