DLK-22

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

Inside Key Antenna (Console)

INFOID:0000000011278768

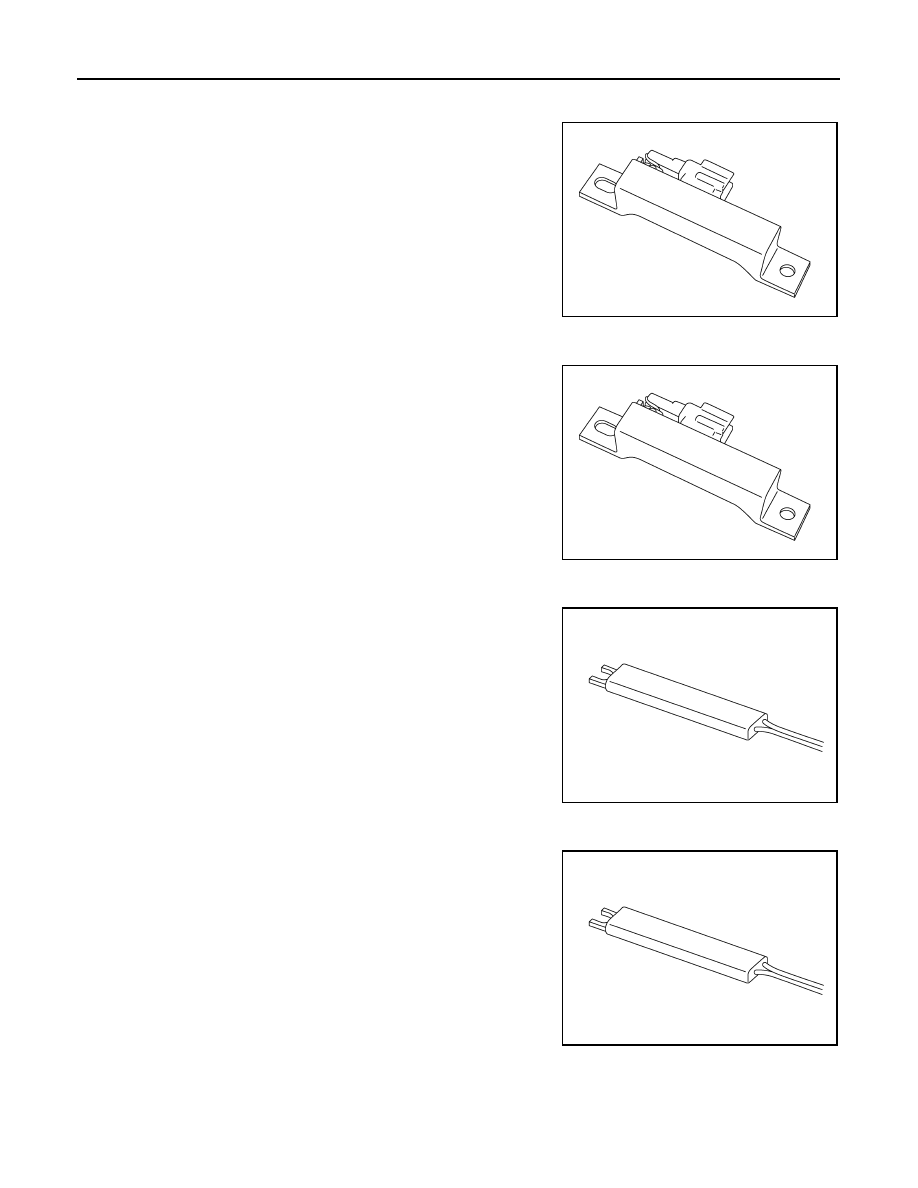

• Inside key antenna (console) detects that Intelligent Key is within

the inside detection area, and then transmits detection status to

BCM.

Outside Key Antenna (Rear Bumper)

INFOID:0000000011278769

• Outside key antenna (rear bumper) detects that Intelligent Key is

within the outside detection area, and then transmits detection sta-

tus to BCM. Request signal is transmitted simultaneously to Intelli-

gent Key.

• Outside key antenna (rear bumper) is installed in the rear of rear

bumper.

Outside Key Antenna (LH)

INFOID:0000000011278770

• Outside key antenna (LH) detects that Intelligent Key is within the

outside detection area, and then transmits detection status to

BCM. Request signal is transmitted simultaneously to Intelligent

Key.

• Outside key antenna (LH) is installed in driver side outside handle.

Outside Key Antenna (RH)

INFOID:0000000011278771

• Outside key antenna (RH) detects that Intelligent Key is within the

outside detection area, and then transmits detection status to

BCM. Request signal is transmitted simultaneously to Intelligent

Key.

• Outside key antenna (RH) is installed in passenger side outside

handle.

JMKIA8646ZZ

JMKIA8648ZZ

2015 Rogue NAM

COMPONENT PARTS

DLK-23

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DLK

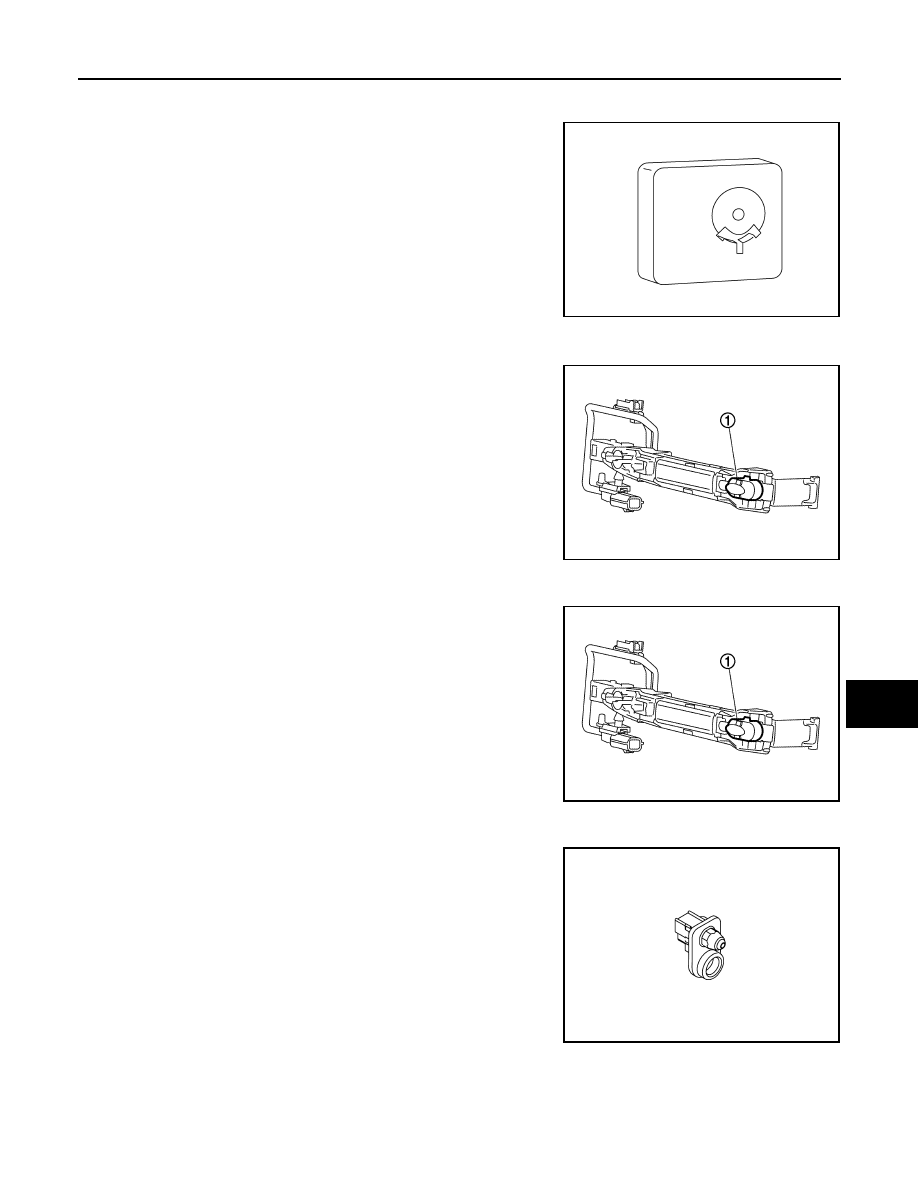

Intelligent Key Warning Buzzer

INFOID:0000000011278772

• Intelligent Key warning buzzer warns the user, who is outside vehi-

cle, of operation confirmation according to Intelligent Key operation

and door request switch operation, or of an inappropriate opera-

tion.

• Intelligent Key warning buzzer is installed in the rear of front

bumper and behind RH headlight.

Front Door Request Switch (LH)

INFOID:0000000011278773

• Front door request switch (LH) transmits door request switch sig-

nal to BCM.

• Front door request switch (LH) (1) is integrated in driver side out-

side handle.

Front Door Request Switch (RH)

INFOID:0000000011278774

• Front door request switch (RH) transmits door request switch sig-

nal to BCM.

• Front door request switch (RH) (1) is integrated in passenger side

outside handle.

Front Door Switch

INFOID:0000000011278775

Door switch detects open/close status of door and transmits door

switch signal to BCM.

JMKIA8650ZZ

JMKIA9353ZZ

JMKIA6526ZZ

2015 Rogue NAM

DLK-24

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

Rear Door Switch

INFOID:0000000011278776

Door switch detects open/close status of door and transmits door

switch signal to BCM.

Front Door Lock Assembly (LH)

INFOID:0000000011278777

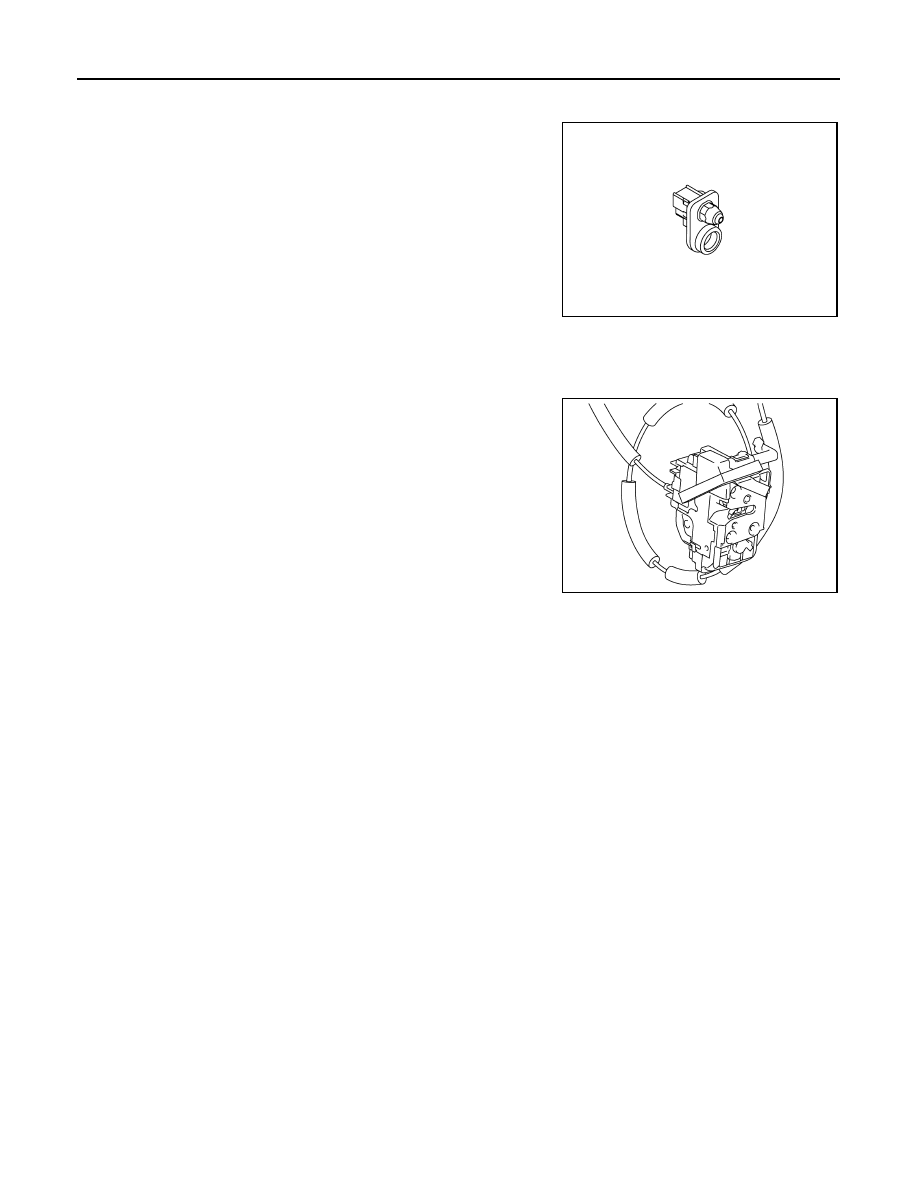

• Door lock actuator and unlock sensor are Integrated in driver door lock assembly.

• Door lock actuator receives lock/unlock signal from BCM, and then locks/unlocks driver door.

• Only front door lock assembly (driver side) integrates unlock sen-

sor. Unlock sensor transmits lock/unlock status of driver door to

BCM.

Spindle Unit

INFOID:0000000011278778

Encoder and spindle motor are installed:

• Encoder: Automatic back door control module receives the pulse signals from encoders A and B that

occurred due to synchronization with the back door operation. The automatic back door control module cal-

culates the back door position, operation direction, and operation speed according to the received pulse sig-

nals.

• Spindle motor: Inputs open/close signal from automatic back door control module and activates the auto-

matic back door open/close operation.

Integrated Homelink Transmitter

INFOID:0000000011278779

Within the Homelink® transmitter a maximum of 3 radio signals can be stored and transmitted to operate the

garage door, etc.

JMKIA6526ZZ

JMKIA8649ZZ

2015 Rogue NAM

SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-25

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DLK

SYSTEM (POWER DOOR LOCK SYSTEM)

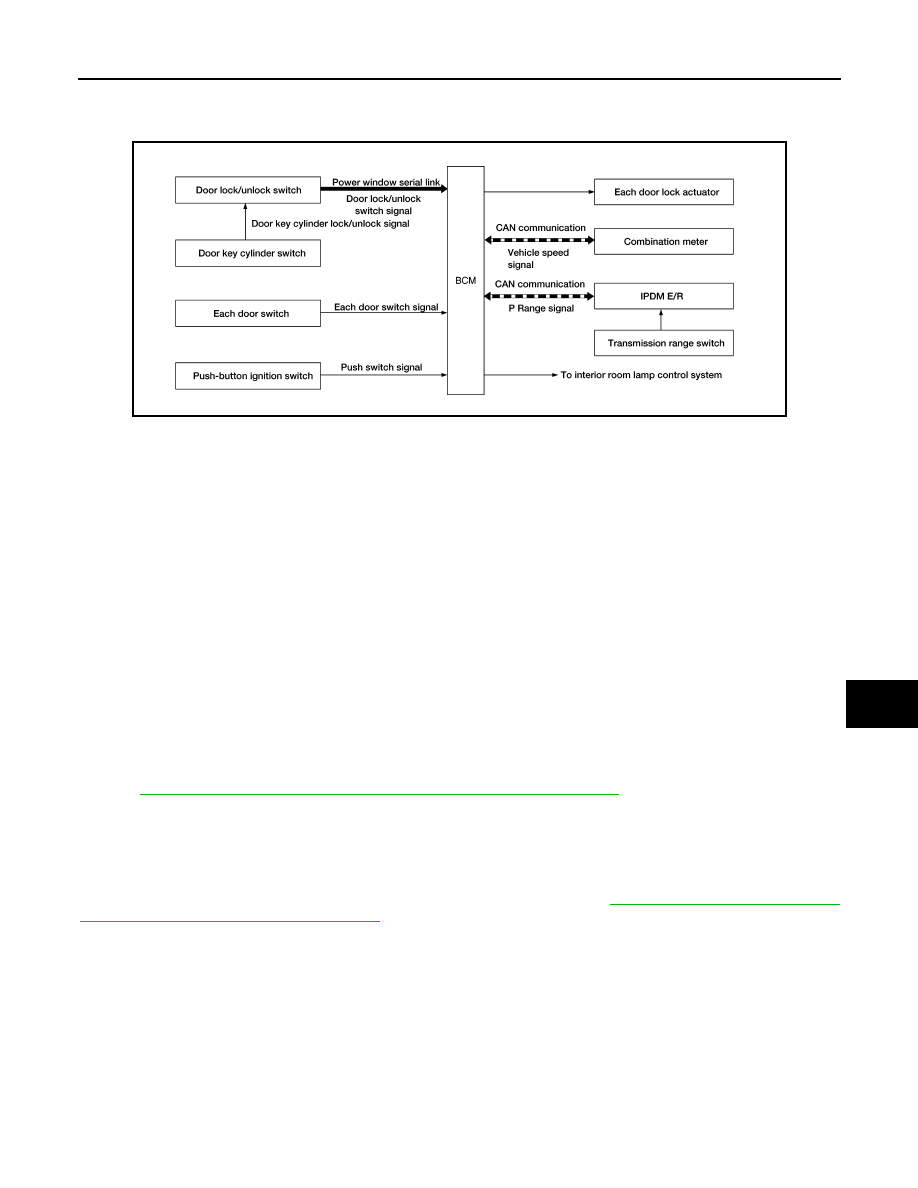

System Diagram

INFOID:0000000011278780

System Description

INFOID:0000000011278781

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into main power window and door lock/unlock switch.

• The door lock and unlock switch (passenger side) is built into power window and door lock/unlock switch

RH.

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

Door Key Cylinder Switch

• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position once

unlocks the driver side door, turning it to unlock position again within 60 seconds after the first unlock opera-

tion unlocks all of the other doors. (SELECTIVE UNLOCK OPERATION)

Selective unlock operation mode can be changed using CONSULT.

Refer to

BCS-17, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

IGNITION POSITION WARNING FUNCTION

When door lock and unlock switch are operated while driver side door is open and ignition position is ACC or

ON, door locks once but immediately unlocks.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-7, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (LOCK OPERATION)

The interlock door lock function is the function that locks all doors linked with the vehicle speed or shift posi-

tion. It has 2 types as per the following items.

Vehicle Speed Sensing Auto Door Lock

All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more.

BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is turned ON, all

doors are closed and the vehicle speed received from the combination meter via CAN communication

becomes 24 km/h (15 MPH) or more.

P Range Interlock Door Lock

All doors are locked when shifting the selector lever from the P (Park) position to any position other than P

(Park).

ALKIA3447GB
