SYSTEM (POWER DOOR LOCK SYSTEM)

BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is in the ON posi-

tion, all doors are closed and the shift signal received from the park position switch when shifted from the P

(Park) position to any position other than P (Park).

Setting change of Automatic Door Lock/Unlock Function

The lock operation setting of the automatic door lock/unlock function can be changed.

 With CONSULT

The ON/OFF switching of the automatic door lock function and the type selection of the automatic door lock/

unlock function can be performed at the “Work support” setting.

 Without CONSULT

The automatic door lock function ON/OFF can be switched by performing the following operation:
1. Close all doors (door switch OFF)
2. Ignition switch: OFF

→ON

3. Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-

onds after turning the ignition switch ON.

4. The switching complete when the hazard lamp blinks.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (UNLOCK OPERATION)

The automatic door lock/unlock function is the function that unlocks all doors linked with the key position or

shift position. It has 2 types as per the following items:

IGN OFF Interlock Door Unlock

All doors are unlocked when the power supply position is changed from ON to OFF.

BCM outputs the unlock signal to all door lock actuators when it detects that the power supply position is

changed from ignition switch ON to OFF.

P Range Interlock Door Unlock

All doors are unlocked when shifting the selector lever from any position other than P to the P position.

BCM outputs the unlock signal to all door lock actuators when it detects that the ignition switch is in the ON

position and the shift signal received from park position switch when shifted from any position other than P to

the P position.

Setting change of Automatic Door Lock/Unlock Function

The unlock operation setting of the automatic door lock/unlock function can be changed.

 With CONSULT

The ON/OFF switching of the automatic door lock/unlock function and the type selection of the automatic door

lock/unlock function can be performed at the “Work support” setting.

 Without CONSULT

The automatic door lock/unlock function ON/OFF can be switched by performing the following operation:
1. Close all doors (door switch OFF)
2. Ignition switch: OFF

→ON

3. Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20

seconds after turning the power supply position ON.

4. The switching is complete when the hazard lamp blinks.

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

2015 Rogue NAM

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-27

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

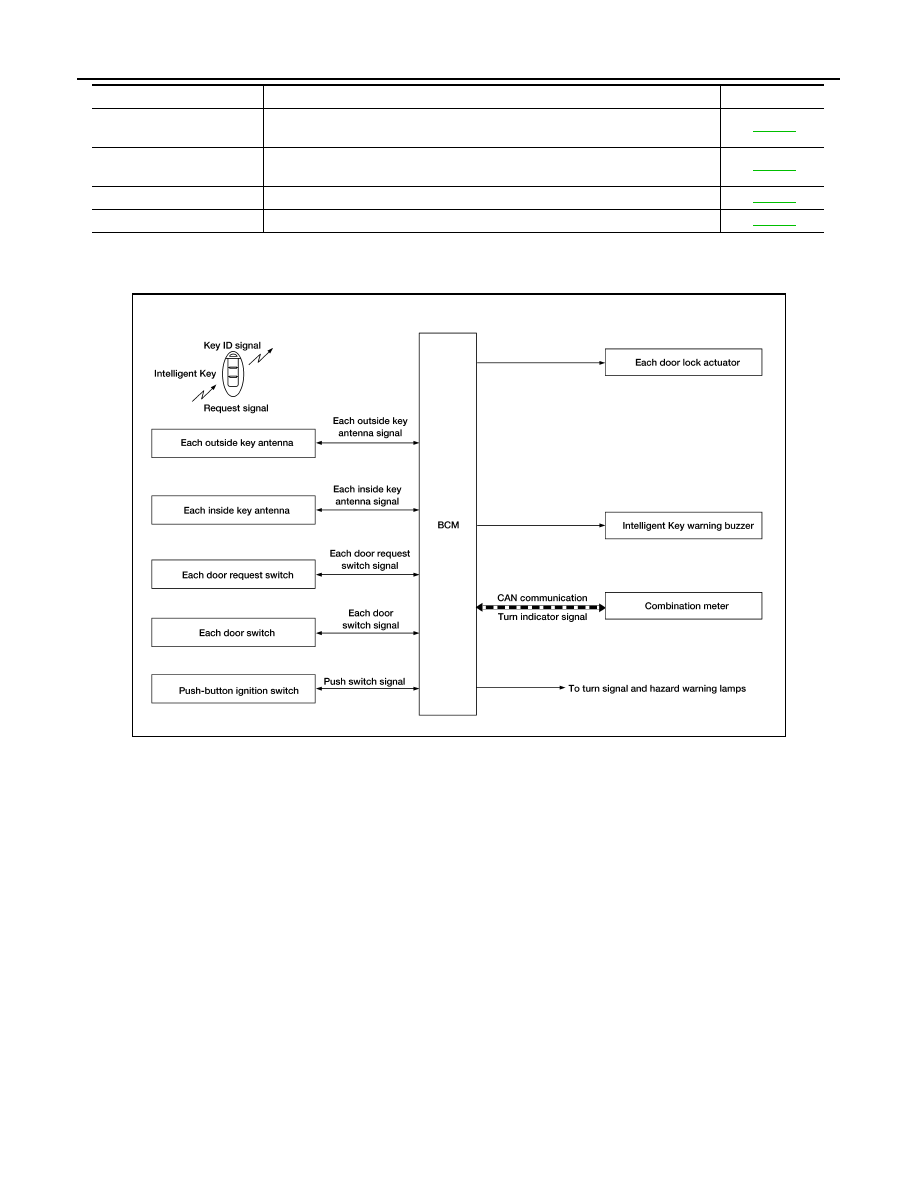

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000011278782

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000011278783

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-

tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key.

• The settings for each function can be changed with CONSULT.

• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

ALKIA3670GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch.

DLK-27

Back door opener

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-30

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key.

DLK-28

2015 Rogue NAM

DLK-28

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

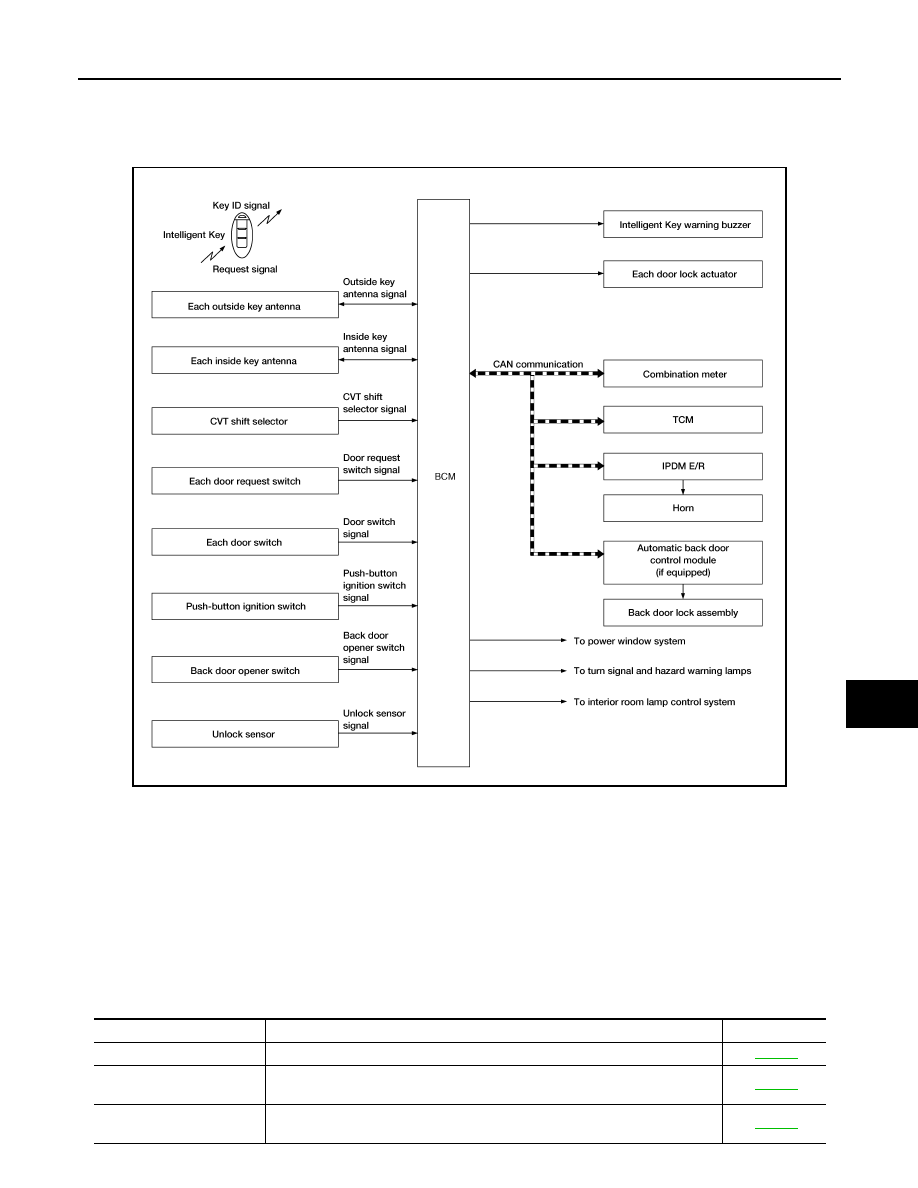

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000011278784

DOOR LOCK FUNCTION : System Description

INFOID:0000000011278785

Only when pressing the door request switch it is possible to lock and unlock the door by carrying the Intelligent

Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the

Intelligent Key. Then check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM.

• BCM receives the key ID signal and compares it with the registered key ID.

• BCM locks/unlocks each doors (except back door).

• BCM sounds Intelligent Key warning buzzer (lock: 2 times, unlock: 1 time) and blinks hazard warning lamps

(lock: 2 times, unlock: 1 time) at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is

operated.

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle.

DLK-34

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver.

DLK-34

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state.

DLK-27

Panic alarm

When Intelligent Key panic alarm button is pressed, horn sounds.

DLK-34

Function

Description

Refer

ALKIA3449GB

2015 Rogue NAM

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-29

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be locked/unlocked from outside of the vehicle with
a spare Intelligent Key as long as key IDs are different.

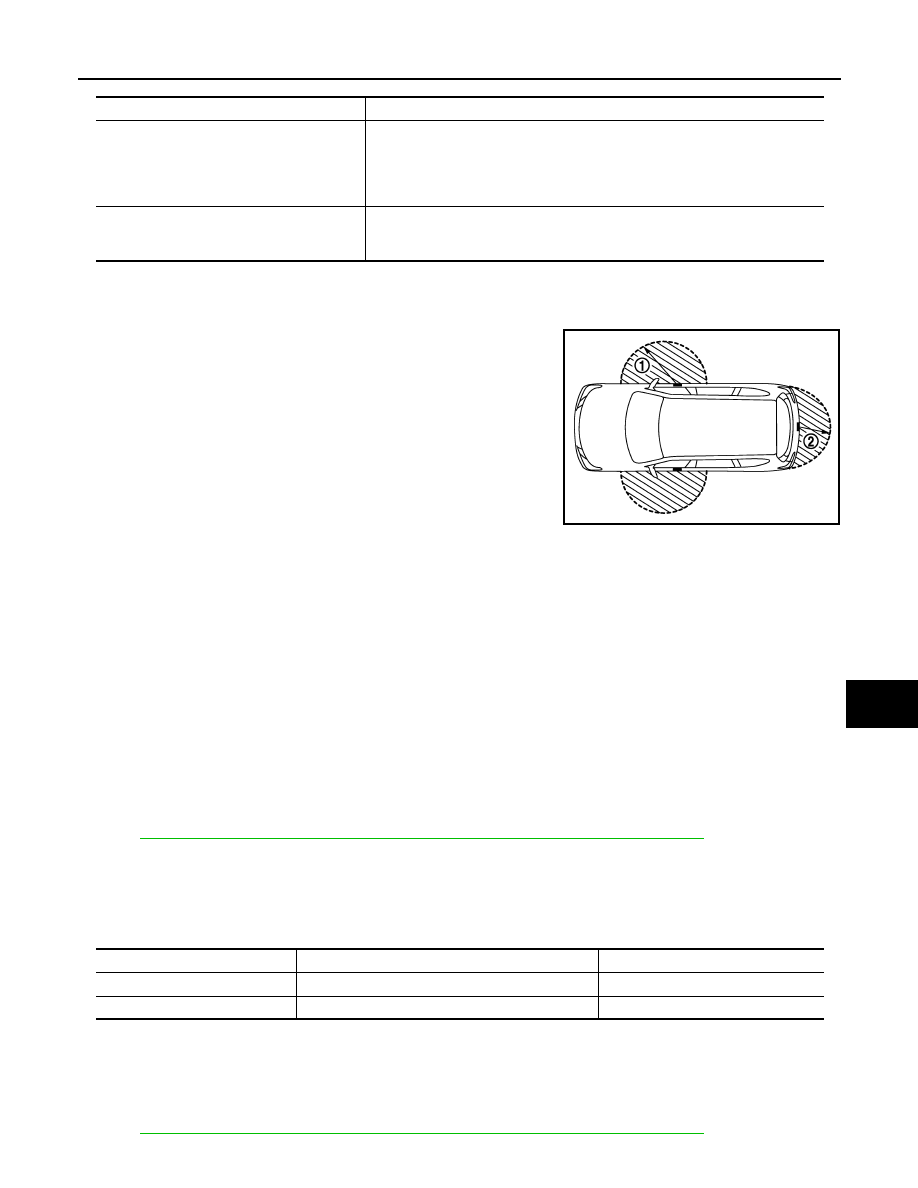

OUTSIDE KEY ANTENNA DETECTION AREA
