Nissan Rogue. Manual - part 294

DLK-18

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

INTEGRATED HOMELINK TRANSMITTER
INTEGRATED HOMELINK TRANSMITTER : Component Parts Location

INFOID:0000000011278753

AUTOMATIC BACK DOOR SYSTEM

16.

Outside key antenna (rear bumper)

Outside key antenna (Rear bumper) detects whether Intelligent Key is outside
the vehicle or not, and then transmits the signal to the BCM.
Refer to

DLK-22, "Outside Key Antenna (Rear Bumper)"

.

17.

Back door opener switch

Back door request switch transmits door lock/unlock request signal to the BCM.

No.

Component

Function

No.

Component

Function

1.

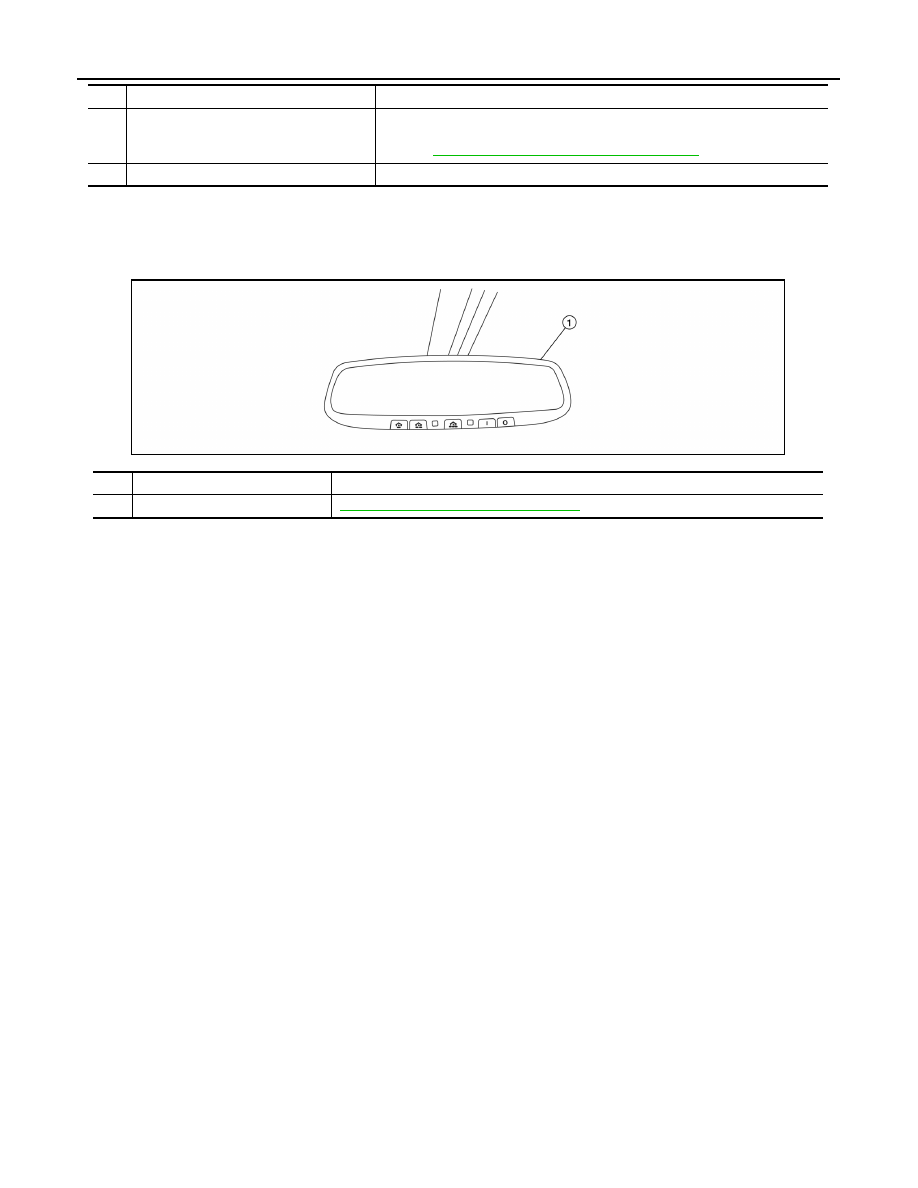

Auto anti-dazzling inside mirror

DLK-24, "Integrated Homelink Transmitter"

ALKIA2461ZZ

2015 Rogue NAM

COMPONENT PARTS

DLK-19

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

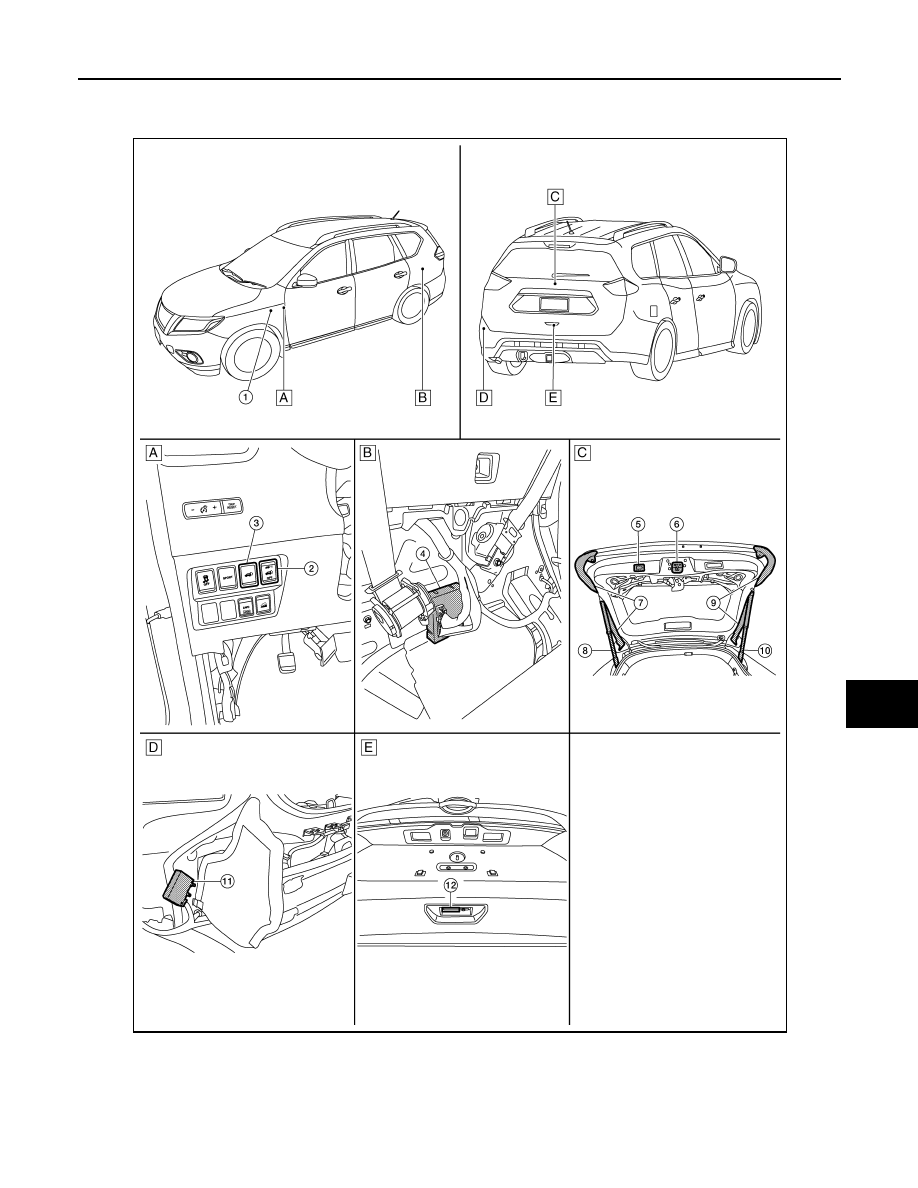

AUTOMATIC BACK DOOR SYSTEM : Component Parts Location

INFOID:0000000011278754

A.

View of LH side of instrument panel. B.

View with luggage side lower finisher
removed.

C.

View of back door open.

D.

View with rear fascia removed.

E.

View of back door.

ALKIA3427ZZ

2015 Rogue NAM

DLK-20

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

Automatic Back Door Control Module

INFOID:0000000011278755

Automatic back door control unit: Controls the automatic back door system.

Automatic Back Door Switch

INFOID:0000000011278756

Detects open/close operation of automatic back door

Automatic Door Main Switch

INFOID:0000000011278757

• Controls automatic open/close operation of each switches.

• Transmits automatic door main switch signal to automatic back door control module.

Automatic Back Door Warning Buzzer

INFOID:0000000011278758

Warns the user of the automatic back door condition and inappropriate operations with the buzzer sounds

Automatic Back Door Close Switch

INFOID:0000000011278759

• Detects close operation of automatic back door.

• Transmits automatic back door close switch signal to automatic back door control module.

Back Door Lock Assembly

INFOID:0000000011278760

Back door closure motor, half latch switch, open switch, close switch and back door switch are installed.

• Closure motor: Inputs open/close signal from automatic back door control module and activates the back

door auto closure operation.

• Half latch switch: Starts the closure motor close operation.

• Open switch: Stops the closure motor open operation.

• Close switch: Stops the closure motor close operation.

• Back door switch: Inputs back door open/ close condition to BCM.

Automatic Back Door Opener Switch

INFOID:0000000011278761

Door switch detects open/close status of door and transmits door switch signal to BCM.

• Detects open operation of automatic back door.

• Transmits automatic back door opener switch signal to automatic back door control module.

Back Door Touch Sensor

INFOID:0000000011278762

During back door close operation, the touch sensor detects any trapped foreign material.

No.

Component

Function

1.

BCM

Transmits and receives signal to the automatic back door control module.
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location.

2.

Automatic back door main switch

DLK-20, "Automatic Door Main Switch"

3.

Automatic back door switch

DLK-20, "Automatic Back Door Switch"

4.

Automatic back door control mod-
ule

DLK-20, "Automatic Back Door Control Module"

5.

Automatic back door close switch

DLK-20, "Automatic Back Door Close Switch"

6.

Back door lock assembly

DLK-20, "Back Door Lock Assembly"

7.

Touch sensor LH

DLK-20, "Back Door Touch Sensor"

8.

Spindle unit LH

DLK-24, "Spindle Unit"

9.

Touch sensor RH

DLK-20, "Back Door Touch Sensor"

10.

Spindle unit RH

DLK-24, "Spindle Unit"

11.

Automatic back door warning
buzzer

DLK-20, "Automatic Back Door Warning Buzzer"

12.

Back door opener switch

DLK-20, "Automatic Back Door Opener Switch"

2015 Rogue NAM

COMPONENT PARTS

DLK-21

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

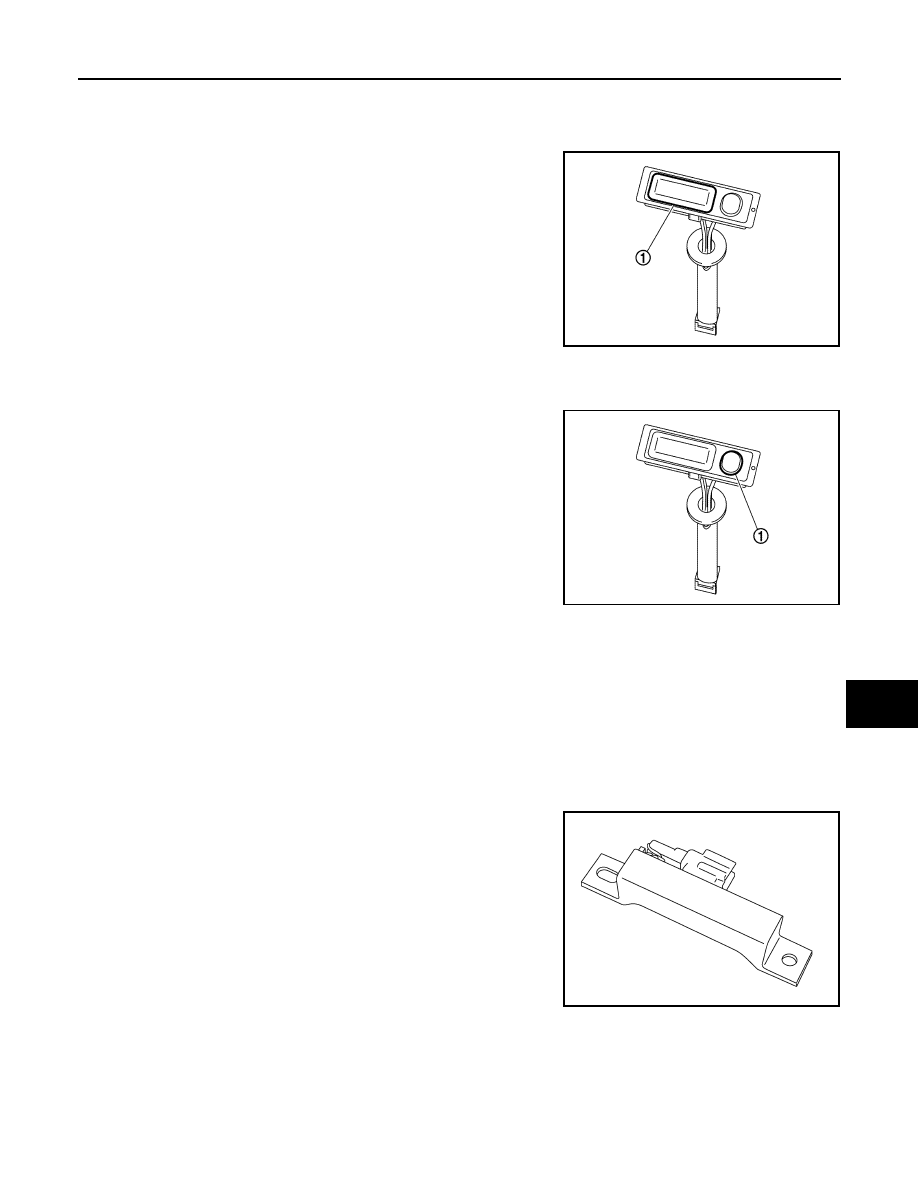

Back Door Opener Switch

INFOID:0000000011278763

• Back door opener switch (1) transmits back door opener switch signal to BCM.

• Back door opener switch (1) is integrated in outside handle (back

door).

Back Door Request Switch

INFOID:0000000011278764

• Back door request switch (1) transmits back door request switch signal to BCM.

• Back door request switch (1) is integrated in outside handle (back

door).

Door Lock and Unlock Switch (Driver Side)

INFOID:0000000011278765

• Door lock and unlock switch transmits door lock/unlock signal operation to BCM.

• Door lock and unlock switch is Integrated in the main power window and door lock/unlock switch.

Door Lock and Unlock Switch (Passenger Side)

INFOID:0000000011278766

• Door lock and unlock switch transmits door lock/unlock signal operation to BCM.

• Door lock and unlock switch is Integrated in the power window and door lock/unlock switch RH.

Inside Key Antenna (Instrument Center)

INFOID:0000000011278767

• Inside key antenna (instrument center) detects that Intelligent Key

is within the inside detection area, and then transmits detection

status to BCM.

JMKIA9354ZZ

JMKIA9355ZZ

JMKIA8646ZZ
