DLK-14

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

POWER DOOR LOCK SYSTEM

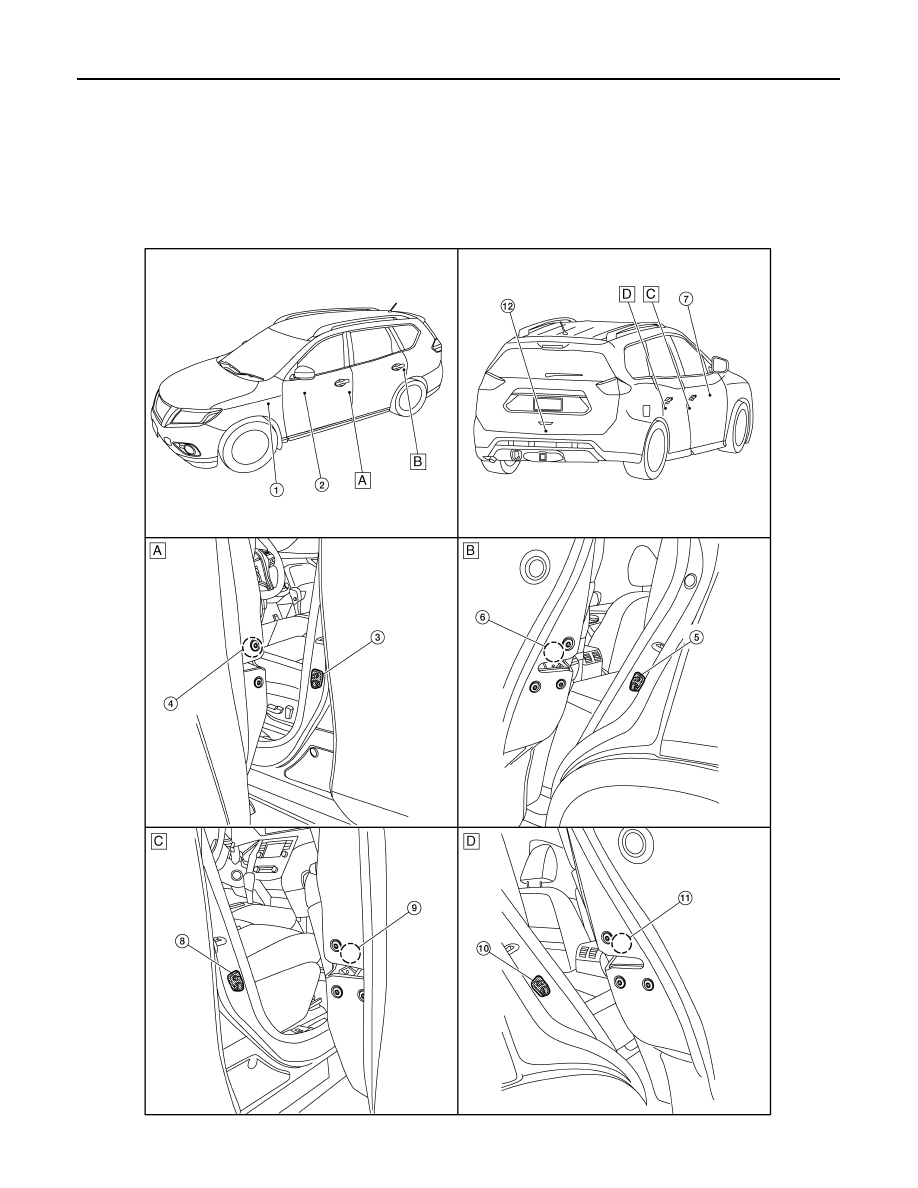

POWER DOOR LOCK SYSTEM : Component Parts Location

INFOID:0000000011278751

ALKIA3430ZZ

2015 Rogue NAM

COMPONENT PARTS

DLK-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY SYSTEM

No.

Component

Function

1.

BCM

Controls the door lock system.
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location

2.

Main power window and door
lock/unlock switch

DLK-21, "Door Lock and Unlock Switch (Driver Side)"

3.

Front door switch LH

DLK-23, "Front Door Switch"

4.

Front door lock assembly LH

DLK-24, "Front Door Lock Assembly (LH)"

5.

Rear door switch LH

DLK-24, "Rear Door Switch"

6.

Rear door lock actuator LH

Rear door lock actuator locks/unlocks the rear door latch assembly.

7.

Power window and door lock/un-
lock switch RH

DLK-21, "Door Lock and Unlock Switch (Passenger Side)"

8.

Front door switch RH

DLK-23, "Front Door Switch"

9.

Front door lock actuator RH

Rear door lock actuator locks/unlocks the rear door latch assembly.

10.

Rear door switch RH

DLK-24, "Rear Door Switch"

11.

Rear door lock actuator RH

Rear door lock actuator locks/unlocks the rear door latch assembly.

12.

Back door lock assembly (door
ajar switch)

DLK-20, "Back Door Lock Assembly"

2015 Rogue NAM

DLK-16

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

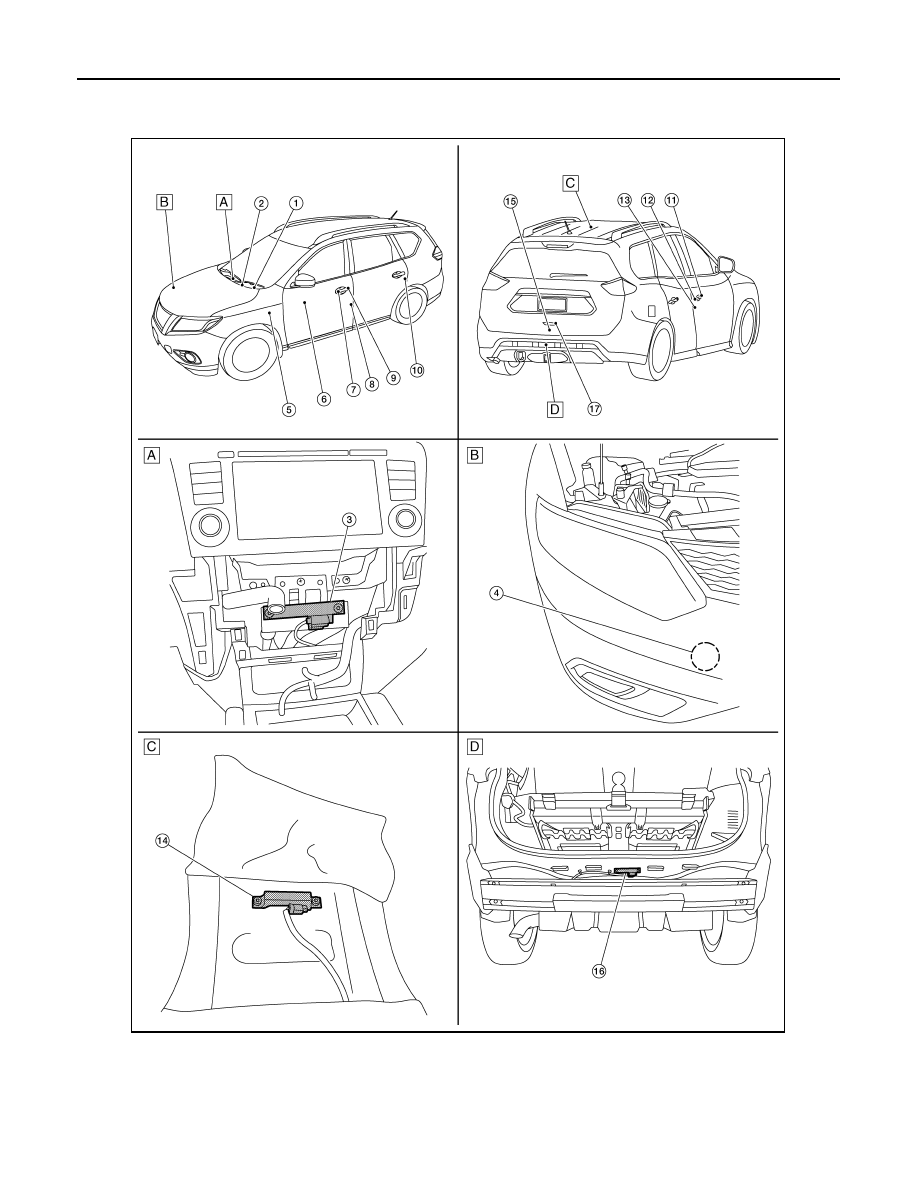

INTELLIGENT KEY SYSTEM : Component Parts Location

INFOID:0000000011278752

A. View with A/C Switch (auto A/C) or

front air control (manual A/C) assem-
bly removed.

C. View of center of rear floor behind

console.

D. View with rear bumper fascia re-

moved.

ALKIA3445ZZ

2015 Rogue NAM

COMPONENT PARTS

DLK-17

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

No.

Component

Function

1.

Combination meter

Combination meter transmits the vehicle speed signal to BCM via CAN commu-
nication.
BCM also receives the vehicle speed signal from ABS actuator and electric unit
(control unit) via CAN communication. BCM compares both signals to detect the
vehicle speed.
Security indicator lamp is located on combination meter.
Security indicator lamp blinks when ignition switch is in any position other than
ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS
(NATS)] is on board.
Refer to

MWI-6, "METER SYSTEM : Component Parts Location"

.

2.

Push-button ignition switch

Push-button ignition switch has push switch inside which detects that push-but-
ton ignition switch is pressed, and then transmits ON/OFF signal to BCM. BCM
changes the ignition switch position with the operation of push-button ignition
switch. BCM maintains the ignition switch position status while push-button ig-
nition switch is not operated.

3.

Inside key antenna (instrument center)

Inside key antenna (instrument center) detects whether Intelligent Key is inside
the vehicle or not, and then transmits the signal to the BCM.
Refer to

DLK-21, "Inside Key Antenna (Instrument Center)"

.

4.

Intelligent Key warning buzzer

Intelligent Key warning buzzer warns the user, who is outside the vehicle, of op-
eration confirmation according to Intelligent Key operation and door request
switch operation, or of an inappropriate operation.

5.

BCM

BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION),
NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHI-
CLE SECURITY SYSTEM.
BCM performs the ID verification between BCM and Intelligent Key when the In-
telligent Key is carried into the detection area of inside key antenna, and push-
button ignition switch is pressed. If the ID verification result is OK, ignition switch
operation is available.
Then, when the ignition switch is turned ON, BCM performs ID verification be-
tween BCM and ECM. If the ID verification result is OK, ECM can start engine.
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

6.

Main power window and door lock/unlock
switch

Door lock and unlock switch is integrated into the main power window and door
lock/unlock switch.
Door lock and unlock switch transmits door lock/unlock operation signal to
BCM.
Refer to

PWC-7, "Main Power Window And Door Lock/Unlock Switch"

.

7.

Outside key antenna LH

Outside key antenna (LH) detects whether Intelligent Key is outside the vehicle
or not, and then transmits the signal to the BCM.
Refer to

DLK-22, "Outside Key Antenna (LH)"

.

8.

Front door lock assembly LH

Door key cylinder switch is integrated into front door lock assembly (driver side).
Door key cylinder switch detects door LOCK/UNLOCK operation using me-
chanical key, and then transmits the operation signal to BCM.
Refer to

DLK-24, "Front Door Lock Assembly (LH)"

.

9.

Door request switch LH

Door request switch transmits door lock/unlock request signal to the BCM.

10.

Rear door lock actuator LH

Rear door lock actuator locks/unlocks the rear door latch assembly.

11.

Outside key antenna RH

Outside key antenna (RH) detects whether Intelligent Key is outside the vehicle
or not, and then transmits the signal to the BCM.
Refer to

DLK-22, "Outside Key Antenna (RH)"

.

12.

Door request switch RH

Door request switch transmits door lock/unlock request signal to the BCM.

13.

Door switch RH

Door switch detects door open/close condition and then transmits ON/OFF sig-
nal to BCM.

14.

Inside key antenna (console)

Inside key antenna (console) detects whether Intelligent Key is inside the vehi-
cle or not, and then transmits the signal to the BCM.
Refer to

DLK-22, "Inside Key Antenna (Console)"

.

15.

Back door lock assembly

Back door lock actuator locks/unlocks the back door latch assembly.
