BODY COMPONENT PARTS

BRM-13

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
• Tensile strength column shows the largest strength value of a part in the component part.

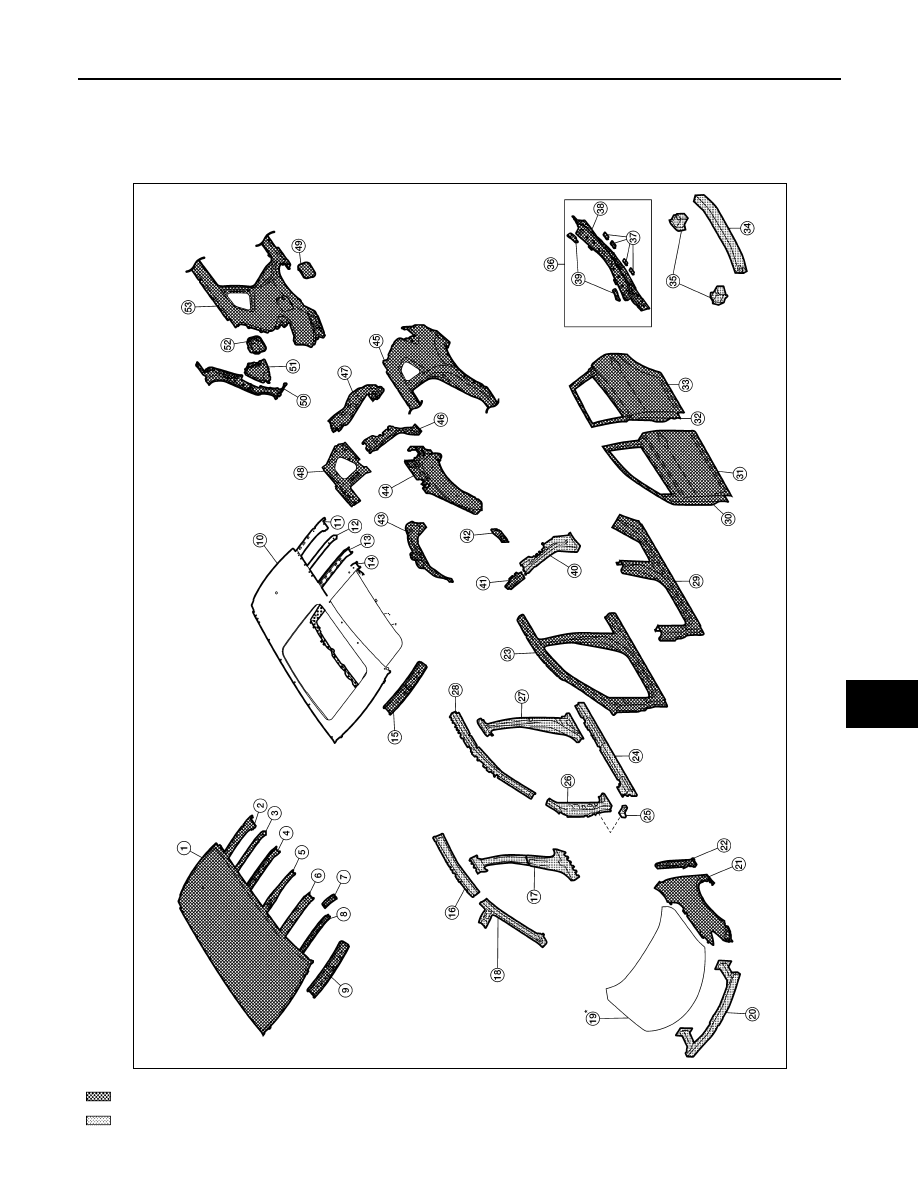

Body Component Parts

INFOID:0000000011280073

 Both sided anti-corrosive precoated steel portions

 High strength steel (HSS) portions

AWKIA3224ZZ

BRM-14

< PREPARATION >

BODY COMPONENT PARTS

 Both sided anti-corrosive steel and HSS portions

* Aluminum portion

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion

1.

Standard roof

Under 440

X

2.

Rear roof rail

Under 440

X

3.

Roof bow No. 5

Under 440

X

4.

Roof bow No. 4

Under 440

X

5.

Roof bow No. 3

Under 440

X

6.

Roof bow No. 2

Under 440

X

7.

Roof bow No.1 reinforcement (LH/RH)

590

X

8.

Roof bow No. 1

Under 440

X

9.

Front roof rail

590

X

10.

Moonroof

Under 440

X

11,

Rear roof rail

Under 440

X

12.

Roof bow No. 2

Under 440

×

13.

Roof bow No. 1

Under 440

×

14.

Moonroof reinforcement

590

×

15.

Front roof rail

980

×

16.

Inner side roof rail (LH/RH)

590

×

17.

Inner center pillar (LH/RH)

980

×

18.

Upper inner front pillar (LH/RH)

980

×

19.

Hood

×

×

20.

Front bumper reinforcement assembly

980

×

21.

Front fender (LH/RH)

Under 440

×

22.

Front fender brace (LH/RH)

Under 440

23.

Front side body (LH/RH)

Under 440

24.

Outer sill reinforcement (LH/RH)

980

25.

Front fender bracket (LH/RH)

Under 440

26.

Lower front pillar hinge brace (LH/RH)

980

27.

Center pillar reinforcement (LH/RH)

980

28.

Outer front pillar reinforcement (LH/RH)

980

×

29.

Outer sill (LH/RH)

Under 440

×

30.

Front door assembly (LH/RH)

Under 440

×

31.

Outer front door panel (LH/RH)

Under 440

×

32.

Rear door assembly (LH/RH)

Under 440

×

33.

Outer rear door panel (LH/RH)

Under 440

×

34.

Rear bumper reinforcement

980

×

35.

Rear bumper stay (LH/RH)

980

×

36.

Rear panel assembly

Under 440

×

37.

Upper rear bumper retainer

Under 440

×

38.

Rear panel

Under 440

×

39.

Rear panel reinforcement

Under 440

×

BODY COMPONENT PARTS

BRM-15

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

CAUTION:

If the high strength steel (ultra high strength steel) is bent or broken, replace by assembly for the supply part.
NOTE:
• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.
• Tensile strength column shows the largest strength value of a part in the component part.

40.

Inner rear pillar reinforcement (LH/RH)

980

41.

Inner rear pillar upper reinforcement (LH/RH)

980

42.

Outer rear wheelhouse extension (LH/RH)

Under 440

×

43.

Inner rear wheelhouse (LH/RH)

Under 440

×

44.

Outer rear wheelhouse (LH/RH)

Under 440

×

45.

Rear fender (LH)

Under 440

×

46.

Back pillar reinforcement (LH/RH)

Under 440

47.

Back pillar main assembly (LH/RH)

Under 440

48.

Inner rear pillar (LH/RH)

590

×

49.

Fuel filler lid

Under 440

×

50.

Back pillar reinforcement assembly (LH/RH)

590

×

51.

Rear combination lamp base (LH/RH)

Under 440

×

52.

Fuel filler base

Under 440

×

53.

Rear fender (RH)

Under 440

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion

BRM-16

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000011280074

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

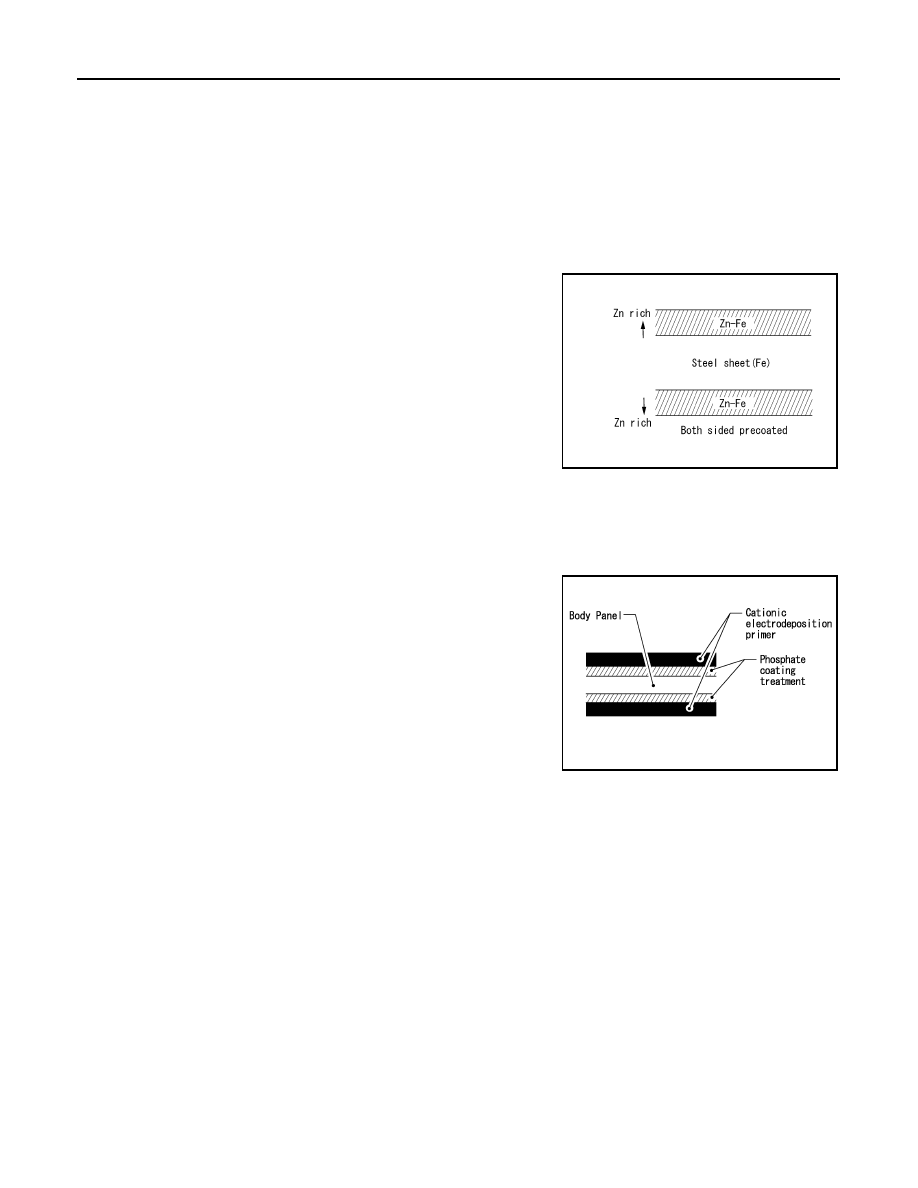

ANTI-CORROSIVE PRECOATED STEEL (GALVANNEALED STEEL)

To improve repairability and corrosion resistance, a new type of anti-

corrosive precoated steel sheet has been adopted replacing conven-

tional zinc-coated steel sheet.

Galvannealed steel is electroplated and heated to form Zinc-iron

alloy, which provides excellent and long term corrosion resistance

with cationic electrodeposition primer.

NISSAN Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that

GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-

mance built into the vehicle at the factory.

PHOSPHATE COATING TREATMENT AND CATIONIC ELECTRODEPOSITION PRIMER

A phosphate coating treatment and a cationic electrodeposition

primer, which provide excellent corrosion protection, are employed

on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute

minimum.

NISSAN Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GEN-

UINE NISSAN PARTS or an equivalent be used for panel replacement to maintain anti-corrosive performance

built into the vehicle at the factory.

Anti-corrosive Wax

INFOID:0000000011280075

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-

tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf

life.

DOOR

SIIA2294E

PIIA0095E
