Undercoating

INFOID:0000000011280076

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-

ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-

ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

PRECAUTIONS IN UNDERCOATING

1. Never apply undercoating to any place unless specified (such as the areas above the muffler and three

way catalyst which are subjected to heat).

2. Never undercoat the exhaust pipe or other parts which become hot.
3. Never undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.
5. After putting seal on the vehicle, put undercoating on it.

A.

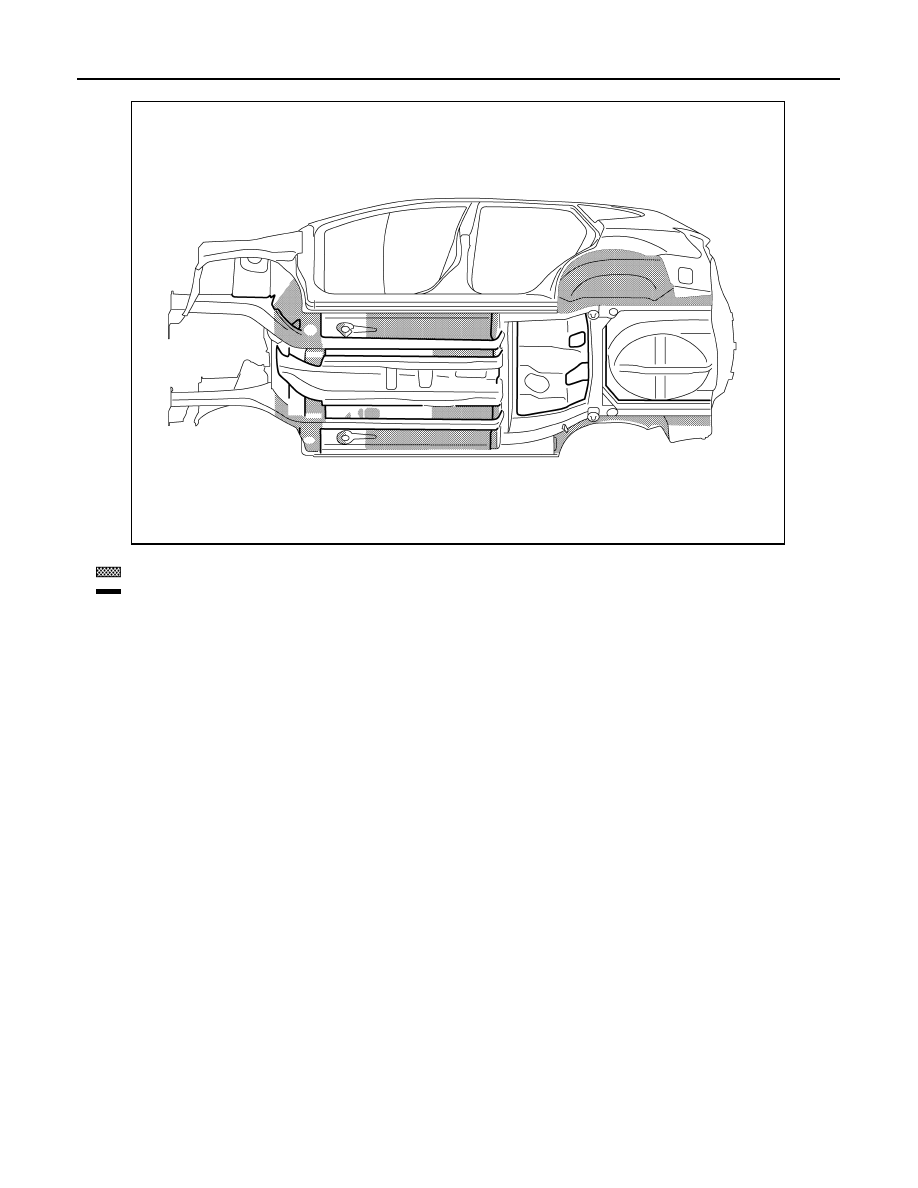

Nozzle insert hole

Anti-corrosive wax coated portions

AWKIA2823ZZ

BRM-18

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

Stone Guard Coat

INFOID:0000000011280077

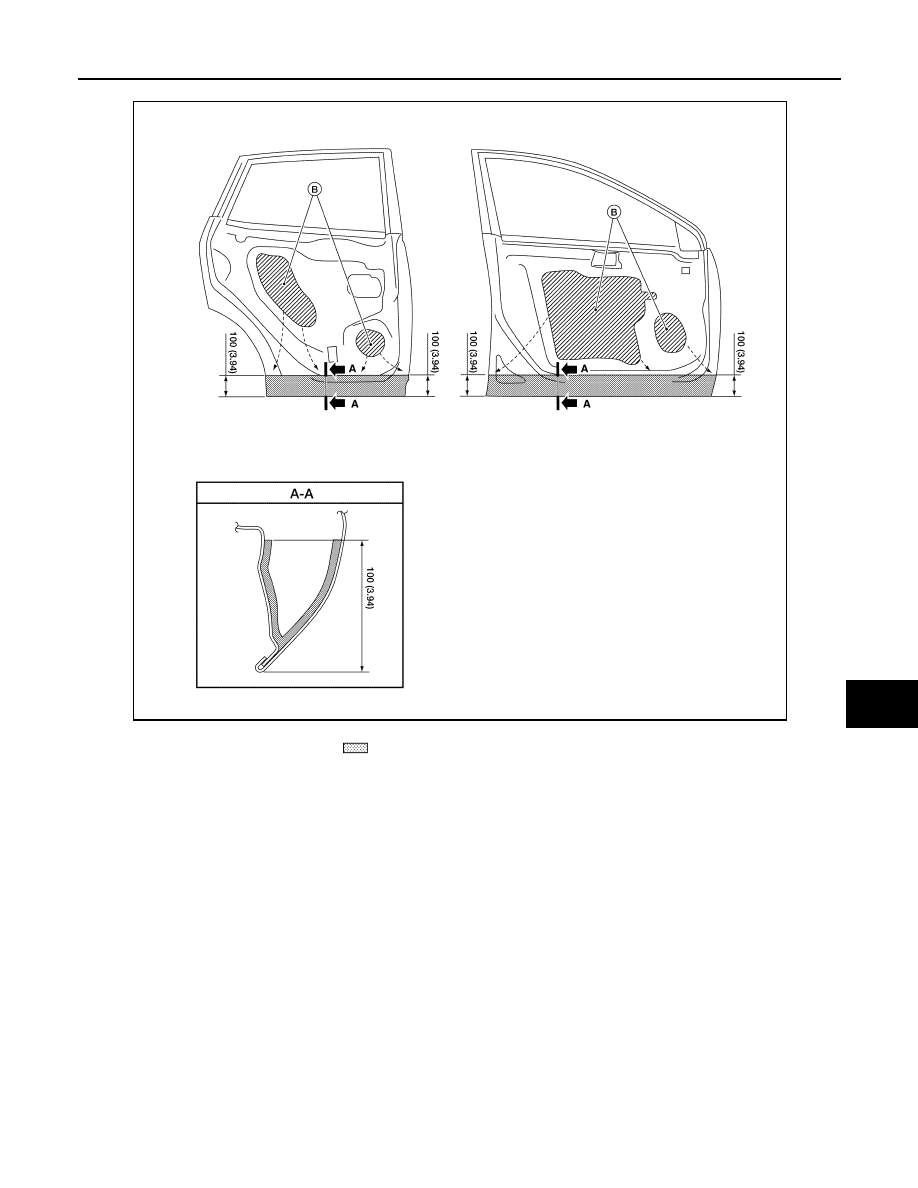

To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer

of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone

Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant

and has a long shelf life.

 Undercoated portions (for all destination)
 Sealed portions

AWKIA2848ZZ

CORROSION PROTECTION

BRM-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

Body Sealing

INFOID:0000000011280078

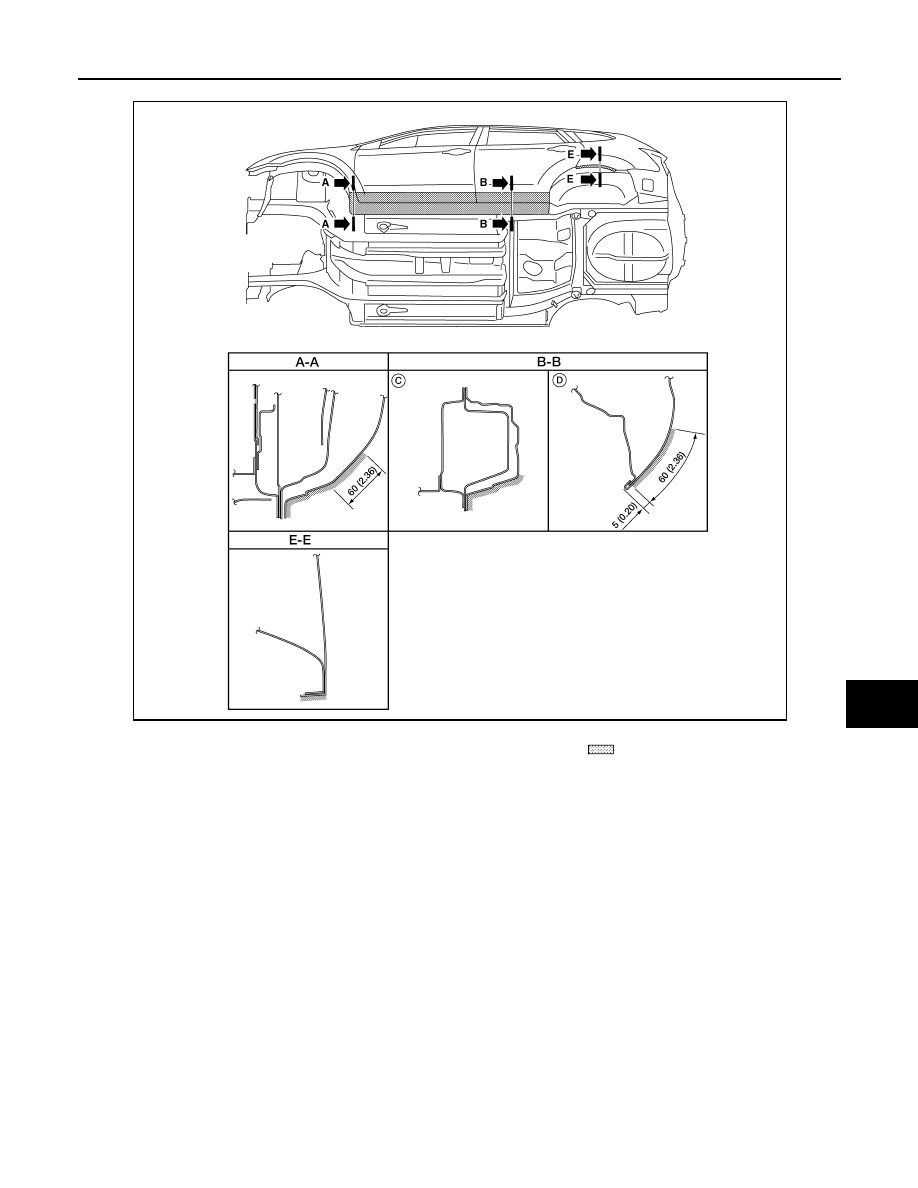

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these

areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of

sealant and not to allow other unaffected parts to come into contact with the sealant.

C.

Outer sill portion

D. Door outer portion

 Stone guard coated portions

AWKIA2841ZZ

BRM-20

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

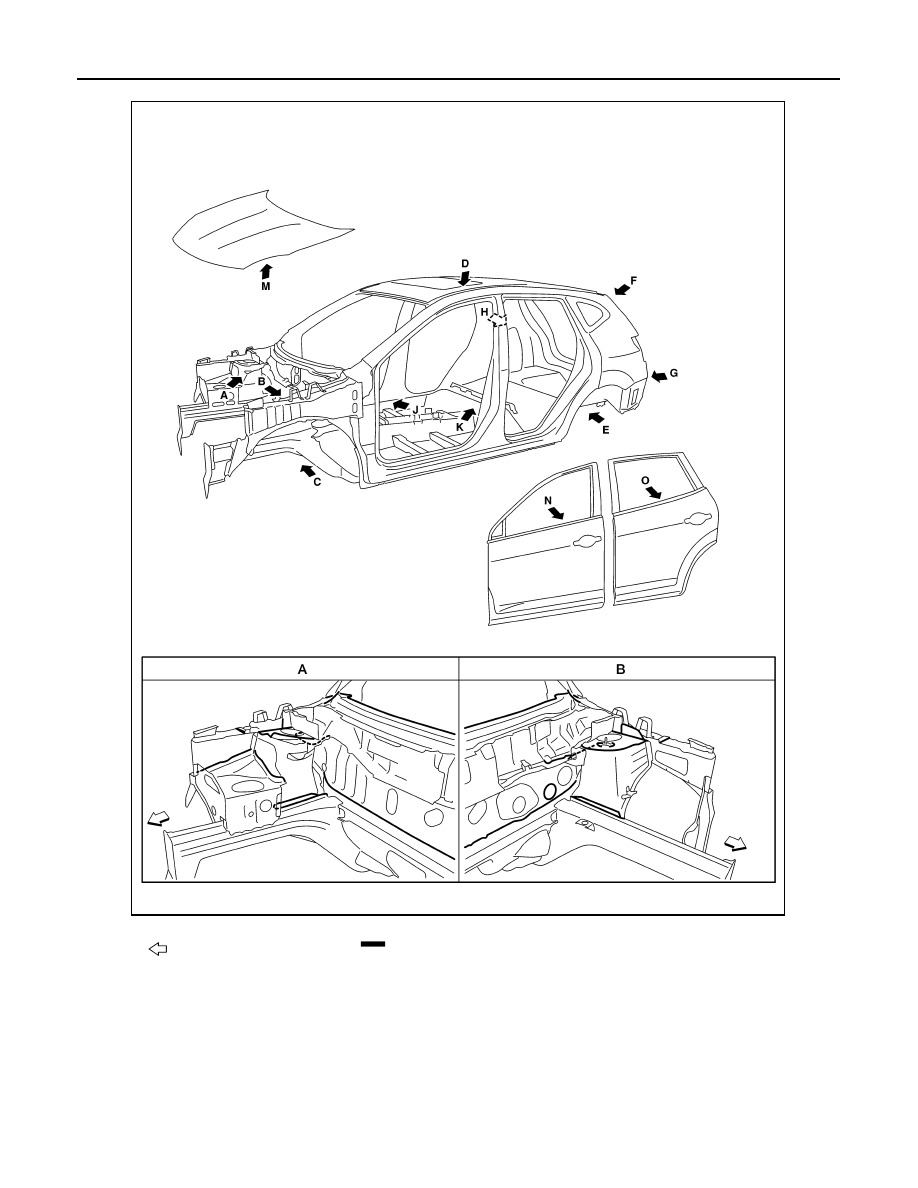

Front

 Sealed portions

AWKIA2898ZZ
