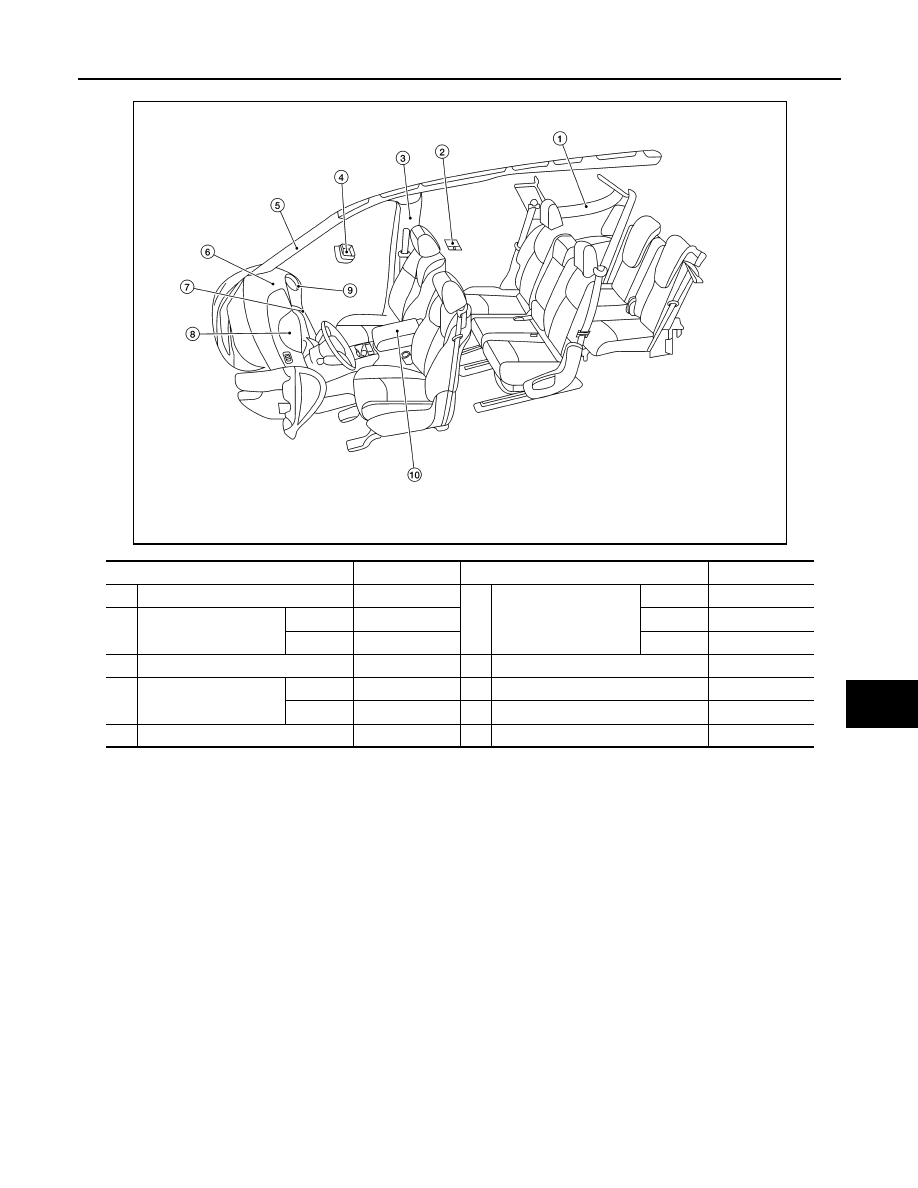

LOCATION OF PLASTIC PARTS

BRM-9

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Component

Material

Component

Material

1.

Luggage side finisher

PP

6.

Instrument panel

Skin

TPO

2.

Room lamp

Lens

PC

Pad

PUR

Housing

PA

Core

PP

3.

Center pillar finisher

PP

7.

Cluster lid C

PC + ABS

4.

Map lamp

Lens

PC

8.

Cluster lid A

PP

Housing

PP

9.

Glove box

PPC

5.

Front pillar finisher

PP

10. Center console

PP

AWKIA2847ZZ

BRM-10

< PREPARATION >

REPAIRING MATERIAL

PREPARATION

REPAIRING MATERIAL

Foam Repair

INFOID:0000000011280071

During factory body assembly, foam insulators are installed in certain body panels and locations around the

vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

Use commercially available Urethane foam for sealant (foam material) repair of material used on vehicle.

Read instructions on product for fill procedures.

Example of foaming agent filling operation procedure

1. Fill procedures after installation of service part.
a. Eliminate foam material remaining on vehicle side.
b. Clean area after eliminating form insulator and foam material.
c.

Install service part.

d. Insert nozzle into hole near fill area and fill foam material or fill enough to close gap with the service part.

2. Fill procedures before installation of service part.
a. Eliminate foam material remaining on vehicle side.
b. Clean area after eliminating foam insulator and foam material.
c.

Fill foam material on wheelhouse outer side.

NOTE:

Fill enough to close gap with service part while avoiding flange

area.

d. Install service part.

NOTE:

Refer to label for information on working times.

<Urethane foam for foaming agent>

3M™ Automix™ Flexible Foam 08463 or equiva-
lent

1.

Urethane foam

A.

Nozzle insert hole

Front

1.

Urethane foam

A.

Fill while avoiding flange area

 Front

JSKIA0129GB

JSKIA0130GB

BODY COMPONENT PARTS

BRM-11

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY COMPONENT PARTS

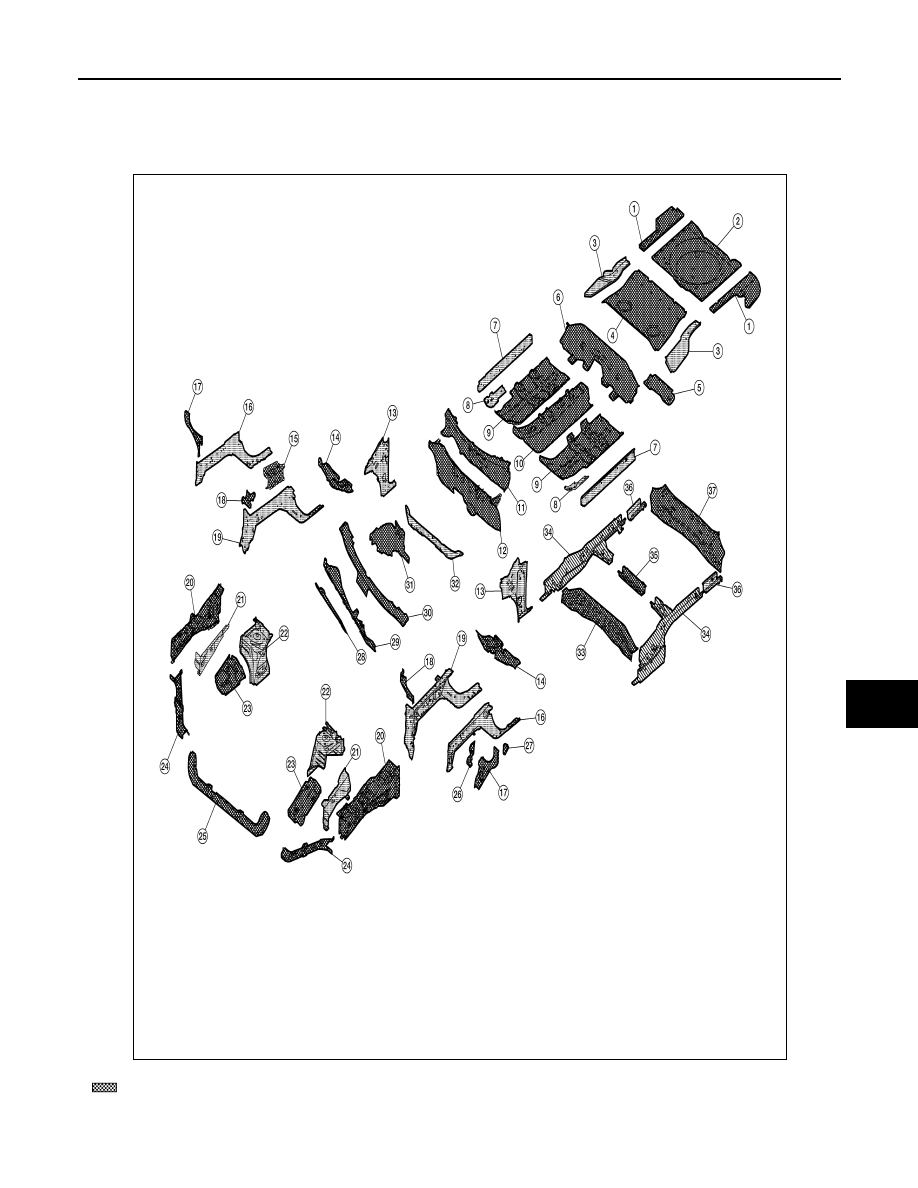

Underbody Component Parts

INFOID:0000000011280072

Both sided anti-corrosive precoated steel portions

AWKIA3230ZZ

BRM-12

< PREPARATION >

BODY COMPONENT PARTS

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.
NOTE:

 High strength steel (HSS) portions: 440 MPa

 Both sided anti-corrosive steel and HSS portions: 440 MPa

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Aluminum

portion

1.

Rear floor rear side (LH/RH)

Under 440

x

—

2.

Rear floor rear

Under 440

×

—

3.

Rear floor front sides (LH/RH)

780

×

—

4.

Rear floor front

Under 440

x

—

5.

Rear floor exhaust reinforcement

Under 440

×

—

6.

Rear floor front extension

Under 440

×

—

7.

Inner sill (LH/RH)

980

×

—

8.

Inner sill front extension (LH/RH)

980

×

—

9.

Front floor (LH/RH)

Under 440

×

—

10.

Center front floor

Under 440

×

—

11.

Upper dash

Under 440

×

—

12.

Lower dash

Under 440

×

—

13.

Side dash (LH/RH)

590

×

—

14.

Front suspension mounting bracket (LH/RH)

Under 440

×

—

15.

Battery tray

Under 440

×

—

16.

Front side member closing plate assembly (LH/RH)

590

×

—

17

Radiator upper side panel (LH/RH)

Under 440

×

—

18.

Radiator lower bracket (LH/RH)

Under 440

×

—

19.

Front side member (LH/RH)

590

×

—

20.

Upper hoodledge (LH/RH)

440

×

—

21.

Hoodledge reinforcement (LH/RH)

590

×

—

22.

Front strut housing (LH/RH)

590

×

—

23.

Front strut housing extension (LH/RH)

Under 440

×

—

24.

Headlight panel (LH/RH)

Under 440

×

—

25.

Lower radiator lower assembly (LH/RH)

Under 440

×

—

26.

Front side member extension (LH/RH)

440

×

—

27.

Front side member bracket (LH/RH)

Under 440

×

—

28.

Front of dash brace (LH/RH)

Under 440

×

—

29.

Upper dash crossmember assembly

440

×

—

30.

Cowl top reinforcement

440

×

—

31.

Engine mounting member bracket

440

×

—

32.

Lower dash crossmember

980

×

—

33.

Rear seat crossmember

590

×

—

34.

Rear side member assembly (LH/RH)

440

×

—

35.

Center rear crossmember

440

×

—

36.

Rear side member extension (LH/RH)

440

×

—

37.

Rear end panel

Under 440

×

—
