BR-18

< PERIODIC MAINTENANCE >

FRONT DISC BRAKE

FRONT DISC BRAKE

Brake Burnishing

INFOID:0000000011279870

CAUTION:

• Burnish contact surfaces between brake pads and disc brake rotor according to the following proce-

dure after refinishing the disc brake rotor, replacing brake pads or if a soft pedal occurs at very low

mileage.

• Be careful of vehicle speed. Brakes do not operate firmly/securely until pads and disc brake rotor are

securely seated.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1. Drive the vehicle on straight, flat road.
2. Depress the brake pedal until the vehicle stops.
3. Release the brake pedal for a few minutes to allow the brake components to cool.
4. Repeat steps 1 to 3 until pad and disc brake rotor are securely seated.

REAR DISC BRAKE

BR-19

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REAR DISC BRAKE

Brake Burnishing

INFOID:0000000011279871

CAUTION:

• Burnish contact surfaces between brake pads and disc brake rotor according to the following proce-

dure after refinishing the disc brake rotor, replacing brake pads or if a soft pedal occurs at very low

mileage.

• Be careful of vehicle speed. Brakes do not operate firmly/securely until pads and disc brake rotor are

securely seated.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1. Drive the vehicle on straight, flat road.
2. Depress the brake pedal until the vehicle stops.
3. Release the brake pedal for a few minutes to allow the brake components to cool.
4. Repeat steps 1 to 3 until pad and disc brake rotor are securely seated.

BR-20

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

REMOVAL AND INSTALLATION

BRAKE PEDAL

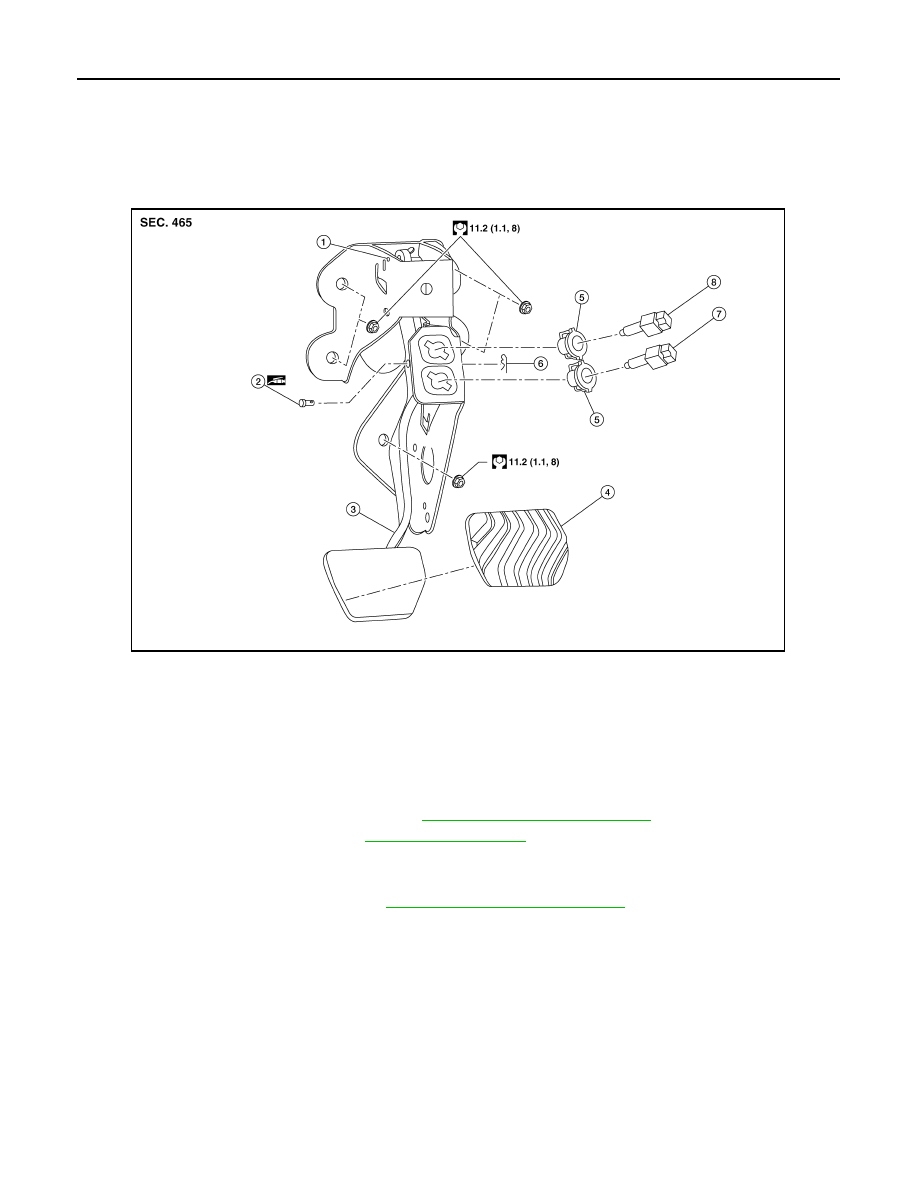

Exploded View

INFOID:0000000011279872

Removal and Installation

INFOID:0000000011279873

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Remove the knee protector. Refer to

IP-14, "Exploded View"

.

3. Remove snap pin and clevis pin from clevis of brake booster.
4. Disconnect the harness connectors from the stop lamp switch and brake pedal position switch.
5. Remove the accelerator pedal. Refer to

ACC-3, "Removal and Installation"

.

6. Remove the brake pedal.

CAUTION:

Support the brake booster and master cylinder to prevent contact with other components.

INSPECTION AFTER REMOVAL

• Check the following items and replace the brake pedal assembly if necessary.

- Check the brake pedal rivet for deformation or damage.

- Check the brake pedal for bend, damage, and cracks on the welded parts.

1.

Rivet

2.

Clevis pin

3.

Brake pedal

4.

Brake pedal pad

5.

Clip

6.

Snap pin

7.

Stop lamp switch

8.

Brake pedal position switch

AWFIA1074ZZ

BRAKE PEDAL

BR-21

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

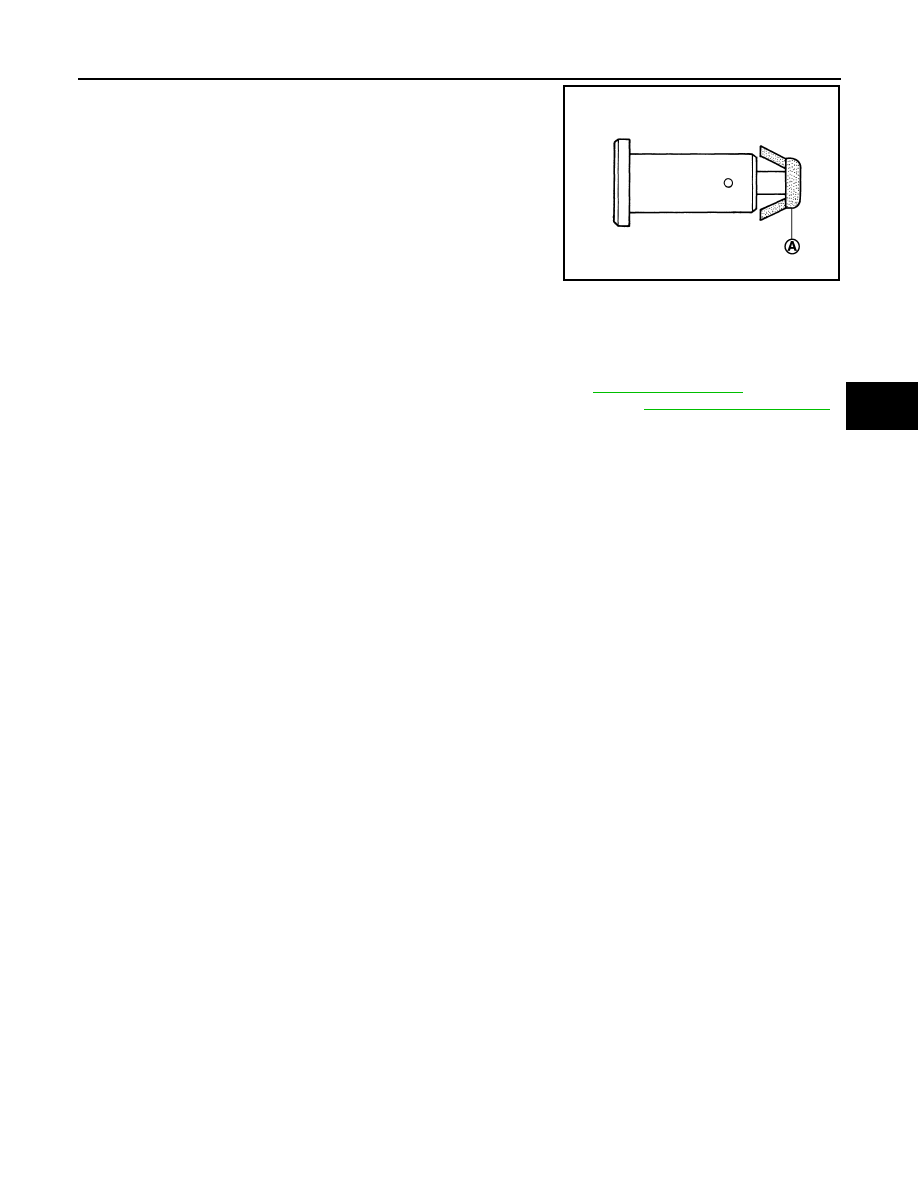

• Check clevis pin and plastic stopper (A) for damage and deforma-

tion. If any damage is found, replace clevis pin.

INSTALLATION

 Installation is in the reverse order of removal.

CAUTION:

Replace the brake pedal if it has been dropped or sustained an impact.

• Check that the brake pedal height and brake pedal play meet the specifications by checking the brake pedal

and brake booster for damage and replace parts as necessary. Refer to

BR-58, "Brake Pedal"

.

• Perform the Accelerator Pedal Released Position Learning procedure. Refer to

EC-142, "Work Procedure"

.
