Nissan Rogue. Manual - part 136

BR-14

< BASIC INSPECTION >

REAR DISC BRAKE

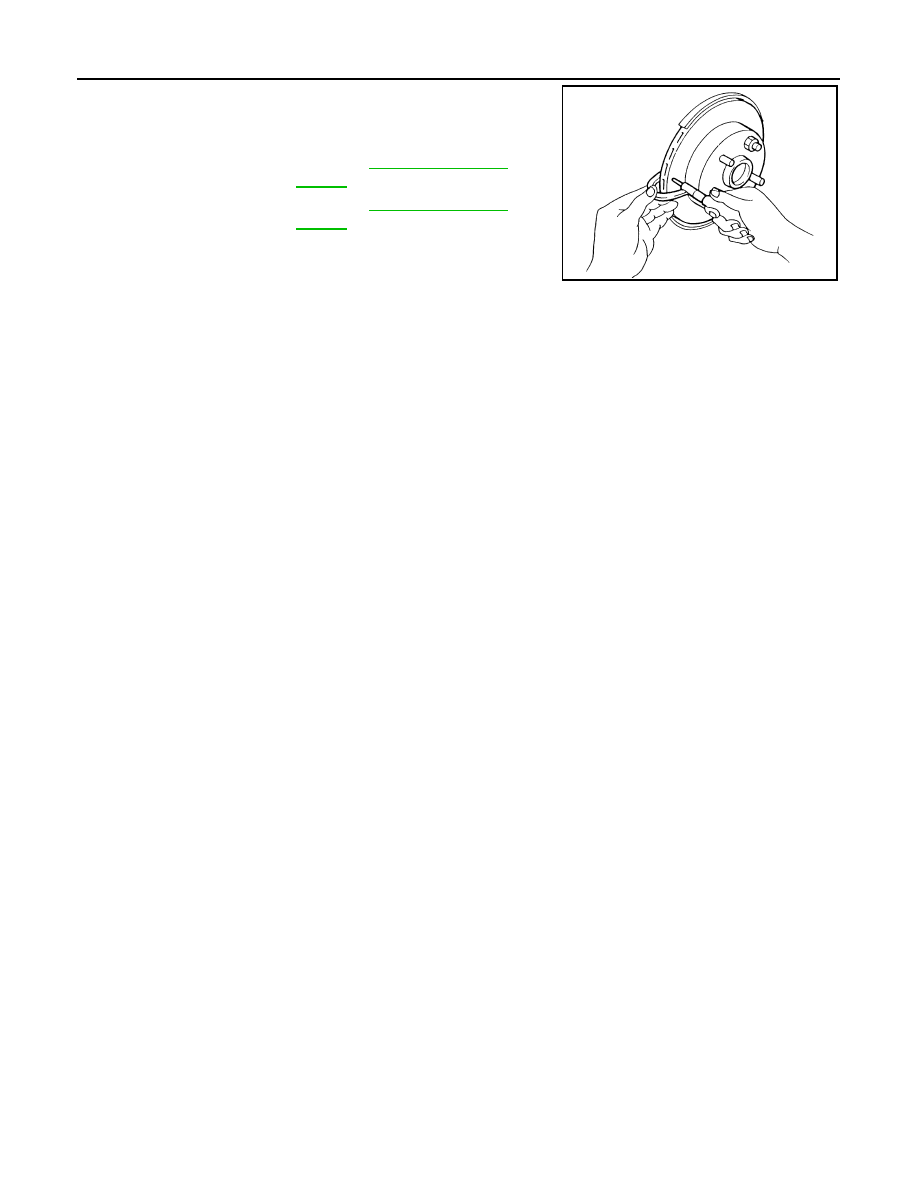

Check the thickness of the disc brake rotor using a micrometer.

Replace the disc brake rotor if the thickness is below the minimum

thickness.

Wear thickness

: Refer to

BR-59, "Rear Disc

Brake"

.

Thickness variation

: Refer to

BR-59, "Rear Disc

Brake"

.

SBR020B

BRAKE PEDAL

BR-15

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

PERIODIC MAINTENANCE

BRAKE PEDAL

Adjustment

INFOID:0000000011279867

BRAKE PEDAL HEIGHT

1. Remove instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Disconnect the harness connectors from the stop lamp switch and brake pedal position switch.
3. Turn the stop lamp switch and brake pedal position switch 45

° counterclockwise.

4. Check that the brake pedal height meets the specification by checking the brake pedal and brake booster

for damage and replace parts as necessary. Refer to

BR-58, "Brake Pedal"

.

5. Turn the stop lamp switch and brake pedal position switch 45

° clockwise.

6. Connect the harness connectors to the stop lamp switch and brake pedal position switch.
7. Check the brake pedal for smooth operation.

CAUTION:

The stop lamp must turn off when the brake pedal is released.

8. Install the instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

STOP LAMP SWITCH AND BRAKE PEDAL POSITION SWITCH

1. Remove instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

2. Disconnect the harness connectors from the stop lamp switch and brake pedal position switch.
3. Turn the stop lamp switch and brake pedal position switch 45

° counterclockwise.

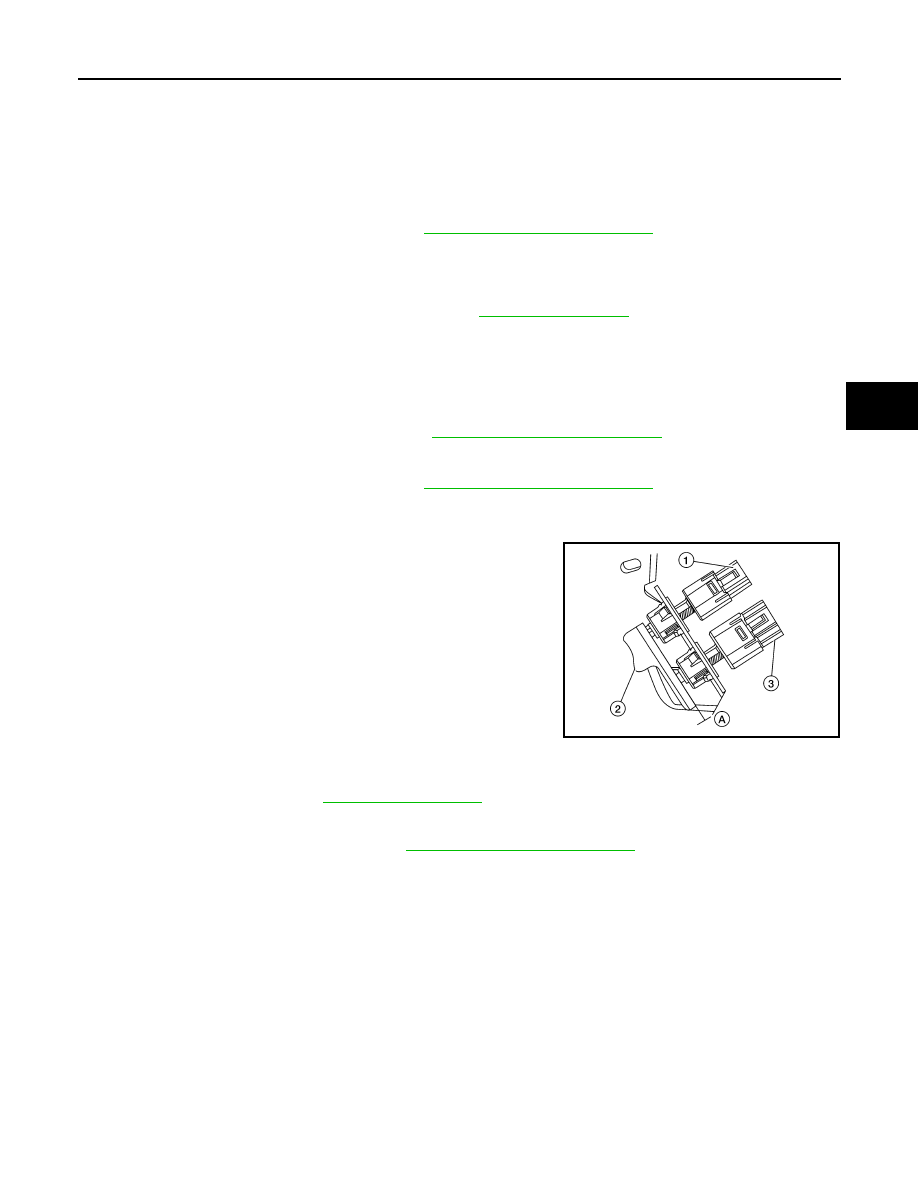

4. With the threaded ends of the stop lamp switch (3) and brake

pedal position switch (1) contacting the brake pedal stopper

bracket (2), turn the switches 45

° clockwise to lock in place.

Check that both the stop lamp switch (3) and brake pedal posi-

tion switch (1) contact ends to brake pedal stopper bracket (2)

clearance (A) are within specification.

CAUTION:

• Make sure that the clearance (A) between the brake pedal

stopper bracket (2), stop lamp switch (3) and the brake

pedal position switch (1) contact ends are within specifi-

cation.

• The stop lamp must turn off when the brake pedal is

released.

5. Connect the harness connector to the stop lamp switch and the brake pedal position switch.
6. Install instrument lower panel LH. Refer to

IP-23, "Removal and Installation"

.

Clearance (A) : Refer to

BR-58, "Brake Pedal"

.

ALFIA0441ZZ

BR-16

< PERIODIC MAINTENANCE >

BRAKE FLUID

BRAKE FLUID

Drain and Refill

INFOID:0000000011279868

CAUTION:

• Do not spill or splash brake fluid on painted surfaces. Brake fluid may damage paint. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Prior to repair, turn the ignition switch OFF, disconnect the ABS actuator and electric unit (control

unit) connector or negative battery terminal. Refer to

PG-78, "Removal and Installation (Battery)"

.

• Refill brake system with new brake fluid. Refer to

MA-11, "Fluids and Lubricants"

.

• Do not reuse drained brake fluid.

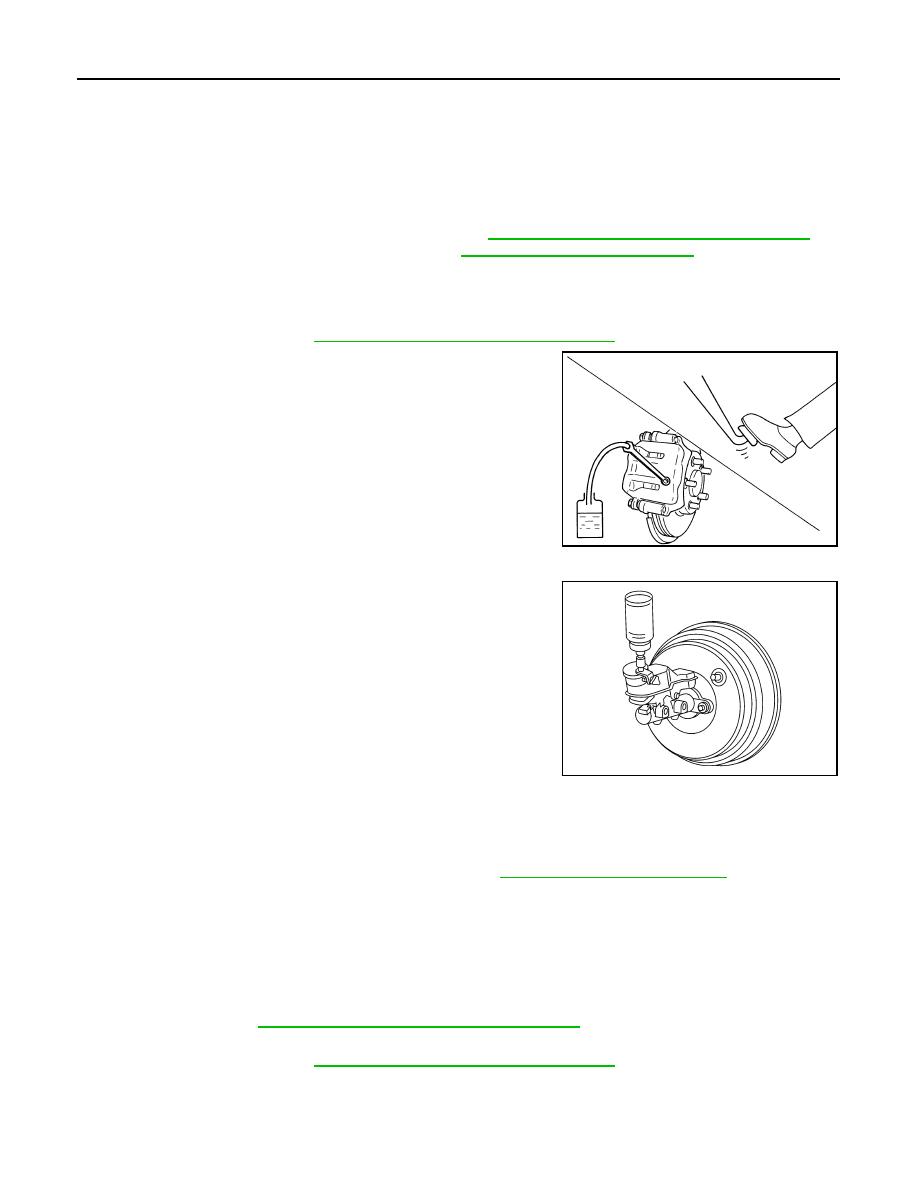

DRAINING

1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or nega-

tive battery terminal. Refer to

PG-78, "Removal and Installation (Battery)"

.

2. Connect a vinyl tube to bleeder valve.
3. Depress brake pedal, loosen bleeder valve, and gradually

remove brake fluid.

CAUTION:

Do not allow reservoir tank to empty as this may cause

damage to master cylinder internal components.

REFILLING

1. Make sure no foreign material is in the reservoir tank, and refill

with new brake fluid.

CAUTION:

Do not reuse drained brake fluid.

2. Refill the brake system as follows:

• Depress the brake pedal.

• Loosen bleeder valve.

• Slowly depress brake pedal to 2/3 of the brake pedal full

stroke.

• Tighten bleeder valve.

• Release brake pedal.

Repeat this operation at intervals of two or three seconds until

all old brake fluid is discharged. Add new brake fluid frequently.

CAUTION:

Do not allow reservoir tank to empty as this may cause damage to master cylinder internal compo-

nents.

3. Bleed the air out of the brake hydraulic system. Refer to

BR-16, "Bleeding Brake System"

.

Bleeding Brake System

INFOID:0000000011279869

CAUTION:

• While bleeding, pay attention to the brake fluid level.

• Do not allow reservoir tank to empty as this may cause damage to master cylinder internal compo-

nents.

• Before working, disconnect ABS actuator and electric unit (control unit) connectors or negative bat-

tery terminal. Refer to

PG-78, "Removal and Installation (Battery)"

.

1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or nega-

tive battery terminal. Refer to

PG-78, "Removal and Installation (Battery)"

.

2. Connect a vinyl tube to front (RH) brake caliper bleeder valve.
3. Fully depress brake pedal 4 or 5 times.

BRA0007D

PFIA0403J

BRAKE FLUID

BR-17

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

4. With brake pedal depressed, loosen bleeder valve to bleed air in brake line, and then tighten it immedi-

ately.

5. Repeat steps 3 and 4 until all of the air is out of the brake line.
6. Tighten the bleeder valve to the specified torque. Refer to

BR-49, "BRAKE CALIPER ASSEMBLY (1 PIS-

TON TYPE) : Exploded View"

 (front disc brake),

BR-55, "Exploded View"

 (rear disc brake).

7. Repeat steps 2 through 6, with the reservoir tank filled at least halfway. Bleed the air in the following order:

front (RH), front (LH), rear (RH), rear (LH).
