BR-22

< REMOVAL AND INSTALLATION >

BRAKE PIPING

BRAKE PIPING

FRONT

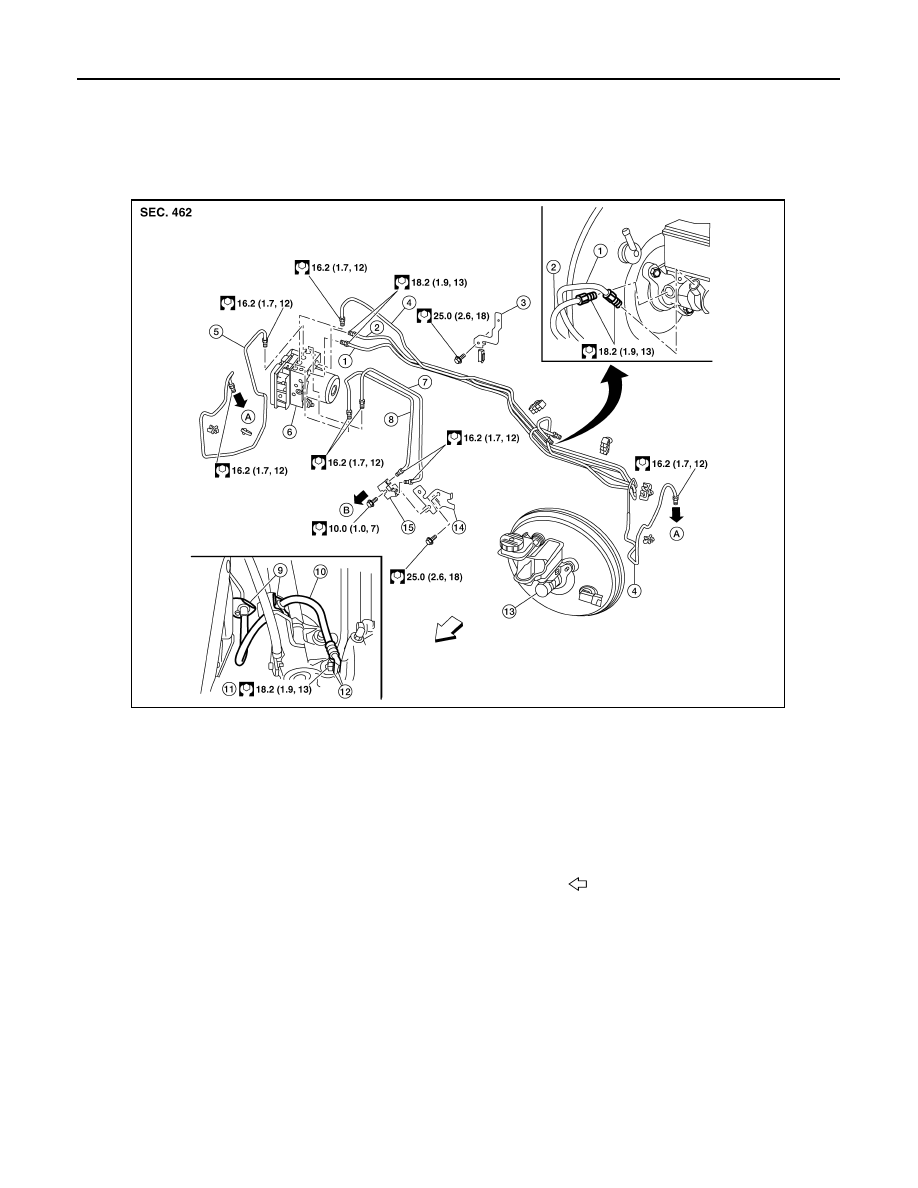

FRONT : Exploded View

INFOID:0000000011279874

1.

Master cylinder secondary to
ABS actuator brake tube

2.

Master cylinder primary to
ABS actuator brake tube

3.

Brake tube bracket

4.

Brake tube (LH)

5.

Brake tube (RH)

6.

ABS actuator and electric unit
(control unit)

7.

ABS actuator to connector
brake tube (LH)

8.

ABS actuator to connector
brake tube (RH)

9.

Lock plate

10. Front brake hose

11. Union bolt

12. Copper sealing washers

13. Master cylinder

14. Connector bracket

15. Connector

A.

To front brake hose

B.

To rear brake tube

Front

ALFIA0440ZZ

BRAKE PIPING

BR-23

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

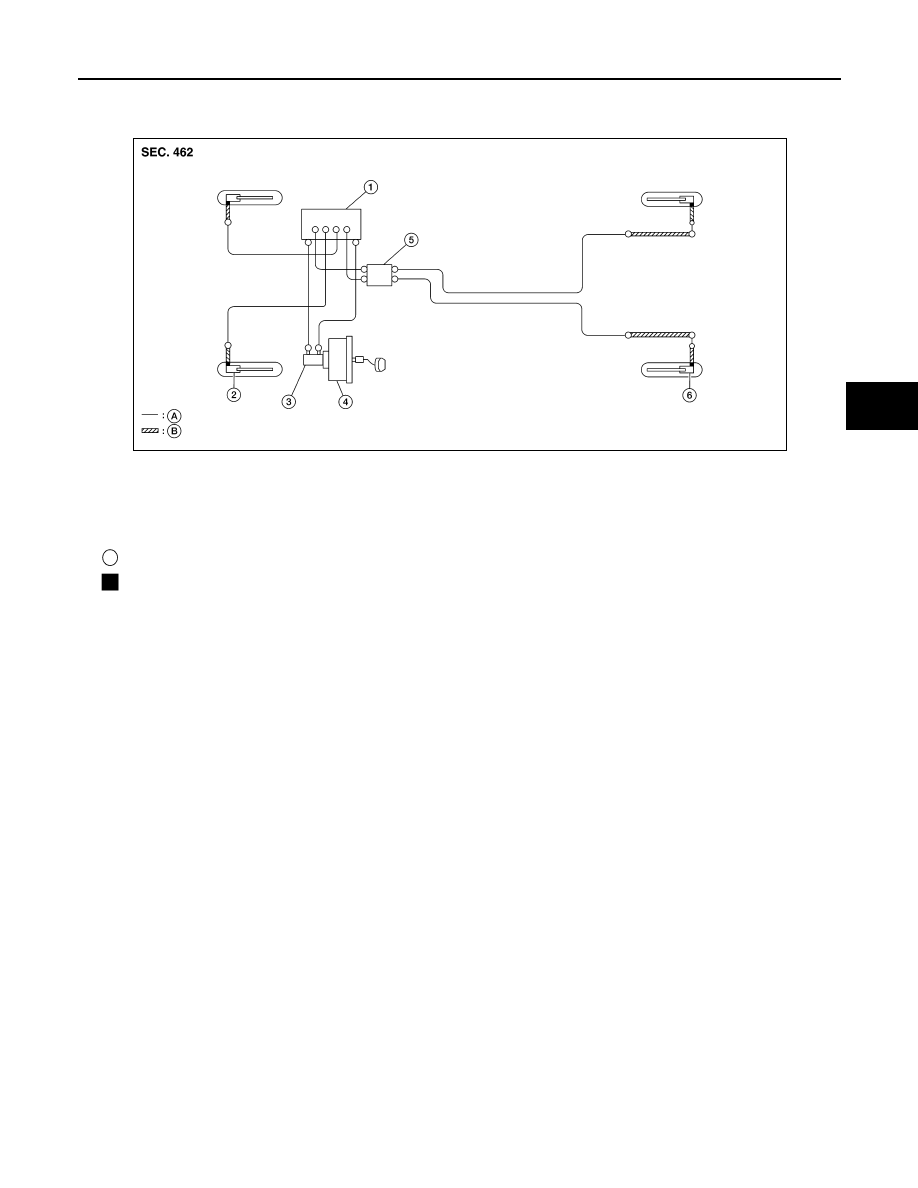

FRONT : Hydraulic Piping

INFOID:0000000011279875

FRONT : Removal and Installation

INFOID:0000000011279876

CAUTION:

• All hoses and piping (tubes) must be free from excessive bending, twisting and pulling.

• Make sure there is no interference with other parts when turning steering both clockwise and coun-

terclockwise.

• Do not spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe

it off immediately and wash with water if it gets on a painted surface.

• Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove reservoir cap from the reservoir tank.
2. Remove wheels and tires using power tool.
3. Loosen the flare nut with a flare nut wrench and separate the brake tube from the hose.

CAUTION:

• Do not scratch the flare nut and the brake pipe.

• All brake hoses and pipes must be free from excessive bending, twisting and pulling.

1.

ABS actuator and electric unit (con-
trol unit)

2.

Front disc brake

3.

Master cylinder assembly

4.

Brake booster

5.

Connector

6.

Rear disc brake

A.

Brake tube

B.

Brake hose

: Flare nut

: Union bolt

ALFIA0444ZZ

BR-24

< REMOVAL AND INSTALLATION >

BRAKE PIPING

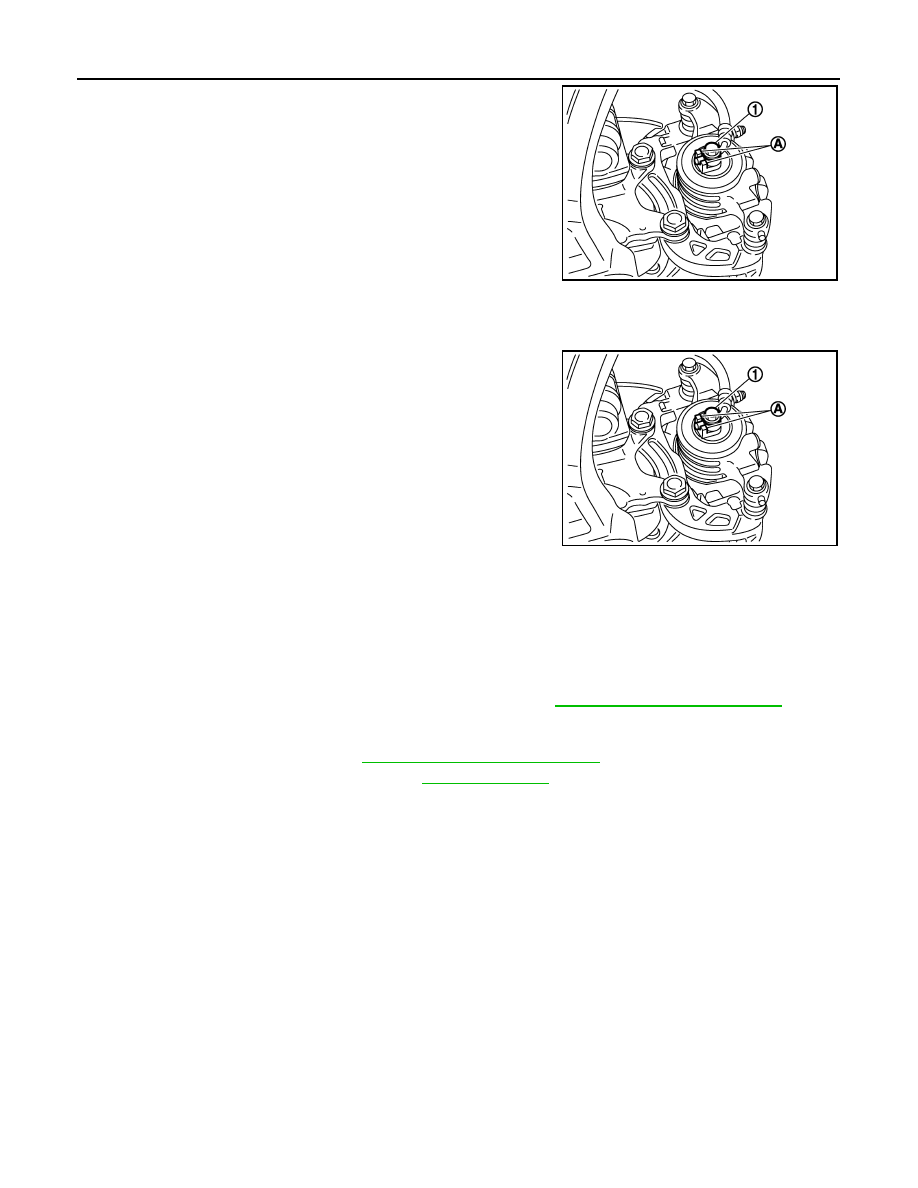

4. Remove the union bolt (1) and the brake hose from the brake

caliper. Remove and discard the copper sealing washers.

CAUTION:

Do not reuse copper sealing washers.

5. Remove the lock plate and remove the brake hose.

INSTALLATION

CAUTION:

Do not allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.
1. Assemble the union bolt (1) and the copper sealing washers to

the brake hose and install it as an assembly to the brake caliper.

Align the brake hose pin to the projection (A) by aligning it with

the brake caliper hole, and tighten the union bolt (1) to the spec-

ified torque.

CAUTION:

Do not reuse copper sealing washers.

2. Install the brake pipe to the brake hose, temporarily tighten the flare nut by hand until it does not rotate fur-

ther, and attach the brake hose to the bracket with the lock plate.

CAUTION:

Check that the brake hoses and pipes are not bent or twisted.

3. Tighten the flare nut to the specified torque with a flare nut crowfoot and a torque wrench.

CAUTION:

Do not scratch the flare nut and the brake pipe.

4. Refill with new brake fluid and perform the air bleeding. Refer to

BR-16, "Bleeding Brake System"

.

CAUTION:

Do not reuse drained brake fluid.

5. Install the wheels and tires. Refer to

WT-67, "Removal and Installation"

.

6. Perform inspection after installation. Refer to

BR-8, "Inspection"

.

REAR

JPFIA0099ZZ

JPFIA0099ZZ

BRAKE PIPING

BR-25

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

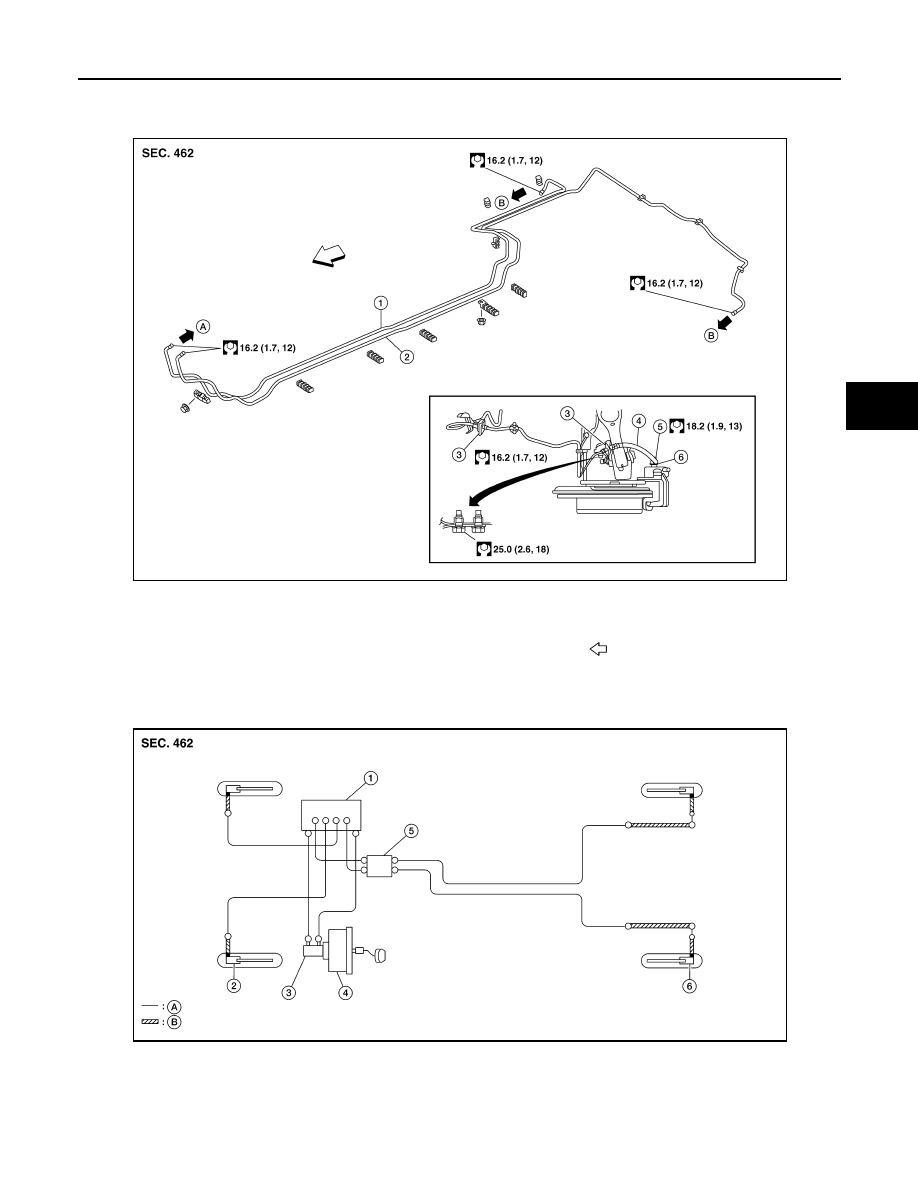

REAR : Exploded View

INFOID:0000000011279877

REAR : Hydraulic Piping

INFOID:0000000011279878

1.

Rear brake pipe assembly (RH)

2.

Rear brake pipe assembly (LH)

3.

Lock plate

4.

Rear brake hose

5.

Union bolt

6.

Copper sealing washers

A.

To brake pipe connector

B.

To rear brake hose

Front

ALFIA0443ZZ

1.

ABS actuator and electric unit (con-
trol unit)

2.

Front disc brake

3.

Master cylinder assembly

4.

Brake booster

5.

Connector

6.

Rear disc brake

A.

Brake tube

B.

Brake hose

ALFIA0444ZZ
