REAR WIPER ARM

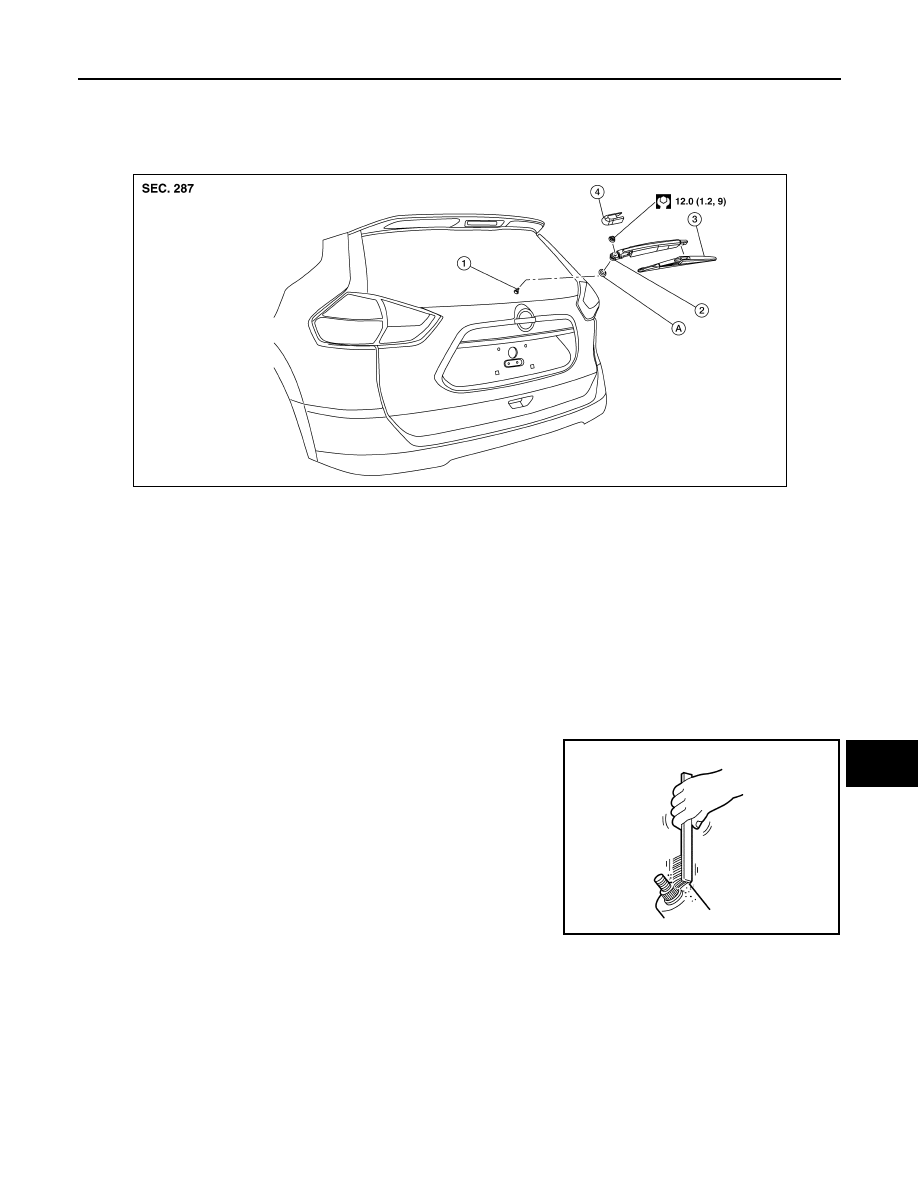

Exploded View

INFOID:0000000011280429

Removal and Installation

INFOID:0000000011280430

REMOVAL

1. Check that the rear wiper arm is in the auto stop position.
2. Remove the rear wiper arm cover.
3. Remove the rear wiper arm nut from the rear wiper arm.
4. Remove the rear wiper arm.

INSTALLATION

1. Clean the rear wiper arm mount as shown, to prevent the possi-

bility of rear wiper arm looseness.

2. Check that the rear wiper motor is in the auto stop position.
3. Install the rear wiper arm by positioning the rear wiper blade on the rear window defogger wire (A) then

tighten the rear wiper arm nut to specification.

1.

Rear wiper motor

2.

Rear wiper arm

3.

Rear wiper blade

4.

Rear wiper arm cover

A. Seal

AWLIA2299ZZ

SKIA0082J

WW-72

< REMOVAL AND INSTALLATION >

REAR WIPER ARM

4. Instal the rear wiper arm cover.
5. Check that the rear wiper blade stops at the specified position. Refer to

WW-72, "Inspection"

.

Inspection

INFOID:0000000011280431

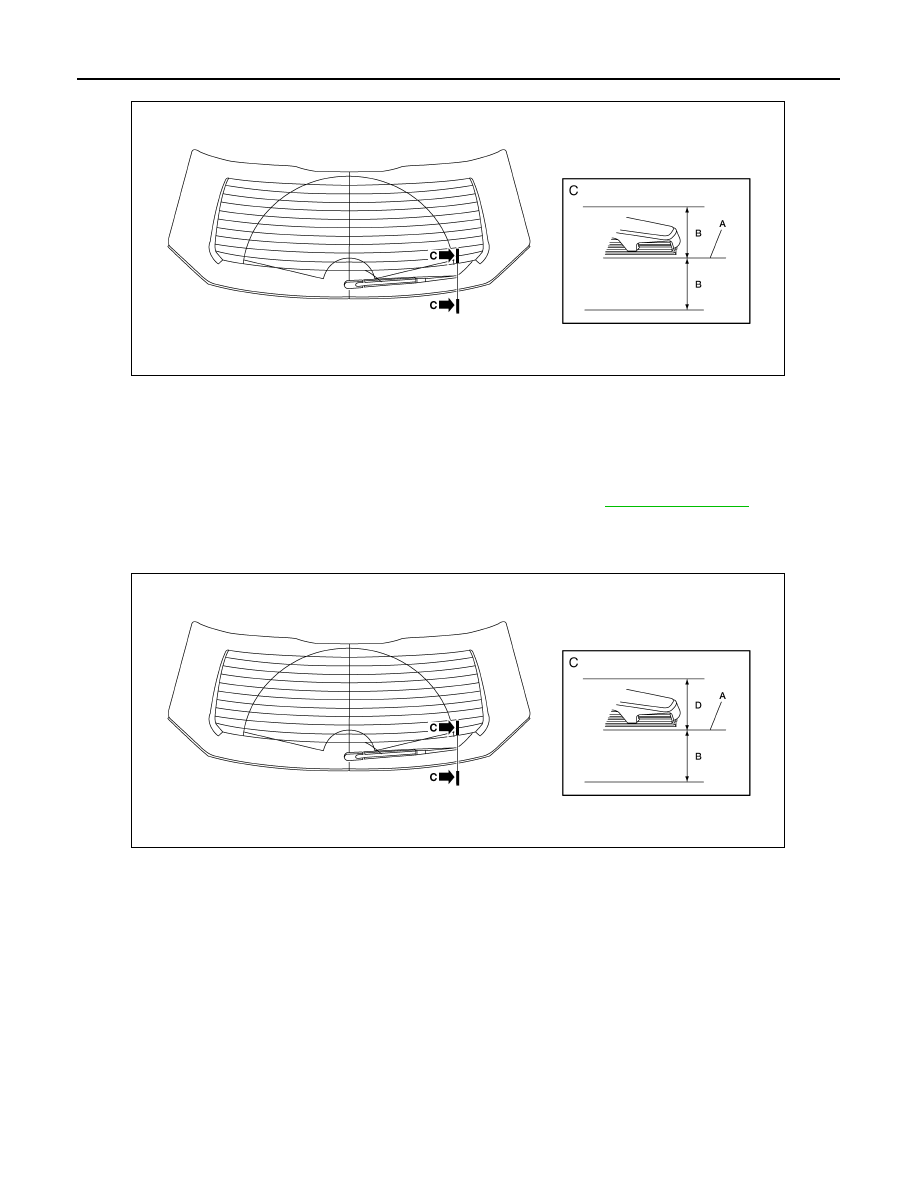

Auto stop position is on top of the rear window defogger wire (A).

A.

Rear window defogger wire



B

:

± 7.5 mm (± .30 in)

ALLIA1420ZZ

A.

Rear window defogger wire

ALLIA1618ZZ

D

: 20.0 mm (0.79 in)

B

: 7.5 mm (0.30 in)

REAR WIPER MOTOR

WW-73

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER MOTOR

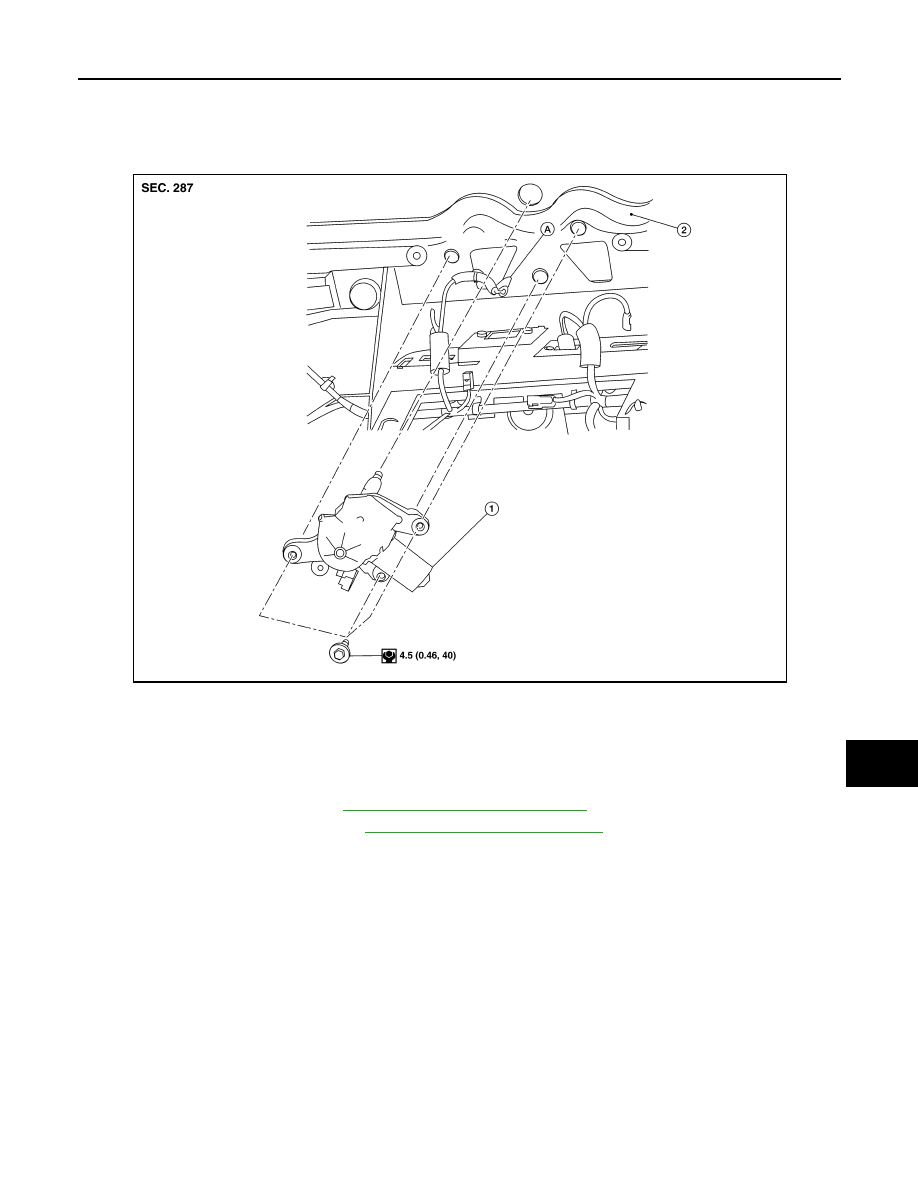

Exploded View

INFOID:0000000011280432

Removal and Installation

INFOID:0000000011280433

REMOVAL

1. Remove rear wiper arm. Refer to

WW-71, "Removal and Installation"

.

2. Remove back door finisher. Refer to

INT-38, "Removal and Installation"

.

3. Disconnect the harness connector from the rear wiper motor.
4. Remove bolts and the rear wiper motor.

INSTALLATION

Install in the reverse order of removal.

1.

Rear wiper motor

2.

Back door

A. Rear wiper motor harness

AWLIA2322ZZ

WW-74

< REMOVAL AND INSTALLATION >

REAR WASHER NOZZLE AND TUBE

REAR WASHER NOZZLE AND TUBE

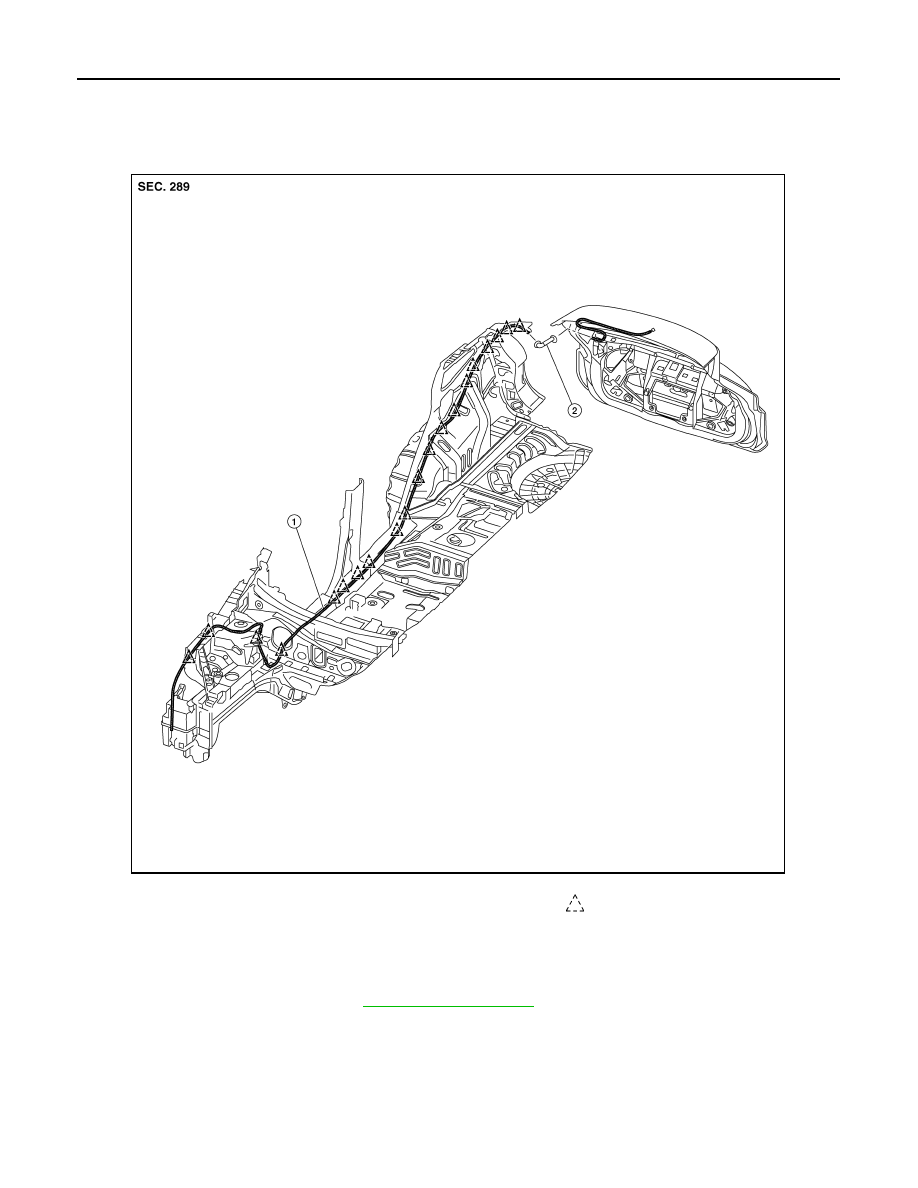

Exploded View

INFOID:0000000011280434

Removal and Installation - Rear Washer Nozzle

INFOID:0000000011280435

REMOVAL

1. Remove rear access panel. Refer to

INT-38, "Exploded View"

.

1.

Rear washer tube

2.

Rear grommet

Clip

AWLIA2305ZZ
