REAR WASHER NOZZLE AND TUBE

WW-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

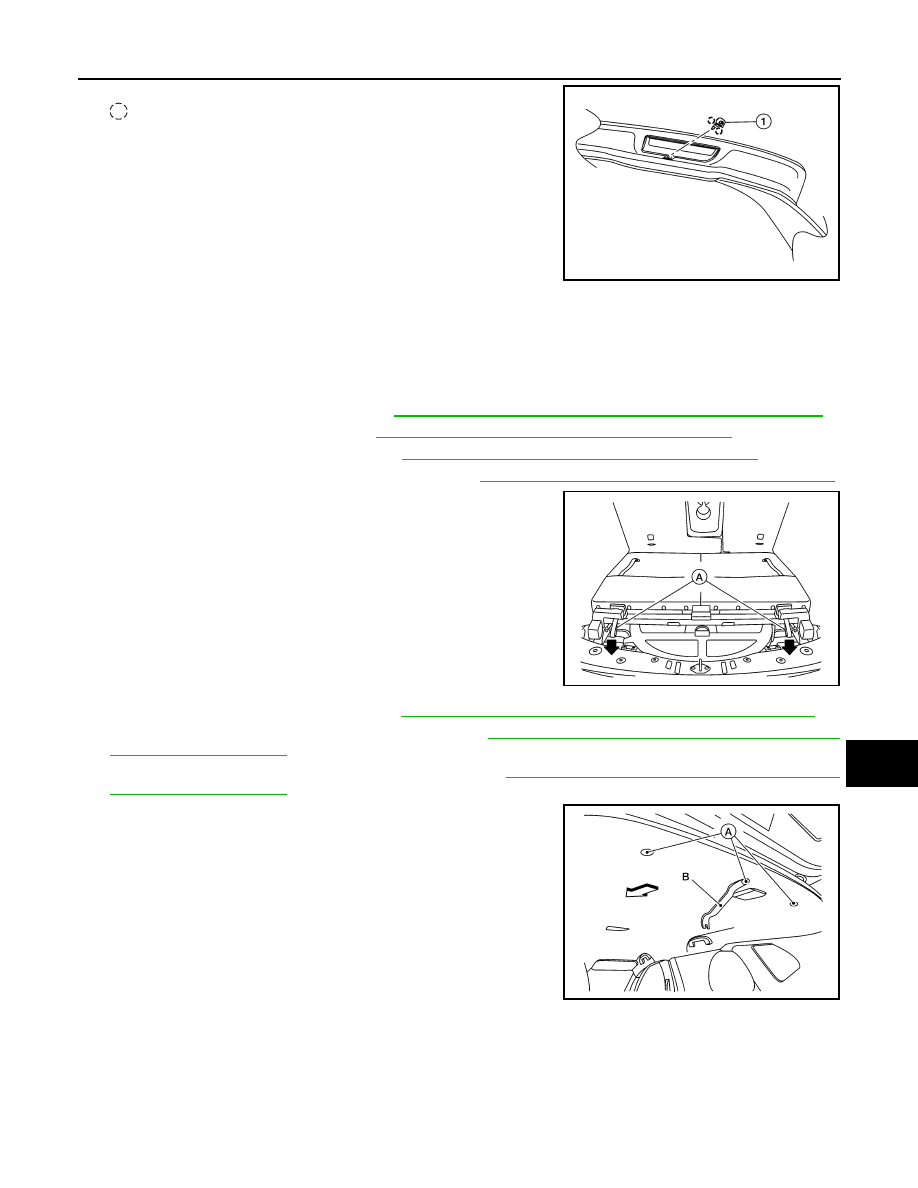

2. Release pawls and remove rear washer nozzle (1).

: Pawl

INSTALLATION

Installation in the reverse order of removal.

Removal and Installation - Rear Washer Tube

INFOID:0000000011280436

REMOVAL

1. Remove front over fender (RH). Refer to

EXT-30, "FRONT OVER FENDER : Removal and Installation"

.

2. Remove wind deflector (RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

3. Remove engine side cover (RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

4. Partially remove front fender protector (RH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

5. Release seat latches by pulling straps (A) rearward, then lift seat

from seat strikers (LH/RH).

6. Remove dash side finisher (RH). Refer to

INT-24, "DASH SIDE FINISHER : Removal and Installation"

.

7. Remove center pillar lower finisher (RH). Refer to

INT-22, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

8. Remove luggage side upper finisher (LH/RH). Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

9. Remove headlining clips (A) using suitable tool (B) and partially

lower headlining (rear).

10. Disconnect rear washer tube from washer tank and rear washer nozzle.
11. Release clips and remove rear washer tube.

INSTALLATION

Installation is in the reverse order of removal.

AWLIA2307ZZ

ALJIA1425ZZ

ALLIA1604ZZ

WW-76

< REMOVAL AND INSTALLATION >

REAR WASHER NOZZLE AND TUBE

Inspection and Adjustment

INFOID:0000000011280437

INSPECTION

Check that air can pass through the nozzle by blowing into the noz-

zle and that air cannot flow in the opposite direction.

O: Air can go

X: Air cannot go

ADJUSTMENT

If operating properly, spray positions should match the positions shown. If spray positions do not match, con-

firm the rear washer nozzle is properly seated and working properly. If the spray positions still do not match as

shown, then replace the rear washer nozzle. Refer to

WW-74, "Removal and Installation - Rear Washer Noz-

zle"

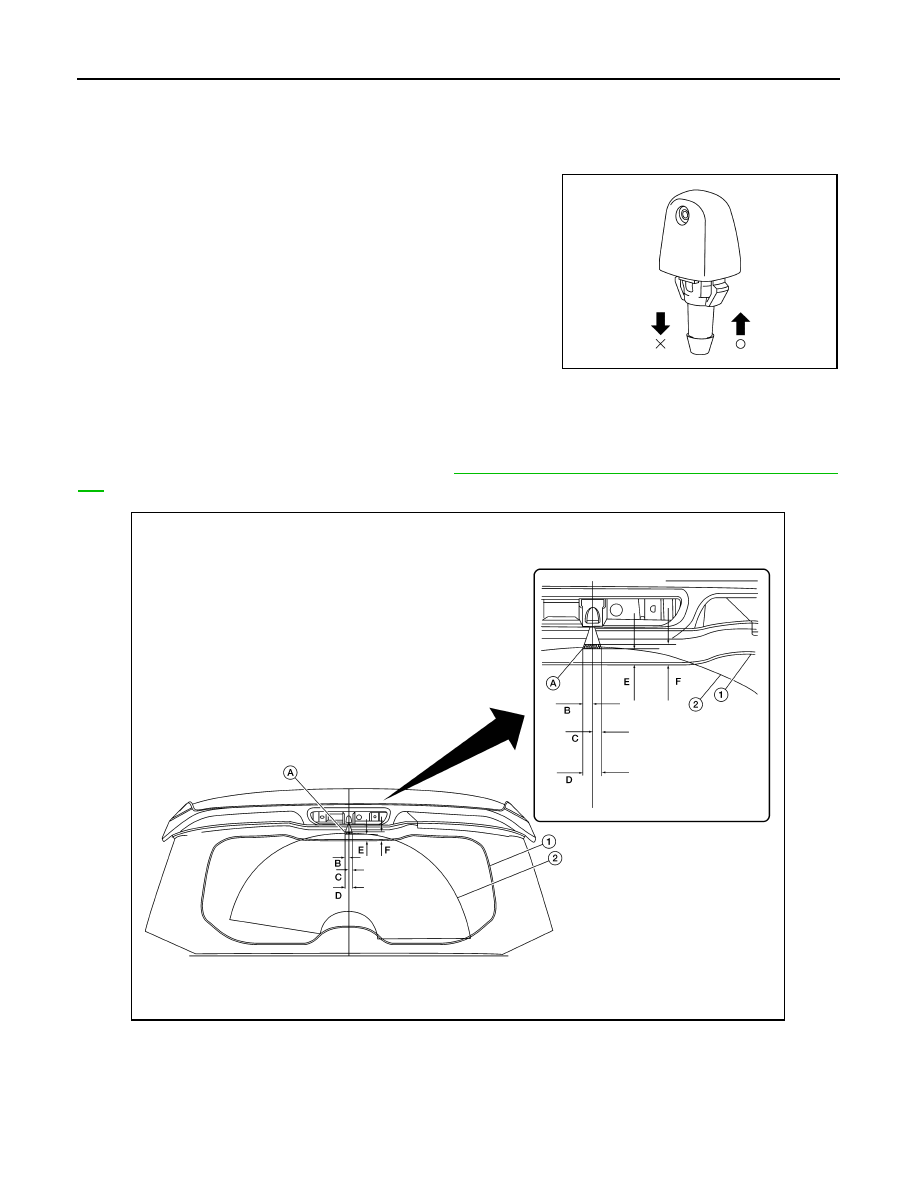

JMLIA1675ZZ

1.

Black print

2.

Wiping area

A. Spray target area

B. 12.8 mm (0.5 in)

C. 12.8 mm (0.5 in)

D. 25.7 mm (1.0 in)

E. 15.5 mm (0.6 in)

F.

20.6 mm (0.8 in)

AWLIA2309ZZ

FRONT WIPER DRIVE ASSEMBLY

WW-77

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

Exploded View

INFOID:0000000011394503

DISASSEMBLY VIEW

Disassembly and Assembly

INFOID:0000000011394560

DISASSEMBLY

1. Remove front wiper motor. Refer to

WW-69, "Removal and Installation"

.

2. Remove front wiper linkage 1 and 2 from the front wiper drive.

CAUTION:

Do not bend the linkage or damage the plastic part of the ball joint when removing the front wiper

linkage.

ASSEMBLY

1. Install front wiper motor to front wiper drive.
2. Install front wiper linkage 1 to the front wiper motor and the front wiper drive.
3. Install front wiper linkage 2 to the front wiper drive.

CAUTION:

• Do not drop front wiper motor or cause it to come into contact with other parts.

• Apply multi

−purpose grease or an equivalent grease if necessary.

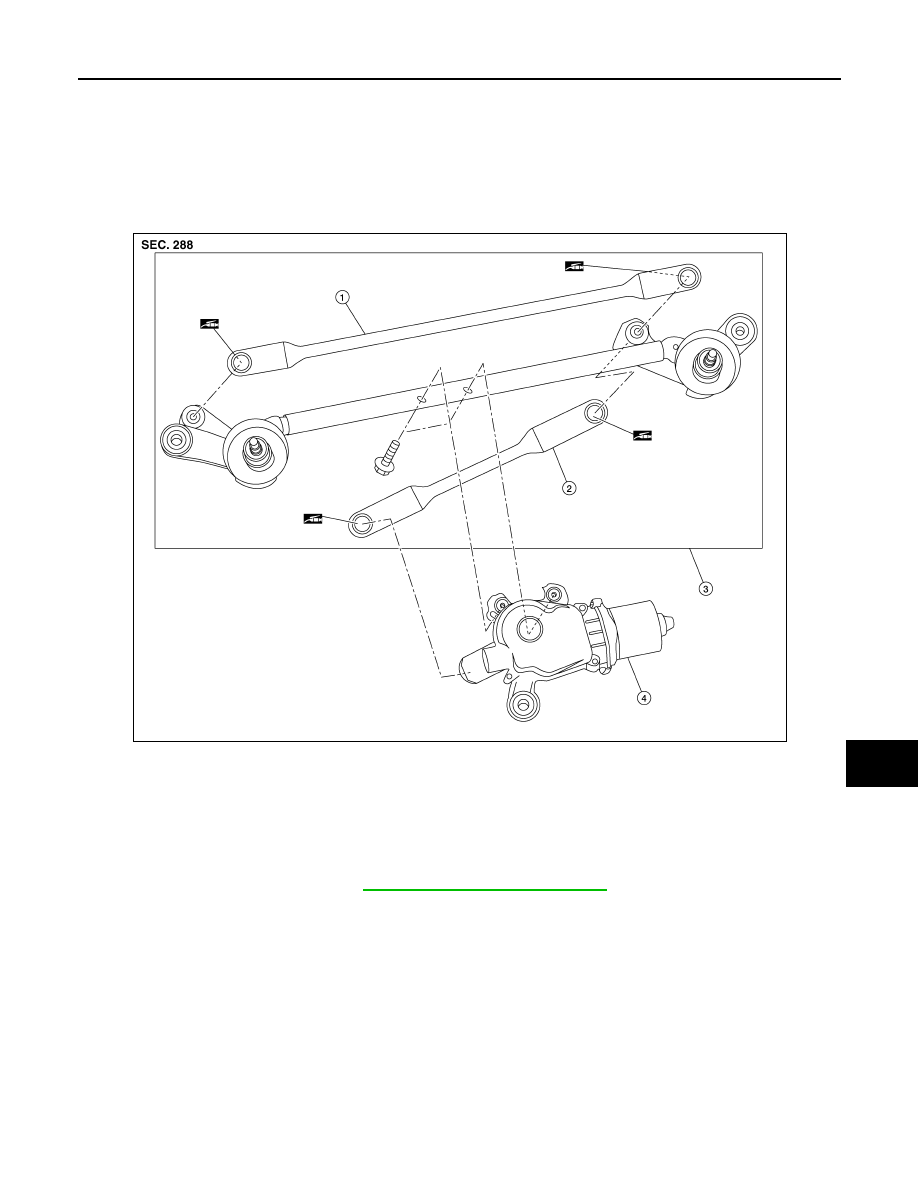

1. Front wiper linkage 1

2.

Front wiper linkage 2

3.

Front wiper drive

4. Front wiper motor

ALLIA1613ZZ

WW-78

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Specifications

INFOID:0000000011280438

WINDSHIELD WASHER FLUID

Windshield washer fluid capacity (with washer tank inlet)

5.2   (5 1/2 US qt, 4 5/8 Imp qt)

Windshield washer fluid specification

Refer to

MA-11, "Fluids and Lubricants"

.
