FRONT WIPER BLADE

WW-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

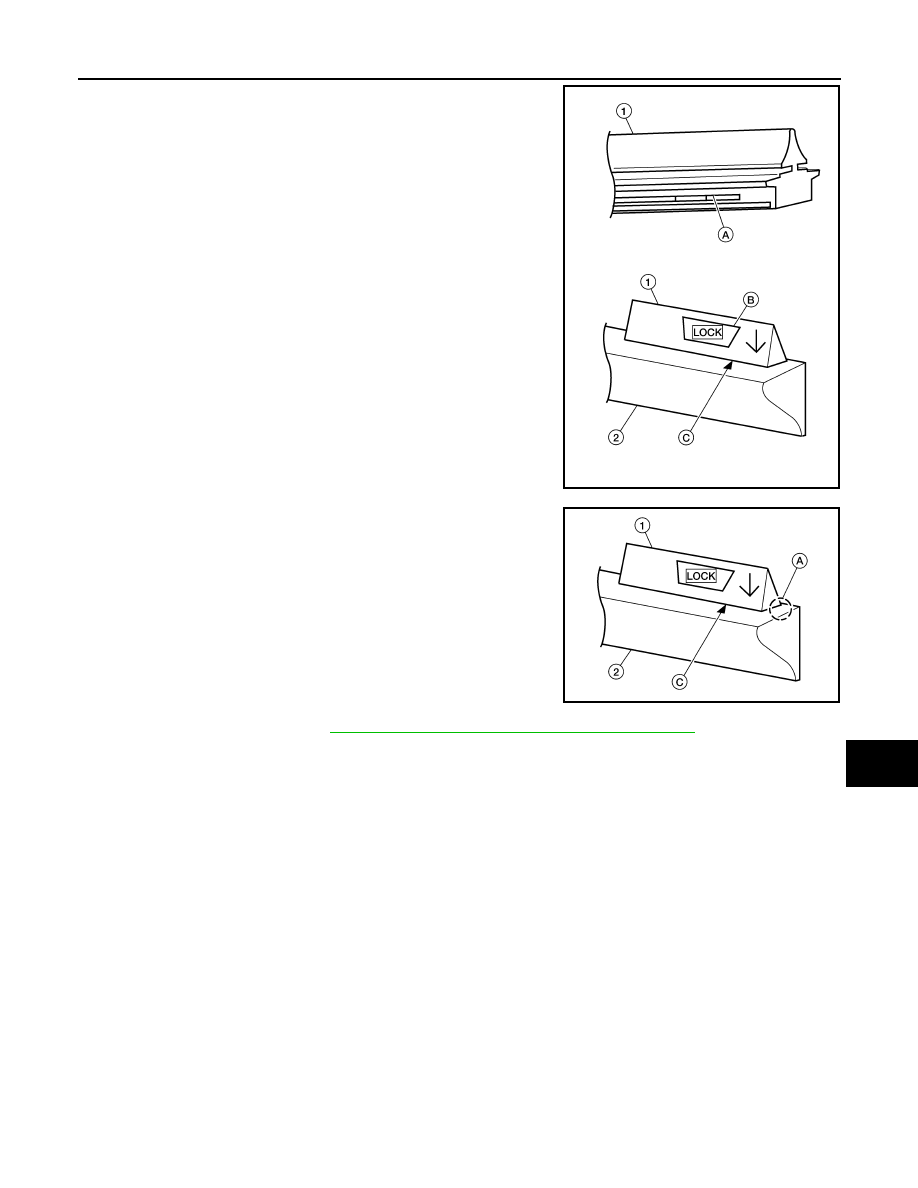

3. Push the wiper blade refill (1) until the tabs on the wiper blade

(2) fit into the stoppers (A) in the end of the wiper blade refill (1).

Make sure the LOCK mark (B) on the wiper blade refill (1) is

aligned with the lock point symbol (C) on the wiper blade (2) as

shown.

4. Before installing the wiper blade, make sure that the wiper blade

refill (1) end is fully covered by the wiper blade (2) in area (A)

and locked at point (C).

5. Install the wiper blade. Refer to

WW-64, "WIPER BLADE : Removal and Installation"

.

ALLIA0864ZZ

ALLIA0865ZZ

WW-68

< REMOVAL AND INSTALLATION >

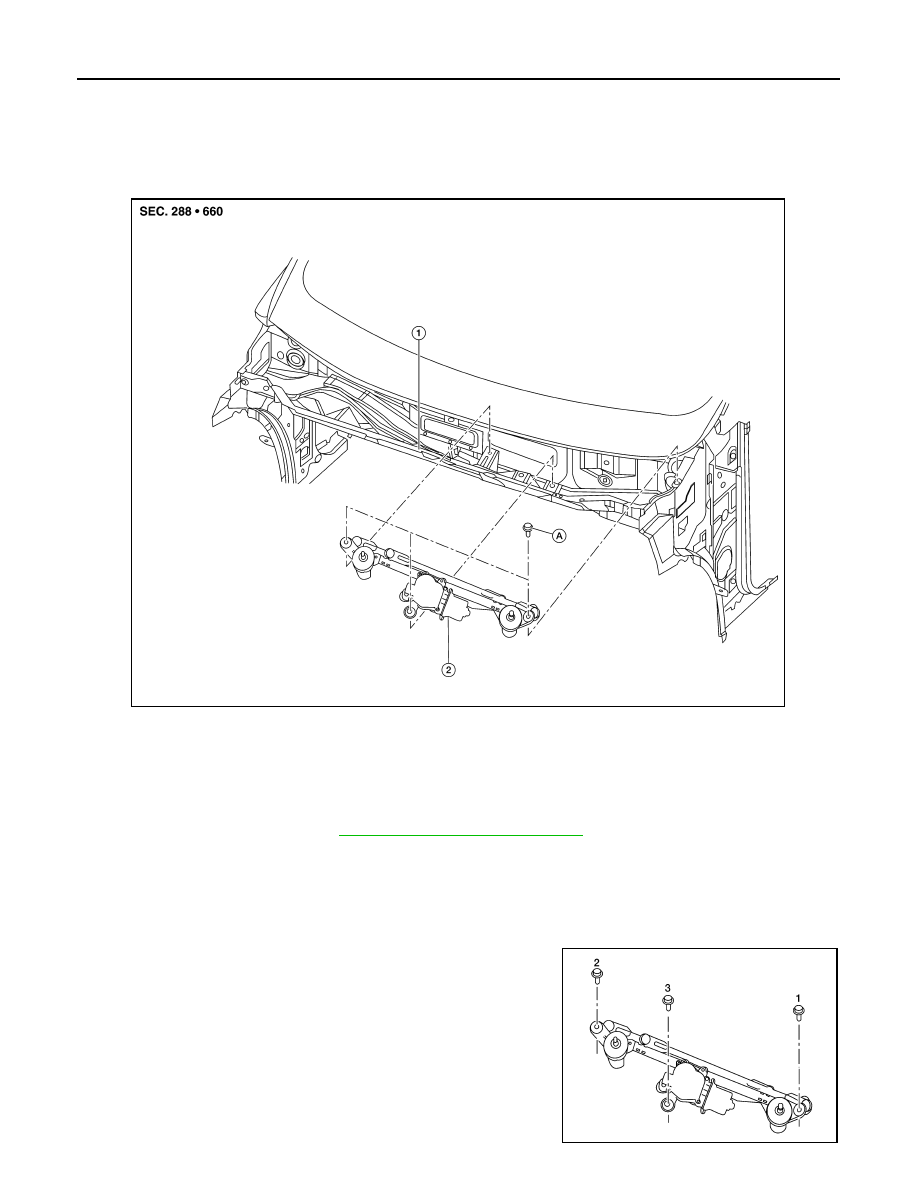

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

Exploded View

INFOID:0000000011280425

REMOVAL

Removal and Installation

INFOID:0000000011280426

REMOVAL

1. Remove cowl top cover. Refer to

EXT-25, "Removal and Installation"

.

2. Disconnect harness connector from front wiper motor.
3. Remove bolts and front wiper drive assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten the bolts to specification in the sequence shown.

1. Cowl top

2. Front wiper drive assembly

A. Refer to INSTALLATION

AWLIA2501ZZ

Bolts

: 4.5 N·m (0.46 kg-m, 40 in-lb)

AWLIA2495ZZ

FRONT WIPER MOTOR

WW-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

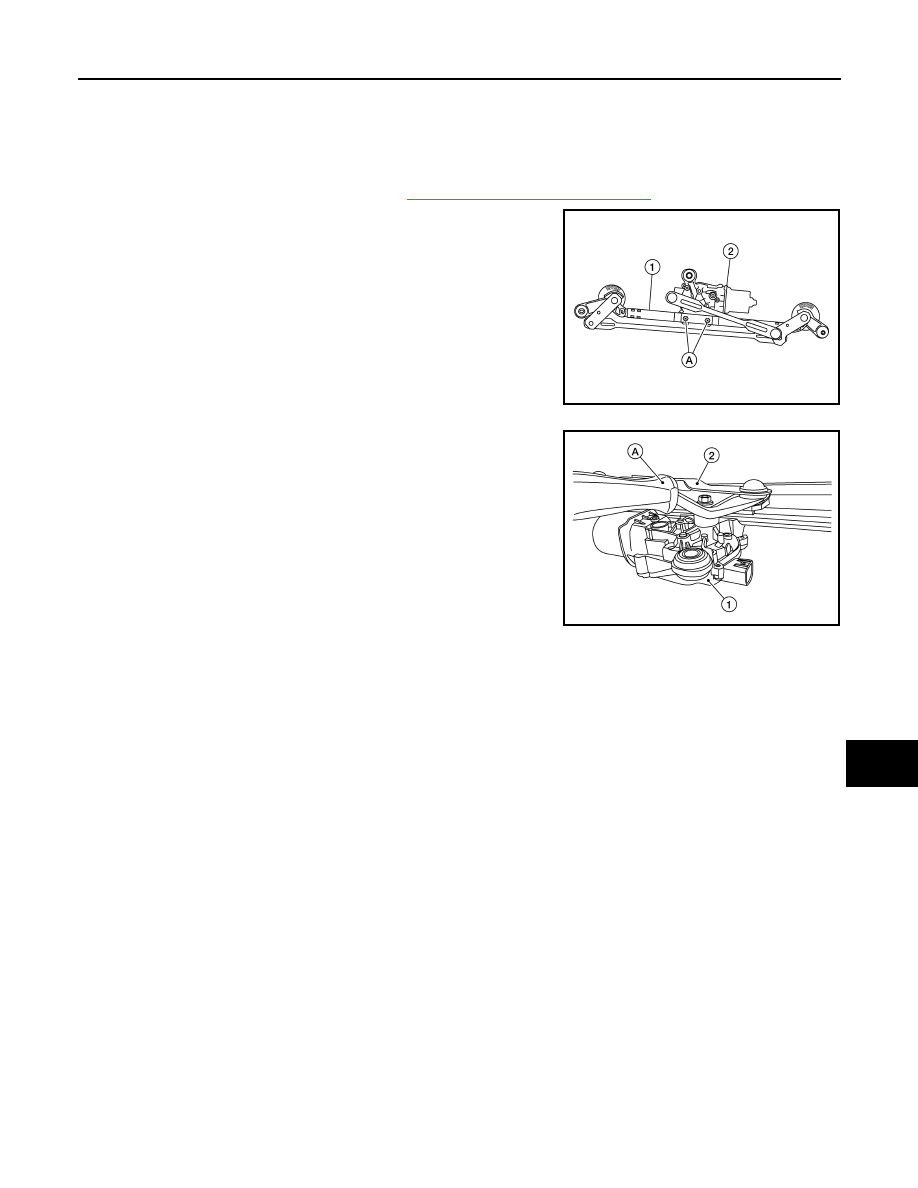

FRONT WIPER MOTOR

Removal and Installation

INFOID:0000000011280427

REMOVAL

1. Remove the front drive assembly. Refer to

WW-68, "Removal and Installation"

.

2. Remove the bolts (A) from the front wiper drive assembly (1)

and the front wiper motor (2).

3. Separate the wiper motor (1) from the front wiper drive (2) using

suitable tool (A).

4. Remove the front wiper motor.

INSTALLATION

Installation is in the reverse order of removal.

AWLIA2292ZZ

AWLIA2293ZZ

WW-70

< REMOVAL AND INSTALLATION >

WIPER AND WASHER SWITCH

WIPER AND WASHER SWITCH

Removal and Installation

INFOID:0000000011280428

The wiper and washer switch is serviced as a part of the combination switch. Refer to

BCS-76, "Removal and

Installation"

.
