FRONT WIPER ARM

WW-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Adjustment

INFOID:0000000011280422

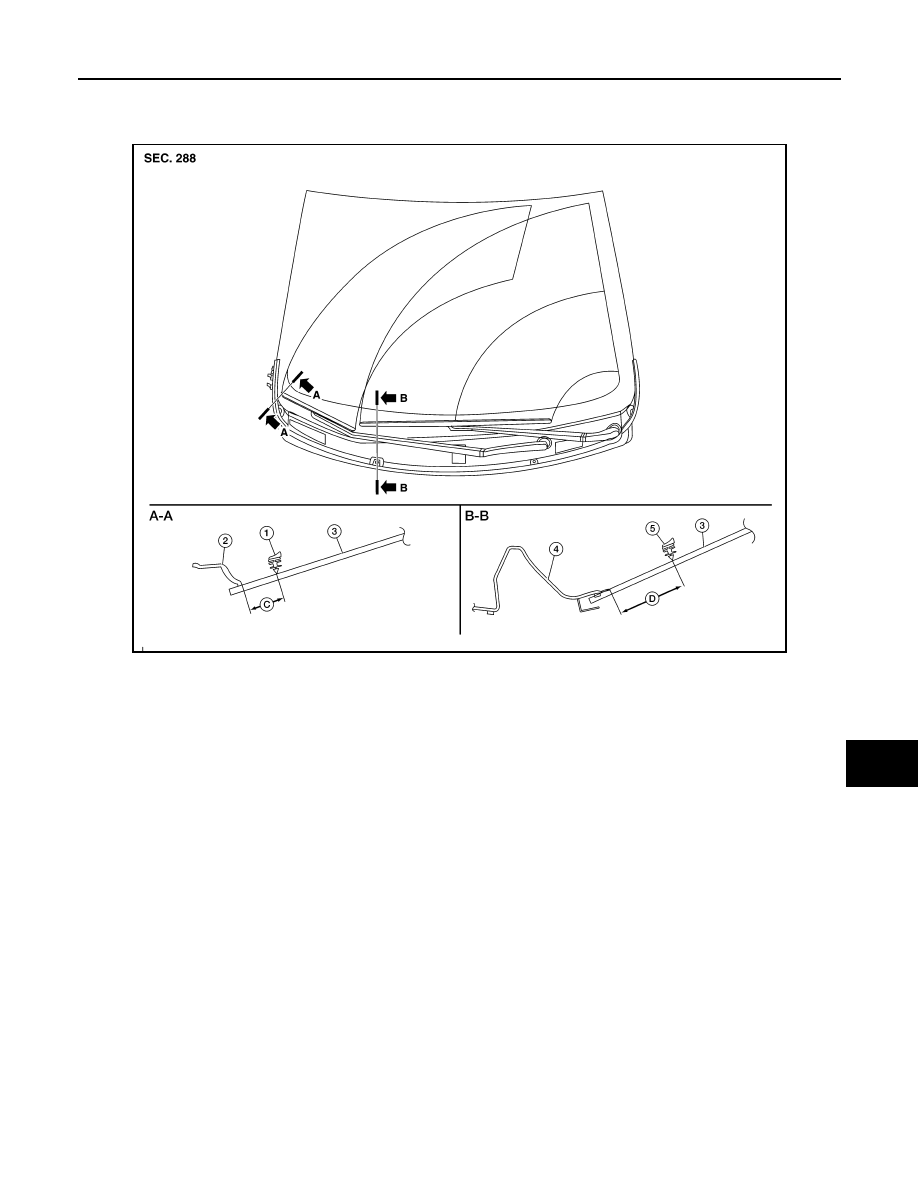

ALLIA1309ZZ

1.

Wiper blade (RH)

2.

Front fender (RH)

3.

Windshield glass

4.

Cowl top cover

5.

Wiper blade (LH)

C.

38.2

± 7.5 mm (1.50 ± 0.30 in)

D.

34.88

± 7.5 mm (1.37 ± 0.30 in)

WW-64

< REMOVAL AND INSTALLATION >

FRONT WIPER BLADE

FRONT WIPER BLADE

WIPER BLADE
WIPER BLADE : Exploded View

INFOID:0000000011280423

WIPER BLADE : Removal and Installation

INFOID:0000000011280424

REMOVAL

1. Move front wiper into the service position by turning the ignition switch ON, then quickly push the wiper

washer switch to the mist position two times within 0.5 seconds.

2. Turn the ignition switch OFF.
3. Lift the wiper arm and wiper blade away from the windshield glass.
4. Rotate the wiper blade and push the release tab (A), then move

the wiper blade down (B) the wiper arm.

CAUTION:

Be careful not to drop the wiper arm onto the windshield

glass.

5. Remove the wiper blade.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Insert the front wiper blade onto the front wiper arm until it clicks into place.

WIPER BLADE REFILL

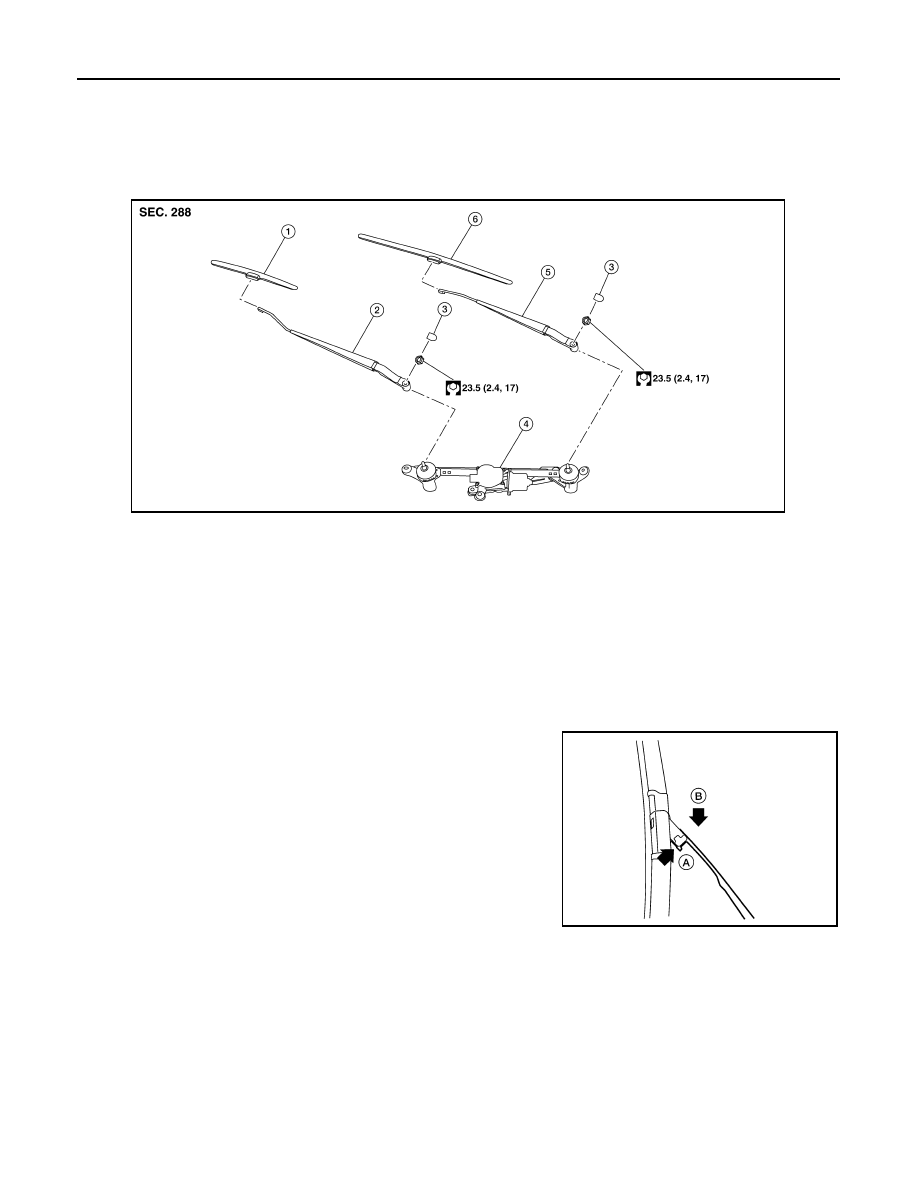

1.

Wiper blade (RH)

2.

Wiper arm (RH)

3.

Wiper arm cover

4.

Front wiper drive assembly

5.

Wiper arm (LH)

6.

Wiper blade (LH)

AWLIA2294ZZ

AWLIA1565ZZ

FRONT WIPER BLADE

WW-65

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER BLADE REFILL : Removal and Installation

INFOID:0000000011395501

REMOVAL

1. Remove the wiper blade. Refer to

WW-64, "WIPER BLADE : Removal and Installation"

.

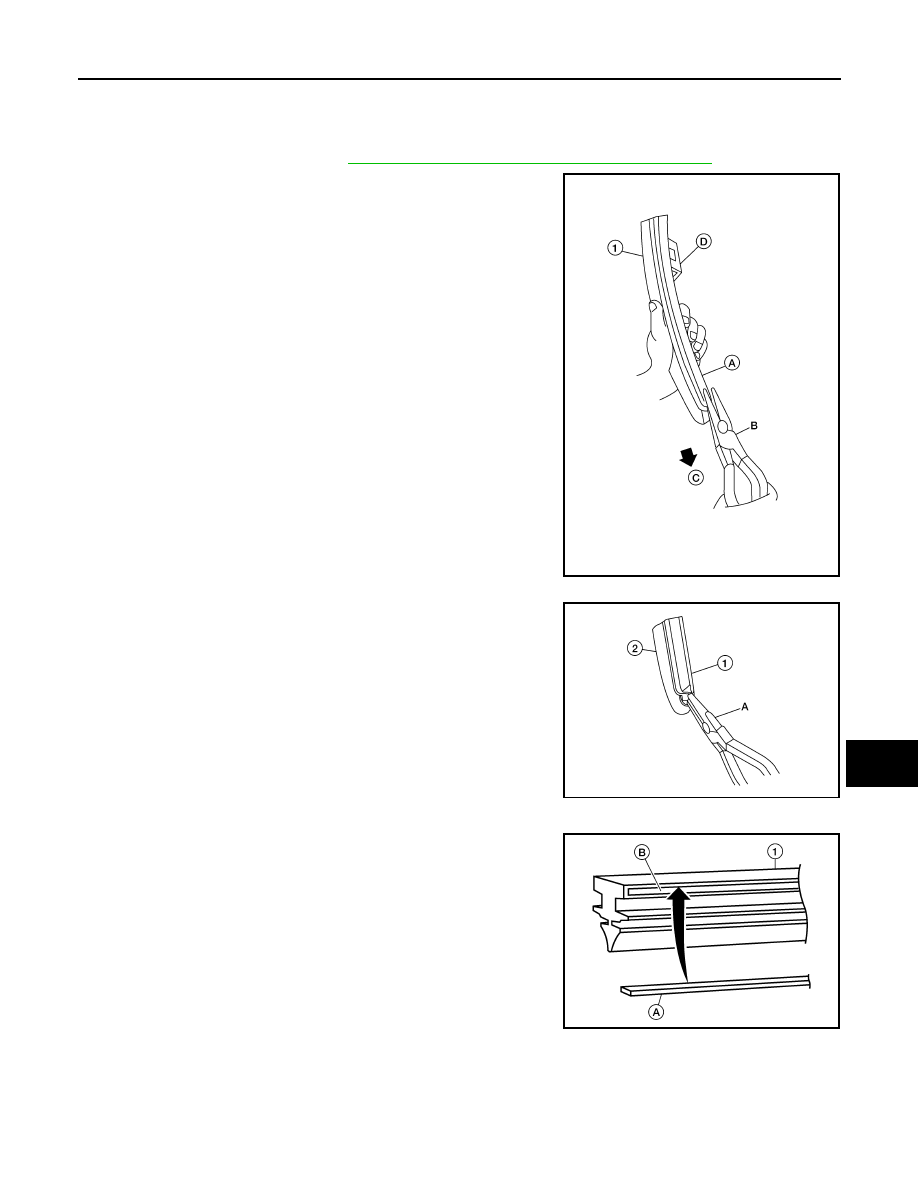

2. Hold the wiper blade refill lip at the end (A) of the wiper blade (1)

with a suitable tool (B) as shown, and pull it firmly in the direction

(C).

(D): U clip (part of wiper blade)

• If the wiper blade refill lip is torn due to wear, insert a suitable

tool (A) into the space between the end of the wiper blade refill

(1) and the wiper blade (2) and pull the wiper blade refill (1) out

as shown.

INSTALLATION

1. If the rib (A) has become detached from the wiper blade refill (1),

check that the curve of the rib (A) is in the same direction as the

curve of the wiper blade refill (1) and insert the rib (A) into the slit

(B) in the wiper blade refill (1) as shown.

ALLIA0860ZZ

ALLIA0861ZZ

ALLIA0866ZZ

WW-66

< REMOVAL AND INSTALLATION >

FRONT WIPER BLADE

• If the rib (A) has a notch (B), insert the rib (A) into the wiper

blade refill (1) so the notch (B) fits over the protrusion (C) in

the wiper blade refill (1) as shown.

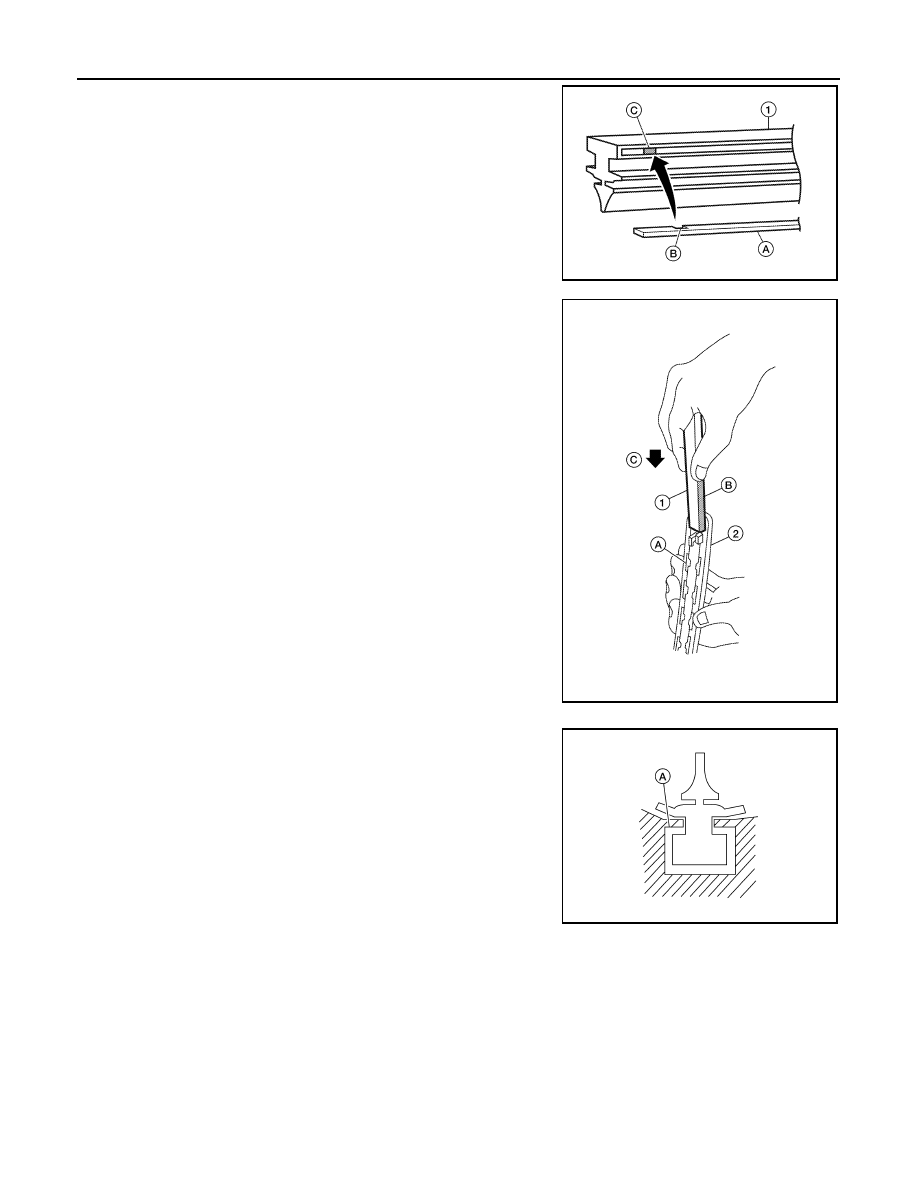

2. Insert the wiper blade refill (1) tip into the end of the wiper blade

(2) in the direction (C). Push the wiper blade refill (1) in while

pressing it into the end of the wiper blade (2) as shown. After the

wiper blade refill is fully inserted, remove the holder (B).

(A): Tab (part of wiper blade) (2)

• Make sure to slide the refill into the wiper blade so that the

wiper blade refill is held by the tabs (A) on the wiper blade as

shown.

ALLIA0867ZZ

ALLIA0862ZZ

ALLIA0863ZZ
