TM-220

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

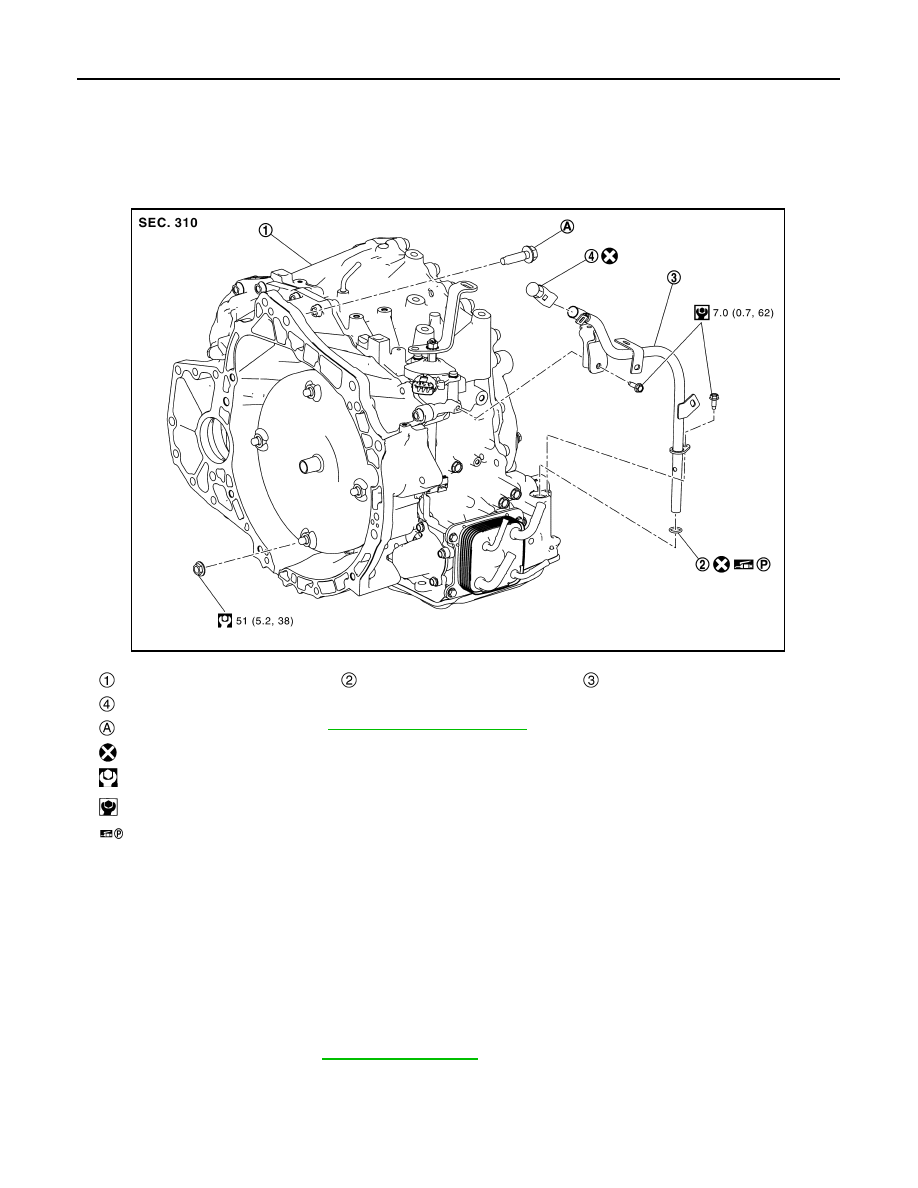

TRANSAXLE ASSEMBLY

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000011279453

Removal and Installation

INFOID:0000000011279454

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter

turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

• Perform when the engine is cold.

• When replacing the TCM and transaxle assembly as a set, replace the transaxle assembly first and

then replace the TCM. Refer to

TM-81, "Description"

.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

Transaxle assembly

O-ring

CVT fluid charging pipe

CVT fluid charging pipe cap

: For the tightening torque, refer to

TM-220, "Removal and Installation"

.

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Apply petroleum jelly

JSDIA5144GB

TRANSAXLE ASSEMBLY

TM-221

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1. Remove engine and transaxle assembly. Refer to

EM-86, "Removal and Installation (FWD)"

 (FWD) or

EM-90, "Removal and Installation (AWD)"

 (AWD).

2. Remove the CVT water hoses from engine side. Refer to

TM-212, "Removal and Installation"

.

3. Remove the transaxle to engine and engine to transaxle bolts.
4. Separate the engine from the transaxle and remove the transaxle from the front suspension member.

Refer to

EM-86, "Removal and Installation (FWD)"

 (FWD) or

EM-90, "Removal and Installation (AWD)"

(AWD).

NOTE:

Using paint, put matching marks on the drive plate and torque converter when removing the torque con-

verter to drive plate nuts.

INSTALLATION

Installation is in the reverse order of removal.

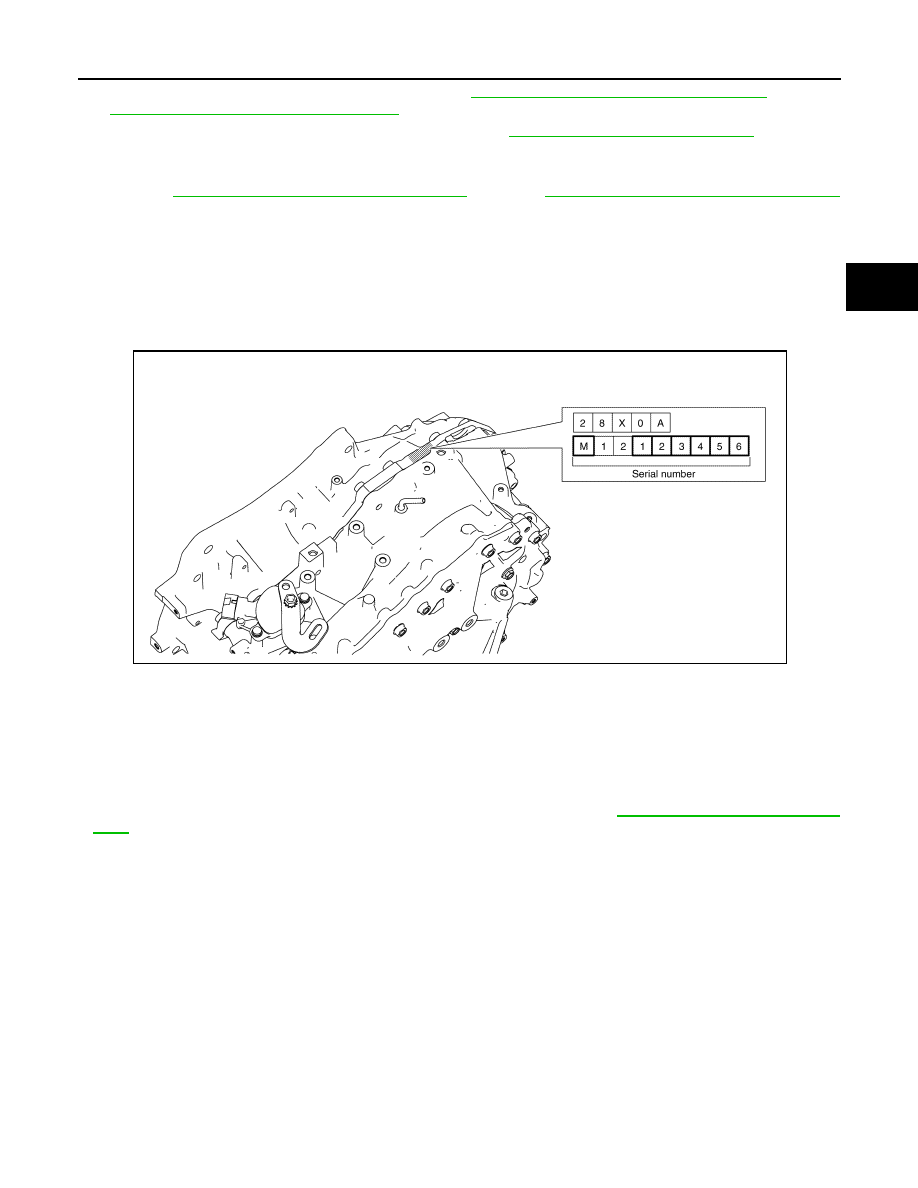

NOTE:

Write down the serial number of the new transaxle assembly.

CAUTION:

• When replacing an engine or transaxle you must make sure any dowels are installed correctly during

re-assembly

• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive

train components.

• Do not reuse O-rings or copper sealing washers.

• When turning crankshaft, turn it clockwise as viewed from the front of the engine.

• When tightening the nuts for the torque converter while securing the crankshaft pulley bolt, be sure

to confirm the tightening torque of the crankshaft pulley bolt. Refer to

EM-50, "Removal and Installa-

tion"

.

• After converter is installed to drive plate, rotate crankshaft several turns to check that CVT rotates

freely without binding.

• When installing the CVT to the engine, align the matching mark on the drive plate with the matching

mark on the torque converter.

• When installing the drive plate to torque converter nuts, tighten them temporarily. then tighten the nuts to the

specified torque.

• Install the transaxle assembly and engine assembly mounting bolts according to the following standards.

JSDIA6075GB

TM-222

< UNIT REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

TRANSAXLE ASSEMBLY

-

Inspection and Adjustment

INFOID:0000000011279455

INSPECTION BEFORE INSTALLATION

After inserting a torque converter to the CVT, check dimension (A)

with in the reference value limit.

INSPECTION AFTER INSTALLATION

Check the following items:

• CVT fluid leakage, refer to

TM-189, "Inspection"

.

• For CVT position, refer to

TM-196, "Inspection"

.

• Start the engine and check for coolant leakage from the parts which are removed and reinstalled.

ADJUSTMENT AFTER INSTALLATION

• Adjust the CVT fluid level. Refer to

TM-191, "Adjustment"

.

• Perform "ADDITIONAL SERVICE WHEN REPLACE TRANSAXLE ASSEMBLY". Refer to

TM-83, "Descrip-

tion"

.

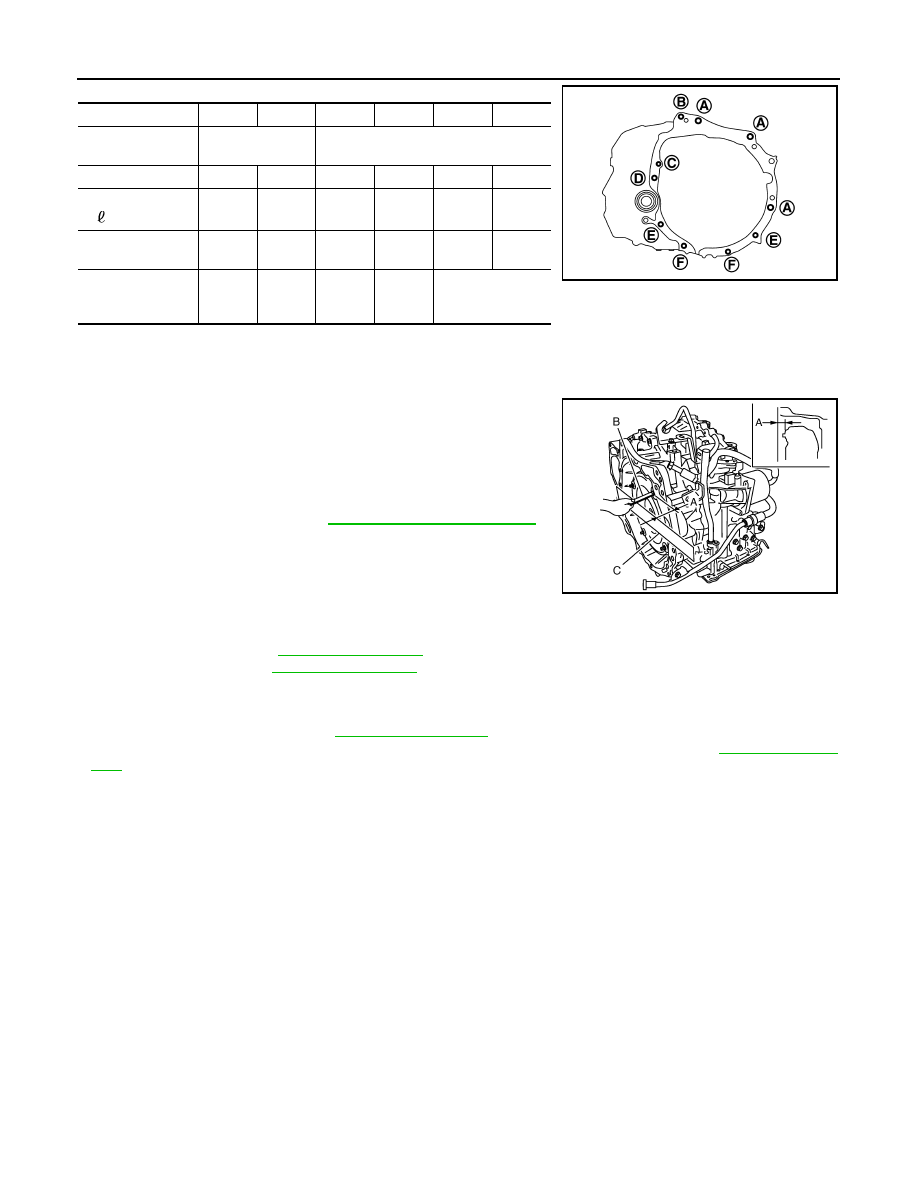

Bolt No.

(A)

(B)

(C)

(D)

(E)

(F)

Insertion direction

Transaxle to en-

gine

Engine to transaxle

Number of bolts

3

1

1

1

2

2

Bolt length
 “ ”mm (in)

45

(1.77)

45

(1.77)

45

(1.77)

45

(1.77)

45

(1.77)

35

(1.38)

Bolt pitch
mm

1.75

1.5

1.5

1.75

1.5

—

Tightening torque
N·m (kg-m, ft-lb)

74.5
(7.6,

55)

50.0
(5.1,

37)

50.0
(5.1,

37)

74.5
(7.6,

55)

50.0 (5.1, 37)

JSDIA4170ZZ

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-226, "Torque Converter"

.

JPDIA0115ZZ

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-223

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

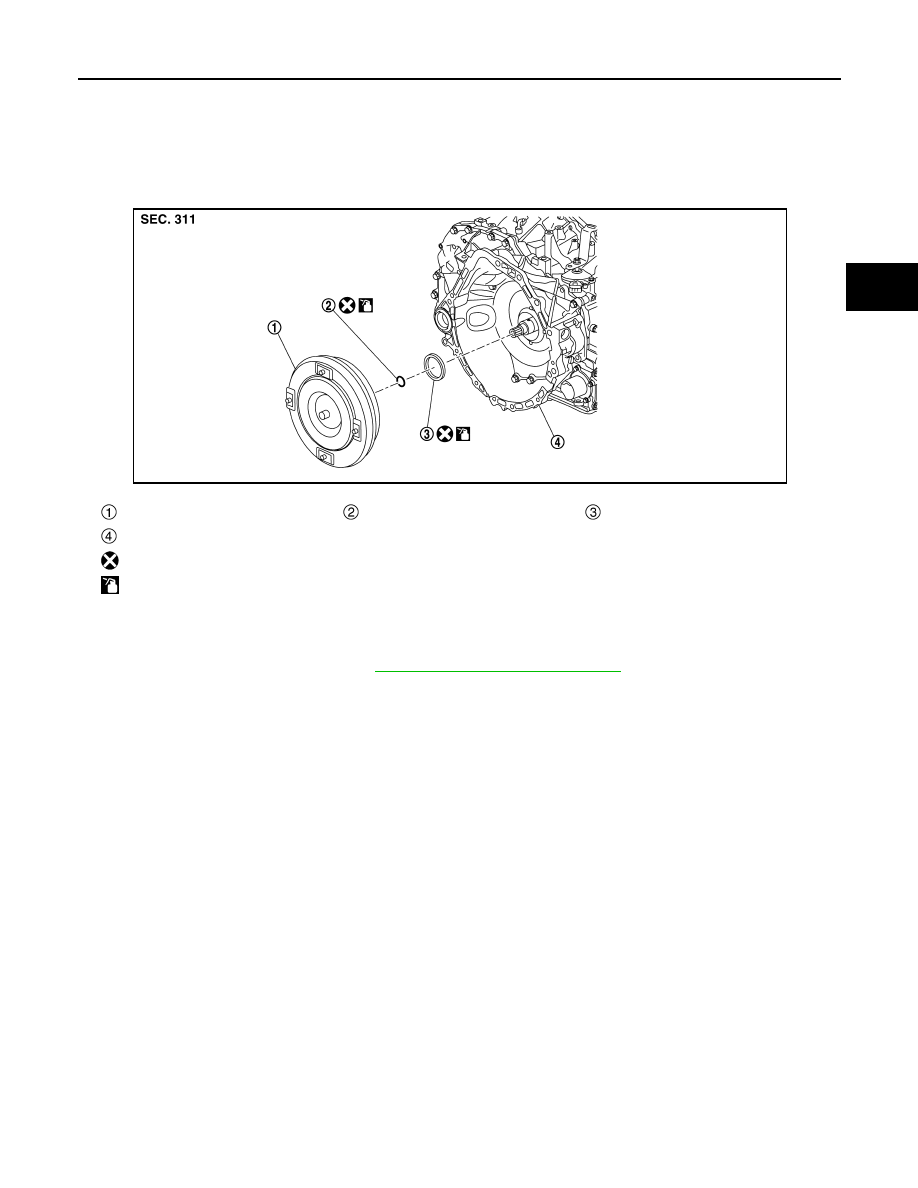

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

Exploded View

INFOID:0000000011279456

Disassembly

INFOID:0000000011279457

1. Remove transaxle assembly. Refer to

TM-220, "Removal and Installation"

.

2. Remove torque converter from transaxle assembly.

CAUTION:

Never damage the bushing on the inside of torque converter sleeve when removing torque con-

verter.

3. Remove O-ring from input shaft.
4. Remove converter housing oil seal using a suitable tool.

CAUTION:

Be careful not to scratch converter housing.

Assembly

INFOID:0000000011279458

Note the followings and assembly is in the reverse order of disassembly.

CAUTION:

• Never reuse O-ring.

• Never reuse converter housing oil seal.

• Apply CVT fluid to O-ring.

• Apply CVT fluid to converter housing oil seal.

Torque converter

O-ring

Converter housing oil seal

Transaxle assembly

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA4173ZZ
