FLUID COOLER HOSE

• Refer to the followings when installing hose clamps.

CAUTION:

Hose clamp should not interfere with the bulge of tube.

Inspection

INFOID:0000000011279445

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-189, "Inspection"

.

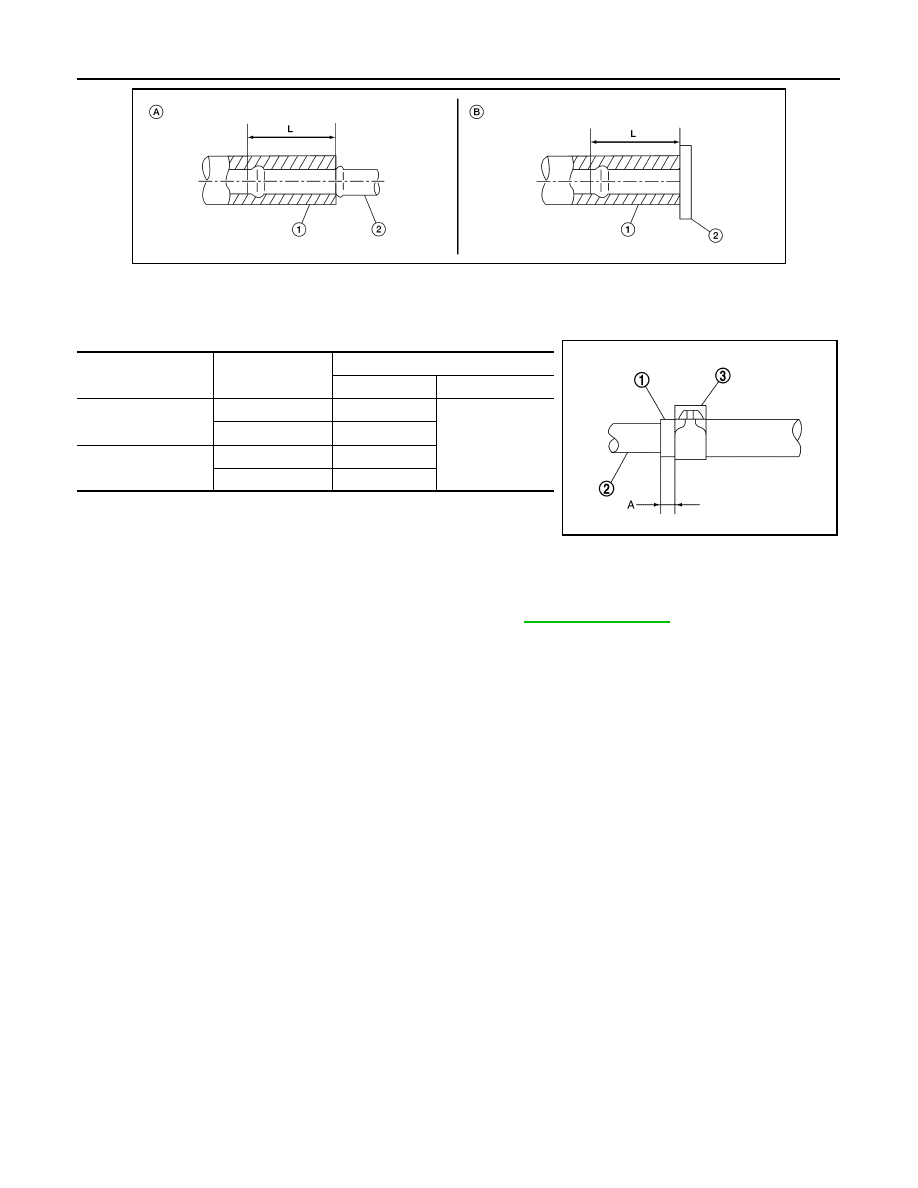

ALDIA0502ZZ

Fluid cooler hose (1)

Installation side

tube (2)

Hose clamp (3)

Direction of tab

Clamping position

Fluid cooler hose A

CVT oil warmer

Frontward

5 – 9 mm (0.20 –
0.35 in) (A) from
hose end

 Radiator

Downward

Fluid cooler hose B

 Radiator

Downward

CVT oil warmer

Upward

JSDIA2424ZZ

CVT OIL WARMER

TM-217

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CVT OIL WARMER

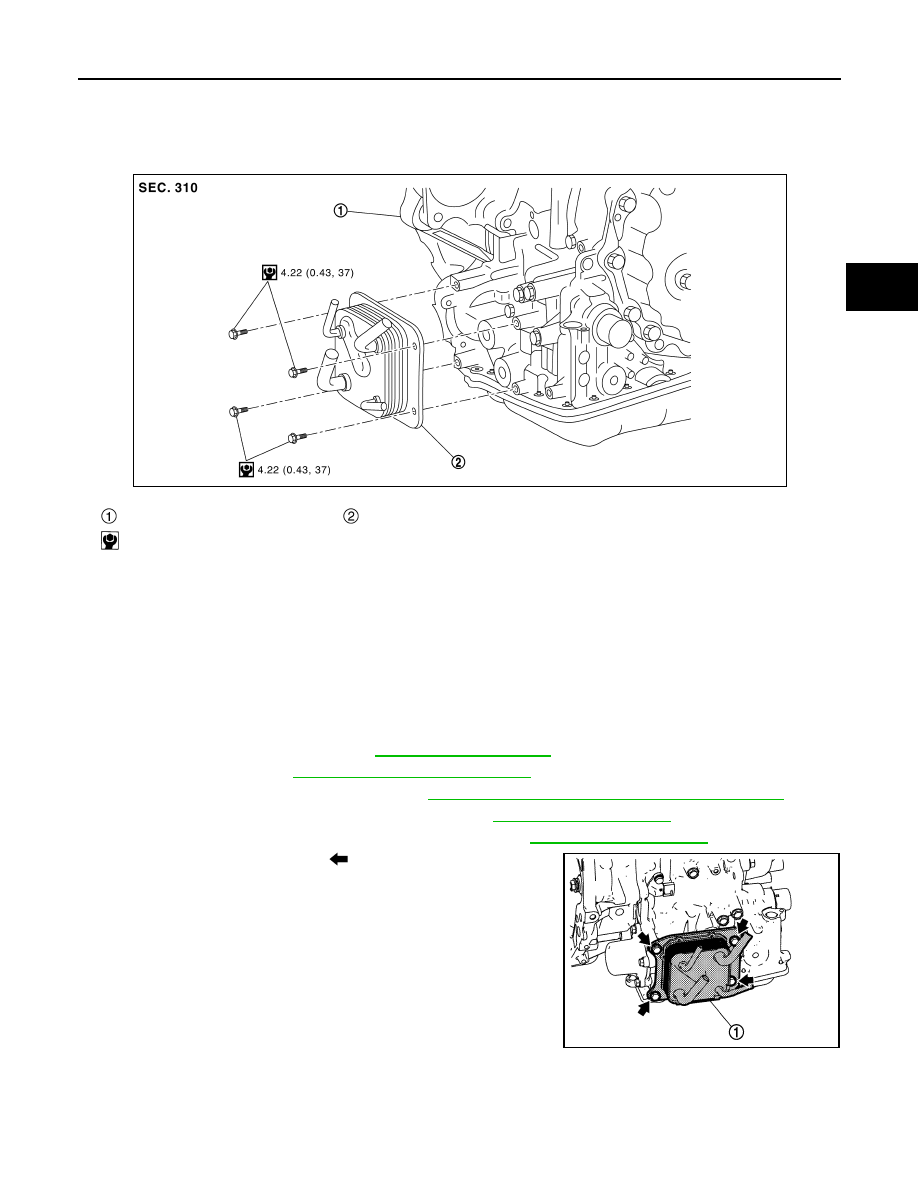

Exploded View

INFOID:0000000011279446

Removal and Installation

INFOID:0000000011279447

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter

turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.
1. Remove engine under cover. Refer to

EXT-16, "Exploded View"

.

2. Remove air duct. Refer to

EM-26, "Removal and Installation"

.

3. Remove fender protector side cover. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

4. Disconnect water hoses from CVT oil warmer. Refer to

TM-212, "Exploded View"

.

5. Disconnect fluid cooler hoses from CVT oil warmer. Refer to

TM-215, "Exploded View"

.

6. Remove CVT oil warmer bolts (

) and remove CVT oil warmer

(1) from transaxle assembly.

INSTALLATION

Installation is in the reverse order of removal.

Transaxle assembly

CVT oil warmer

: N·m (kg-m, in-lb)

JSDIA5055GB

JSDIA4162ZZ

TM-218

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

CVT OIL WARMER

Inspection

INFOID:0000000011279448

INSPECTION AFTER INSTALLATION

• Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-189, "Inspection"

.

• Start and warm up the engine. Visually check that there is no leakage of engine coolant and CVT fluid.

PLUG

TM-219

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PLUG

Description

INFOID:0000000011279449

Replace the O-ring if oil leakage or exudes from the plug.

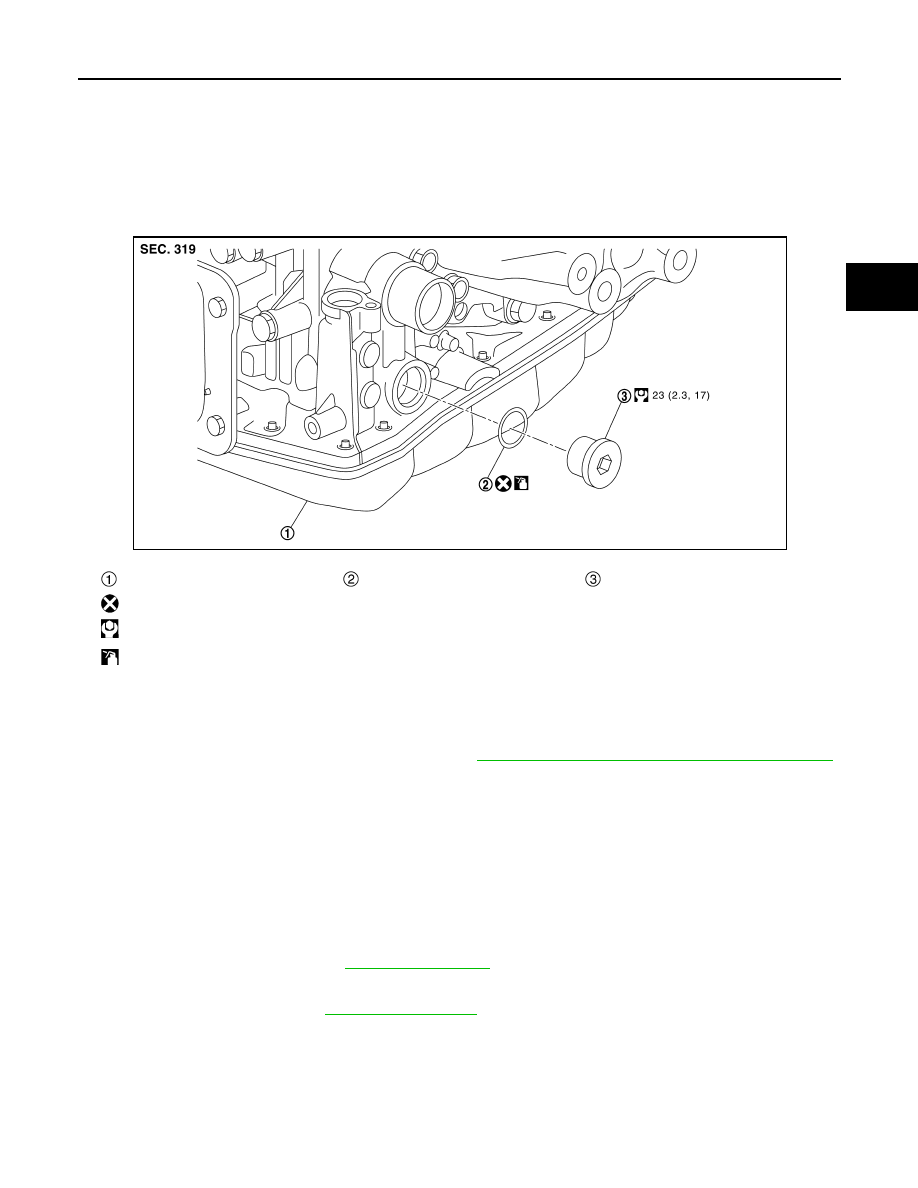

Exploded View

INFOID:0000000011279450

Removal and Installation

INFOID:0000000011279451

REMOVAL

1. Partially remove front fender protector (LH). Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

2. Remove the plug and O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply CVT fluid to O-ring.

Inspection and Adjustment

INFOID:0000000011279452

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-189, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-191, "Adjustment"

.

Transaxle assembly

O-ring

Plug

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Apply CVT fluid

JSDIA3622GB
