TM-208

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

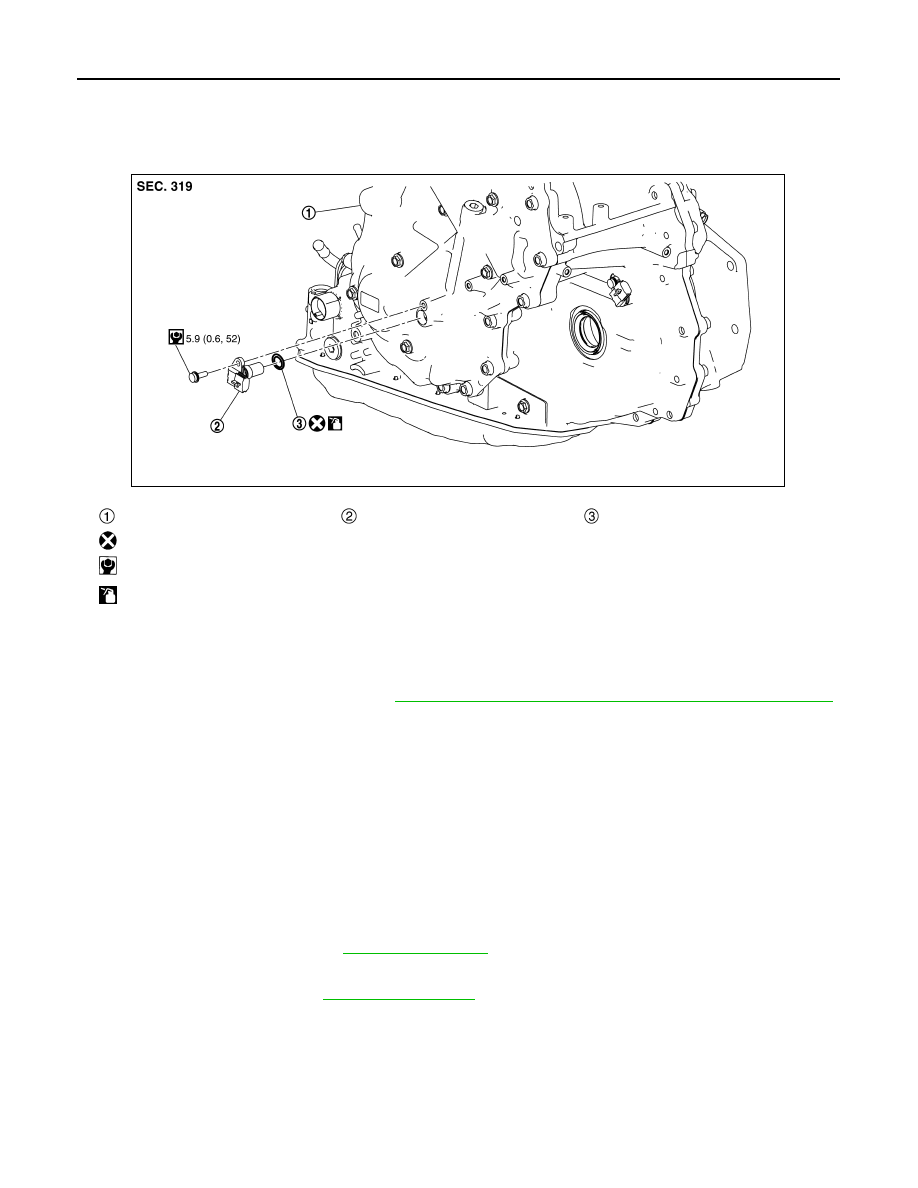

PRIMARY SPEED SENSOR

PRIMARY SPEED SENSOR

Exploded View

INFOID:0000000011279431

Removal and Installation

INFOID:0000000011279432

REMOVAL

1. Remove the engine undercover. Refer to

EXT-37, "ENGINE UNDER COVER : Removal and Installation"

.

2. Disconnect the primary speed harness connector.
3. Remove the primary speed sensor bolt and remove the primary speed sensor.
4. Remove the O-ring from the primary speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000011279433

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-189, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-191, "Adjustment"

.

Transaxle assembly

O-ring

Primary speed sensor

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5141GB

OUTPUT SPEED SENSOR

TM-209

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

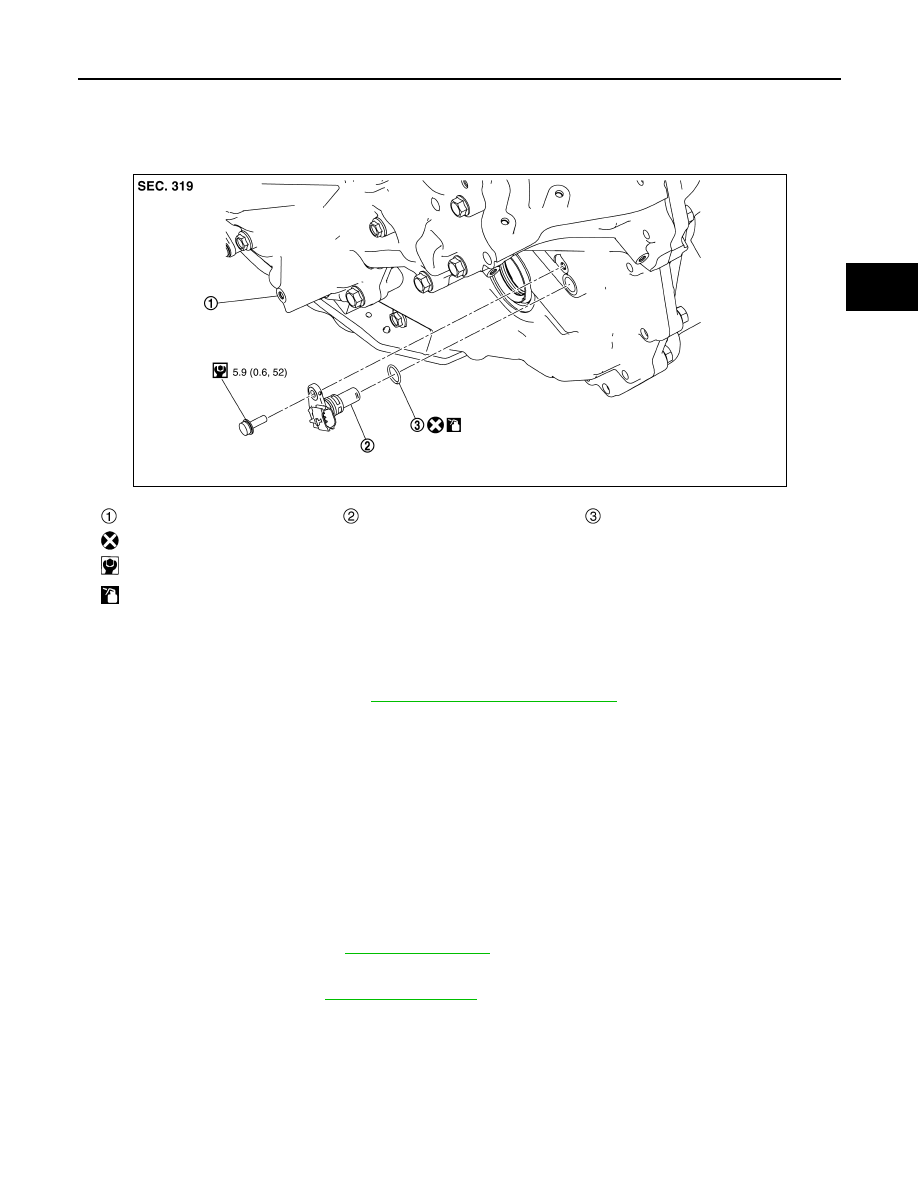

OUTPUT SPEED SENSOR

Exploded View

INFOID:0000000011279434

Removal and Installation

INFOID:0000000011279435

REMOVAL

1. Remove engine undercover. Refer to

TM-209, "Removal and Installation"

.

2. Disconnect the output speed sensor harness connector.
3. Remove the output speed sensor bolt and remove the output speed sensor.
4. Remove the O-ring from the output speed sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000011279436

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-189, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-191, "Adjustment"

.

Transaxle assembly

Output speed sensor

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5033GB

TM-210

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

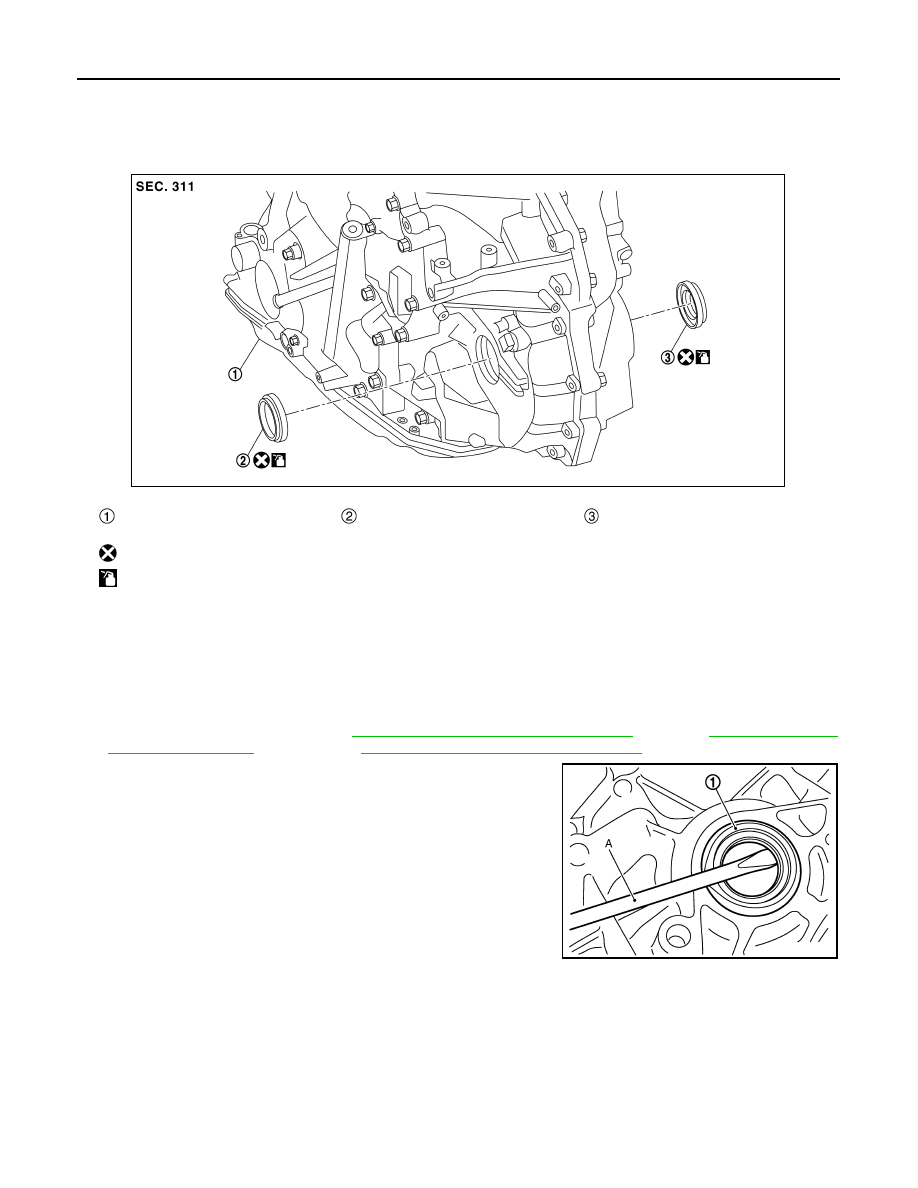

DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

Exploded View

INFOID:0000000011279437

Removal and Installation

INFOID:0000000011279438

REMOVAL

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove front drive shaft. Refer to

FAX-19, "Removal and Installation (LH)"

 (FWD) or

FAX-57, "Removal

and Installation (LH)"

 [LH (AWD)] or

FAX-61, "Removal and Installation (RH)"

 [RH(AWD)].

2. Remove differential side oil seal (1) using suitable tool (A).

CAUTION:

Be careful not to scratch transaxle case and converter

housing.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse differential side oil seal.

• Apply CVT fluid to differential side oil seals.

• When inserting the drive shaft, be sure to use Tool.

Transaxle assembly

Differential side oil seal (left side)

Differential side oil seal (right side)
(FWD models only)

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA3729GB

JPDIA0118ZZ

Tool number

: KV38107900

DIFFERENTIAL SIDE OIL SEAL

TM-211

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

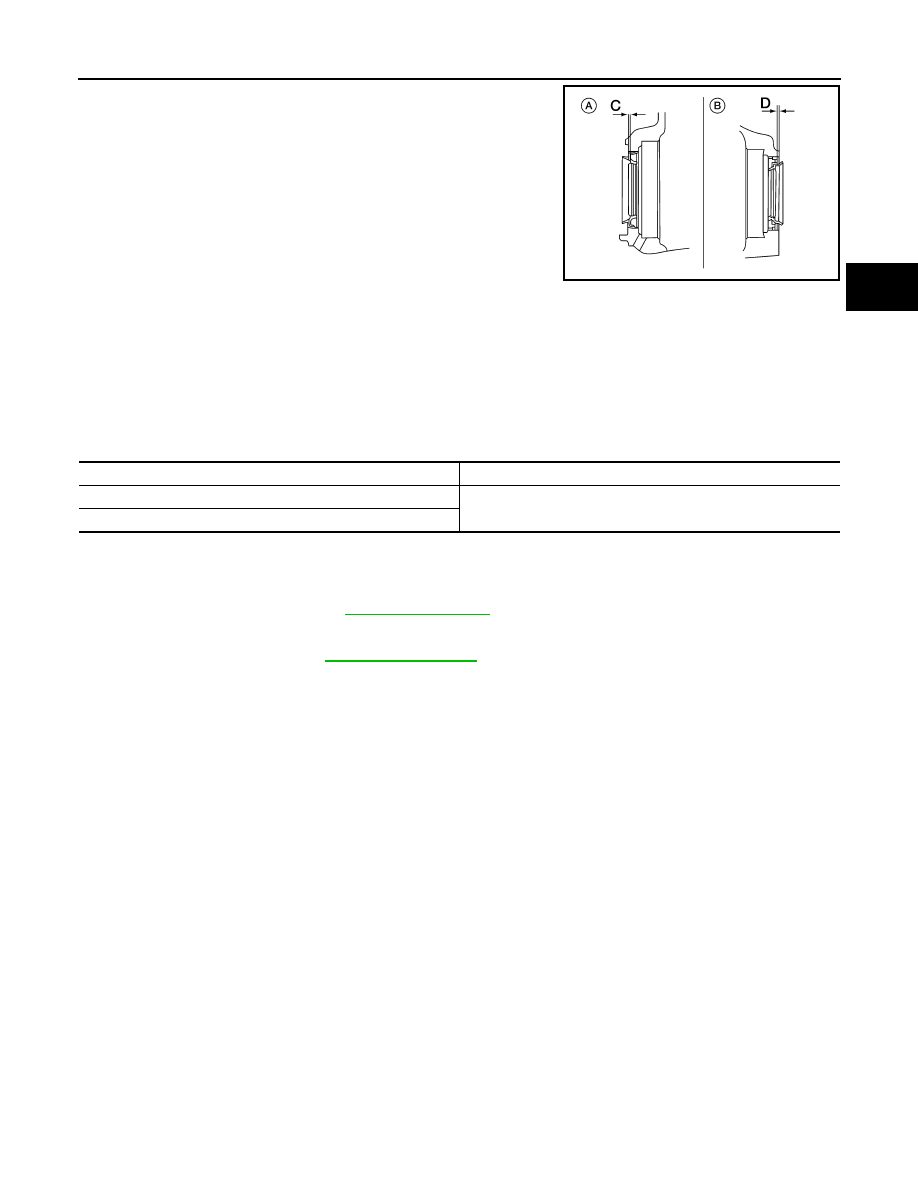

Install each differential side oil seal evenly using suitable tool so that

differential side oil seal protrudes by the dimension (C) and (D)

respectfully.

NOTE:
The reference is the installation direction of the differential side oil seal.

Drift to be used:

Inspection and Adjustment

INFOID:0000000011279439

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to

TM-189, "Inspection"

.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-191, "Adjustment"

.

(A)

: Differential side oil seal (LH)

(B)

: Differential side oil seal (RH) (FWD models only)

ALDIA0400ZZ

Dimension (C)

:Height difference from case end surface is within 1.8

± 0.5 mm (0.071 ±

0.020 in).

Dimension (D)

:Height difference from case end surface is within 2.2

± 0.5 mm (0.087 ±

0.020 in).

Location

Commercial Service Tools

Transaxle case side

Commercial service tool with outer dia. 56 mm (2.20 in) and in-
ner dia. 50 mm (1.97 in)

Converter housing side
