Nissan Rogue. Manual - part 1210





TM-212

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

WATER HOSE

WATER HOSE

Exploded View

INFOID:0000000011279440

Removal and Installation

INFOID:0000000011279441

REMOVAL

WARNING:

Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter

turn to allow built-up pressure to escape. Carefully remove the cap by turning it all the way.

CAUTION:

Perform when the engine is cold.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove battery tray. Refer to

PG-79, "Removal and Installation (Battery Tray)"

.

2. Remove engine under cover. Refer to

EXT-16, "Exploded View"

.

3. Remove CVT fluid charging pipe. Refer to

TM-220, "Exploded View"

4. Remove fender protector side cover. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

5. Remove water hose A, B, C, and heater thermostat.

INSTALLATION

Installation is in the reverse order of removal.

Water outlet

Hose clamp

Water hose A

Clip

CVT oil warmer

Transaxle assembly

Water hose B

Heater thermostat

Water hose C

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JSDIA5142GB

WATER HOSE

TM-213

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

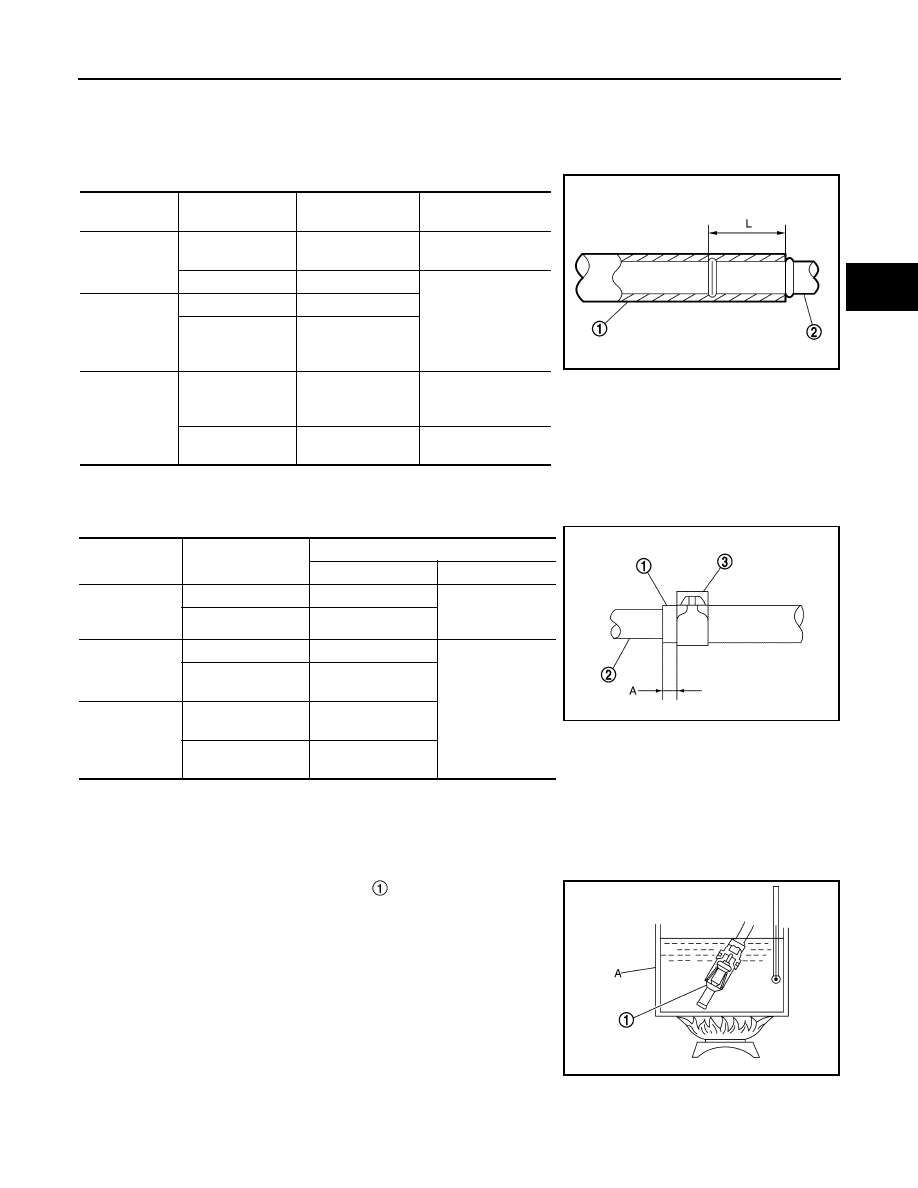

CAUTION:

• Do not reuse hose clamps.

• Do not reuse hose clip

• Securely install the water hose clip to the bracket hole of charging pipe.

• Refer to the following when installing water hoses.

• Refer to the followings when installing hose clamp.

CAUTION:

Hose clamp should not interfere with the bulge of tube.

Inspection

INFOID:0000000011279442

INSPECTION AFTER REMOVAL

Heater Thermostat

1. Fully immerse the heater thermostat   in a container (A) filled

with water. Continue heating the water while stirring.

2. Continue heating the heater thermostat for 5 minutes or more

after bringing the water to a boil.

3. Quickly take the heater thermostat out of the hot water, measure the heater thermostat within 10 seconds.

Water hose (1)

Installation side

tube (2)

Direction of paint

mark

Hose insertion depth

(L)

Water hose A

Water outlet

Upward

End reaches the end
of tube.

CVT oil warmer

Frontward

End reaches the 2-
stage bulge.

Water hose B

CVT oil warmer

Frontward

Heater thermostat

Align with the mark
on the heater ther-
mostat

Water hose C

Heater thermostat

Align with the mark
on the heater ther-
mostat

End reaches the ex-
pansion part.

Water outlet

Upward

End reaches the 2-
stage bulge.

Water hose (1)

Installation side tube

(2)

Hose clamp (3)

Direction of tab

Clamping position

Water hose A

Water outlet

Upward

5 – 7 mm (0.20 –
0.28 in) (A) from
hose end

CVT oil warmer

Leftward

Water hose B

CVT oil warmer

Leftward

5 – 9 mm (0.20 –
0.35 in) (A) from
hose end

Heater thermostat

Align with the mark
on the hose

Water hose C

Heater thermostat

Align with the mark
on the hose

Water outlet

Forward and 45

° up-

ward

JSDIA2459ZZ

JSDIA2424ZZ

JSDIA3661ZZ

TM-214

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

WATER HOSE

-

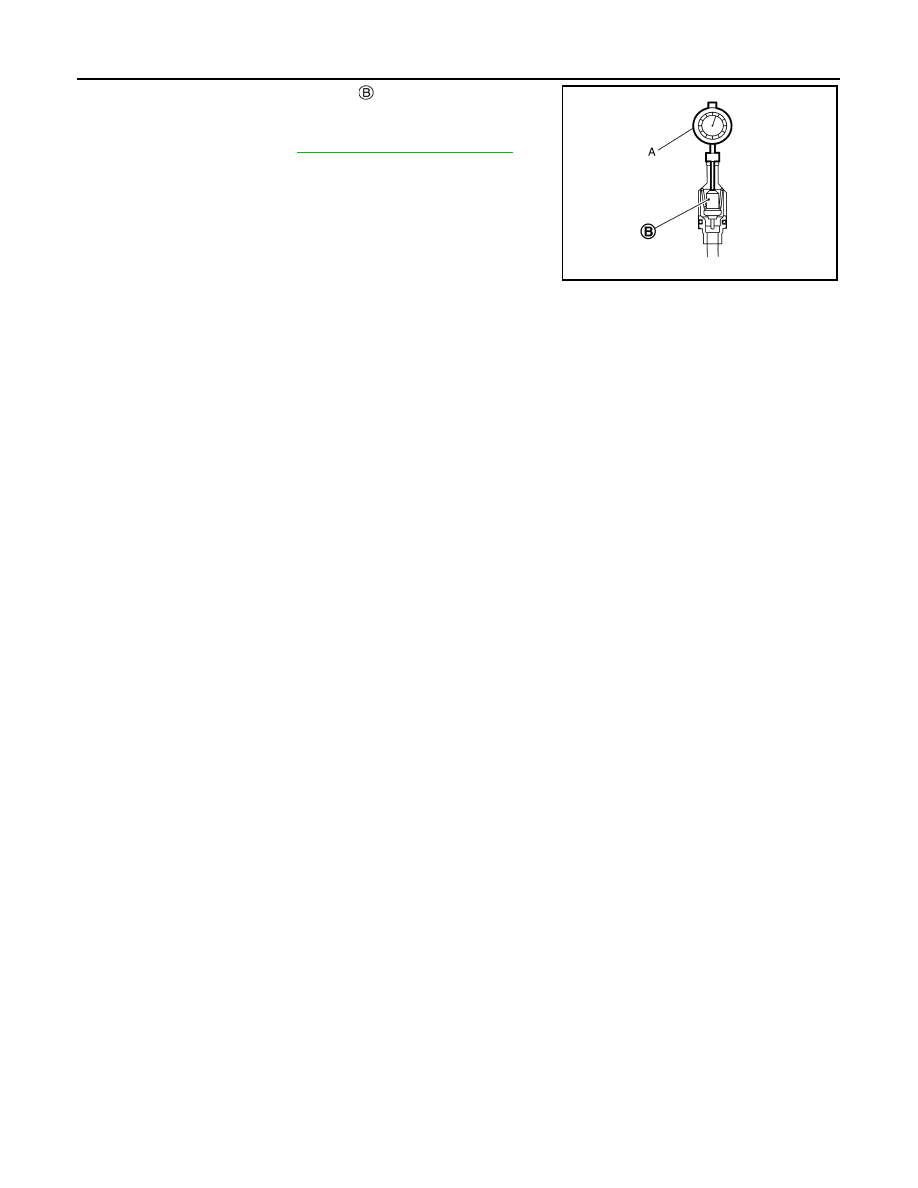

Place dial indicator (A) on the pellet   and measure the elonga-

tion from the initial state.

4. If out of standard, replace heater thermostat.

INSPECTION AFTER INSTALLATION

Start the engine, and check the joints for coolant leakage.

Standard

: Refer to

TM-226, "Heater Thermostat"

.

JSDIA3662ZZ

FLUID COOLER HOSE

TM-215

< REMOVAL AND INSTALLATION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

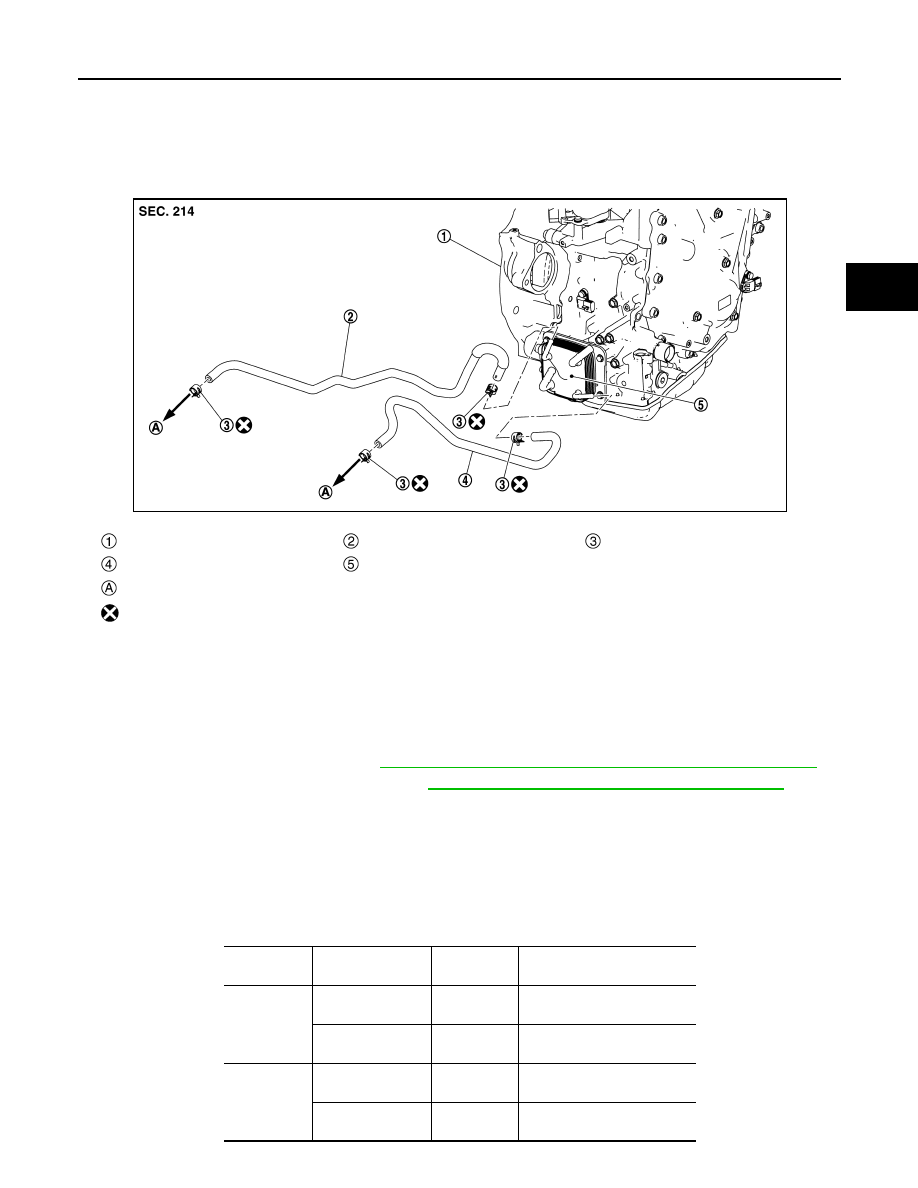

FLUID COOLER HOSE

Exploded View

INFOID:0000000011279443

COMPONENT PARTS LOCATION

Removal and Installation

INFOID:0000000011279444

REMOVAL

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove engine under cover. Refer to

EXT-37, "ENGINE UNDER COVER : Removal and Installation"

.

2. Remove fender protector side cover. Refer to

EXT-28, "FENDER PROTECTOR : Exploded View"

.

3. Remove fluid cooler hoses.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse hose clamp.

• Securely install fluid cooler hose A clip to the radiator core support.

• Refer to the followings when installing fluid cooler hoses.

Transaxle assembly

Fluid cooler hose A

Hose clamp

Fluid cooler hose B

CVT oil warmer

To radiator

: Always replace after every disassembly.

JSDIA5143ZZ

Fluid cooler

hose (1)

Installation side

tube (2)

Direction of

paint mark

Hose insertion depth (L)

Fluid cooler
hose A

CVT oil warmer

Frontward

A: End reaches the 2 step
bulge

Radiator Downward

B: Insert the hose until hose
touches the radiator

Fluid cooler
hose B

Radiator Downward

B: Insert the hose until hose
touches the radiator

CVT oil warmer

Downward

A: End reaches the 2 step
bulge
