TM-224

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10D]

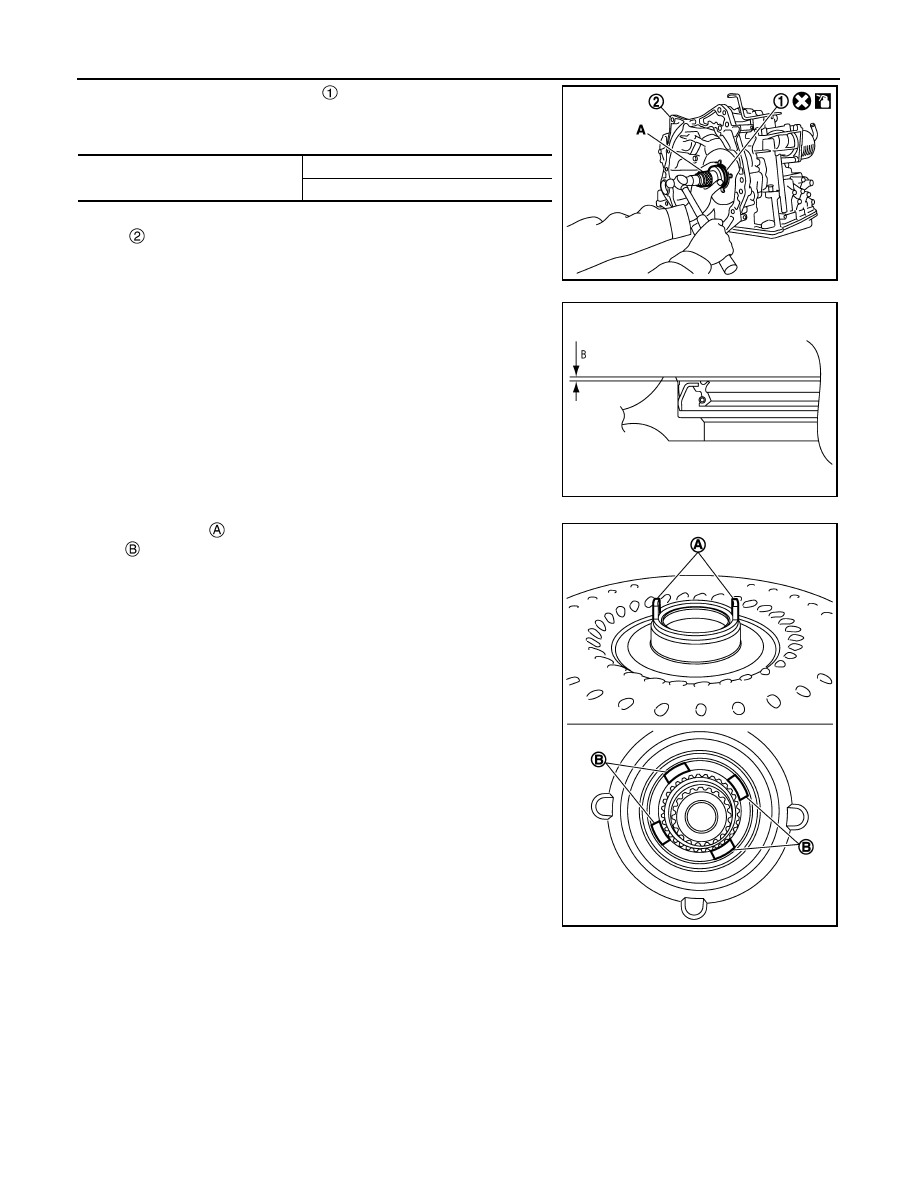

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

• Drive converter housing oil seal   evenly using a drift (A) (com-

mercial service tool) so that converter housing oil seal protrudes by

the dimension (B) respectively.

Unit: mm (in)

NOTE:

Converter housing oil seal pulling direction is used as the refer-

ence.

• Attach the pawl   of the torque converter to the drive sprocket

hole   on the transaxle assembly side.

CAUTION:

• Rotate the torque converter for installing torque converter.

• Never damage the bushing inside the torque converter

sleeve when installing the converter housing oil seal.

Inspection

INFOID:0000000011279459

INSPECTION AFTER INSTALLATION

Commercial service tool: (A)

Outer diameter: 65 (2.56)

Inner diameter: 60 (2.36)

: Transaxle assembly

SCIA7908J

Dimension (B)

: 1.0

± 0.5 mm (0.039 ± 0.020 in)

SCIA7909J

SCIA7907J

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-225

< UNIT DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

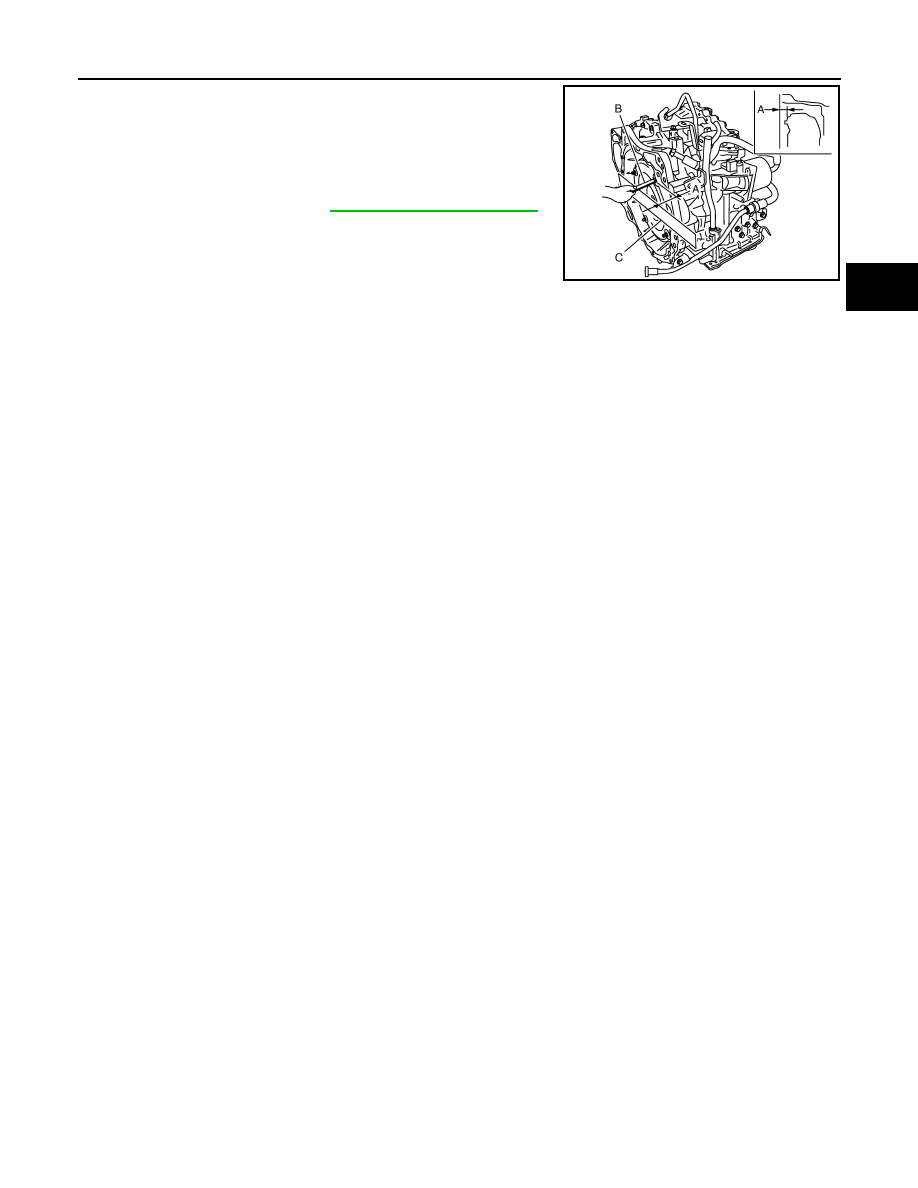

• After inserting a torque converter to the CVT, check dimension (A)

with in the reference value limit.

B

:  Scale

C

: Straightedge

Dimension (A)

: Refer to

TM-226, "Torque Converter"

.

JPDIA0115ZZ

TM-226

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F10D]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000011279460

Shift Characteristics

INFOID:0000000011279461

Unit: rpm

NOTE:

Lock-up is engaged at the vehicle speed of approximately 18 km/h (12 MPH) to 25 km/h (16 MPH).

Stall Speed

INFOID:0000000011279462

Unit: rpm

Torque Converter

INFOID:0000000011279463

Unit: mm (in)

Heater Thermostat

INFOID:0000000011279464

Applied model

Engine

QR25DE

Axle

FWD/AWD

Transaxle model

RE0F10D

Transaxle gear ratio

D position

2.648 – 0.380

R position

0.745

Final drive

5.694

Recommended fluid

Refer to

MA-11, "Fluids and Lubricants"

.

Fluid capacity liter (US qt, Imp qt)

 Throttle position

Shift pattern

CVT input speed

At 40 km/h (25 MPH)

At 60 km/h (37 MPH)

2/8

“D” position (Normal)

1,550 – 1,950

1,700 – 2,100

“D” position (O/D OFF)

1,400 – 1,800

2,100 – 2,500

“L” position

2,700 – 3,100

3,800 – 4,200

8/8

“D” position (Normal)

4,110 – 4,510

5,580 – 5,980

“D” position (O/D OFF)

4,310 – 4,710

5,500 – 5,900

“L” position

4,310 – 4,710

5,500 – 5,900

Stall speed

2,370 – 2,760

Dimension “A” between the converter housing and torque converter

14.4 (0.567)

Valve lift

More than 5.0 mm (0.197 in)

Valve opening temperature

Approx. 71

°C (160°F)

Minimum valve lift

5.0 mm/Approx. 85

°C (0.197 in/Approx. 203°F)

VTL-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

VTL

A

B

VTL

N

O

P

CONTENTS

VENTILATION SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Procedure without Cowl Top Cover .......................

2

Precaution for Work  ..................................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

PERIODIC MAINTENANCE ..........................

5

IN-CABIN MICROFILTER  ...................................

5

Removal and Installation ...........................................

5

SYSTEM DESCRIPTION  ..............................

6

VENTILATION SYSTEM  .....................................

6

System Description  ...................................................

6

REMOVAL AND INSTALLATION ................

8

DUCTS AND GRILLES  .......................................

8

Exploded View  ..........................................................

8

DEFROSTER NOZZLE ................................................

8

DEFROSTER NOZZLE : Removal and Installation

......

8

SIDE DEFROSTER DUCT ...........................................

9

SIDE DEFROSTER DUCT : Removal and Instal-
lation ..........................................................................

9

CENTER VENTILATOR DUCT ....................................

9

CENTER VENTILATOR DUCT : Removal and In-
stallation ....................................................................

9

FRONT FOOT DUCT  .................................................

10

FRONT FOOT DUCT : Removal and Installation ....

10

FRONT FLOOR DUCT ...............................................

10

FRONT FLOOR DUCT : Removal and Installation
- Front Floor Connecting Duct  .................................

10

FRONT FLOOR DUCT : Removal and Installation
- Front Floor Duct  ....................................................

11

ADAPTOR DUCT .......................................................

11

ADAPTOR DUCT : Removal and Installation ..........

11

REAR CENTER VENTILATOR DUCT .......................

11

REAR CENTER VENTILATOR DUCT : Removal
and Installation  ........................................................

11

Exploded View .........................................................

12

DEFROSTER GRILLE  ...............................................

12

DEFROSTER GRILLE : Removal and Installation ....

12

CENTER VENTILATOR GRILLE ...............................

13

CENTER VENTILATOR GRILLE : Removal and
Installation ...............................................................

13

SIDE VENTILATOR GRILLE  .....................................

13

SIDE VENTILATOR GRILLE : Removal and In-
stallation ..................................................................

13

REAR CENTER VENTILATOR GRILLE  ...................

15

REAR CENTER VENTILATOR GRILLE : Remov-
al and Installation .....................................................

15

BLOWER MOTOR  ............................................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

17

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

17

In-cabin Microfilter  ...................................................

17
