< SYSTEM DESCRIPTION >

COMPONENT PARTS

Instrument panel

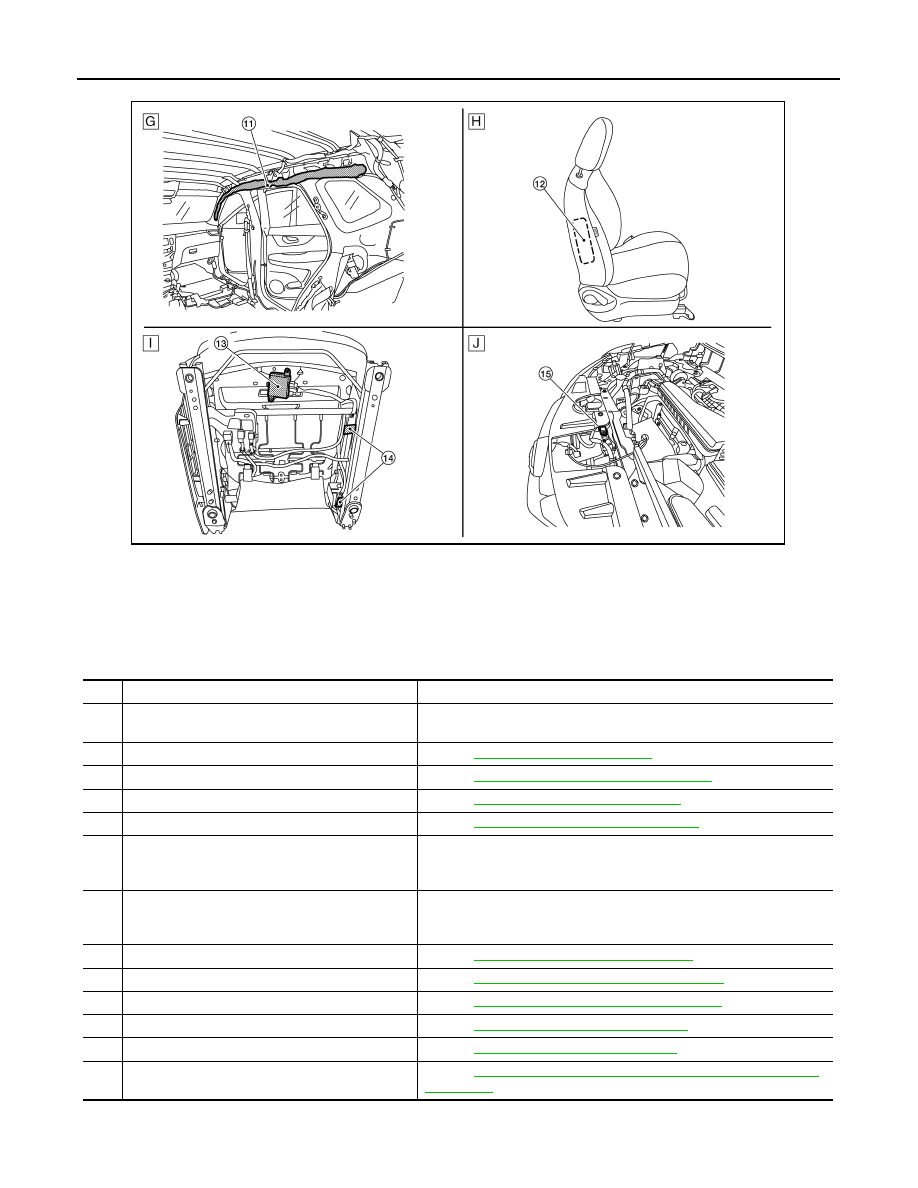

View with drivers door finisher removed C.

View with center console removed

View with the lower B-pillar trim
removed

View with LH rear lower luggage
finisher removed

View with headlining removed

RH front passenger seat

Occupant classification system

Radiator core support assembly

No.

Component

Function

Spiral cable

The spiral cable provides a rotating physical connection to the driver air
bag module.

Drivers air bag module

Refer to

SRC-7, "Driver Air Bag Module"

Front passenger air bag module

Refer to

SRC-7, "Front Passenger Air Bag Module"

Front door satellite sensor

Refer to

SRC-9, "Front Door Satellite Sensor"

Air bag diagnosis sensor unit

Refer to

SRC-8, "Air Bag Diagnosis Sensor Unit"

Seat belt buckle switch (driver seat)

The seat belt buckle switch LH provides the seat belt
buckle signals to the air bag diagnosis sensor unit and the
combination meter.

Seat belt buckle switch (passenger seat)

The seat belt buckle switch RH provides the seat belt
buckle signals to the air bag diagnosis sensor unit and the
combination meter.

Front LH seat belt pre-tensioner (RH similar)

Refer to

SRC-8, "Front Seat Belt Pre-tensioner"

Front side air bag satellite sensor

Refer to

SRC-8, "Front Side Air Bag Satellite Sensor"

10.

Rear side air bag satellite sensor LH (RH similar)

Refer to

SRC-9, "Rear Side Air Bag Satellite Sensor"

11.

RH side curtain air bag module (LH similar)

Refer to

SRC-7, "Side Curtain Air Bag Module"

12.

Front RH side air bag module (LH similar)

Refer to

SRC-7, "Front Side Air Bag Module"

13.

Occupant classification system control unit

Refer to

SRC-11, "OCCUPANT CLASSIFICATION SYSTEM : System

Description"

AWHIA0630ZZ

COMPONENT PARTS

SRC-7

< SYSTEM DESCRIPTION >

SRC

Driver Air Bag Module

INFOID:0000000011279516

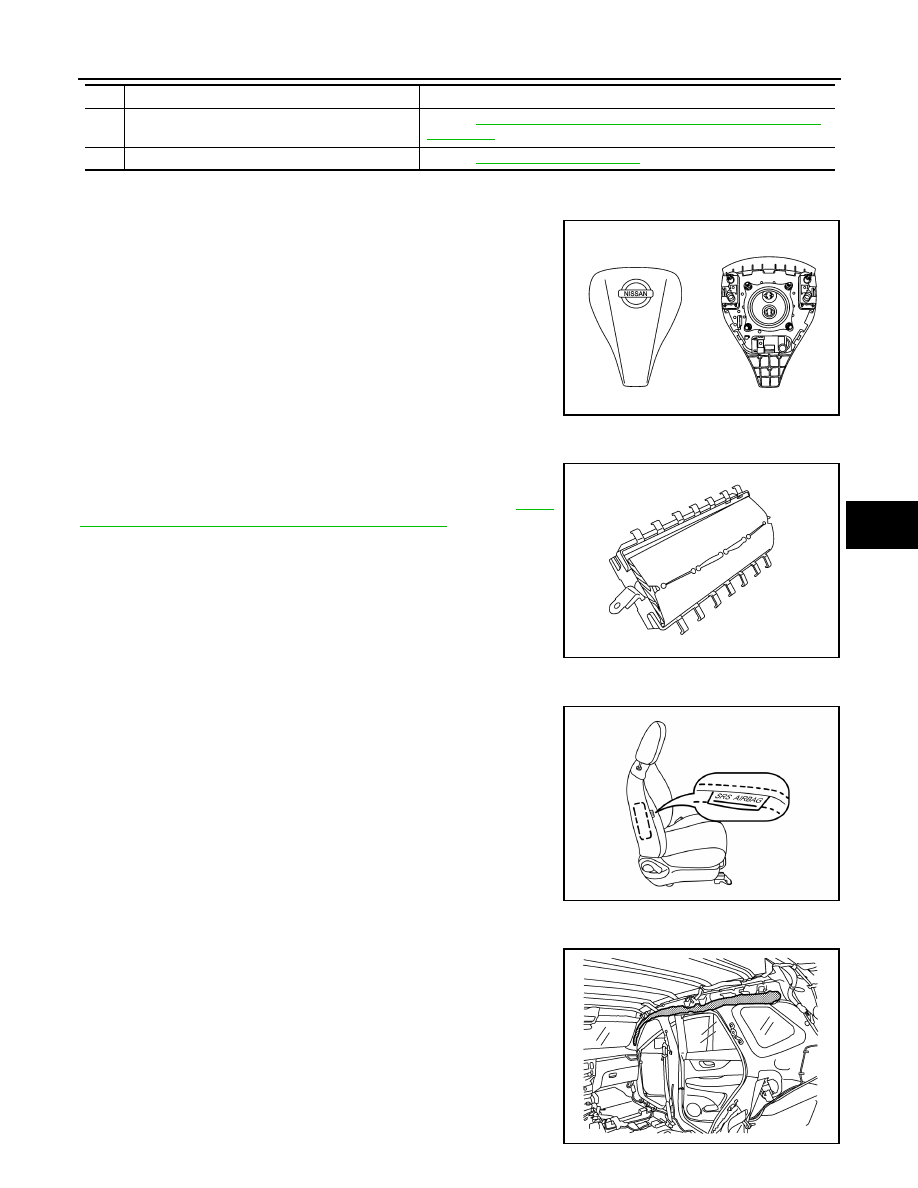

The driver air bag module is dual stage and located in the steering

wheel assembly. It operates with the SRS system in a frontal colli-

sion exceeding a specified level.

Front Passenger Air Bag Module

INFOID:0000000011279517

The front passenger air bag module is dual stage and is located

behind the instrument panel assembly. It operates with the SRS sys-

tem in a frontal collision exceeding a specified level. Refer to

SRC-

10, "SRS AIR BAG SYSTEM : System Description"

for more infor-

mation.

Front Side Air Bag Module

INFOID:0000000011279518

Front side air bag modules are built into the front seatback assem-

blies. Vehicles with side air bags are equipped with labels as shown.

Side Curtain Air Bag Module

INFOID:0000000011279519

Side curtain air bag modules are located above the vehicle headlin-

ing.Vehicles with side curtain air bags are equipped with labels on

the pillar upper finishers.

14.

Occupant classification system sensors

Refer to

SRC-11, "OCCUPANT CLASSIFICATION SYSTEM : System

Description"

15.

Crash zone sensor

Refer to

SRC-8, "Crash Zone Sensor"

No.

Component

Function

AWHIA0612ZZ

AWHIA0411ZZ

AWHIA0333ZZ

AWHIA0613ZZ

SRC-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Front Seat Belt Pre-tensioner

INFOID:0000000011279520

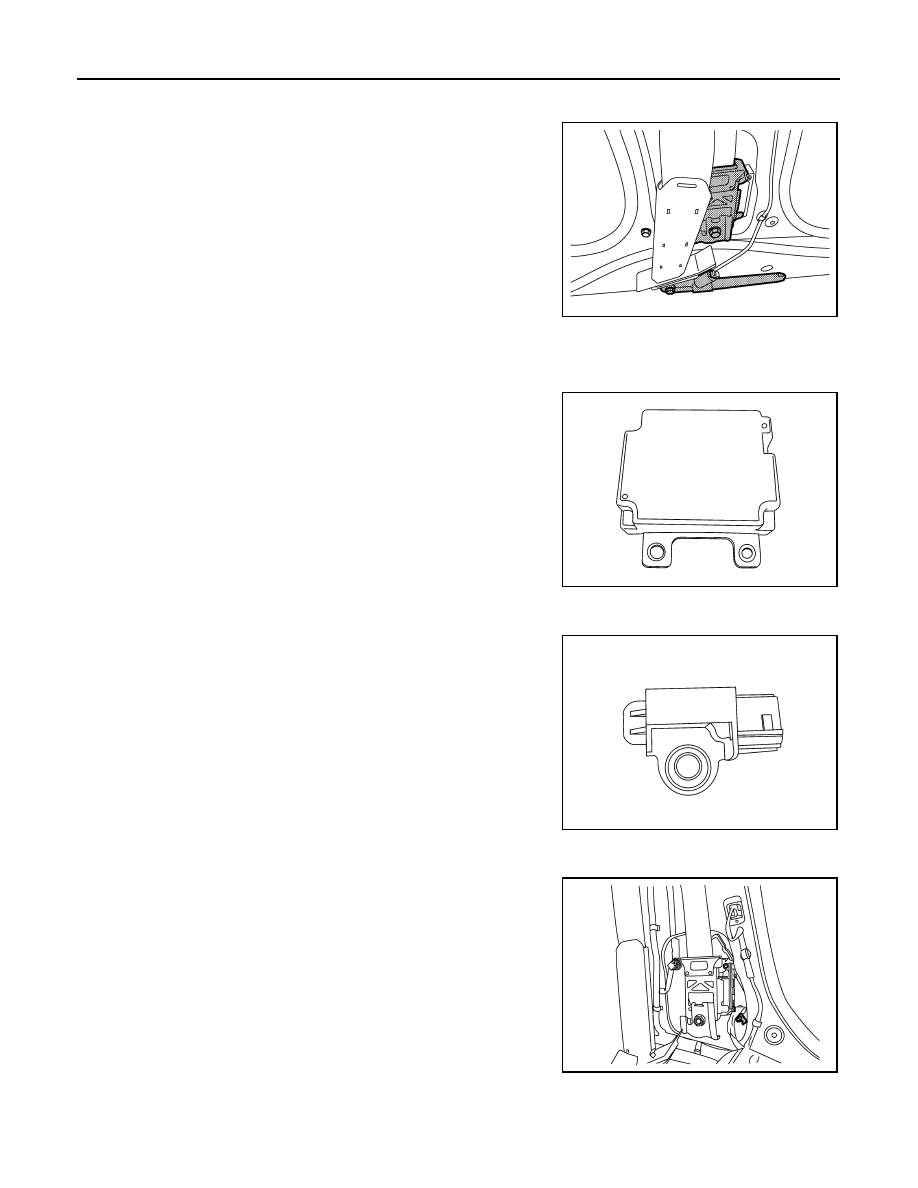

The seat belt pre-tensioner system with load limiter is installed for

both the driver's seat and the front passenger's seat. It operates

simultaneously with the SRS air bag system in the event of a frontal

collision with an impact exceeding a specified level.

When the frontal collision with an impact exceeding a specified level

occurs, seat belt slack resulting from clothing or other factors is

immediately taken up by the shoulder belt pre-tensioner as well as

the lap belt pre-tensioner. Vehicle passengers are securely

restrained.

When passengers in a vehicle are thrown forward in a collision and

the restraining force of the seat belt exceeds a specified level, the

load limiter permits the specified extension of the seat belt by the

twisting of the ELR shaft, and a relaxation of the chest-area seat belt web tension while maintaining force.

Air Bag Diagnosis Sensor Unit

INFOID:0000000011279521

The air bag diagnosis sensor unit is located under the center con-

sole assembly. The air bag diagnosis sensor unit receives signals

from multiple SRS sensors and controls the deployment of the air

bags. The deployment of the air bags depends on the type and

severity of the collision. The air bag diagnosis sensor unit has self-

diagnosis capability through the use of the CONSULT as well as

flash codes displayed by the air bag warning lamp.

Crash Zone Sensor

INFOID:0000000011279522

The crash zone sensor is located in front of the radiator. The crash

zone sensor sends signals to the air bag diagnosis sensor unit dur-

ing a frontal collision. This sensor may be identified by a yellow con-

nector.

Front Side Air Bag Satellite Sensor

INFOID:0000000011279523

The front side air bag satellite sensors are located on the front center

pillar LH and RH next to the seat belt pretensioners. The front side

air bag satellite sensors send signals to the air bag diagnosis sensor

unit during a side collision. These sensors may be identified by yel-

low connectors.

AWHIA0625ZZ

AWHIA0614ZZ

AWHIA0618ZZ

AWHIA0627ZZ

COMPONENT PARTS

SRC-9

< SYSTEM DESCRIPTION >

SRC

Rear Side Air Bag Satellite Sensor

INFOID:0000000011279524

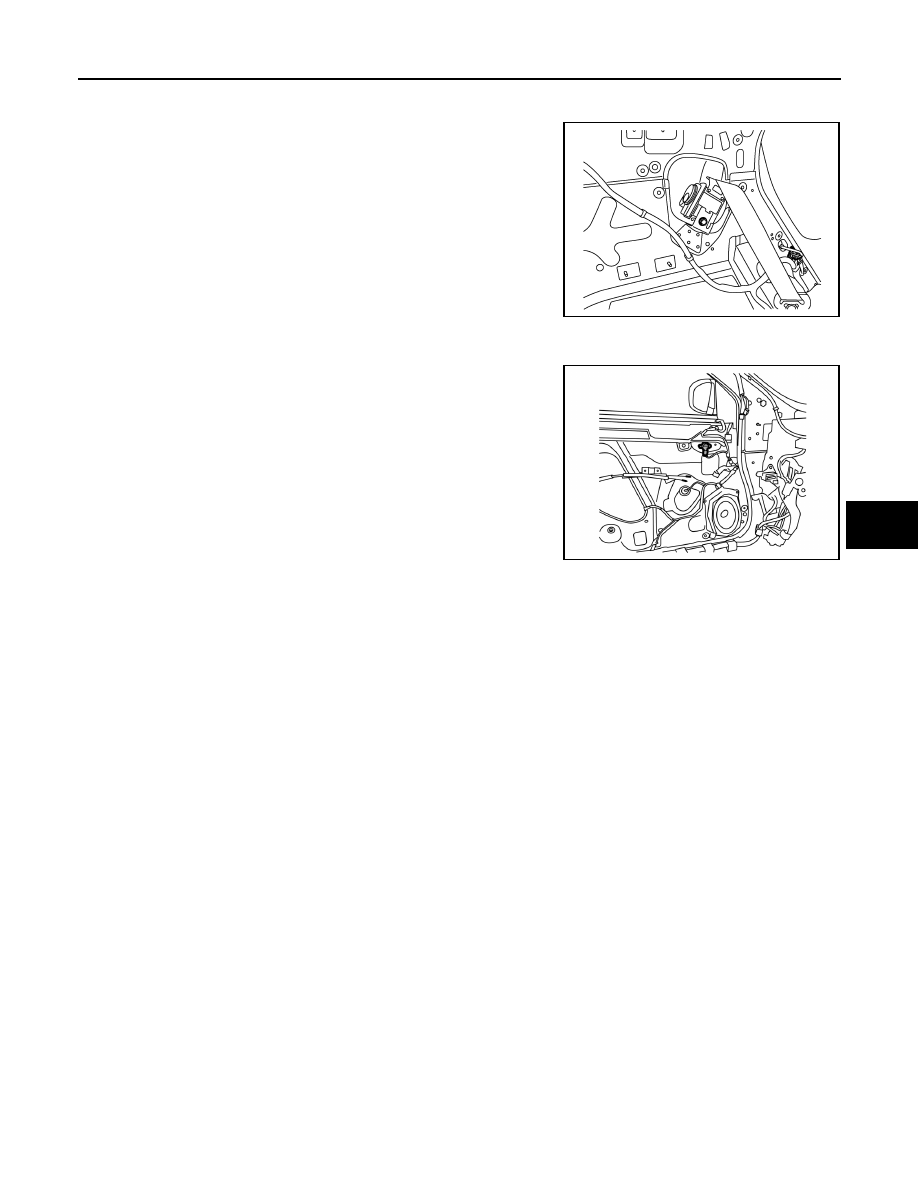

The rear side air bag satellite sensors are located behind the lug-

gage side lower finisher LH and RH. The rear side air bag satellite

sensors send signals to the air bag diagnosis sensor unit during a

side collision. These sensors may be identified by yellow connec-

tors.

Front Door Satellite Sensor

INFOID:0000000011279525

The front door satellite sensors are located in the driver and passen-

ger doors. The front door satellite sensors send signals to the air bag

diagnosis sensor unit during a side collision. These sensors may be

identified by yellow connectors.

AWHIA0626ZZ

AWHIA0388ZZ
