OCCUPANT CLASSIFICATION SYSTEM

SR-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

ii.

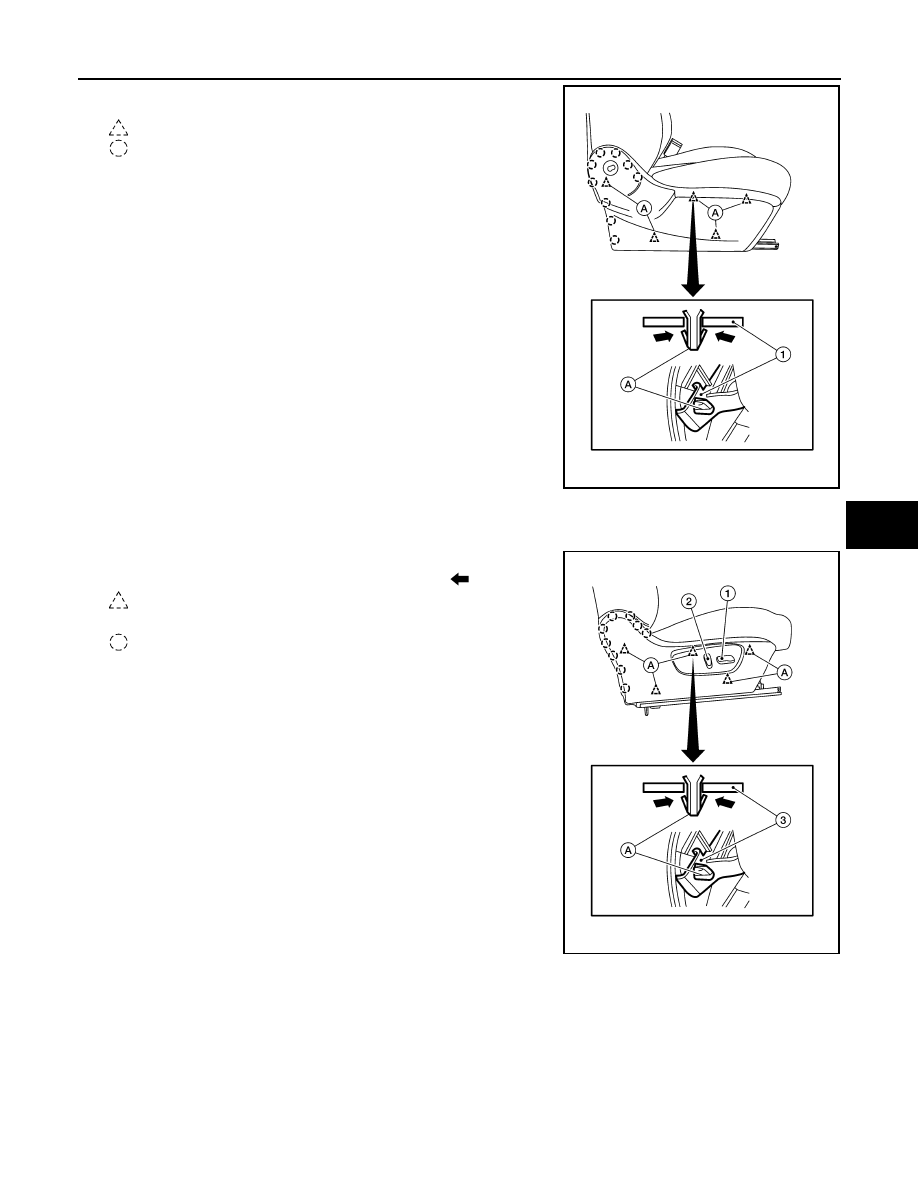

Release clips (A) from seat frame (1) and pawls, then remove

seat cushion outer finisher (RH).

: Clip
: Pawl

b. For power seat:
i.

Remove the seat cushion outer finisher (RH).

ii.

Remove seat slide knob (1) and seat recline knob (2).

iii. Release clips (A) from seat frame (3), as shown (

).

: Clip

iv. Release pawls and remove.

: Pawl

v.

Disconnect harness connector from power seat switch.

AWJIA1561ZZ

AWJIA1560ZZ

SR-32

< REMOVAL AND INSTALLATION >

OCCUPANT CLASSIFICATION SYSTEM

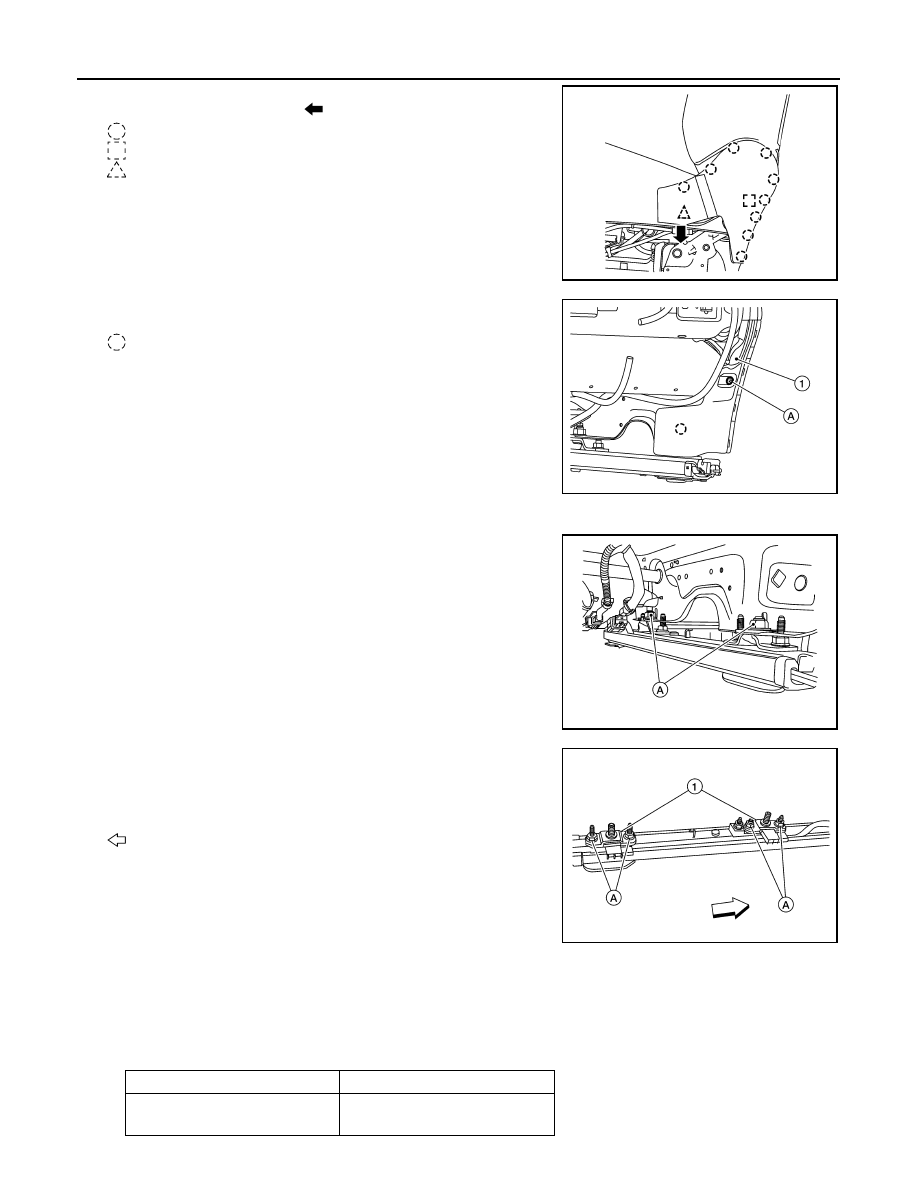

3. Release pawls and clips, and remove seat cushion outer finisher

(LH) in the direction shown (

).

: Pawl
: Metal clip
:Clip

4. Remove screw (A), then release pawl and remove seat cushion

rear finisher (LH/RH) (1).

: Pawl

NOTE:

Seatback trim repositioned for clarity.

5. Disconnect harness connectors from occupant classification system sensors.
6. Remove nuts (A) and seat track (LH/RH).

CAUTION:

Do not reuse nuts. Replace with new nuts during installa-

tion.

NOTE:

RH shown; LH similar.

7. Remove nuts (A) and occupant classification system sensors

(1).

CAUTION:

Do not reuse nuts. Replace with new nuts during installa-

tion.

: Front

Installation

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse nuts. Replace with new part during installation.

• Tighten the nuts to specification.

AWJIA1563ZZ

ALHIA0405ZZ

ALHIA0406ZZ

ALHIA0407ZZ

Seat track nuts

45 N·m (4.6 kg-m, 33 ft-lb)

Occupant classification
system sensor nuts

22 N·m (2.2 kg-m, 16 ft-lb)

FRONT PASSENGER AIR BAG OFF INDICATOR

SR-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

FRONT PASSENGER AIR BAG OFF INDICATOR

Removal and Installation

INFOID:0000000011406075

REMOVAL

1. Remove A/C switch assembly. Refer to

HAC-102, "Removal and Installation"

.

2. Remove screws and the front passenger air bag off indicator from cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

SRC-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SRC

A

B

SRC

N

O

P

CONTENTS

SRS AIRBAG CONTROL SYSTEM

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

4

Service ......................................................................

4

Occupant Classification System Precaution ...........

4

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Driver Air Bag Module  ...............................................

7

Front Passenger Air Bag Module ..............................

7

Front Side Air Bag Module  ........................................

7

Side Curtain Air Bag Module .....................................

7

Front Seat Belt Pre-tensioner ....................................

8

Air Bag Diagnosis Sensor Unit ..................................

8

Crash Zone Sensor  ...................................................

8

Front Side Air Bag Satellite Sensor ...........................

8

Rear Side Air Bag Satellite Sensor  ...........................

9

Front Door Satellite Sensor .......................................

9

SYSTEM .............................................................

10

SRS AIR BAG SYSTEM ............................................

10

SRS AIR BAG SYSTEM : System Description  .......

10

OCCUPANT CLASSIFICATION SYSTEM  ................

10

OCCUPANT CLASSIFICATION SYSTEM : Sys-
tem Description  .......................................................

11

SEAT BELT WARNING LAMP SYSTEM ..................

12

SEAT BELT WARNING LAMP SYSTEM : System
Description ..............................................................

12

DIAGNOSIS SYSTEM (AIR BAG)  .....................

14

Description ..............................................................

14

On Board Diagnosis Function  .................................

14

Trouble Diagnosis with CONSULT ..........................

16

CONSULT Function (AIR BAG)  ..............................

16

ECU DIAGNOSIS INFORMATION ..............

17

DIAGNOSIS SENSOR UNIT  .............................

17

DTC Index  ...............................................................

17

Flash Code Index  ....................................................

21

WIRING DIAGRAM ......................................

25

SRS AIR BAG SYSTEM  ...................................

25

Wiring Diagram ........................................................

25

BASIC INSPECTION  ...................................

38

DIAGNOSIS AND REPAIR WORK FLOW  .......

38

Work Flow ................................................................

38

INSPECTION AND ADJUSTMENT  ..................

41

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................

41

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description .................................

41

ZERO POINT RESET .................................................

41

ZERO POINT RESET : Description .........................

41

ZERO POINT RESET : Special Repair Require-
ment .........................................................................

41

CONFIGURATION .....................................................

42

CONFIGURATION : Description  .............................

42

CONFIGURATION : Work Procedure  .....................

42

INTERMITTENT INCIDENT  ..............................

44

Inspection Procedure ..............................................

44

DTC/CIRCUIT DIAGNOSIS  .........................

45

B0001, B0002 DRIVER AIRBAG MODULE  .....

45

DTC Logic ................................................................

45

Diagnosis Procedure  ...............................................

46

B0010, B0011 PASSENGER AIRBAG MOD-
ULE ....................................................................

48
