AIR BAG DIAGNOSIS SENSOR UNIT

SR-27

< REMOVAL AND INSTALLATION >

• Replace the air bag diagnosis sensor unit if it has been

dropped or sustained an impact.

• Do not strike the air bag diagnosis sensor unit.

INSTALLATION

Install air bag diagnosis sensor unit in the reverse order of removal.

CAUTION:

• Do not reuse the air bag diagnosis sensor unit bolt and nuts.
• The air bag diagnosis sensor unit must always be installed with the label arrow mark "

" pointing

toward the front of the vehicle for proper operation.

• Do not damage the air bag diagnosis sensor unit harness connectors during installation.

• After installation is complete, check that no system malfunction is detected causing the air bag

warning lamp to illuminate.

• If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunc-

tioning parts, perform the SRS final check. Refer to

SRC-16, "Trouble Diagnosis with CONSULT"

• After replacing the air bag diagnosis sensor unit, confirm using CONSULT that the ECU discrimi-

nated number (identification number) or part number of the new replacement air bag diagnosis sen-

sor unit matches the ECU discriminated number (identification number) or part number of the

replaced (old) air bag diagnosis sensor unit.

NOTE:

If the ECU discriminated number or part number of the new replacement air bag diagnosis sensor unit differs

from the ECU discriminated number or part number of the replaced air bag diagnosis sensor unit, reconfirm

the parts information and verify that the correct air bag diagnosis sensor unit was installed.

SGI787

SR-28

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT PRE-TENSIONER

FRONT SEAT BELT PRE-TENSIONER

Removal and Installation

INFOID:0000000011279769

The front seat belt has two pre-tensioners. One pre-tensioner is part of the seat belt retractor and the other is

a lap belt pre-tensioner. For removal and installation refer to

SB-8, "SEAT BELT RETRACTOR : Removal and

Installation"

(seat belt retractor) and

SB-8, "Exploded View"

(lap belt pretensioner).

FRONT SEAT BELT BUCKLE SWITCH

SR-29

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT BUCKLE SWITCH

Removal and Installation

INFOID:0000000011279770

The front seat belt buckle switch is part of the front seat belt buckle. For removal and installation of the front

seat belt buckle, refer to

SB-11, "FRONT SEAT BELT BUCKLE : Removal and Installation"

SR-30

< REMOVAL AND INSTALLATION >

OCCUPANT CLASSIFICATION SYSTEM

OCCUPANT CLASSIFICATION SYSTEM

Removal and Installation

INFOID:0000000011279771

OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Do not use air tools or electric tools for servicing.

Removal

1. Slide front seat passenger side to full forward position.
2. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

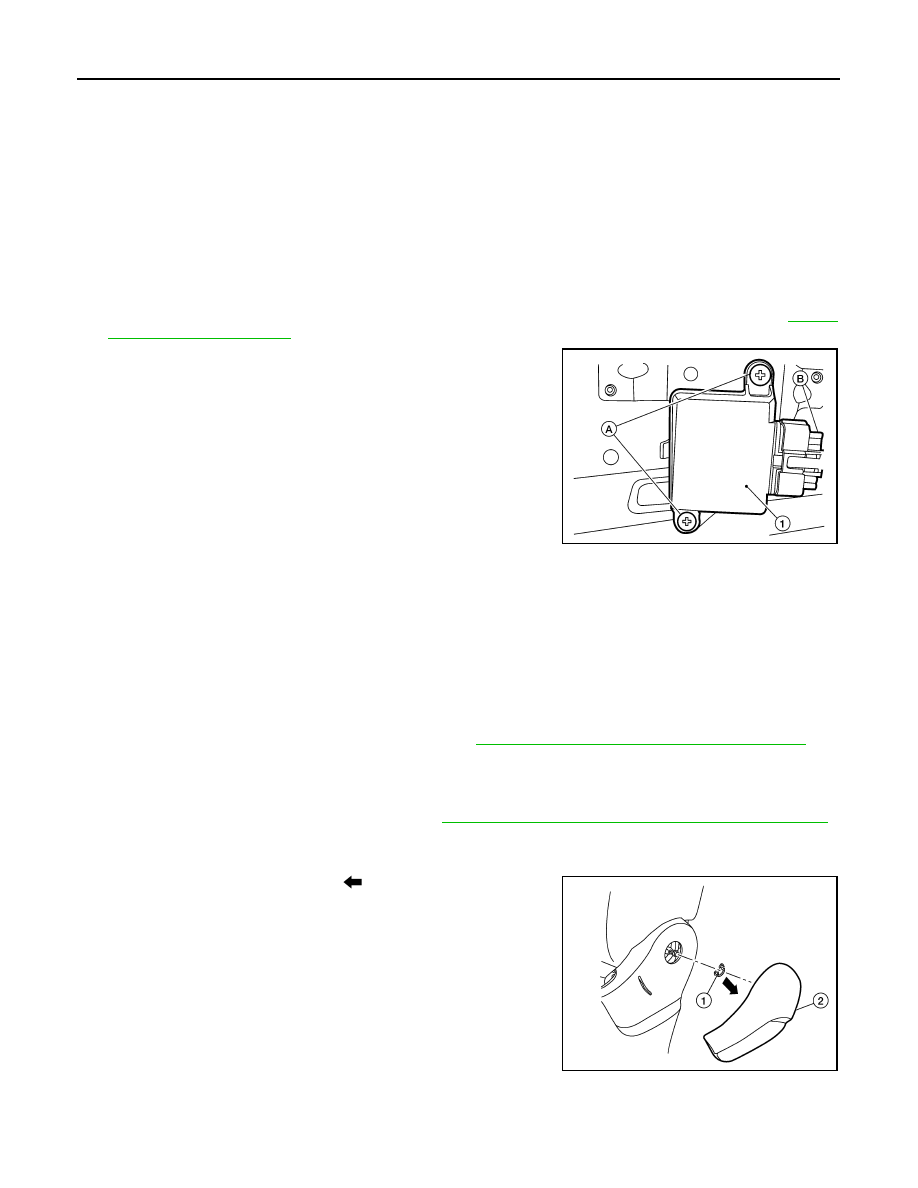

3. Remove occupant classification system control unit screws (A).
4. Disconnect the harness connector (B) and remove occupant

classification system control unit (1).

CAUTION:

• Replace the occupant classification control unit if it has

been dropped or sustained an impact.

• Do not strike the occupant classification control unit.

Installation

Installation is in the reverse order of removal.

WARNING:

• Zero point reset must be performed every time the occupant classification system control unit is
