SIDE CURTAIN AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000011279760

Removal and Installation

INFOID:0000000011279761

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Always work from the side of air bag module. Do not work in front of it.

• Do not use air tools or electric tools for servicing.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

2. Remove the headlining. Refer to

INT-30, "Removal and Installation"

.

3. Disconnect the harness connector from the side curtain air bag

module.

CAUTION:

• For removing/installing the side curtain air bag module

harness connector, insert a thin screwdriver wrapped in

tape into the notch, lift the lock and remove the harness

connector as shown.

• Install the harness connector with the lock raised, and

push the lock into the harness connector as shown.

• After installing the harness connector, check that the lock

is pushed in securely.

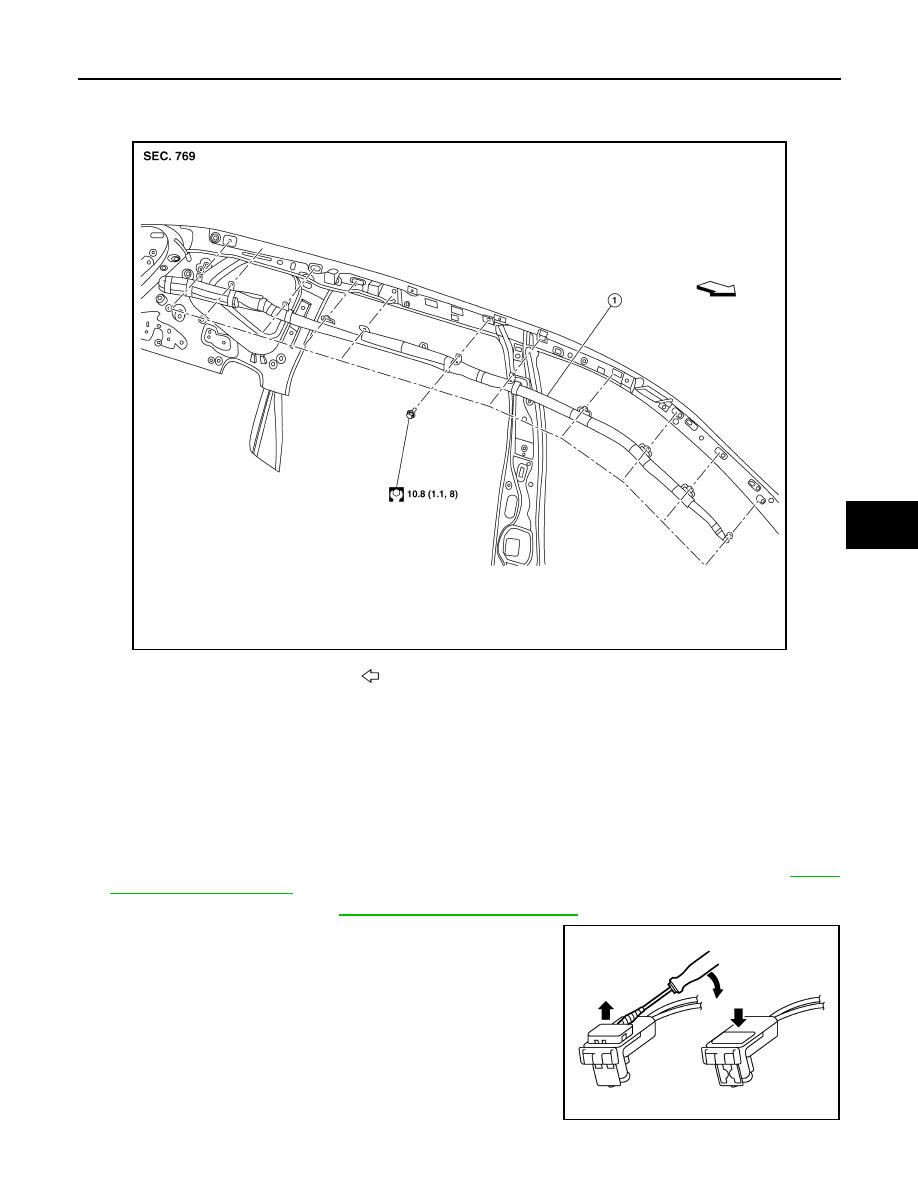

ALHIA0362ZZ

1.

Side curtain air bag module

Front

PHIA0953J

SR-20

< REMOVAL AND INSTALLATION >

SIDE CURTAIN AIR BAG MODULE

4. Remove bolts, and side curtain air bag module.

CAUTION:

• Replace the side curtain air bag module if it has been dropped or sustained an impact.

• Do not strike the side curtain air bag module.

• Do not insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.

• Do not disassemble the side curtain air bag module.

• Do not expose the side curtain air bag module to temperatures exceeding 90

°C (194 °F).

• Do not allow oil, grease, detergent or water to come in contact with the side curtain air bag mod-

ule.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Do not damage the harness while installing the side curtain air bag module.

• Make sure that the side curtain air bag module bracket supporting hooks are securely seated into

the body slots before releasing the side curtain air bag module during installation to avoid damaging

the side curtain air bag module.

• Make sure that the anti-twist stripe (black for RH side, blue for LH side) is visible along entire length

of side curtain air bag module.

• If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunc-

tioning parts, perform the SRS final check. Refer to

SRC-16, "Trouble Diagnosis with CONSULT"

.

• After installation is complete, check that no system malfunction is detected causing the air bag

warning lamp to illuminate.

FRONT SIDE AIR BAG MODULE

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

FRONT SIDE AIR BAG MODULE

Removal and Installation

INFOID:0000000011279762

The front side air bag module is part of the front seatback. For removal and installation of the front seatback,

refer to

SE-56, "Seatback"

.

SR-22

< REMOVAL AND INSTALLATION >

CRASH ZONE SENSOR

CRASH ZONE SENSOR

Exploded View

INFOID:0000000011279763

Removal and Installation

INFOID:0000000011279764

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Do not use air tools or electric tools for servicing.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

2. Remove front grille. Refer to

EXT-23, "Removal and Installation"

.

3. Remove crash zone sensor nut.

CAUTION:

Do not reuse the crash zone sensor nut.

4. Disconnect crash zone sensor harness connector, and remove crash zone sensor and bracket.

CAUTION:

• Replace the crash zone sensor if it has been dropped or sustained an impact.

• Do not strike the crash zone sensor.

• Replace the crash zone sensor if either the driver air bag or the front passenger air bag has been

deployed.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse the crash zone sensor nut.

• Do not damage the harness connector during installation.

• After installation is complete, check that no system malfunction is detected causing the air bag

warning lamp to illuminate.

• If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunc-

tioning parts, perform the SRS final check. Refer to

SRC-16, "Trouble Diagnosis with CONSULT"

.

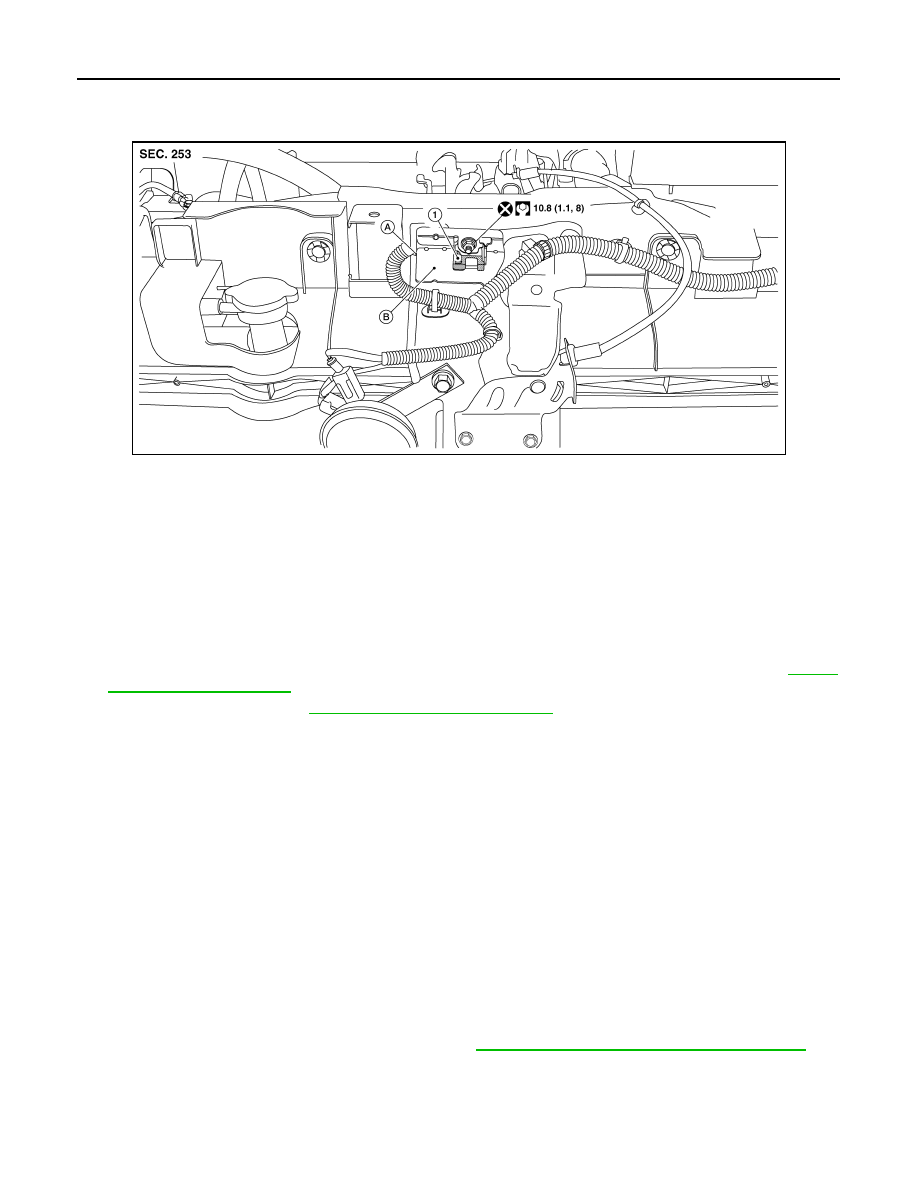

ALHIA0361ZZ

1.

Crash zone sensor

A.

Crash zone sensor harness
connector

B.

Bracket
