COLLISION DIAGNOSIS

SR-11

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

Occupant classification system
(Passenger seat)

1.

Remove passenger seat assembly.

2.

Check control unit case for dents, cracks of deformities.

3.

Check connectors and pressure sensor tube for damage, and terminals for deformities.

4.

Check seat frame and cushion pan for dents or deformities.

5.

If no damage is found, reinstall seat with new fasteners.

6.

If damaged

− REPLACE seat cushion assembly with new fasteners.

7.

Perform zero point reset function after front passenger seat is installed in the vehicle and all
bolts are tightened to specification. Refer to

SRC-41, "ZERO POINT RESET : Description"

.

Pop-up roll bar

If the pop-up roll bar has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the pop-up roll bar.

2.

If damaged

− REPLACE the pop-up roll bar with new fasteners.

3.

Check harness and connectors for damage, and terminals for deformities.

4.

If no damage is found, reinstall the pop-up roll bar with new fasteners.

5.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the seatback support
brace assembly.

6.

If damaged

− REPAIR the seatback support brace assembly.

Part

Inspection

SR-12

< REMOVAL AND INSTALLATION >

DRIVER AIR BAG MODULE

REMOVAL AND INSTALLATION

DRIVER AIR BAG MODULE

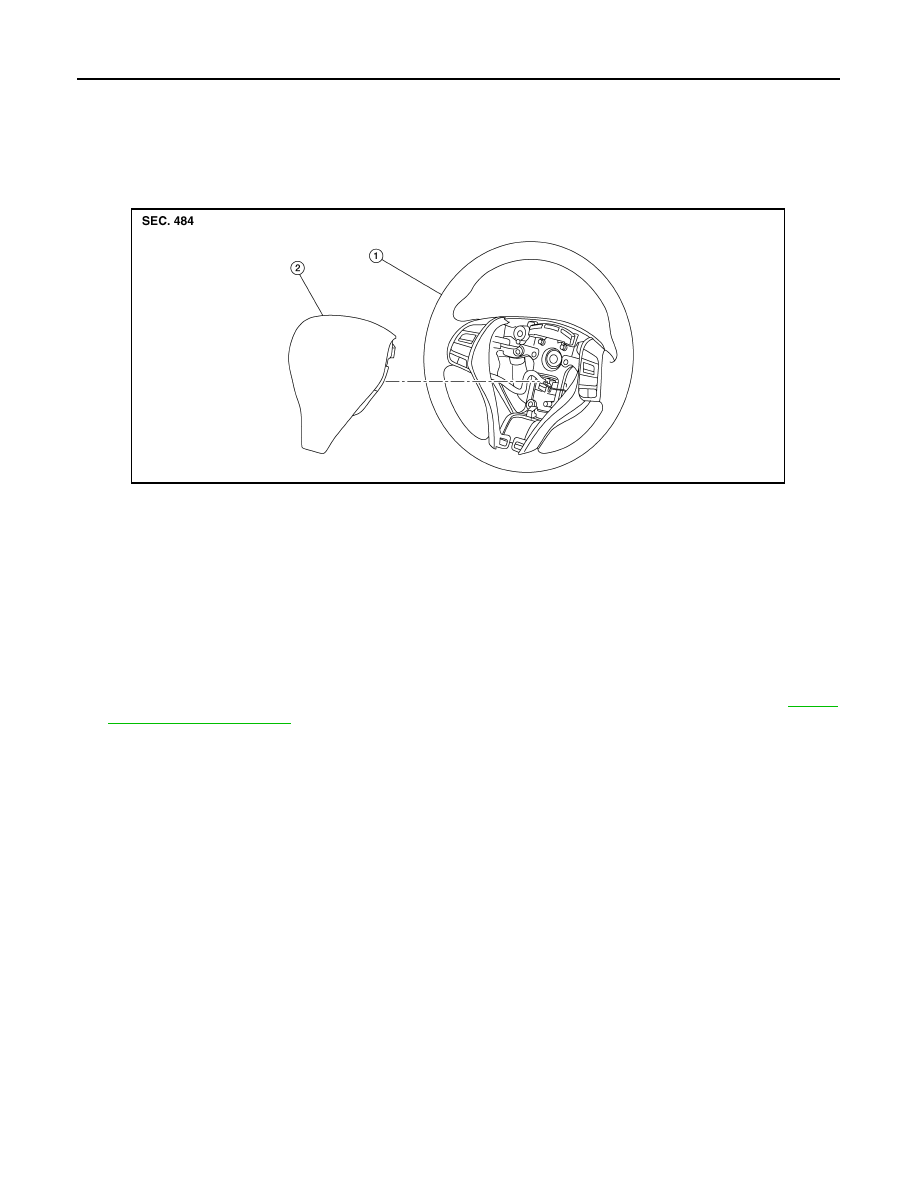

Exploded View

INFOID:0000000011279754

Removal and Installation

INFOID:0000000011279755

WARNING:

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals then wait at

least three minutes.

• Always work from the side of driver air bag module. Do not work in front of it.

• Do not use the air tools or electric tools for servicing.

REMOVAL

1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to

PG-80,

"Removal and Installation"

.

2. Release driver air bag module hooks.

1.

Steering wheel

2.

Driver air bag module

ALHIA0342ZZ

DRIVER AIR BAG MODULE

SR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

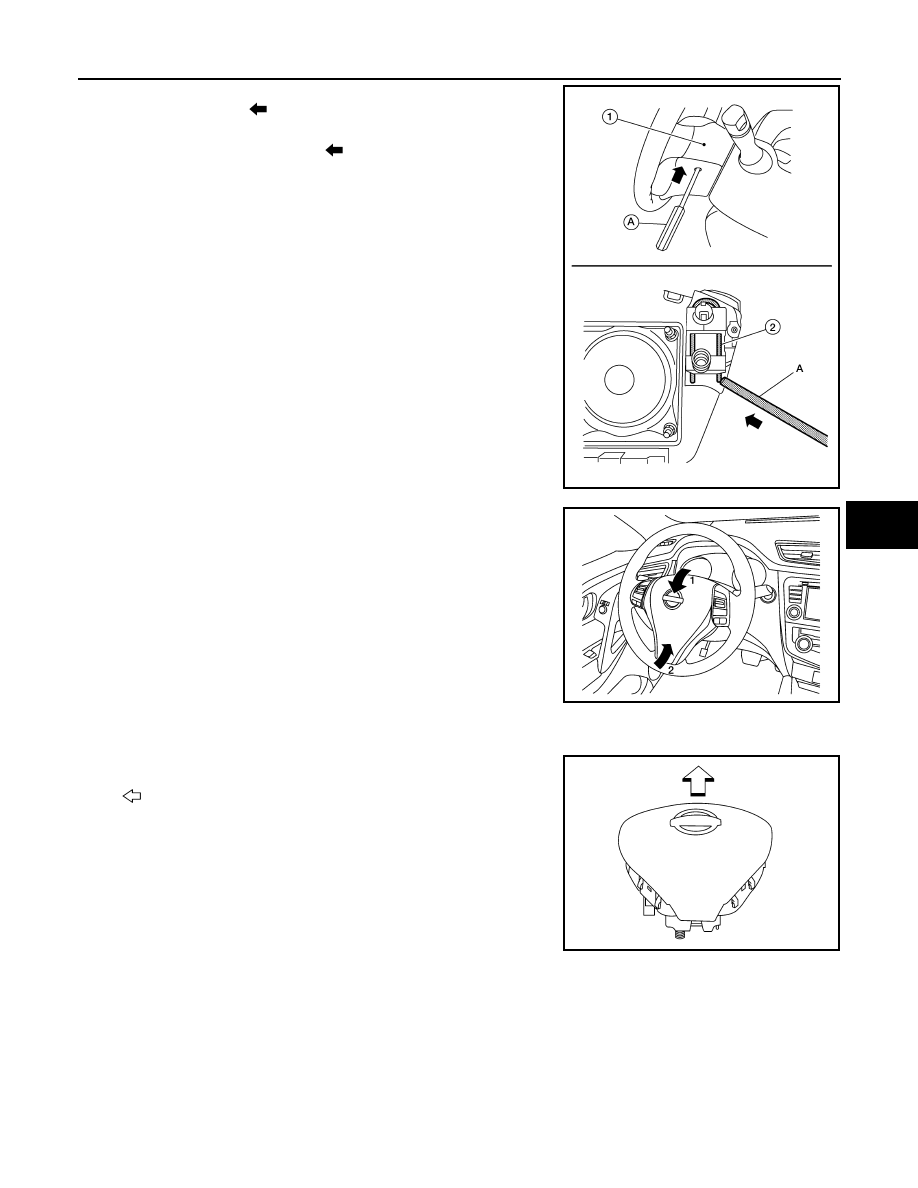

a. Locate the access hole on RH side of steering wheel rear fin-

isher (1) and insert (

) a 5.0 mm (0.20 in) diameter suitable tool

(A).

b. Push suitable tool (A) inward (

) and make sure the tool con-

tacts the spring (2) as shown. Push on the upper right of the

driver air bag module while pressing on the spring to release the

driver air bag module hook (RH). Repeat procedure for driver air

bag module hook (LH).

NOTE:

Driver air bag module removed for clarity.

3. Lift driver air bag module as shown, then disconnect harness

connectors from the driver air bag module.

CAUTION:

• For installing/removing the driver air bag module harness

connector, insert thin screwdriver wrapped in tape into

notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

4. Remove the driver air bag module.

CAUTION:

• Always place the driver air bag module with pad side fac-

ing upward.

: Upward

AWHIA0361ZZ

AWHIA0632ZZ

AWHIA0633ZZ

SR-14

< REMOVAL AND INSTALLATION >

DRIVER AIR BAG MODULE

• Do not strike or impact the driver air bag module.

• Replace the driver air bag module if it has been dropped

or sustained an impact.

• Do not insert any foreign objects (screwdriver, etc.) into the driver air bag module.

• Do not disassemble the driver air bag module.

• Do not expose the driver air bag module to temperatures exceeding 93

°C (199°F).

• Do not allow oil, grease, detergent, or water to come in contact with the driver air bag module.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

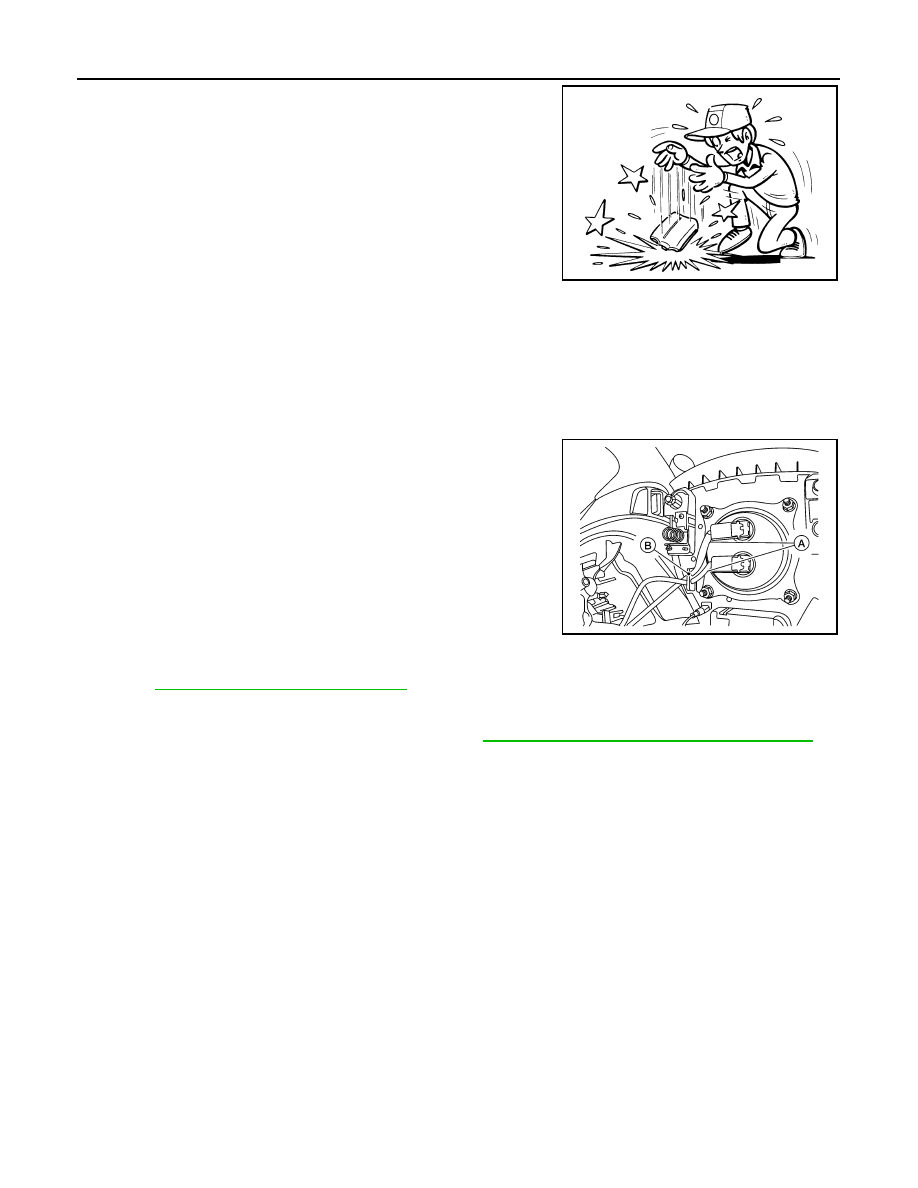

• Always connect the driver air bag module harnesses (A) and

route through the hook (B) as shown.

• If driver air bag module is being replaced due to deployment, the spiral cable must also be replaced.

Refer to

SR-15, "Removal and Installation"

.

• Do not pinch or damage the harnesses while installing.

• If a malfunction is indicated by the air bag warning lamp after repair or replacement of the malfunc-

tioning parts, perform the SRS Final Check. Refer to

SRC-16, "Trouble Diagnosis with CONSULT"

.

• After installation is complete, check that no system malfunction is detected causing the air bag

warning lamp to illuminate.

JMHIA0009ZZ

AWHIA0634ZZ
