Nissan Rogue. Manual - part 1113





SRC-2

DTC Logic ...............................................................

48

Diagnosis Procedure  ..............................................

48

B0020 SIDE AIRBAG MODULE LH ..................

50

Description ..............................................................

50

DTC Logic ...............................................................

50

Diagnosis Procedure  ..............................................

50

B0028 SIDE AIRBAG MODULE RH  .................

52

Description ..............................................................

52

DTC Logic ...............................................................

52

Diagnosis Procedure  ..............................................

52

B0021 SIDE CURTAIN AIR BAG MODULE LH

...

54

DTC Logic ...............................................................

54

Diagnosis Procedure  ..............................................

54

B0029 SIDE CURTAIN AIR BAG MODULE
RH ......................................................................

56

DTC Logic ...............................................................

56

Diagnosis Procedure  ..............................................

56

B1430 SEAT BELT PRE-TENSIONER  .............

58

DTC Logic ...............................................................

58

Diagnosis Procedure  ..............................................

58

B1431 SEAT BELT PRE-TENSIONER  .............

60

DTC Logic ...............................................................

60

Diagnosis Procedure  ..............................................

60

B1428 SEAT BELT BUCKLE SWITCH LH .......

62

Description ..............................................................

62

DTC Logic ...............................................................

62

Diagnosis Procedure  ..............................................

62

B1429 SEAT BELT BUCKLE SWITCH RH  ......

65

Description ..............................................................

65

DTC Logic ...............................................................

65

Diagnosis Procedure  ..............................................

65

B0094 CRASH ZONE SENSOR ........................

67

DTC Logic ...............................................................

67

Diagnosis Procedure  ..............................................

67

B0093 FRONT DOOR SATELLITE SENSOR
LH .......................................................................

69

DTC Logic ...............................................................

69

Diagnosis Procedure  ..............................................

69

B0098 FRONT DOOR SATELLITE SENSOR
RH ......................................................................

71

DTC Logic ...............................................................

71

Diagnosis Procedure  ..............................................

71

B0091 FRONT SIDE AIR BAG SATELLITE
SENSOR LH  ......................................................

73

Description ..............................................................

73

DTC Logic ...............................................................

73

Diagnosis Procedure  ..............................................

74

B0096 FRONT SIDE AIR BAG SATELLITE
SENSOR RH ......................................................

76

Description ..............................................................

76

DTC Logic  ...............................................................

76

Diagnosis Procedure ...............................................

77

B0092 REAR SIDE AIR BAG SATELLITE
SENSOR LH  ......................................................

79

Description ..............................................................

79

DTC Logic  ...............................................................

79

Diagnosis Procedure ...............................................

80

B0097 REAR SIDE AIR BAG SATELLITE
SENSOR RH ......................................................

82

Description ..............................................................

82

DTC Logic  ...............................................................

82

Diagnosis Procedure ...............................................

83

B00A0 OCS SYSTEM .......................................

85

Description ..............................................................

85

DTC Logic  ...............................................................

85

Diagnosis Procedure ...............................................

86

B14XX AIR BAG DIAGNOSIS SENSOR UNIT ...

88

Description ..............................................................

88

DTC Logic  ...............................................................

88

Diagnosis Procedure ...............................................

88

B00D5 FRONT PASSENGER AIR BAG OFF
INDICATOR .......................................................

90

DTC Logic  ...............................................................

90

Diagnosis Procedure ...............................................

90

B142A IGNITION VOLTAGE .............................

92

Description ..............................................................

92

DTC Logic  ...............................................................

92

Diagnosis Procedure ...............................................

92

B1427 CONFIG SETTING  .................................

94

DTC Description ......................................................

94

Diagnosis Procedure ...............................................

94

U1000 CAN COMM CIRCUIT ............................

95

Description ..............................................................

95

DTC Logic  ...............................................................

95

Diagnosis Procedure ...............................................

95

U1010 CONTROL UNIT (CAN)  .........................

96

Description ..............................................................

96

DTC Logic  ...............................................................

96

Diagnosis Procedure ...............................................

96

B142X COLLISION DETECTION ......................

97

Description ..............................................................

97

DTC Logic  ...............................................................

97

Diagnosis Procedure ...............................................

97

SYMPTOM DIAGNOSIS  ............................

98

SRS AIR BAG WARNING LAMP DOES NOT
TURN ON ........................................................

SRC-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011403300

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Service

INFOID:0000000011279513

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-

utes.

For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-

tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have

elapsed.

• Diagnosis sensor unit must always be installed with their arrow marks “

⇐” pointing towards the front of the

vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before installa-

tion and replace as required.

• The spiral cable must be aligned in the neutral position since its rotations are limited. Do not turn steering

wheel and column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper functioning after replacing any components.

• After air bag inflates, the front instrument panel assembly should be replaced if damaged.

• Always replace instrument panel pad following front passenger air bag deployment.

Occupant Classification System Precaution

INFOID:0000000011279514

• Replace occupant classification system control unit and passenger front seat cushion as an assembly.

Refer to

SE-32, "DRIVER SIDE : Removal and Installation"

.

COMPONENT PARTS

SRC-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

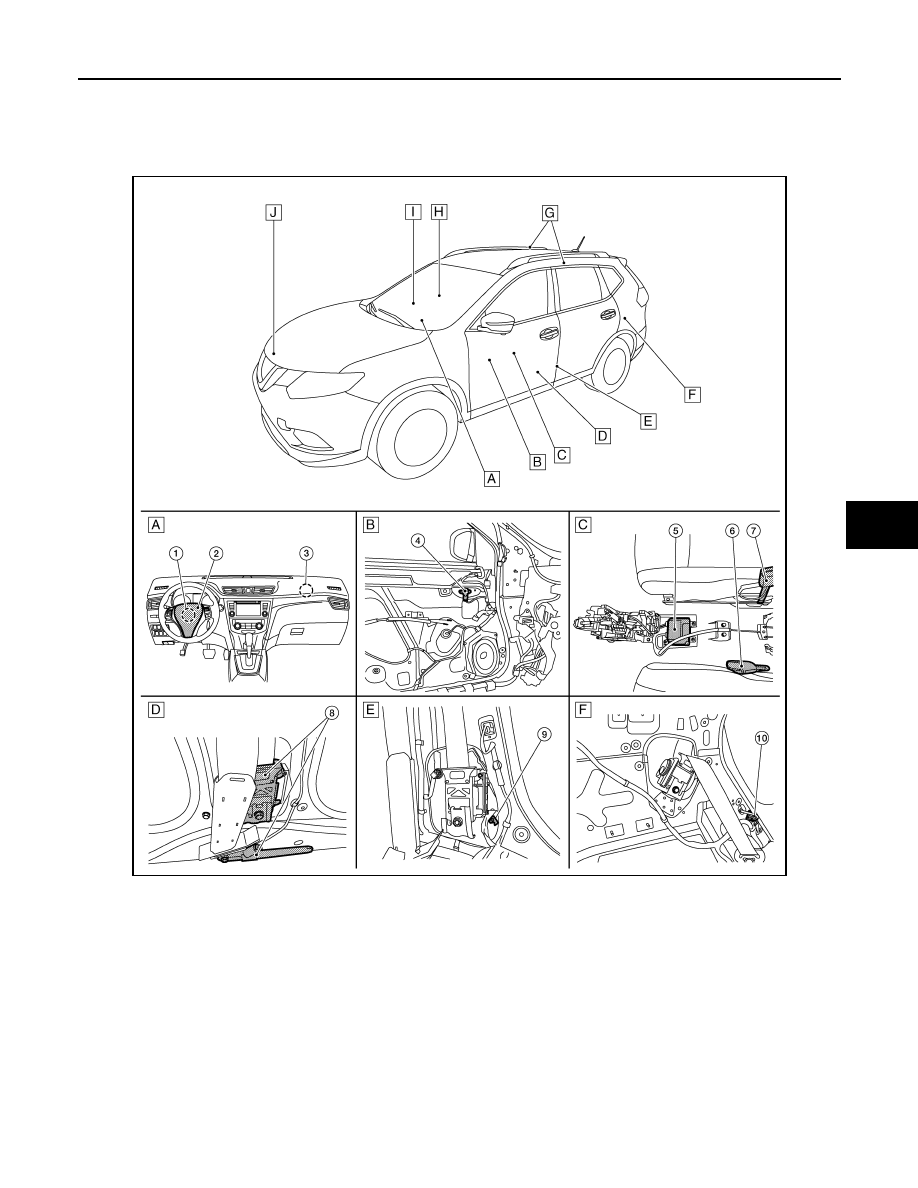

Component Parts Location

INFOID:0000000011279515

AWHIA0690ZZ
