SRS AIR BAG SYSTEM
SRS AIR BAG SYSTEM : System Description

INFOID:0000000011279526

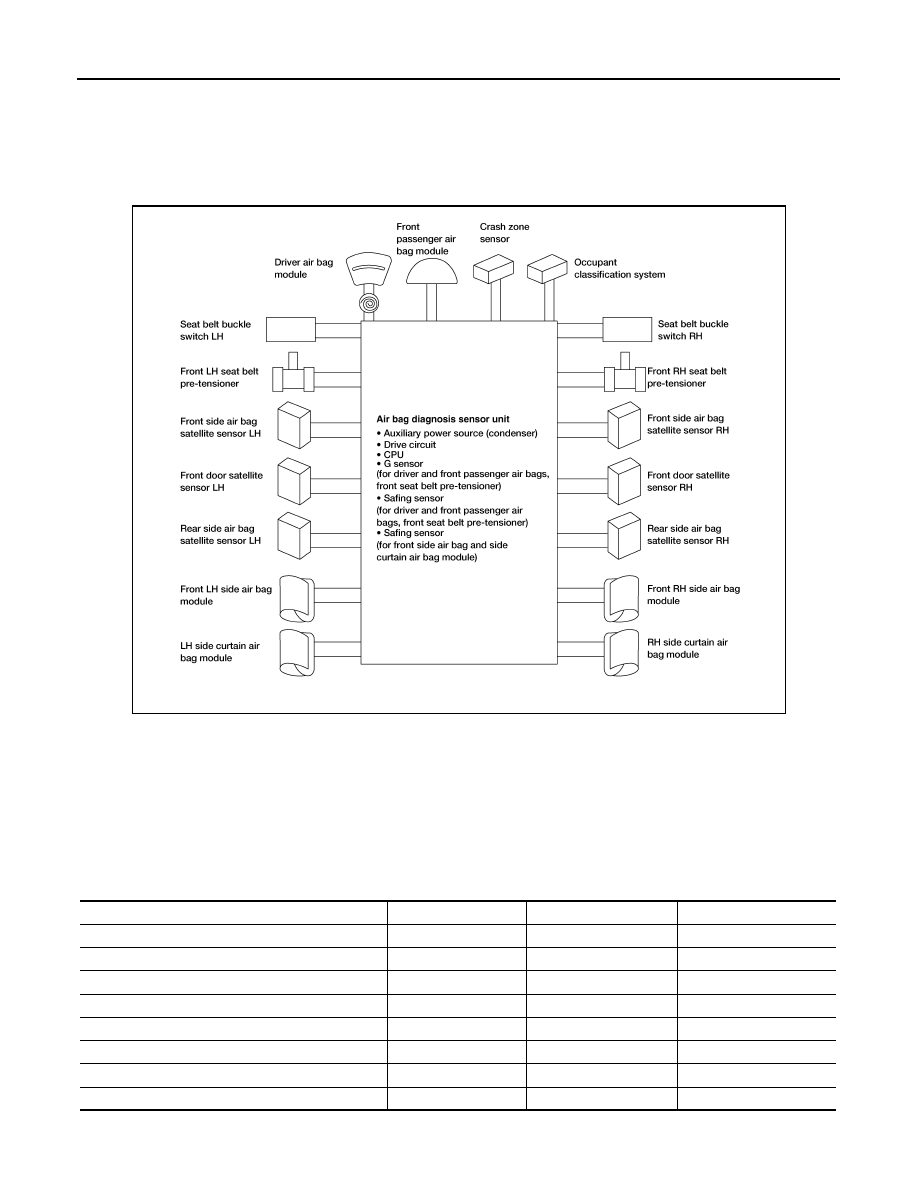

SYSTEM DIAGRAM

DESCRIPTION

• The air bag deploys if the air bag diagnosis sensor unit is activated while the ignition switch is in the ON or

START position.

• The collision modes for which supplemental restraint systems are activated are different among the SRS

systems. For example, the driver air bag module, front passenger air bag module and front seat belt pre-ten-

sioners are activated in a frontal collision but not in a side collision.

SRS Collision Modes

OCCUPANT CLASSIFICATION SYSTEM

AWHIA0629GB

SRS configuration

Frontal collision

Left side collision

Right side collision

Driver air bag module

x

—

—

Front passenger air bag module

x

—

—

Front LH seat belt pre-tensioner

x

—

—

Front RH seat belt pre-tensioner

x

—

—

Front LH side air bag module

—

x

—

Front RH side air bag module

—

—

x

LH side curtain air bag module

—

x

—

RH side curtain air bag module

—

—

x

SYSTEM

SRC-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

OCCUPANT CLASSIFICATION SYSTEM : System Description

INFOID:0000000011279527

SYSTEM DIAGRAM

DESCRIPTION

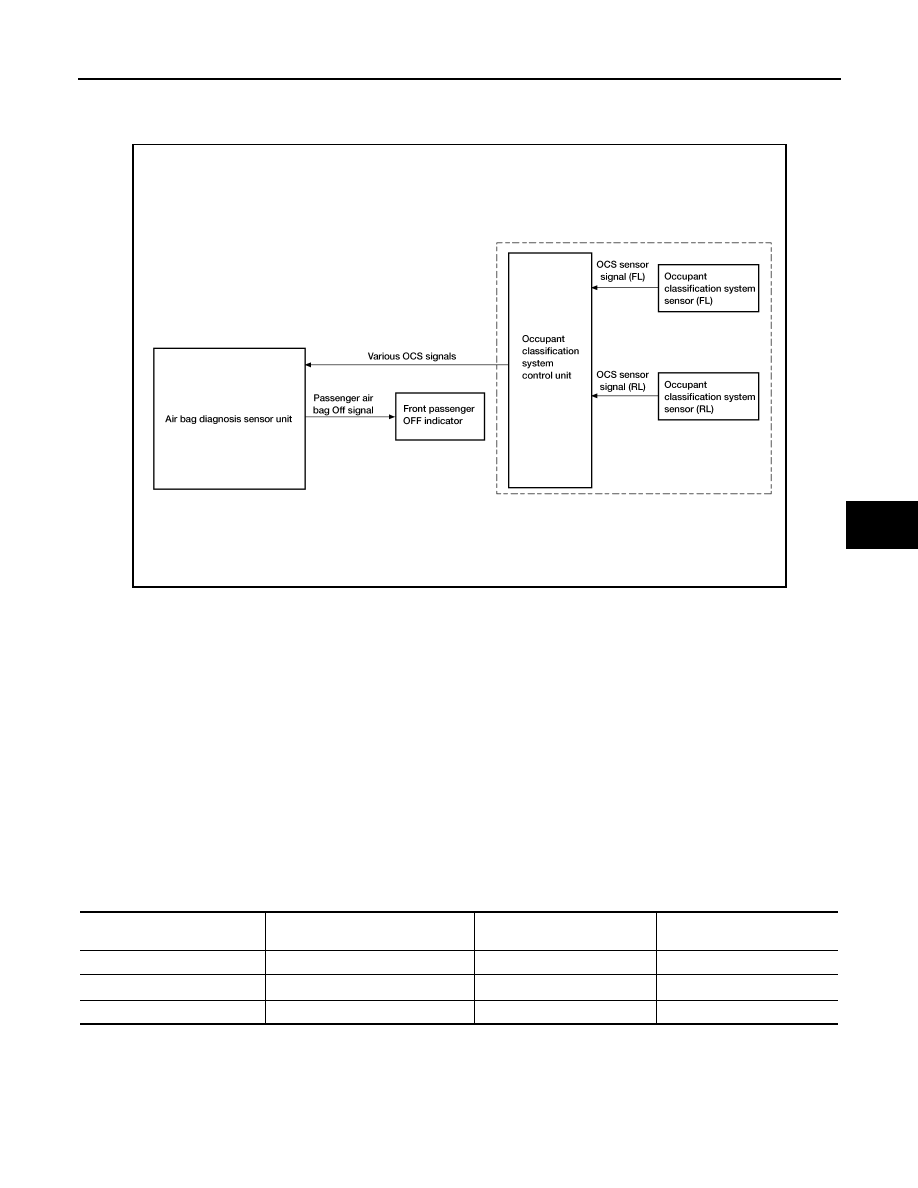

The occupant classification system (OCS) identifies different size occupants, out of position occupants, and

detects if child seat is present in the front passenger seat. The OCS control unit (2) receives inputs from the

occupant classification sensors (1) (located on the passenger seat track assembly). Depending on classifica-

tion of the passenger, the OCS sends a signal to the air bag diagnosis sensor unit. The air bag diagnosis sen-

sor unit uses this signal and the seat belt buckle switch RH signal to determine deployment or non deployment

of the passenger front air bag in the event of a collision. Depending on the signals received, the air bag diag-

nosis sensor unit can disable the passenger front air bag completely. The OCS (weight sensors) must be set

to zero point using CONSULT after servicing the OCS system.

NOTE:

• CONSULT can be used to confirm when “zero point reset” for OCS is complete.

• Always perform zero point reset after the removal and installation of the seat or when disconnecting the

OCS control unit harness connector even if zero point reset has been completed in the past.

• If zero point reset is incomplete, the passenger air bag will be disabled and the passenger air bag off indica-

tor will be ON.

• In case of customer concern, CONSULT can be used to confirm the passenger air bag status (readiness).

Passenger Air Bag Status Conditions

NOTE:

ALHIA0367GB

Front Passenger Seat

(Condition)

PASS AIR BAG OFF Indicator

(Status)

Passenger Air Bag Status

(Readiness)

CONSULT Display

Seat occupied

OFF

Active (enabled)

ON

Seat occupied

NOTE

ON

Deactivated (disabled)

OFF

Seat empty

OFF

Deactivated (disabled)

OFF

SRC-12

< SYSTEM DESCRIPTION >

SYSTEM

Passenger does not meet Occupant Classification System specifications for passenger air bag activation.

SEAT BELT WARNING LAMP SYSTEM
SEAT BELT WARNING LAMP SYSTEM : System Description

INFOID:0000000011279528

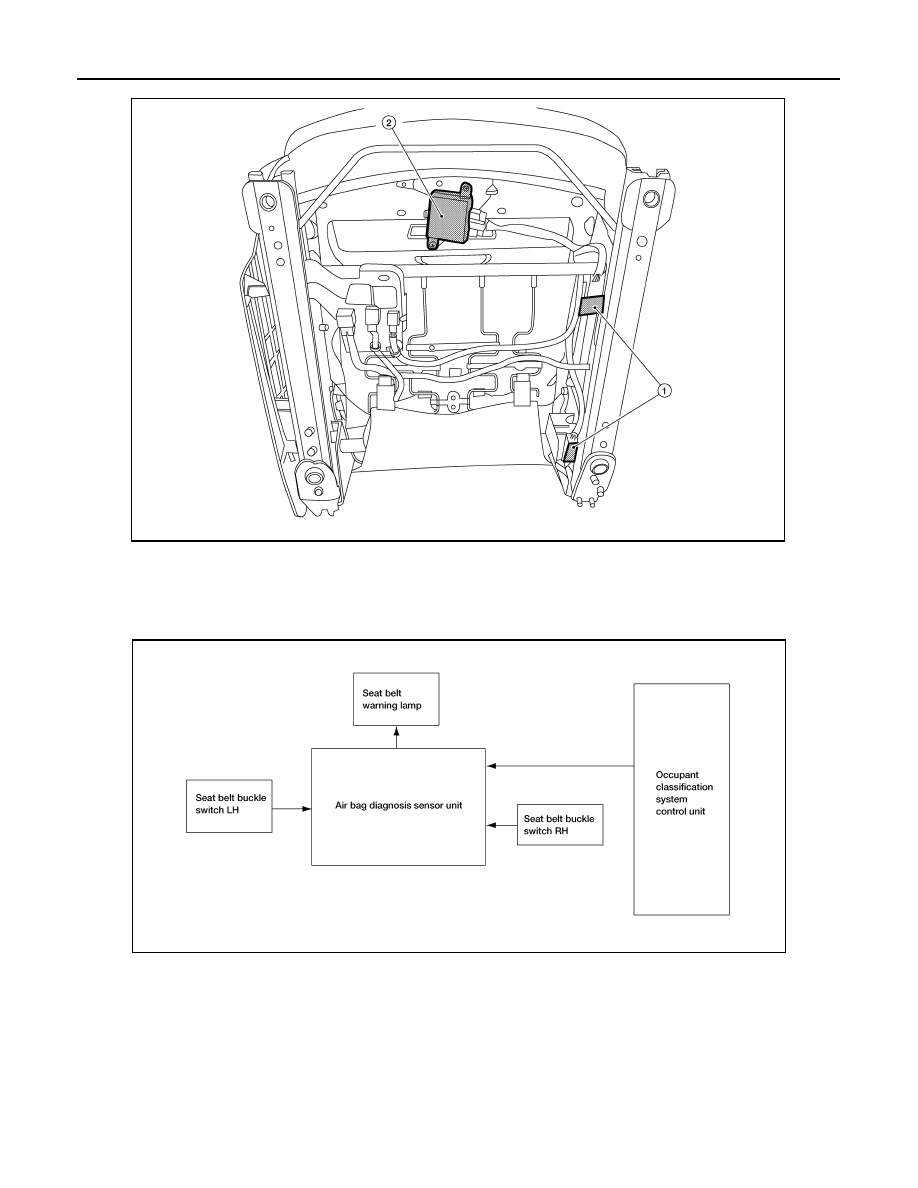

SYSTEM DIAGRAM

AWHIA0610ZZ

AWHIA0694GB

SYSTEM

SRC-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

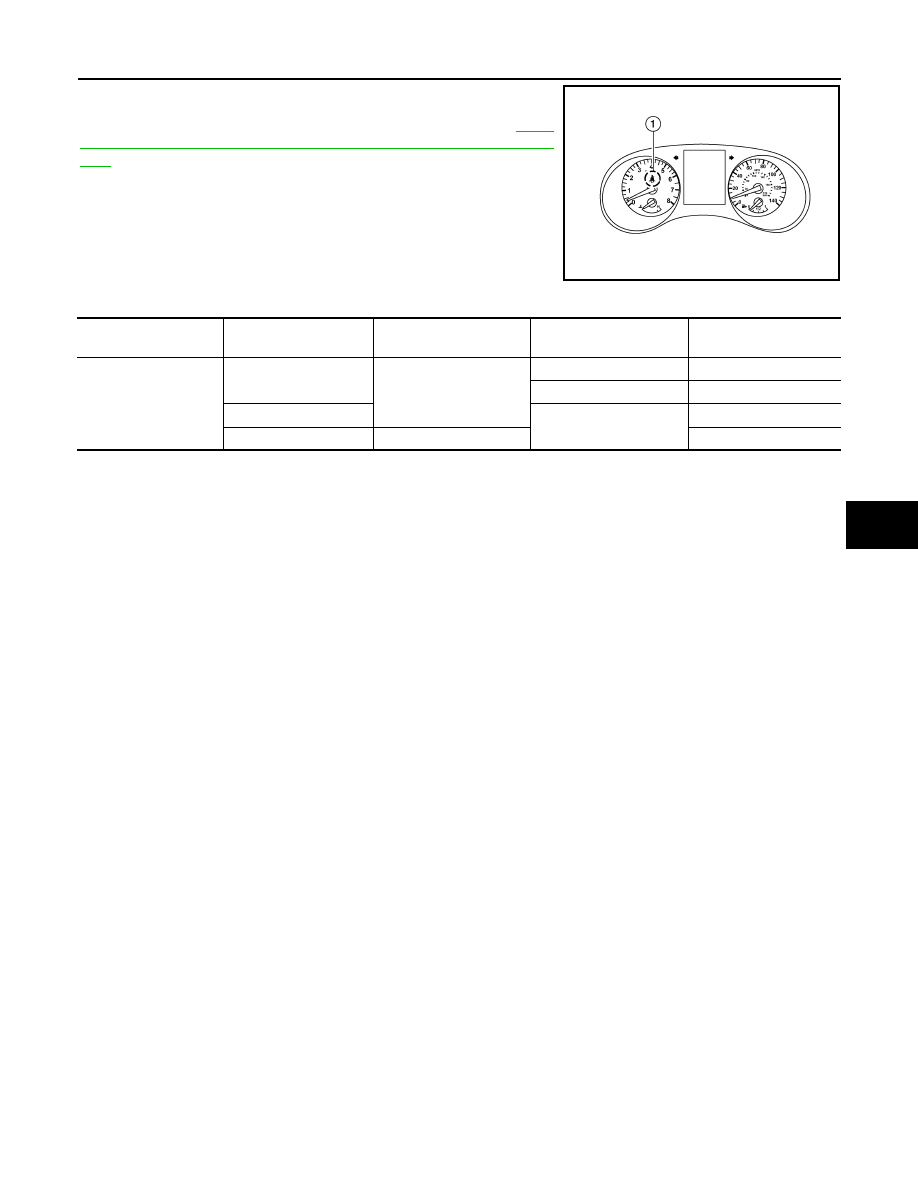

The seat belt warning lamp (1) will remind the driver if the driver or

front passenger seat belt should be buckled. The system works in

conjunction with the occupant classification system. Refer to

SRC-

11, "OCCUPANT CLASSIFICATION SYSTEM : System Descrip-

tion"

.

Seat Belt Warning System Operation

AWHIA0617ZZ

Driver seat status
(Ignition switch ON)

Passenger seat status

Seat belt buckle switch
LH status

Seat belt buckle switch
RH status

Seat belt warning lamp

Seat occupied

Seat occupied

Buckled

Buckled

Off

Unbuckled

On

Seat unoccupied

—

Off

—

Unbuckled

On
