BCS-42

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM

115
(W)

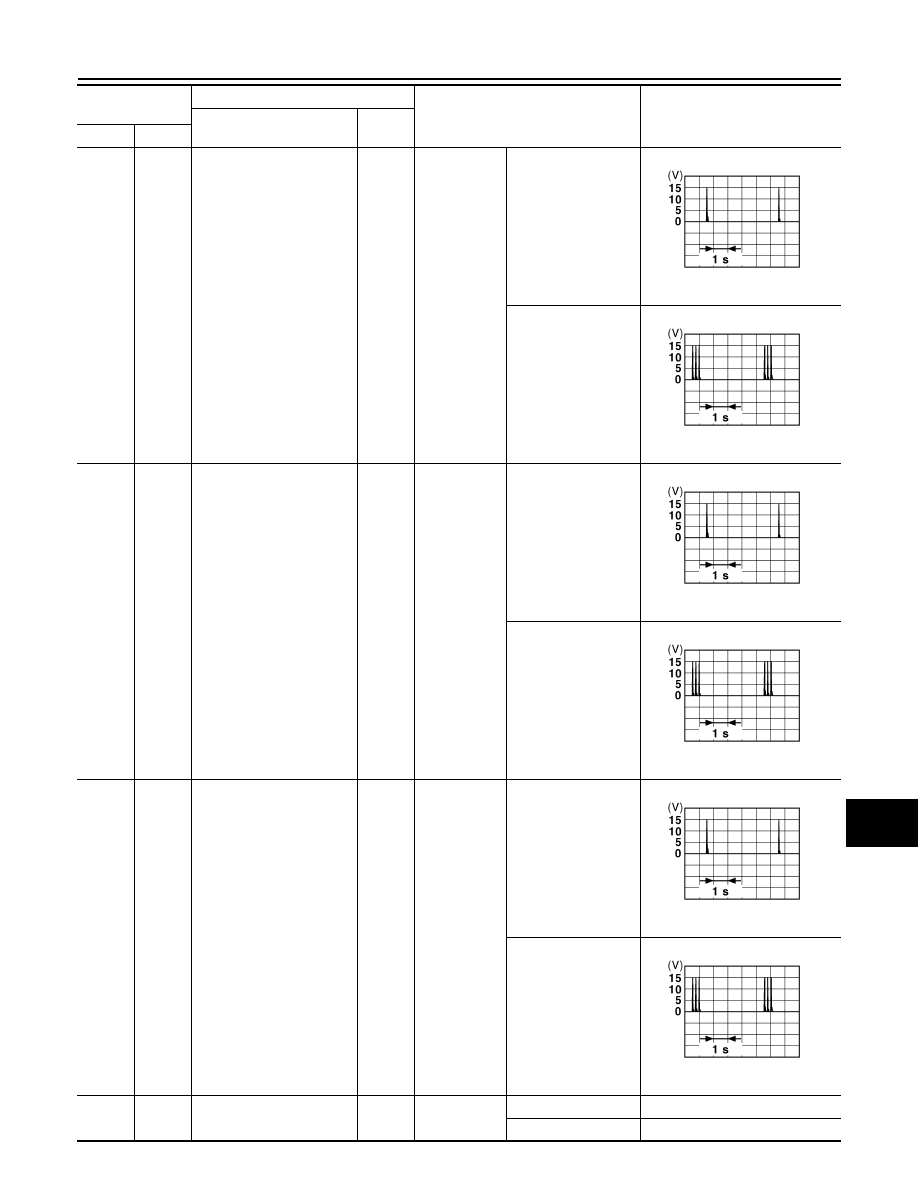

Ground NATS antenna amp. A

Output

During wait-
ing

Intelligent Key back-
side is contacted to
push-button ignition
switch, turn ignition
switch ON.

Just after pressing push-button

ignition switch. Pointer of analog

volt meter should move.

116

(BG)

Ground

Inside key antenna (instru-
ment center) B

Output

Push-button
ignition switch
OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

117

(GR)

Ground

Inside key antenna (instru-
ment center) A

Output

Push-button
ignition switch
OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

BCS

BCM

BCS-43

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

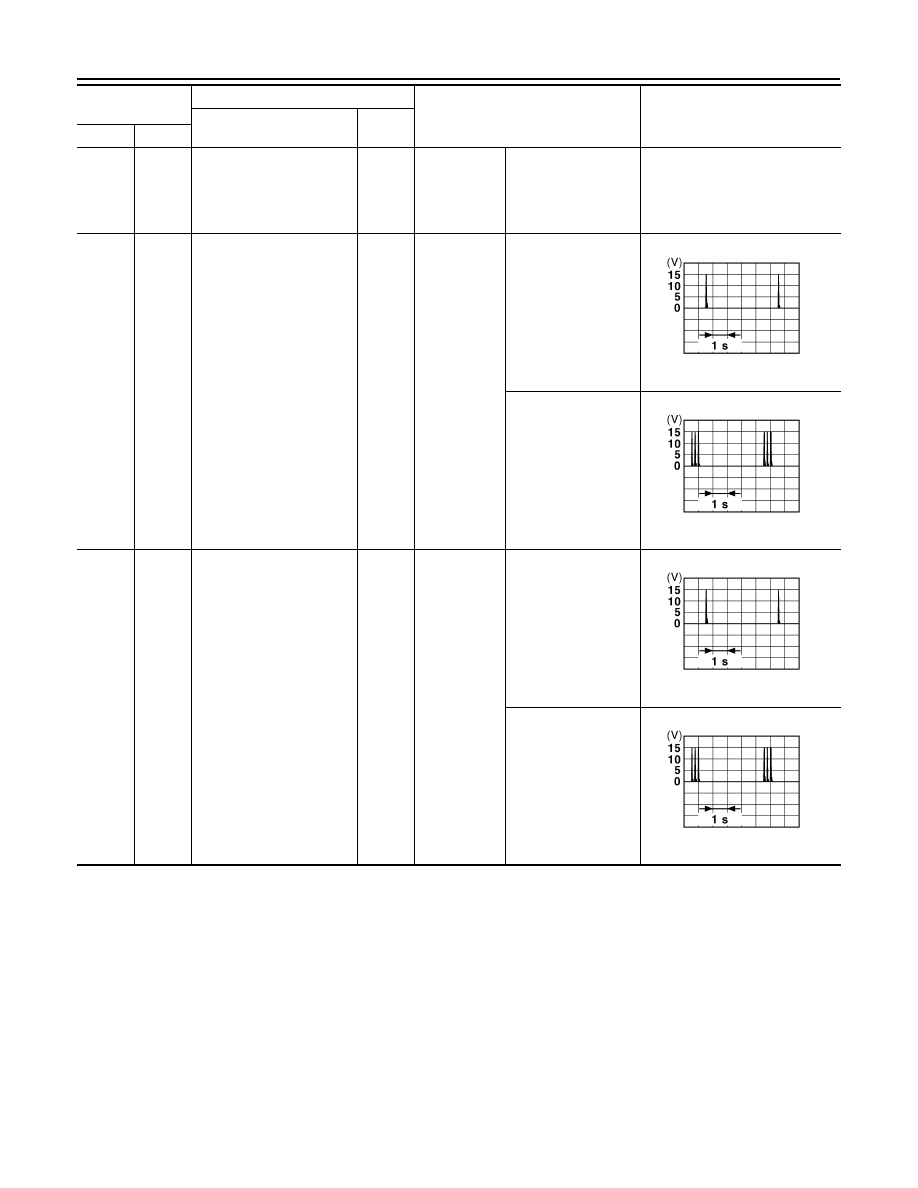

118

(SB)

Ground

Outside key antenna (pas-
senger side) B

Output

Front outside
handle as-
sembly RH
request
switch operat-
ed with push-
button ignition
switch OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

119

(P)

Ground

Outside key antenna (pas-
senger side) A

Output

Front outside
handle as-
sembly RH
request
switch operat-
ed with push-
button ignition
switch OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

120

(BR)

Ground

Outside key antenna (driv-
er side) B

Output

Front outside
handle as-
sembly LH re-
quest switch
operated with
push-button
ignition switch
OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

125

(LG)

Ground Stop lamp switch signal

Input

Brake pedal

Released

0V

Depressed

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

BCS-44

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM

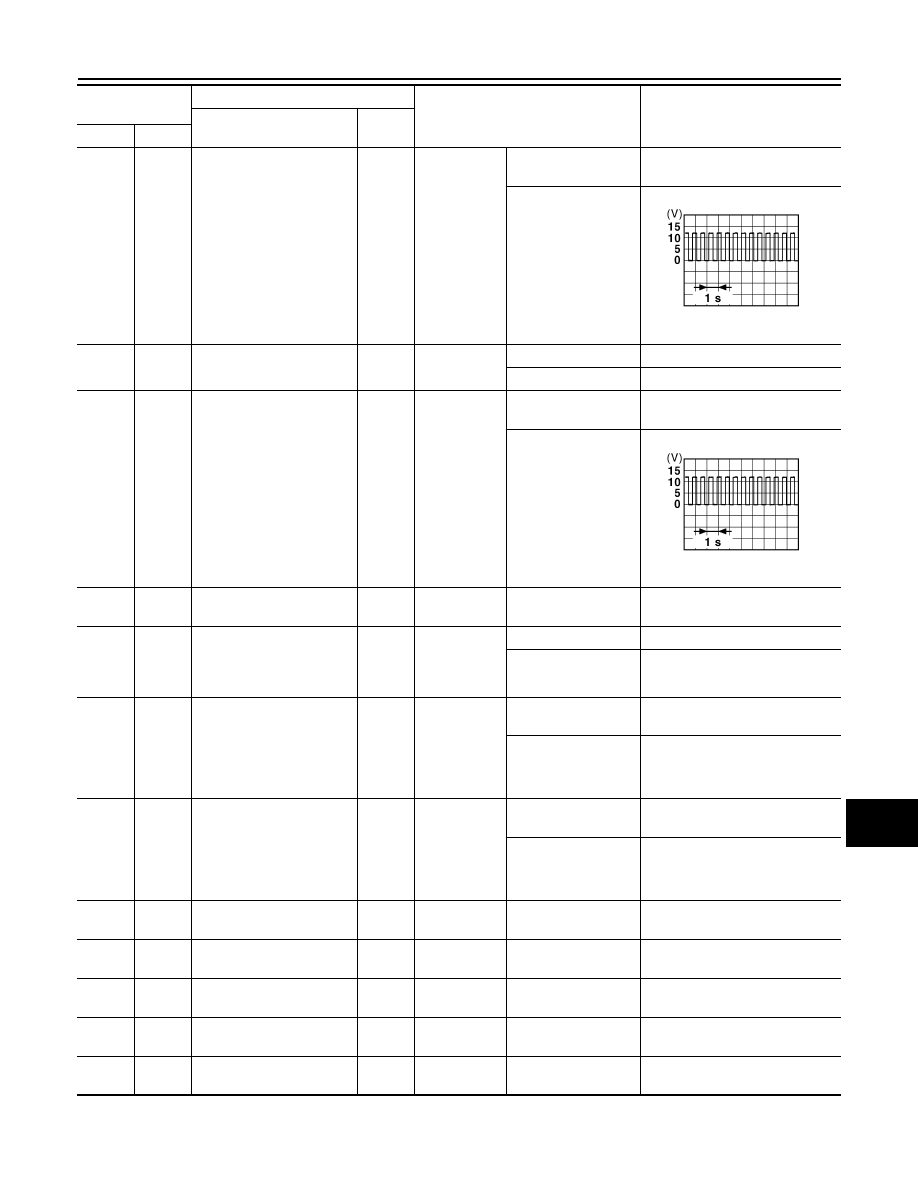

126
(W)

Ground

Brake pedal position switch
signal

Input

Brake pedal

Released

0V

Depressed

Battery voltage

132

(Y)

Ground

Intelligent Key warning
buzzer output

Output

Intelligent
Key warning
buzzer

Sounding

0V

Not sounding

Battery voltage

135

(BR)

Ground

Front combination lamp LH
turn signal lamp output

Output

Push-button
ignition switch
ON

Turn signal switch
OFF

0V

Turn signal switch LH

6.5 V

136

(GR)

Ground

Front combination lamp RH
turn signal lamp output

Output

Push-button
ignition switch
ON

Turn signal switch
OFF

0V

Turn signal switch RH

6.5 V

139

(G)

Ground Starter cut relay control

Output

Push-button
ignition switch

OFF

Battery voltage

ON

0V

145

(LA/V)

Ground

Back door lock assembly
opener motor open

Output

Back door
opener switch
pressed

Open (motor activat-
ed)

Battery voltage

Back door
opener switch
released

Closed (motor not ac-
tivated)

0V

147

(LA/R)

Ground Rear wiper output

Output

Rear wiper

OFF

0V

ON

Battery voltage

148
(W)

Ground

Rear door lock actuator LH
and RH actuator unlock

Output

Main power
window and
door lock/un-
lock switch
(door lock/un-
lock switch)

Unlock (actuator acti-
vated)

Battery voltage

Lock (actuator not ac-
tivated)

0V

149

(L)

Ground

Rear door lock actuator LH
and RH actuator lock

Output

Main power
window and
door lock/un-
lock switch
(door lock/un-
lock switch)

Lock (actuator acti-
vated)

Battery voltage

Unlock (actuator not
activated)

0V

151

(R)

Ground

Luggage lamp control
(pwm)

Output

Room lamp
relay

OFF

Battery voltage

ON

0V

153

(LA/W)

Ground

Rear combination lamp RH
stop lamp output

Output

Brake pedal

Released

0V

Depressed

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

PKID0926E

PKID0926E

BCS

BCM

BCS-45

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

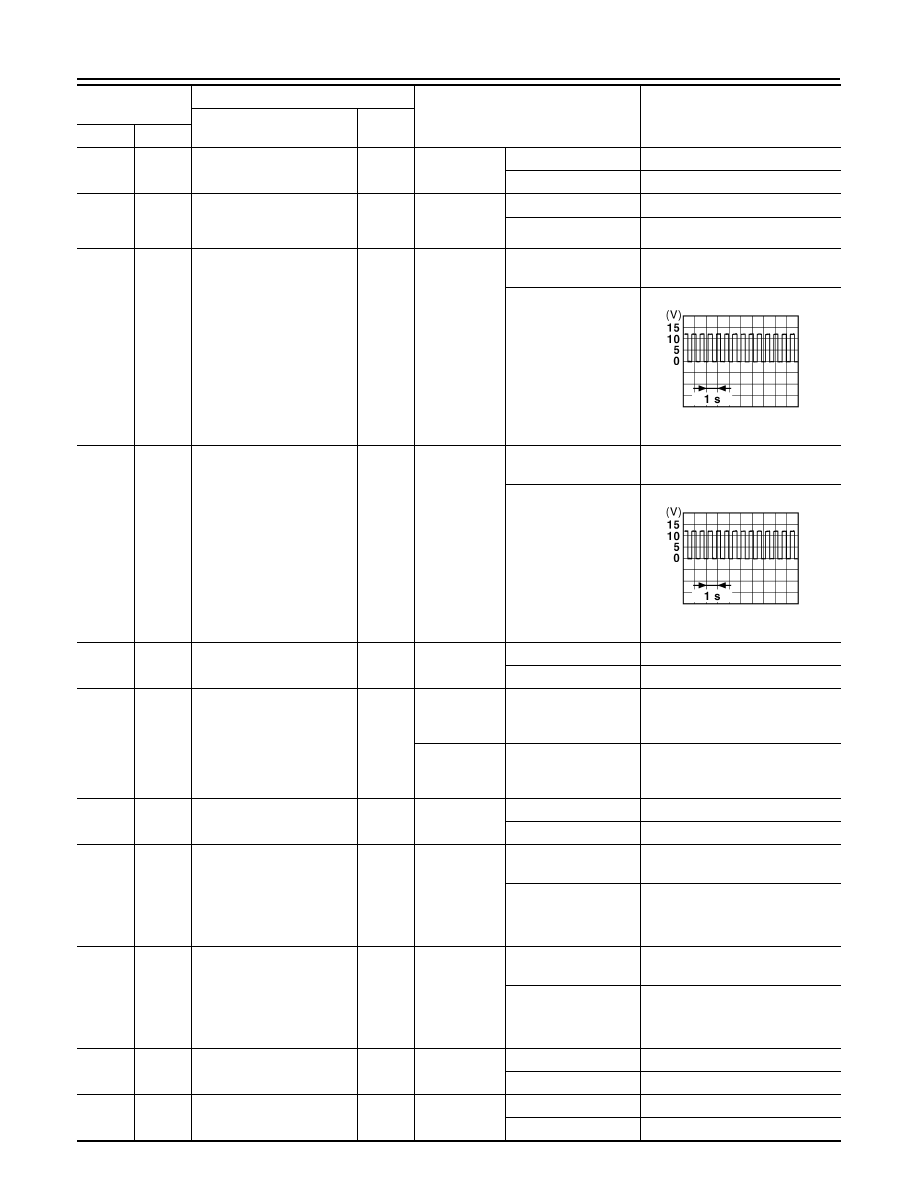

157

(GR)

Ground

Rear combination lamp LH
turn signal/hazard lamp
output

Output

Push-button
ignition switch
ON

Turn signal switch
OFF

0V

Turn signal switch LH

6.5 V

158

(LA/Y)

Ground

Rear combination lamp LH
stop lamp output

Output

Brake pedal

Released

0V

Depressed

Battery voltage

160

(P)

Ground

Rear combination lamp RH
turn signal/hazard lamp
output

Output

Push-button
ignition switch
ON

Turn signal switch
OFF

0V

Turn signal switch RH

6.5 V

161
(W)

Ground BCM power supply

Input

Push-button
ignition switch

OFF

Battery voltage

162

(SB)

Ground Interior lamp control (pwm)

Output

Map lamp
and/or per-
sonal lamp
2nd row

OFF

Battery voltage

DOOR

0V

163

(L)

Ground

Front door lock actuator RH
actuator unlock

Output

Main power
window and
door lock/un-
lock switch
(door lock/un-
lock switch)

Unlock (actuator acti-
vated)

Battery voltage

Lock (actuator not ac-
tivated)

0V

165

(V)

Ground

Front door lock actuator LH
and RH actuator lock

Output

Main power
window and
door lock/un-
lock switch
(door lock/un-
lock switch)

Lock (actuator acti-
vated)

Battery voltage

Unlock (actuator not
activated)

0V

167

(LA/V)

Ground

Power door lock battery
power supply

Input

Push-button
ignition switch

OFF

Battery voltage

168

(BG)

Ground

Turn signal/hazard battery
power supply

Input

Push-button
ignition switch

OFF

Battery voltage

169

(GR)

Ground

Stop lamp battery power
supply

Input

Push-button
ignition switch

OFF

Battery voltage

170

(B)

Ground Ground1

Input

Push-button
ignition switch

ON

0V

171

(B)

Ground Ground2

Input

Push-button
ignition switch

ON

0V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

PKID0926E

PKID0926E
