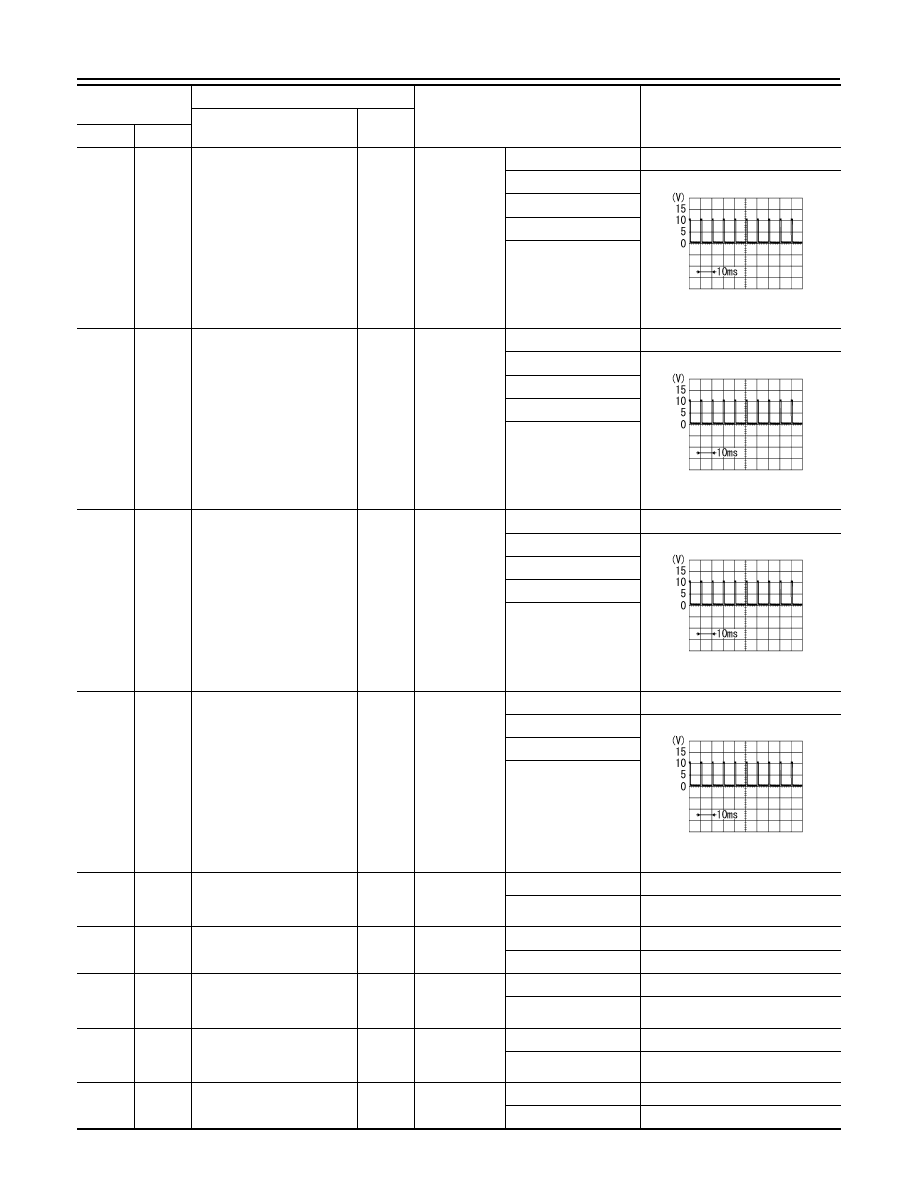

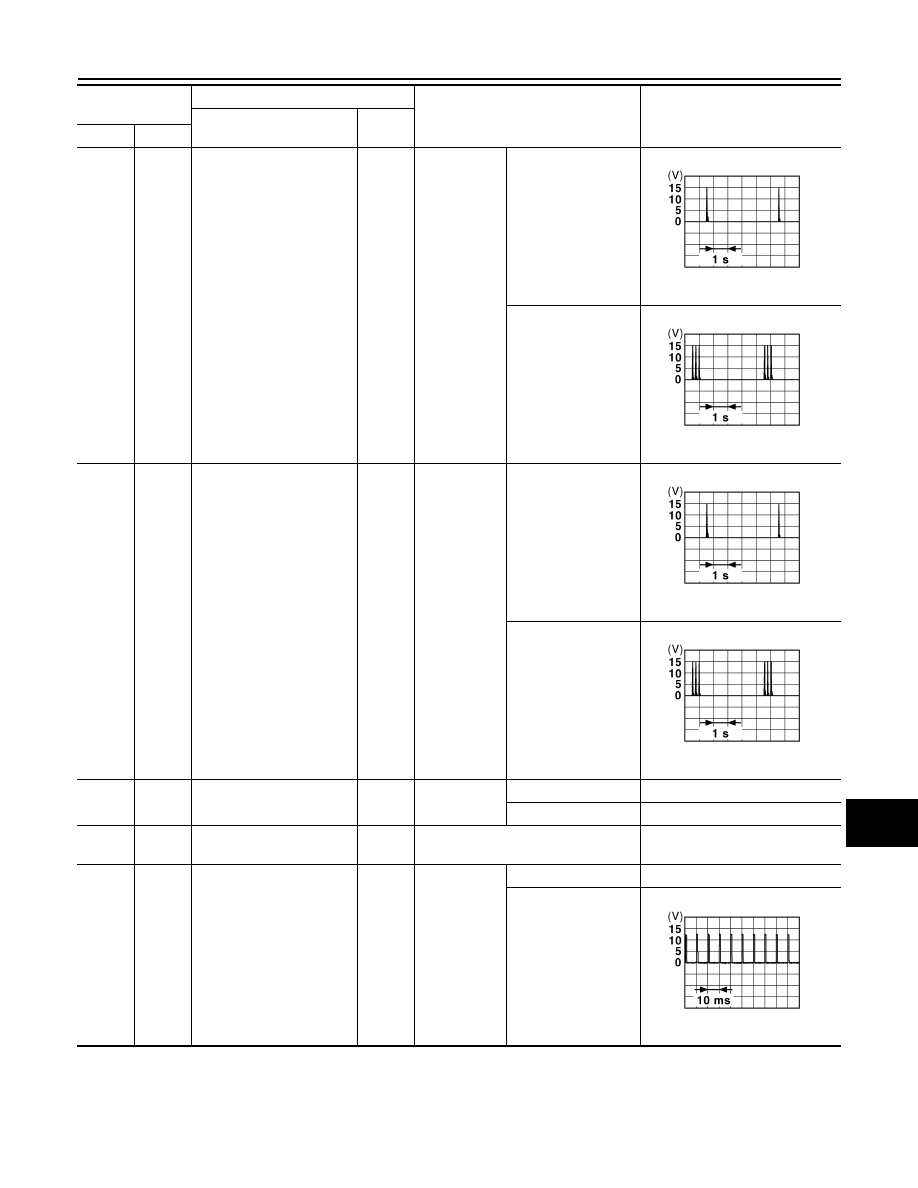

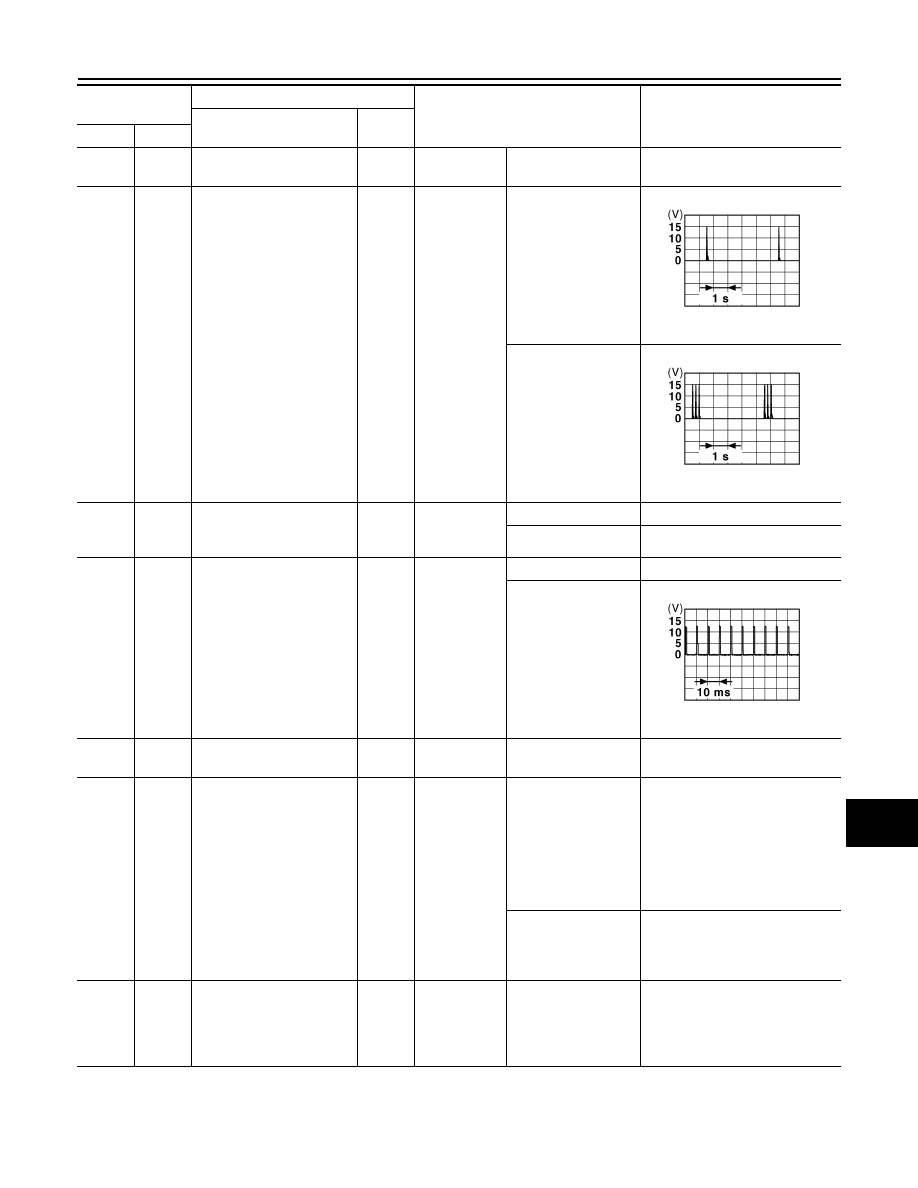

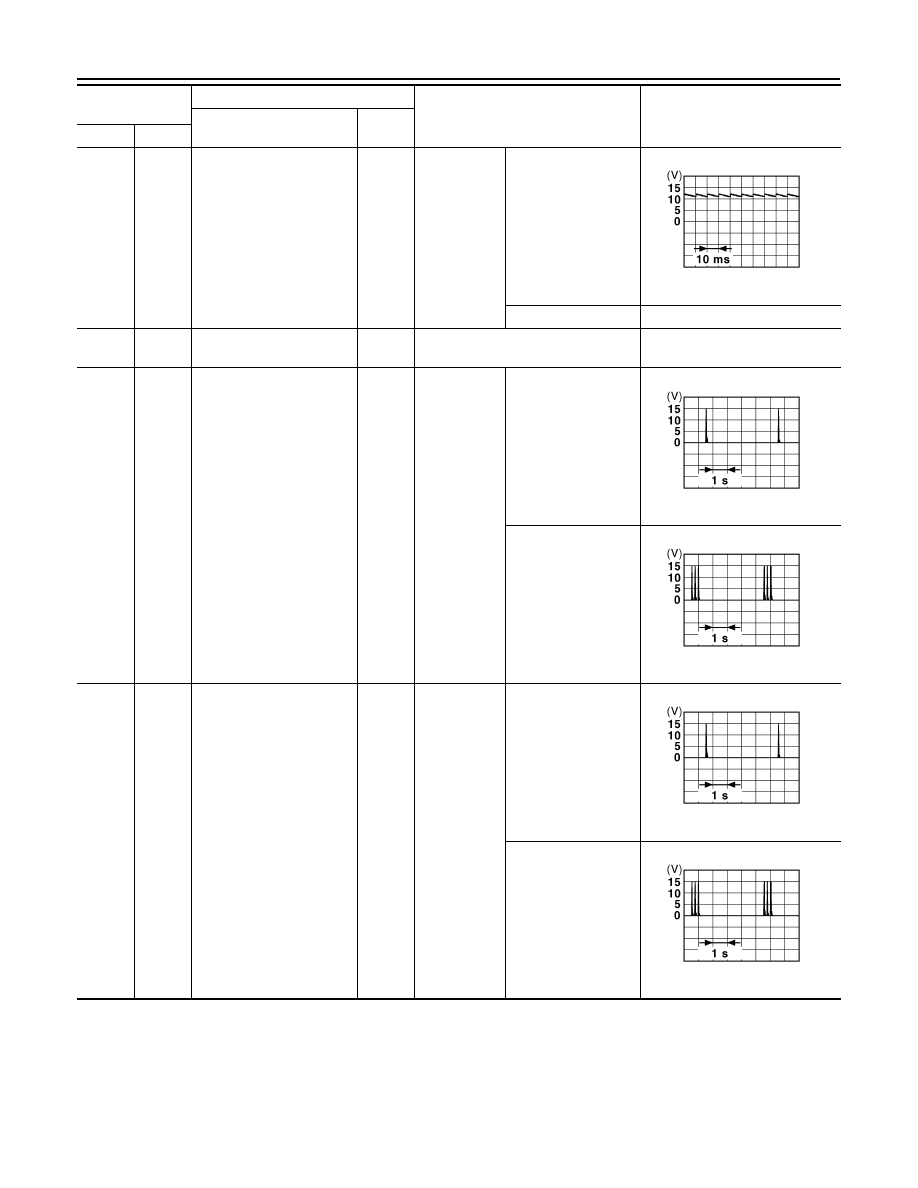

Nissan Rogue. Manual - part 108





BCS-38

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM

57

(SB)

Ground Driver door switch

Input

Front door
switch LH

OFF (door closed)

11.8V

ON (door open)

0V

60

(L)

Ground CAN high

Input/

Output

61

(BR)

Ground

Outside key antenna (rear
bumper) B

Output

Back door re-
quest switch
operated with
push-button
ignition switch
OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

62

(Y)

Ground

Inside key antenna (con-
sole) B

Output

Push-button
ignition switch
OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JPMIA0011GB

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

BCS

BCM

BCS-39

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

63

(L)

Ground

Inside key antenna (con-
sole) A

Output

Push-button
ignition switch
OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

64

(G)

Ground

Outside key antenna (rear
bumper) A

Output

Back door re-
quest switch
operated with
push-button
ignition switch
OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

79

(LA/W)

Ground

High-mounted stop lamp
output

Output

Brake pedal

Released

0V

Depressed

Battery voltage

80

(P)

Ground CAN low

Input/

Output

82

(W)

Ground Passenger request switch

Input

Front outside
handle as-
sembly RH
request
switch

ON (pressed)

0V

OFF (released)

1.0V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JMKIA0062GB

JMKIA0063GB

JMKIA0062GB

JMKIA0063GB

JPMIA0016GB

BCS-40

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM

84

(BR)

Ground Combination switch input 2

Input

Combination
switch
(Wiper inter-
mittent dial 1)

OFF

0V

HI BEAM

1.0V

RR WASHER

FR WIPER HI

INT VOLUME 3

85

(SB)

Ground Combination switch input 1

Input

Combination
switch
(Wiper inter-
mittent dial 1)

OFF

0V

INT VOLUME 1

1.0V

FR WASHER

FR WIPER LOW

INT VOLUME 2

86

(P)

Ground Combination switch input 3

Input

Combination
switch
(Wiper inter-
mittent dial 1)

OFF

0V

PASSING

1.0V

HEADLAMP

FR WIPER INT

RR WIPER INT

87

(BG)

Ground Combination switch input 4

Input

Combination
switch
(Wiper inter-
mittent dial 1)

OFF

0V

AUTO LIGHT

1.0V

TURN LH

RR WIPER ON

88

(W)

Ground Start switch backlight LED

Output

Push-button
ignition switch
illumination

ON

5.5V

OFF

0V

89

(Y)

Ground Push-button ignition switch

Input

Push-button
ignition switch

Pressed

0V

Not pressed

Battery voltage

92

(BR)

Ground

Front door lock assembly
LH key cylinder switch lock
signal

Input

Key cylinder
switch

OFF (neutral)

Battery voltage

ON (lock)

0V

93

(P)

Ground

Front door lock assembly
LH key cylinder switch un-
lock signal

Input

Key cylinder
switch

OFF (neutral)

Battery voltage

ON (unlock)

0V

94

(G)

Ground

CVT shift selector park po-
sition switch signal

Input

Selector lever

P position

0V

Except P position

Battery voltage

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

PKIB4958J

PKIB4958J

PKIB4958J

PKIB4958J

BCS

BCM

BCS-41

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

95

(V)

Ground Shorting input

Input

Push-button
ignition switch

OFF

Battery voltage

100

(V)

Ground

Outside key antenna (driv-
er side) A

Output

Front outside
handle as-
sembly LH re-
quest switch
operated with
push-button
ignition switch
OFF

Intelligent Key in an-
tenna detection area

Intelligent Key not in
antenna detection
area

104

(R)

Ground

Front door lock assembly
LH knob switch unlock sig-
nal

Input

Door lock
knob

OFF (lock)

Battery voltage

ON (unlock)

0V

105

(Y)

Ground Driver request switch

Input

Front outside
handle as-
sembly LH re-
quest switch

ON (pressed)

0V

OFF (released)

1.0V

106
(W)

Ground

Audio unit/AV control unit
accessory power supply

Input

Push-button
ignition switch

ON

Battery voltage

110

(BG)

Ground

Dimmer signal output (MR
output)

Output

Push-button
ignition switch
ON

Either of the following
conditions
• Lighting switch

OFF

• The area around

the vehicle is bright
(Shine a light on
the optical sensor)

0V

The area around the
vehicle is dark (Block
the light from the opti-
cal sensor)

Battery voltage

114

(Y)

Ground NATS antenna amp. B

Output

During wait-
ing

Intelligent Key back-
side is contacted to
push-button ignition
switch, turn ignition
switch ON.

Just after pressing push-button

ignition switch. Pointer of analog

volt meter should move.

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

JMKIA0062GB

JMKIA0063GB

JPMIA0016GB
