Nissan Rogue. Manual - part 106





BCS-30

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM

HI BEAM SW

High beam switch OFF

Off

High beam switch HI

On

ID OK FLAG

Ignition switch ON

Reset

Ignition switch OFF

Set

IGN REQ -IPDM

Ignition switch OFF

Off

Ignition switch ON

On

IGN RLY1 F/B

Ignition switch OFF

Off

Ignition switch ON

On

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

IS STATUS -ECM

IS status OFF

Off

IS status ON

On

I-KEY OK FLAG

I-Key OFF

Key OFF

I-Key ON

Key ON

KEY CYL LK-SW

Door key cylinder LOCK position

Off

Door key cylinder other than LOCK position

On

KEY CYL UN-SW

Door key cylinder UNLOCK position

Off

Door key cylinder other than UNLOCK position

On

KEY CYL SW-TR

Back door key cylinder UNLOCK position

Off

Back door key cylinder other than UNLOCK position

On

LIGHT OFF SW

Headlamp switch ON

Off

Headlamp switch OFF

On

NEUTRAL SW-IPDM

Selector lever N (Neutral) position

Off

Selector lever any position except N (Neutral)

On

OPTI SEN (DTCT)

Bright outside of the vehicle

Close to 5V

Dark outside of the vehicle

Close to 0V

OPTI SEN (FILT)

Bright outside of the vehicle

Close to 5V

Dark outside of the vehicle

Close to 0V

OPTICAL SENSOR

Optical sensor OFF

Off

Optical sensor ON

On

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

PRBT ENG STRT

When the engine start is prohibited

Reset

When the engine start is permitted

Set

PRMT ENG STRT

When the engine start is prohibited

Reset

When the engine start is permitted

Set

PRMT RKE STRT

When the engine start is prohibited

Reset

When the engine start is permitted

Set

PUSH SW

Return ignition switch to LOCK position

Off

Press ignition switch

On

PUSH SW-IPDM

When engine switch (push switch) is not pressed

Off

When engine switch (push switch) is pressed

On

REAR DEF SW

Rear window defogger switch OFF

Off

Rear window defogger switch ON

On

Monitor Item

Condition

Value/Status

BCS

BCM

BCS-31

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REQ SW-AS

When passenger door request switch is not pressed

Off

When passenger door request switch is pressed

On

REQ SW-BD/TR

When back door request switch is not pressed

Off

When back door request switch is pressed

On

REQ SW-DR

When driver door request switch is not pressed

Off

When driver door request switch is pressed

On

REVERSE SIGNAL -
IPDM

Selector lever R (Reverse) position

Off

Selector lever any position except R (Reverse)

On

RKE-LOCK

When LOCK button of Intelligent Key is not pressed

Off

When LOCK button of Intelligent Key is pressed

On

RKE-MODE CHG

When LOCK/UNLOCK button of Intelligent Key is not pressed and
held simultaneously

Off

When LOCK/UNLOCK button of Intelligent Key is pressed and held
simultaneously

On

RKE OPE COUN1

Operation frequency of Intelligent Key

0-19

RKE OPE COUN2

Operation frequency of Intelligent Key

0-19

RKE-PANIC

When PANIC button of Intelligent Key is not pressed

Off

When PANIC button of Intelligent Key is pressed

On

RKE PBD

I-Key automatic back door button not pressed

Off

I-Key automatic back door button pressed

On

RKE-TR/BD

When BACK DOOR OPEN button of Intelligent Key is not pressed

Off

When BACK DOOR OPEN button of Intelligent Key is pressed

On

RKE-UNLOCK

When UNLOCK button of Intelligent Key is not pressed

Off

When UNLOCK button of Intelligent Key is pressed

On

RR WASHER SW

Rear washer switch OFF

Off

Rear washer switch ON

On

RR WIPER INT

Rear wiper switch OFF

Off

Rear wiper switch INT

On

RR WIPER ON

Rear wiper switch OFF

Off

Rear wiper switch ON

On

RR WIPER STOP

Any position other than rear wiper stop position

Off

Rear wiper stop position

On

SFT PN -IPDM

When selector lever is in any position other than P or N

Off

When selector lever is in P or N position

On

STARTER CUT RELAY -
ECM

Starter cut relay OFF

Off

Starter cut relay ON

On

STARTER RELAY -IPDM

Starter relay OFF

Off

Starter relay ON

On

STARTER REQ -IPDM

Starter OFF

Off

Starter ON

On

ST/INH RELAY - IPDM

Starter and starter control relay OFF

Off

Starter and starter control relay ON

On

TAIL LAMP SW

Lighting switch OFF

Off

Lighting switch ON

On

Monitor Item

Condition

Value/Status

BCS-32

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

BCM

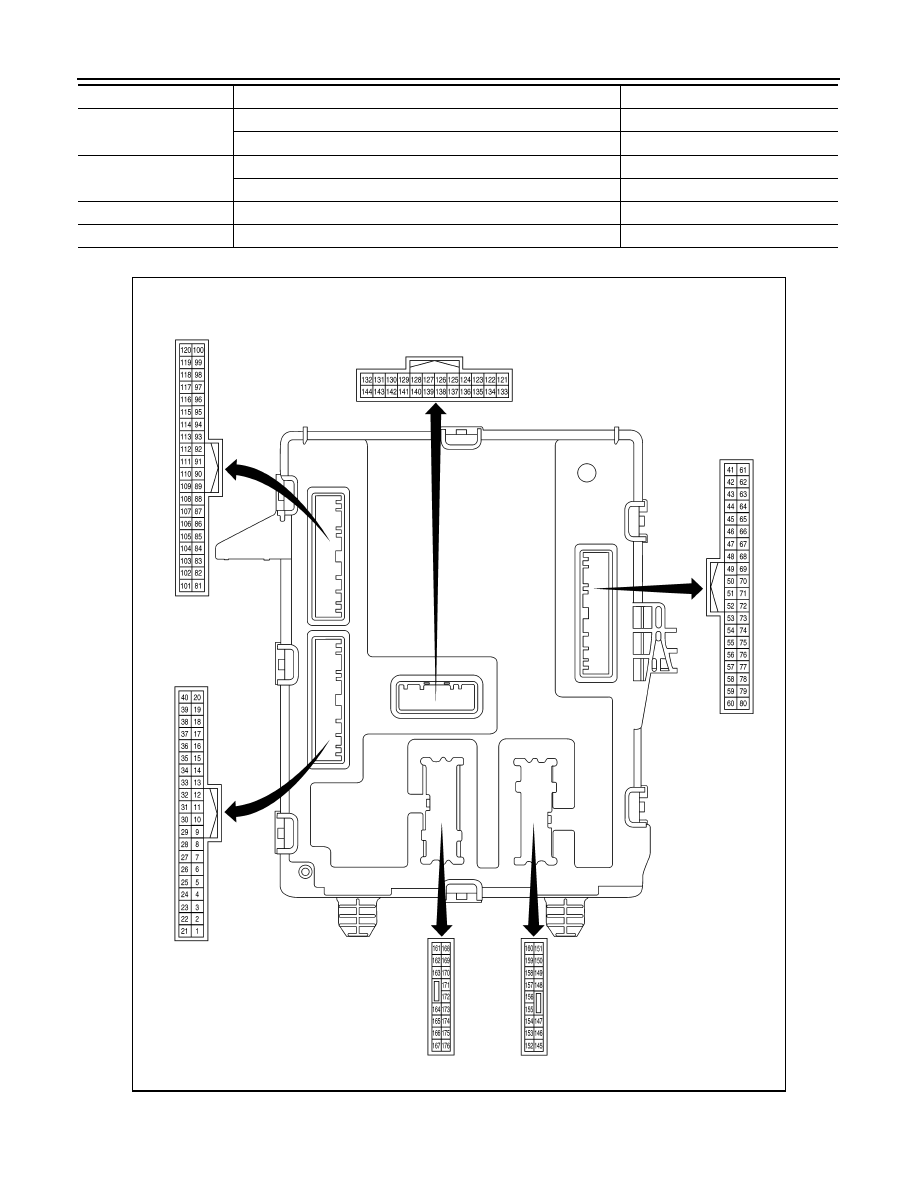

TERMINAL LAYOUT

PHYSICAL VALUES

TURN SIGNAL L

Turn signal switch OFF

Off

Turn signal switch LH

On

TURN SIGNAL R

Turn signal switch OFF

Off

Turn signal switch RH

On

VEH SPEED 1

While driving, equivalent to speedometer reading

mph, km/h

VEH SPEED 2

While driving, equivalent to speedometer reading

mph, km/h

Monitor Item

Condition

Value/Status

ALMIA0710ZZ

BCS

BCM

BCS-33

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

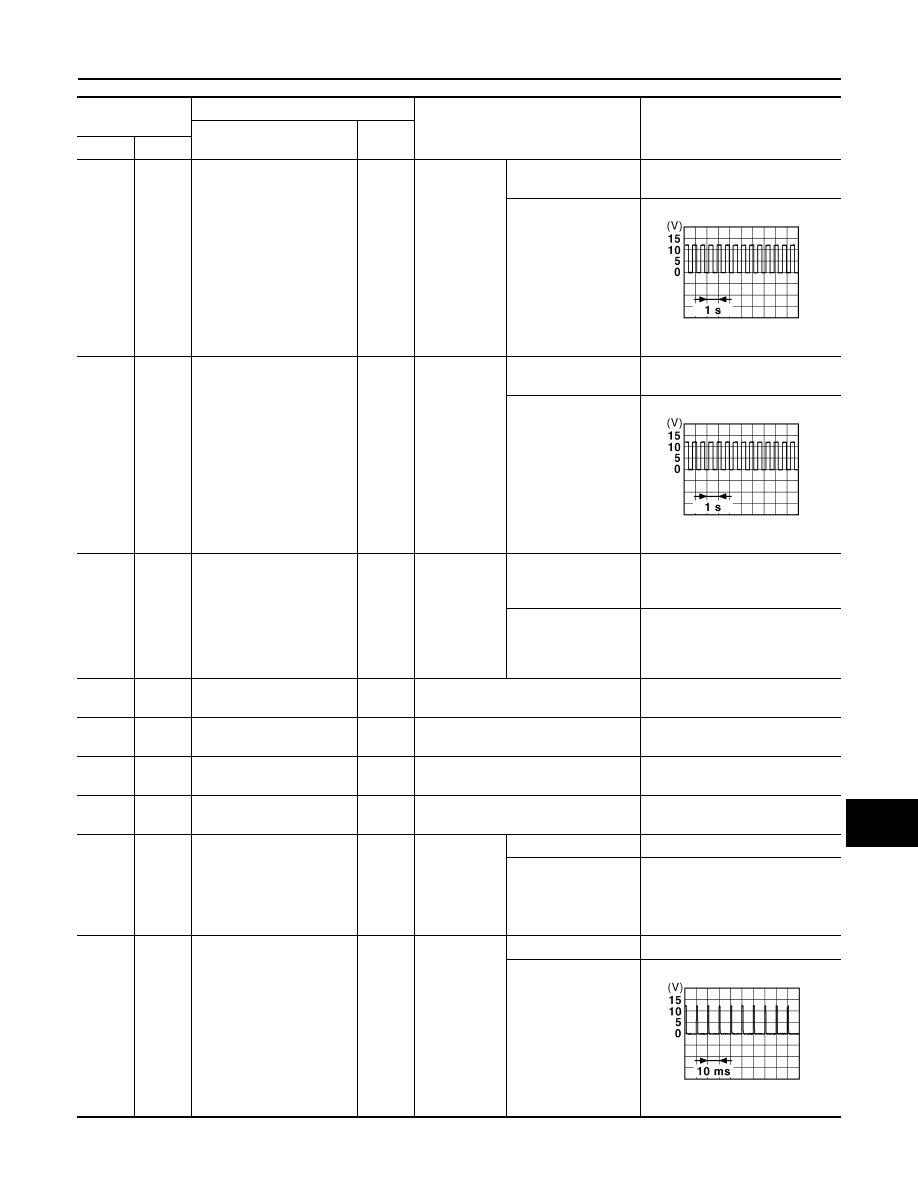

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

(+)

(-)

2

(LA/G)

Ground

Door mirror LH turn signal
lamp output

Output

Push-button
ignition switch
ON

Turn signal switch
OFF

0V

Turn signal switch LH

6.5 V

3

(LA/Y)

Ground

Door mirror RH turn signal
lamp output

Output

Push-button
ignition switch
ON

Turn signal switch
OFF

0V

Turn signal switch RH

6.5 V

4

(P)

Ground Room lamp relay control

Output

Push-button
ignition switch
OFF

Interior room lamp
battery saver opera-
tion timed out

Battery voltage

Any time prior to inte-
rior room lamp bat-
tery saver operation
timed out

0V

5

(R)

Ground CAN low

Input/

Output

6

(L)

Ground CAN high

Input/

Output

8

(L)

Ground CAN high

Input/

Output

9

(R)

Ground CAN low

Input/

Output

10

(BG)

Ground

Main power window and
door lock/unlock switch
lock signal

Input

Main power
window and
door lock/un-
lock switch
(door lock/un-
lock switch)

Lock

Battery voltage

Unlock

0V

11

(Y)

Ground Hazard switch

Input

Hazard
switch

Pressed

0 V

Released

1.1V

PKID0926E

PKID0926E

JPMIA0012GB
