SE-54

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

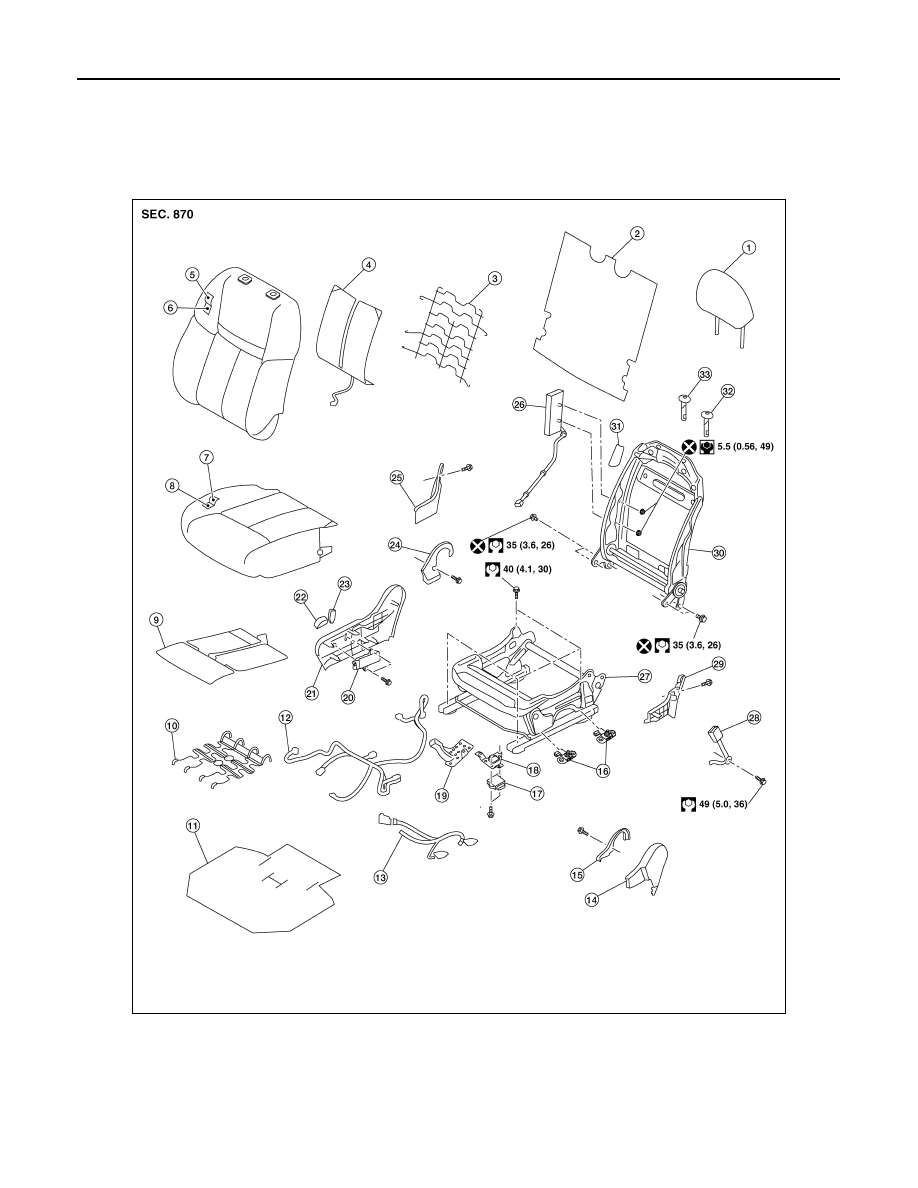

PASSENGER POWER SEAT

25. Side air bag module (not service-

able)

26. Seatback bracket

27. Seatback frame

28. Headrest holder (locked)

29. Headrest holder (free)

AWJIA1616ZZ

1.

Headrest

2.

Seatback board

3.

Seatback support

4.

Seatback heater

5.

Seat cushion trim

6.

Seat cushion pad

7.

Seat cushion trim

8.

Seat cushion pad

9.

Seat cushion heater

10. Seat cushion support

11. Seat cushion silencer

12. Seat harness

13. Occupant classification system

harness

14. Seat cushion outer finisher

(LH)

15. Seat cushion inner finisher (LH)

FRONT SEAT

SE-55

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

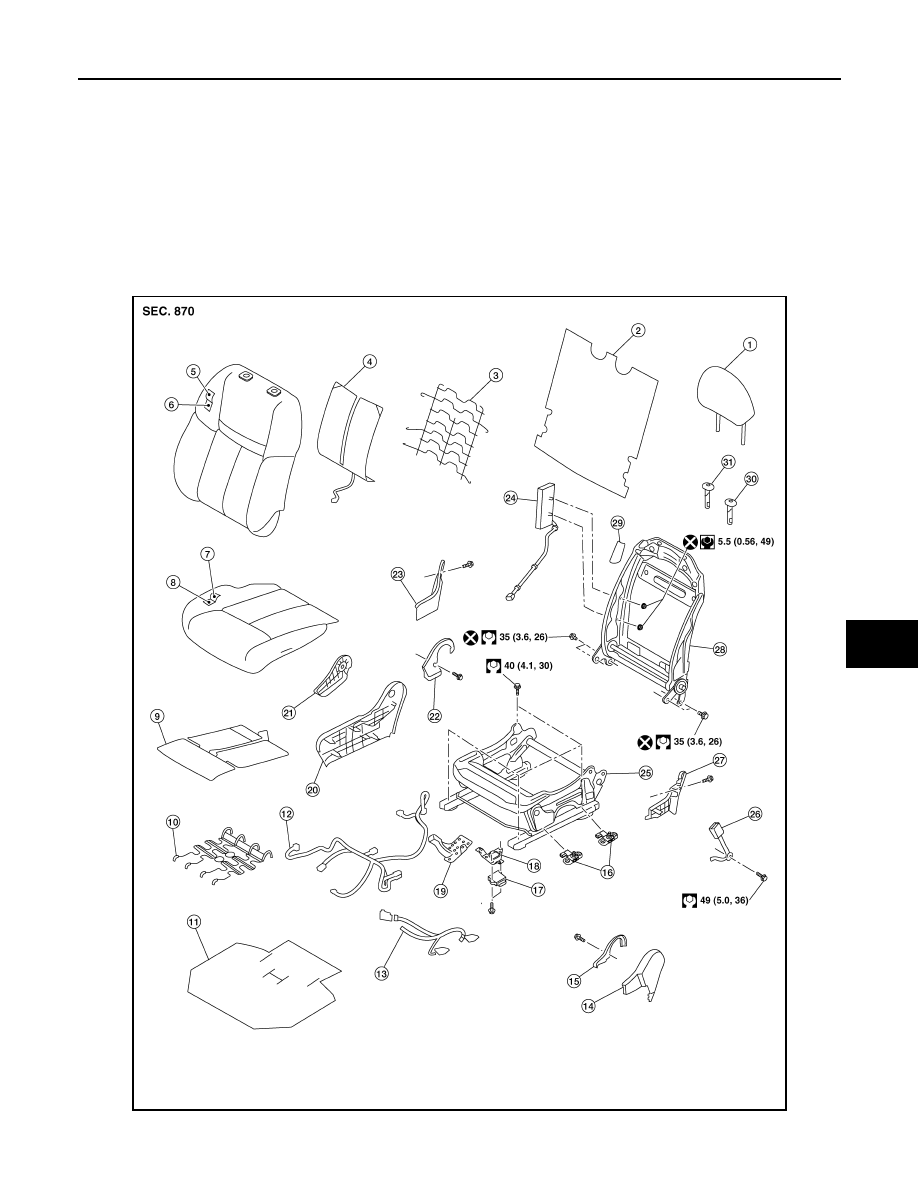

PASSENGER MANUAL SEAT

16. Occupant classification system

sensor

17. Occupant classification sys-

tem control unit

18. Occupant classification system

bracket

19. Wiring harness bracket

20. Power seat switch

21. Seat cushion outer finisher (RH)

22. Seat slide knob

23. Seat recline knob

24. Seat cushion inner finisher (RH)

25. Seat cushion rear finisher (RH)

26. Side air bag module (not ser-

viceable)

27. Seat cushion frame

28. Seat belt buckle

29. Seat cushion rear finisher (LH) 30. Seatback frame

31. Seatback bracket

32. Headrest holder (locked)

33. Headrest holder (free

AWJIA1617ZZ

SE-56

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

Seatback

INFOID:0000000011280467

DISASSEMBLY

WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to

personal injury if the side air bag module should accidentally deploy.

CAUTION:

• Before servicing, turn the ignition switch OFF, disconnect both battery terminals then wait at least

three minutes.

• Always work from the side or back of the seatback, do not work in front of seat.

• Do not use air tools or electric tools for servicing the seat assembly.

• Do not insert any objects into the side air bag module.

• Do not attempt to disassemble the side air bag module.

• Do not expose the side air bag module to temperatures exceeding 93

°C (199°F).

• Do not expose the side air bag module to any oil, grease, detergent or water.

• During disassembly, do not damage the seatback board, connectors, retainers, clips, module har-

ness or the side air bag module.

NOTE:

• If the vehicle has been involved in a collision and the side air bag module has deployed, the seat trim must

be replaced.

• Front seat (LH) shown, front seat (RH) similar.
1. Remove driver side front seat or front seat passenger side. Refer to

SE-32, "DRIVER SIDE : Removal and

Installation"

 (DRIVER SIDE),

SE-35, "PASSENGER SIDE : Removal and Installation"

 (PASSENGER

SIDE).

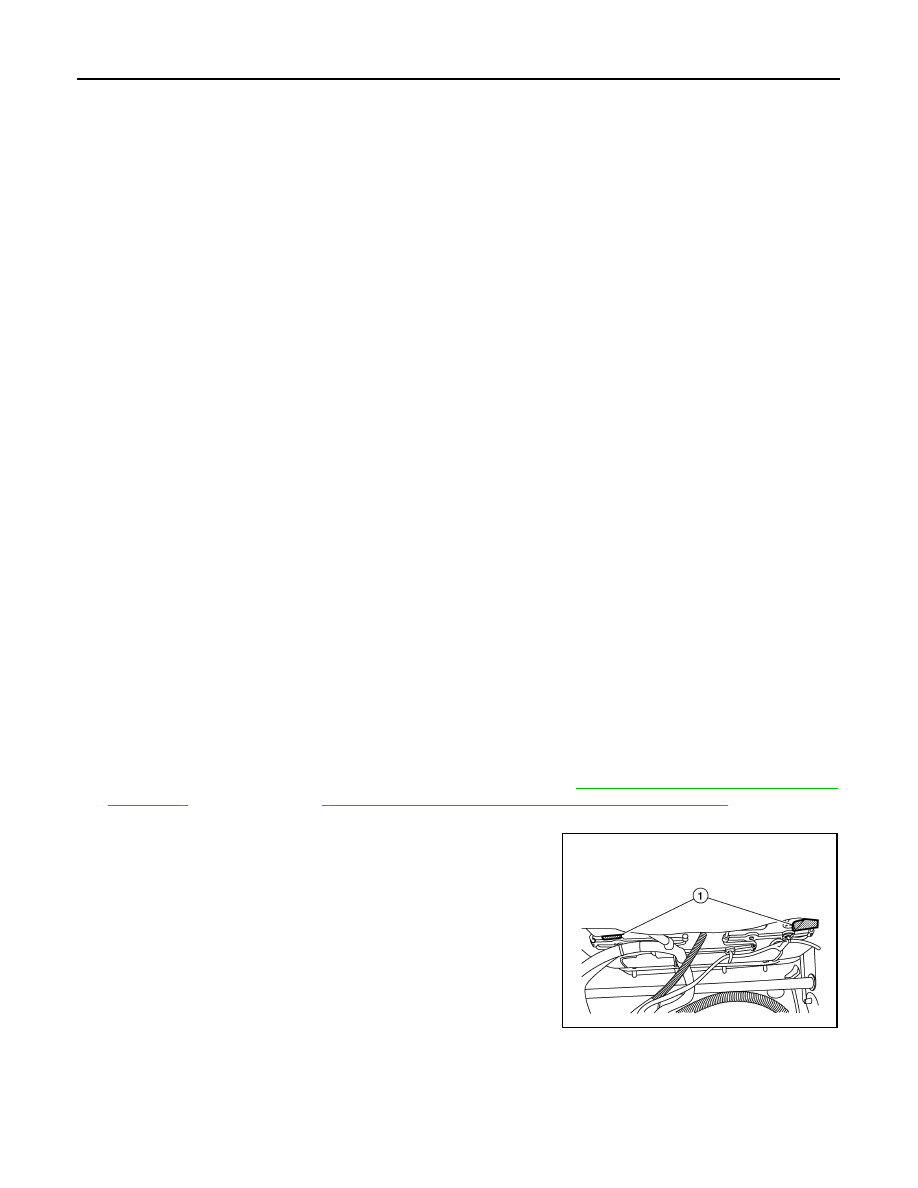

2. Release J-hooks (1) fastener (LH/RH).

3. Press the headrest holder lock button, then lift headrest up and remove.

1.

Headrest

2.

Seatback board

3.

Seatback support

4.

Seatback heater (if equipped)

5.

Seatback trim

6.

Seatback pad

7.

Seat cushion trim

8.

Seat cushion pad

9.

Seat cushion heater (if
equipped)

10. Seat cushion support

11. Seat cushion silencer

12. Seat harness

13. Occupant classification system

harness

14. Seat cushion outer finisher

(LH)

15. Seat cushion inner finisher (LH)

16. Occupant classification system

sensor

17. Occupant classification sys-

tem control unit

18. Occupant classification system

control unit bracket

19. Wiring harness bracket

20. Seat cushion outer finisher

21. Recline lever

22. Seat cushion inner finisher (RH) 23. Seat cushion rear finisher

(RH)

24. Side air bag module (not service-

able)

25. Seat cushion frame

26. Seat belt buckle

27. Seat cushion rear finisher (LH)

28. Seatback frame

29. Seatback bracket

30. Headrest holder (free)

31. Headrest holder (locking)

ALJIA1426ZZ

FRONT SEAT

SE-57

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

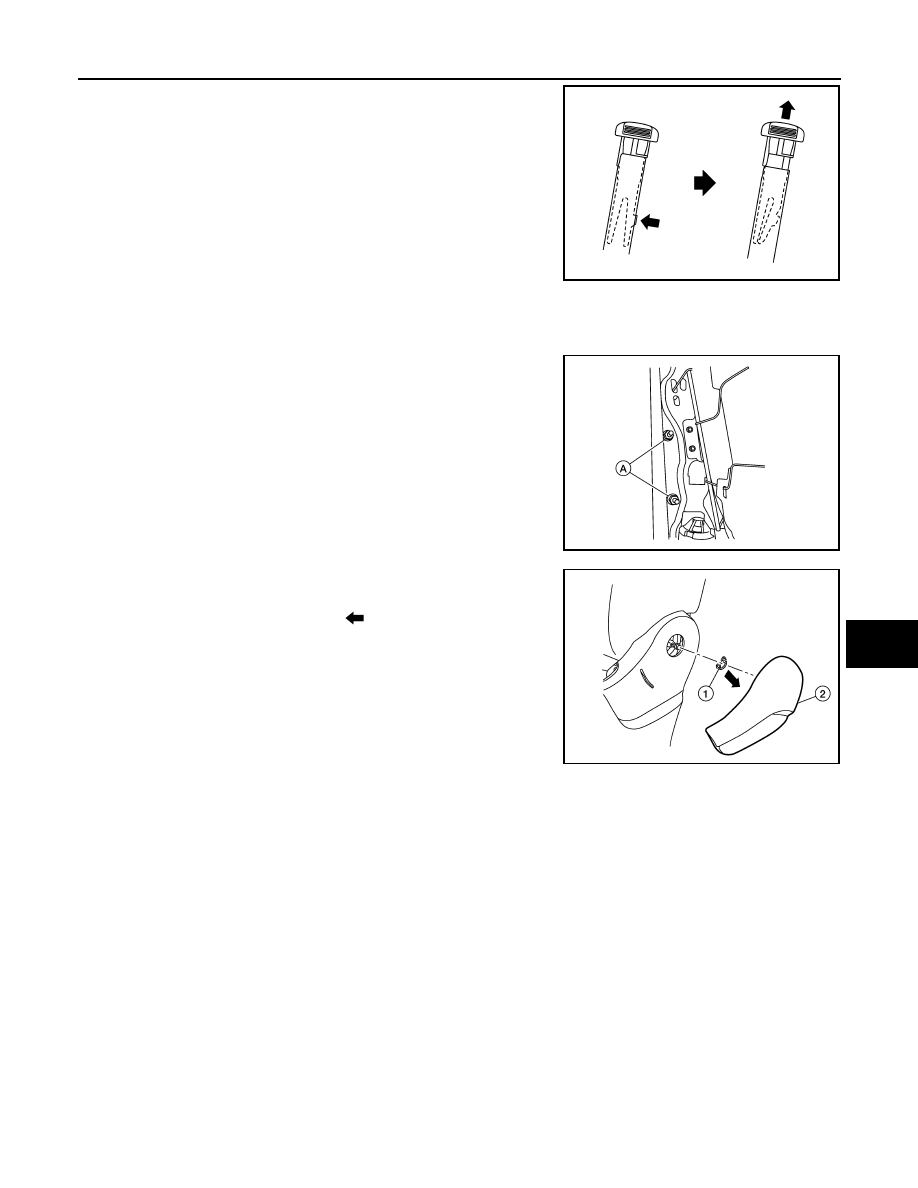

4. Release headrest holder locks as shown and remove headrest

holders.

CAUTION:

Before removing/installing the headrest holder, check its

orientation (front/rear and right/left).

5. Release side air bag module harness clips from seat frame.

NOTE:

Take note of harness routing and attachment location for correct installation.

6. Remove side air bag module harness nuts (A).

CAUTION:

Do not reuse side air bag module nuts.

7. Remove seat cushion outer finisher (LH).
a. For manual seat:
i.

Remove snap ring (1) as shown (

) using a suitable tool, then

remove the recline lever (2).

ii.

Release pawl and remove lift lever.
