HEATED SEAT SWITCH

HEATED SEAT SWITCH

Exploded View

INFOID:0000000011280464

Removal and Installation

INFOID:0000000011280465

REMOVAL

1. Remove the center console cup holder. Refer to

IP-19, "Exploded View"

.

2. Remove screws from switch carrier and remove switch carrier.
3. Release pawls and remove heated seat switch.

INSTALLATION

Installation is in the reverse order of removal.

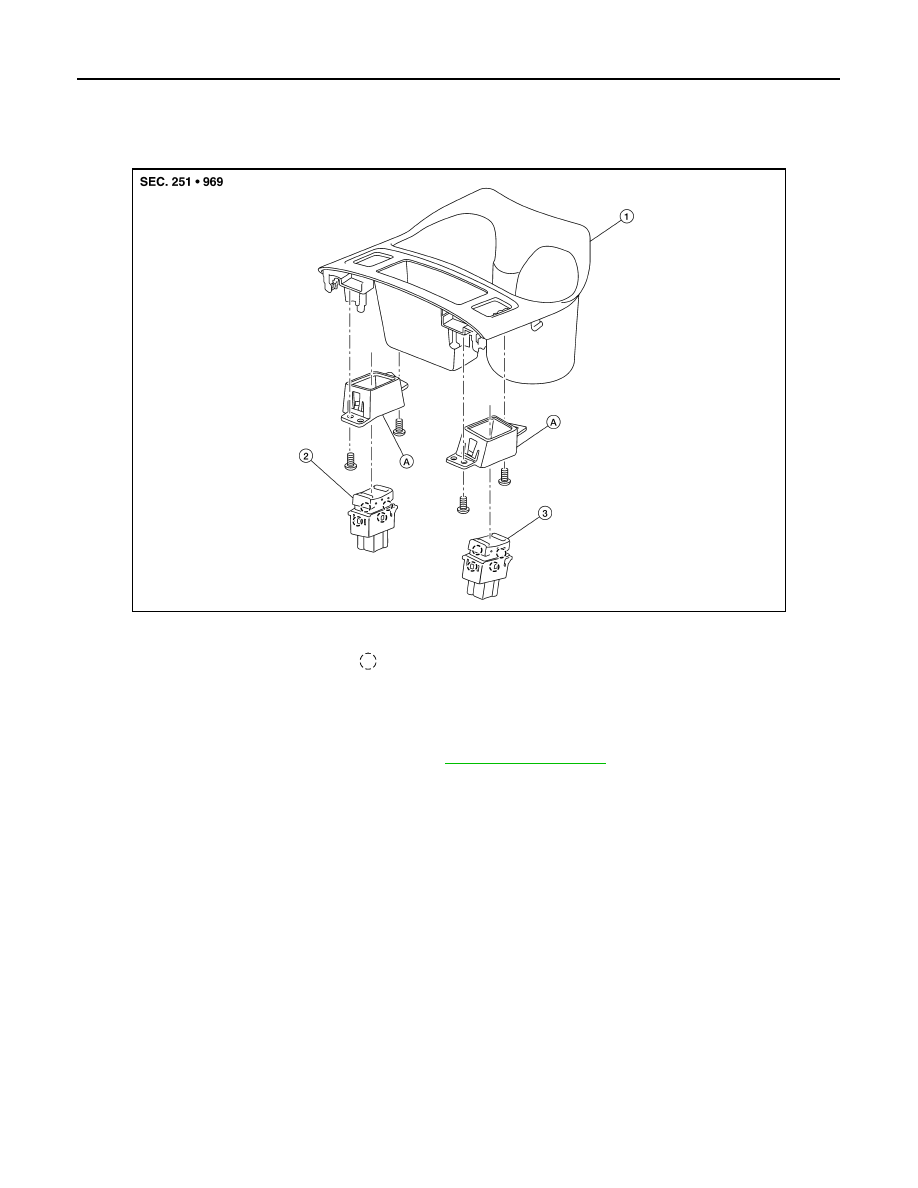

AWJIA1298ZZ

1.

Center console cup holder

2.

Driver heated seat switch

3.

Passenger heated seat switch

A.

Switch carrier

Pawl

FRONT SEAT

SE-51

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT SEAT

Exploded View

INFOID:0000000011280466

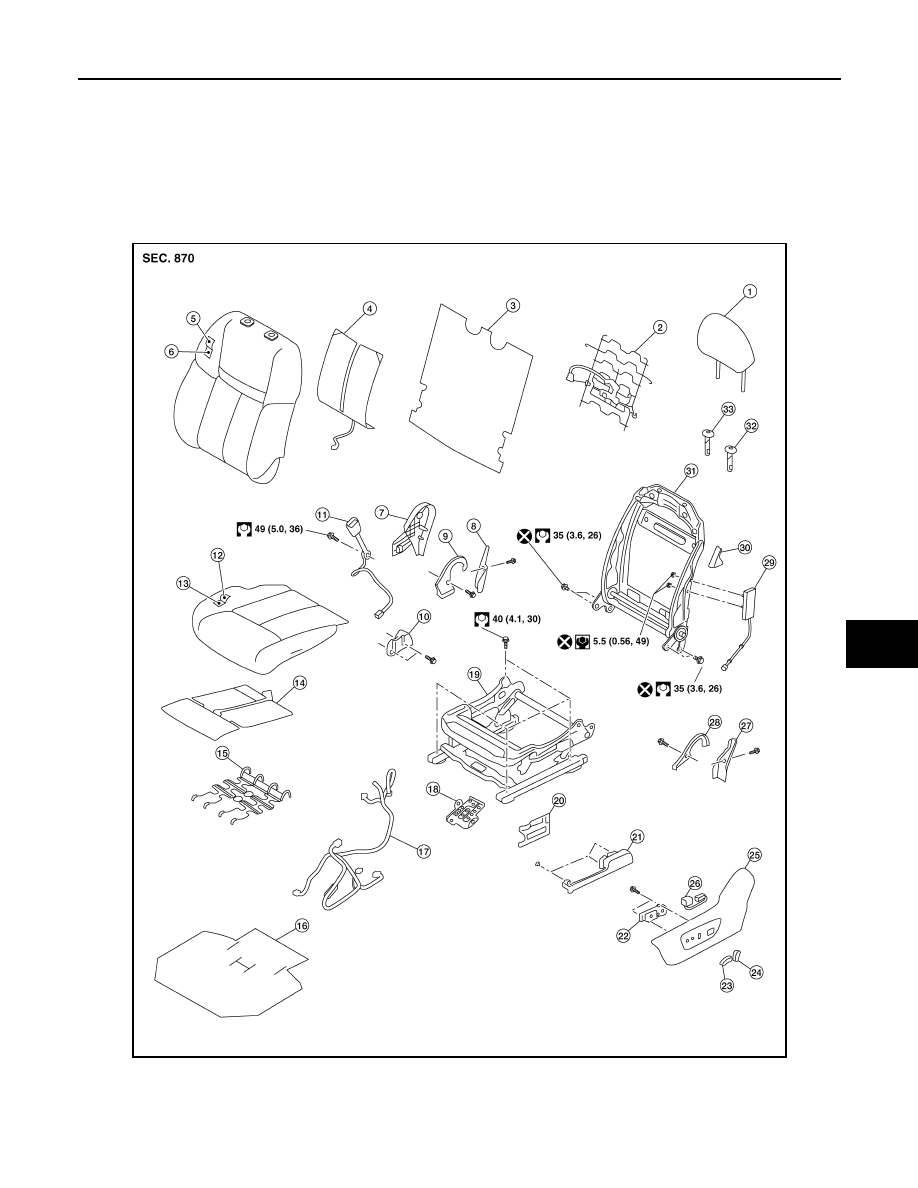

DRIVER POWER SEAT

AWJIA1614ZZ

1.

Headrest

2.

Seatback support

3.

Seatback board

4.

Seatback heater (if equipped)

5.

Seatback trim

6.

Seatback pad

7.

Seat cushion outer finisher (RH) 8.

Seat cushion rear finisher (RH)

9.

Seat cushion inner finisher (RH)

SE-52

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

10. Seat slide finisher (RH)

11. Seat belt buckle

12. Seat cushion trim

13. Seat cushion pad

14. Seat cushion heater (if

equipped)

15. Seat cushion support

16. Seat cushion silencer

17. Seat harness

18. Seat harness bracket

19. Seat cushion frame

20. Seat slide finisher bracket (LH)

21. Seat slide finisher (LH)

22. Power seat switch

23. Seat slide knob

24. Seat recline knob

25. Seat cushion outer finisher (LH) 26. Lumbar support switch

27. Seat cushion rear finisher (LH)

28. Seat cushion inner finisher (LH) 29. Side air bag module (not service-

able)

30. Seatback bracket

31. Seatback frame

32. Headrest holder (locked)

33. Headrest holder (free)

FRONT SEAT

SE-53

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

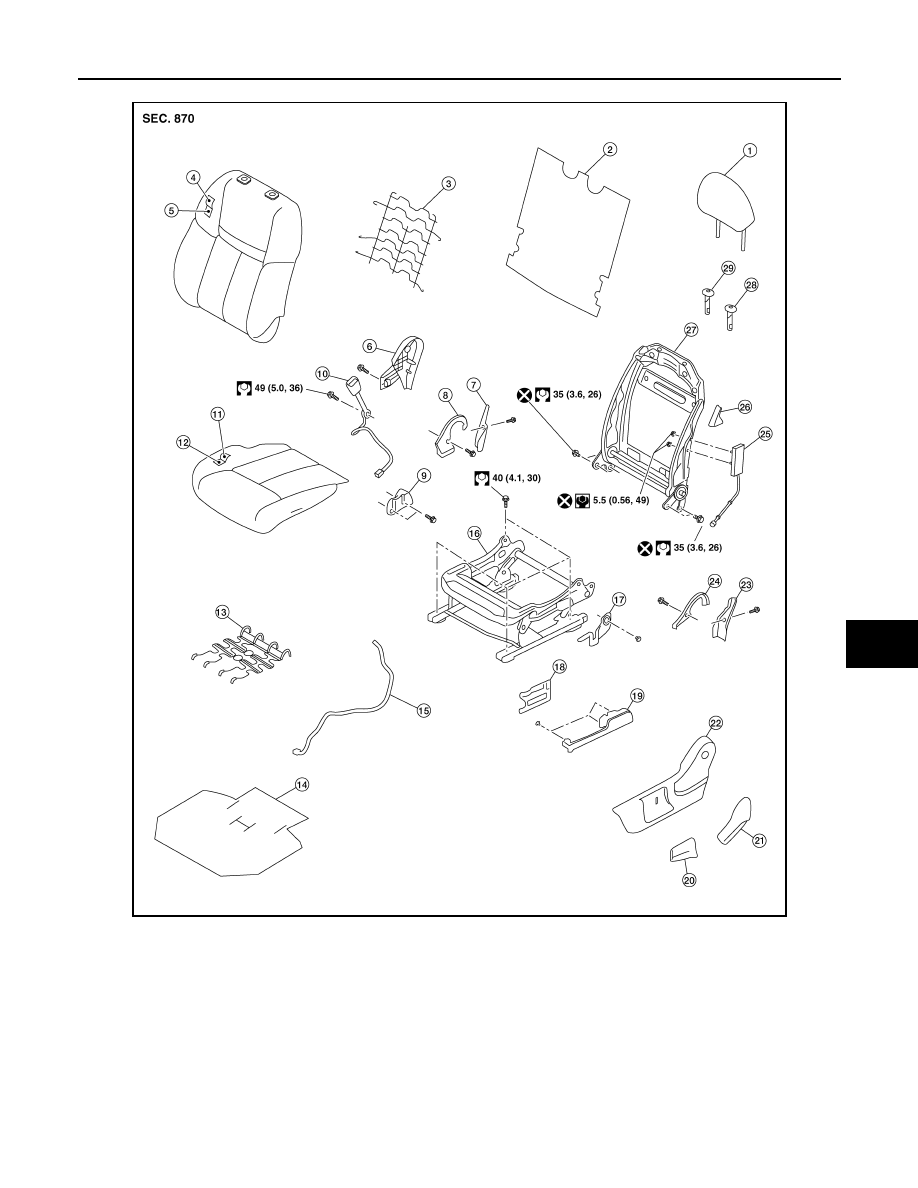

DRIVER MANUAL SEAT

AWJIA1615ZZ

1.

Headrest

2.

Seatback board

3.

Seatback support

4.

Seatback trim

5.

Seatback pad

6.

Seat cushion outer finisher

7.

Seat cushion rear finisher (RH)

8.

Seat cushion inner finisher (RH) 9.

Seat slide finisher (RH)

10. Seat belt buckle

11. Seat cushion trim

12. Seat cushion pad

13. Seat cushion support

14. Seat cushion silencer

15. Seat harness

16. Seat cushion frame

17. Recline switch

18. Seat slide finisher bracket (LH)

19. Seat slide finisher (LH)

20. Lift lever

21. Recline lever

22. Seat cushion outer finisher (LH) 23. Seat cushion rear finisher (LH)

24. Seat cushion inner finisher (LH)
