POWER SEAT SWITCH

POWER SEAT SWITCH

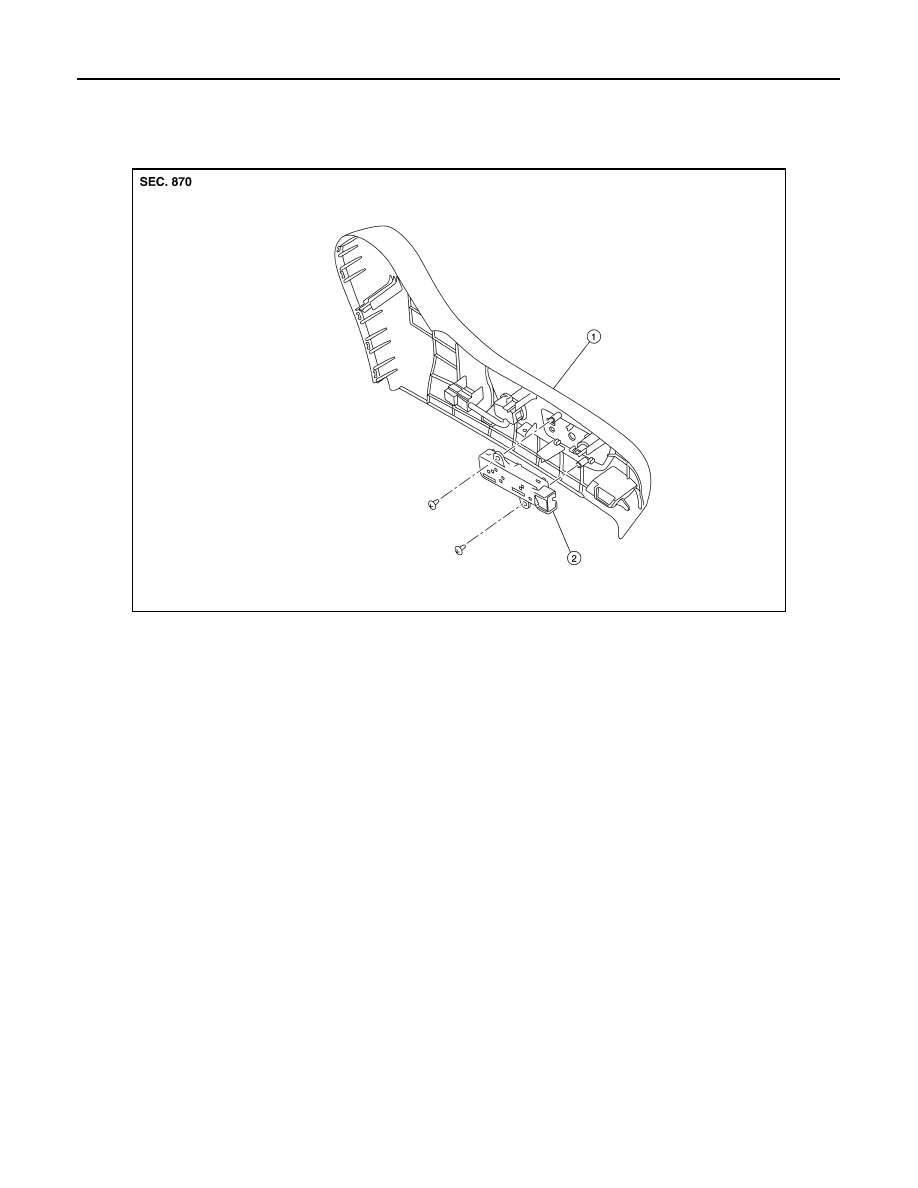

Exploded View

INFOID:0000000011280460

Removal and Installation

INFOID:0000000011280461

REMOVAL

NOTE:

LH shown, RH similar.

ALJIA1415ZZ

1.

Seat cushion outer finisher

2.

Power seat switch

POWER SEAT SWITCH

SE-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

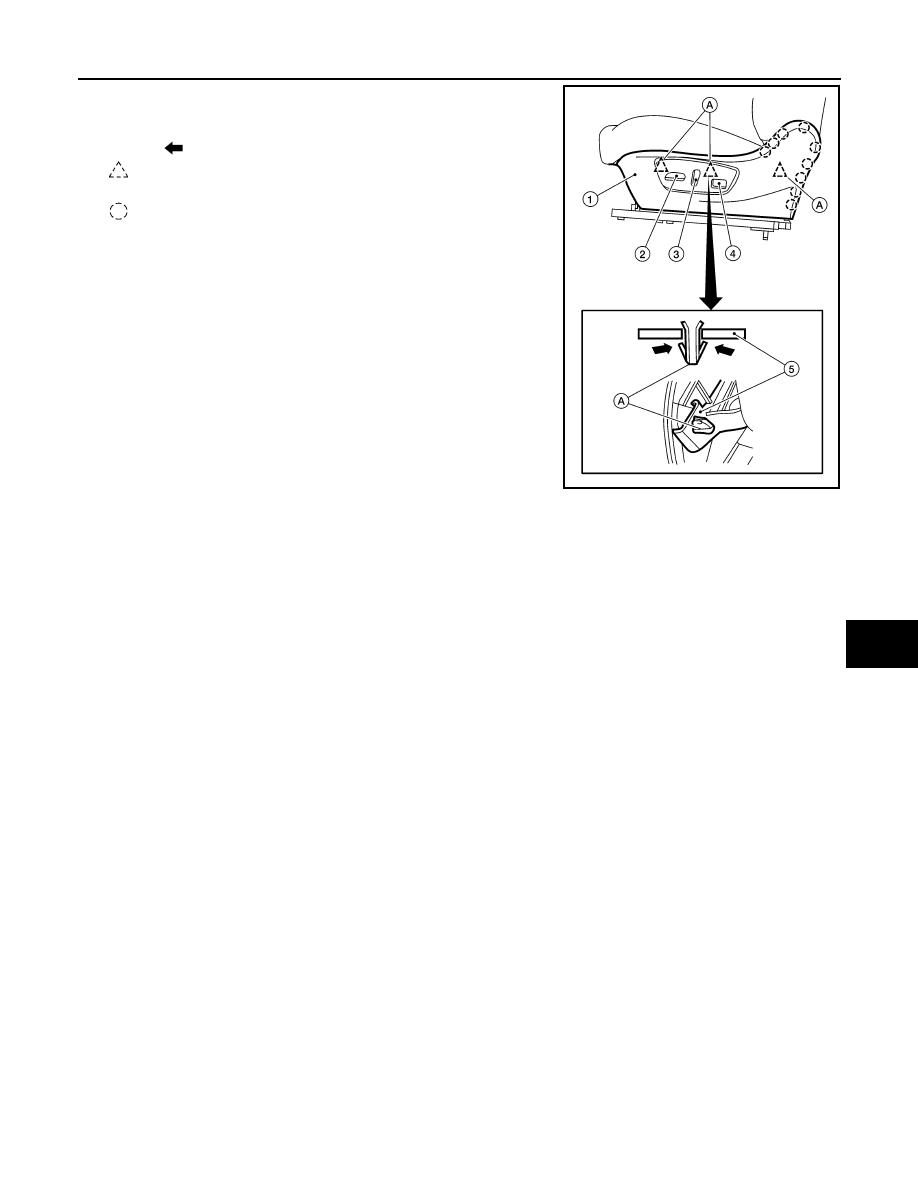

1. Remove the seat cushion outer finisher (1).
a. Remove seat slide knob (2), seat recline knob (3) and seat lum-

bar knob (4), then release metal clips (A) from seat frame (5), as
shown (

).

:Clip

b. Release pawls and remove.

: Pawl

2. Disconnect harness connector from power seat switch.
3. Remove screws and power seat switch.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Visually check the clips for deformation and damage during installation. Replace with new ones if

necessary.

• When installing seat cushion outer finisher, check that clips are securely placed into seat cushion

frame holes.

AWJIA1566ZZ

SE-48

< REMOVAL AND INSTALLATION >

LUMBAR SUPPORT SWITCH

LUMBAR SUPPORT SWITCH

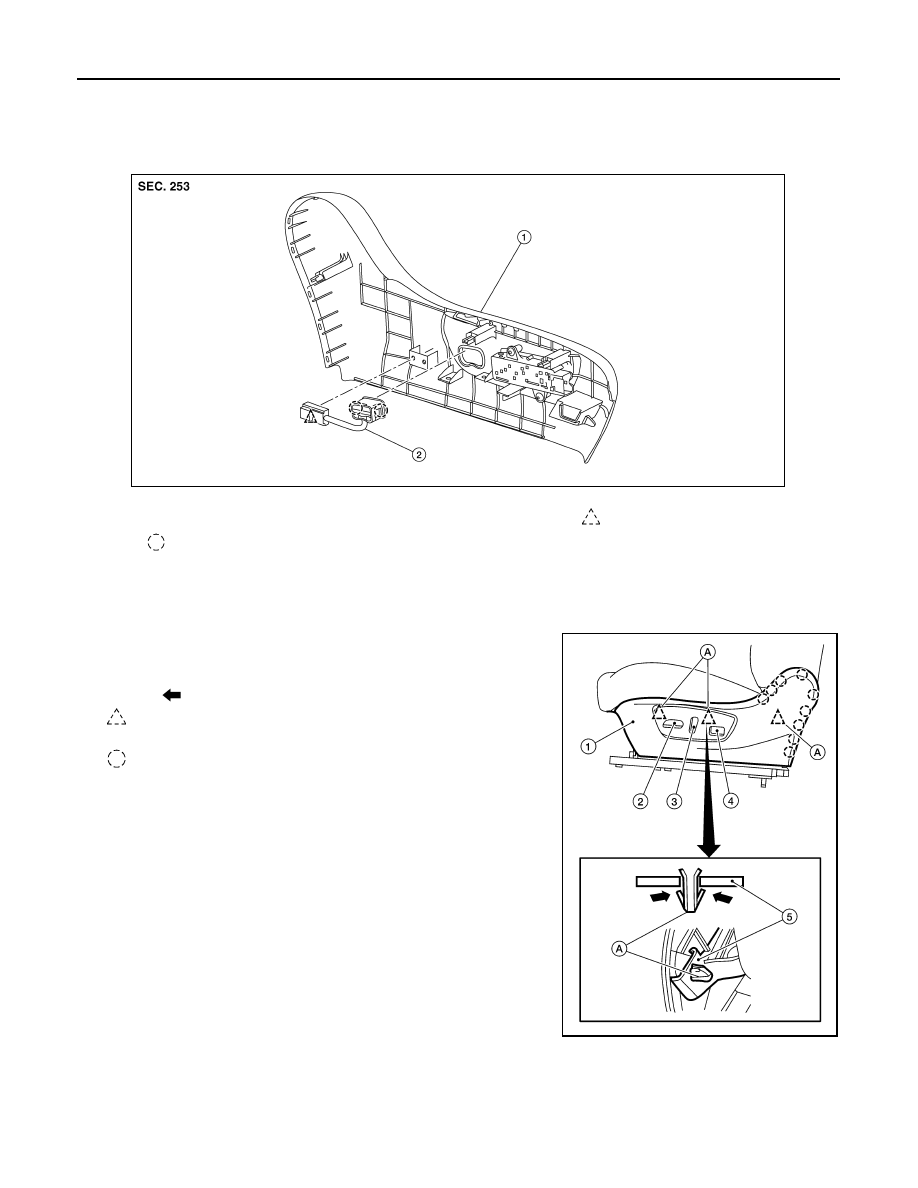

Exploded View

INFOID:0000000011280462

Removal and Installation

INFOID:0000000011280463

REMOVAL

1. Remove the seat cushion outer finisher (1).
a. Remove seat slide knob (2), seat recline knob (3) and seat lum-

bar knob (4), then release metal clips (A) from seat frame (5), as
shown (

).

:Clip

b. Release pawls and remove.

: Pawl

2. Disconnect harness connector from lumbar support switch.
3. Using a suitable tool release clip and pawls and remove lumbar support switch.

INSTALLATION

Installation is in the reverse order of removal.

1.

Seat cushion outer finisher

2.

Lumbar support switch

Clip

Pawl

ALJIA1480ZZ

AWJIA1566ZZ

LUMBAR SUPPORT SWITCH

SE-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

CAUTION:

• Visually check the clips and pawls for deformation and damage during installation. Replace with new

ones if necessary.

• When installing seat cushion outer finisher, check that clips are securely placed into seat cushion

frame holes.
